Description

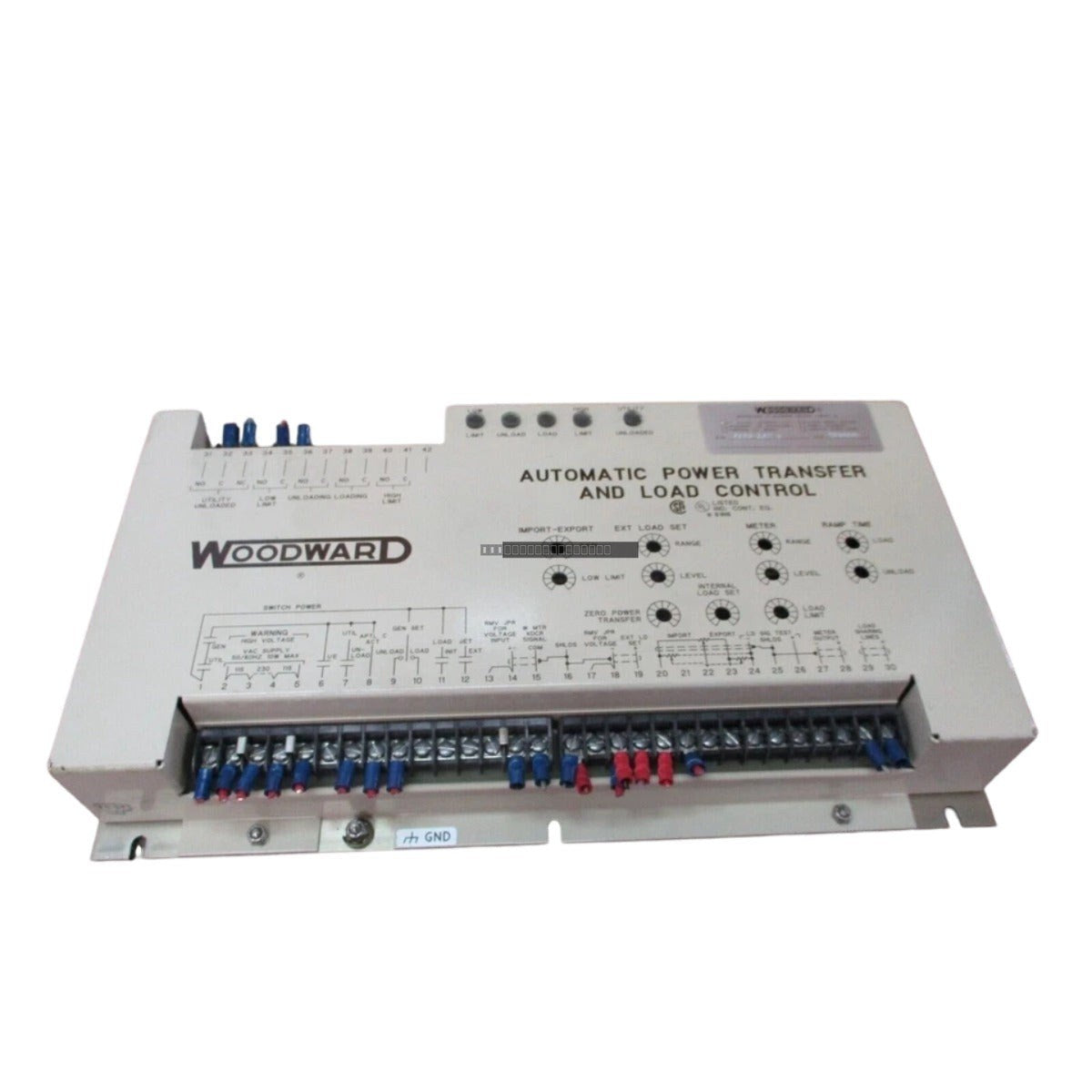

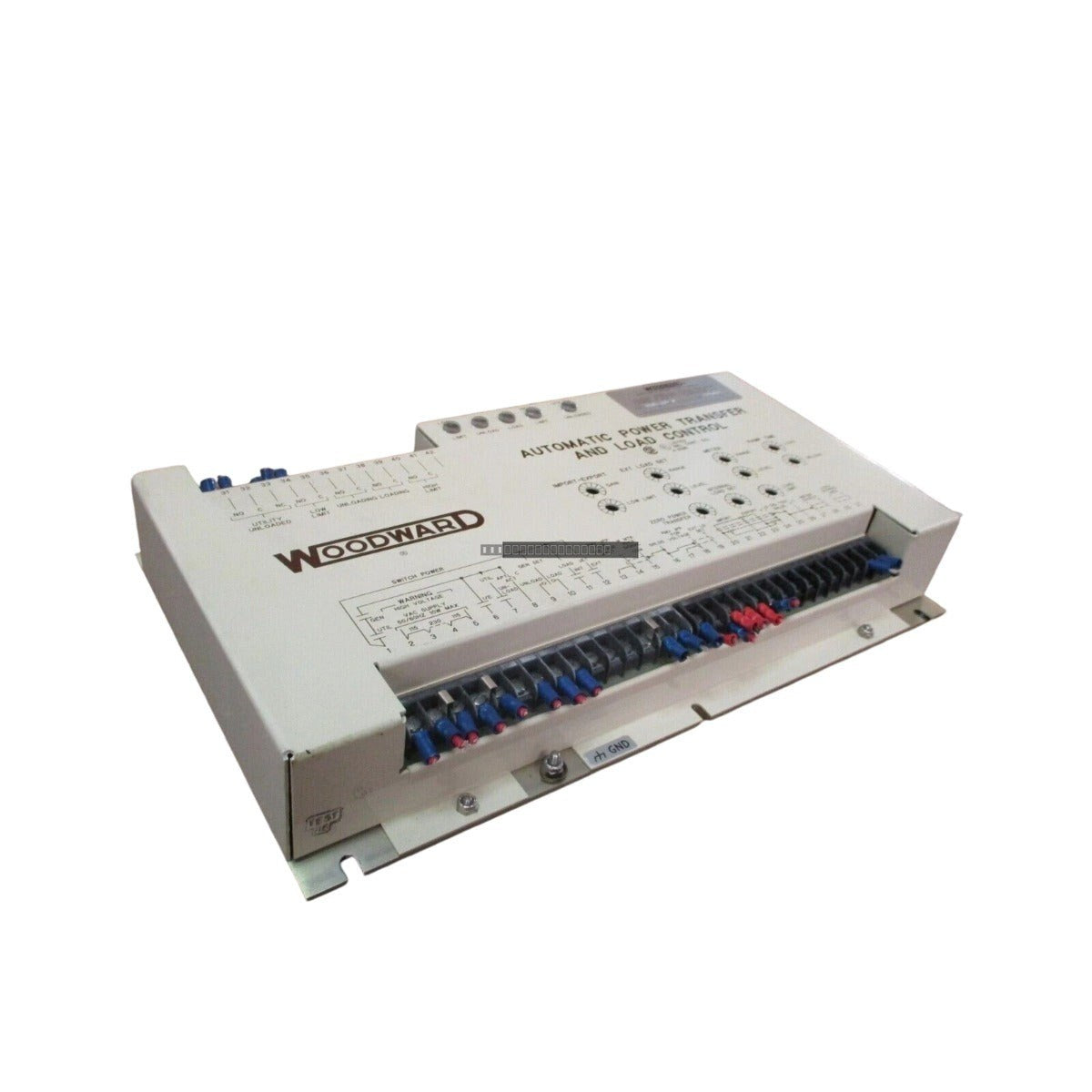

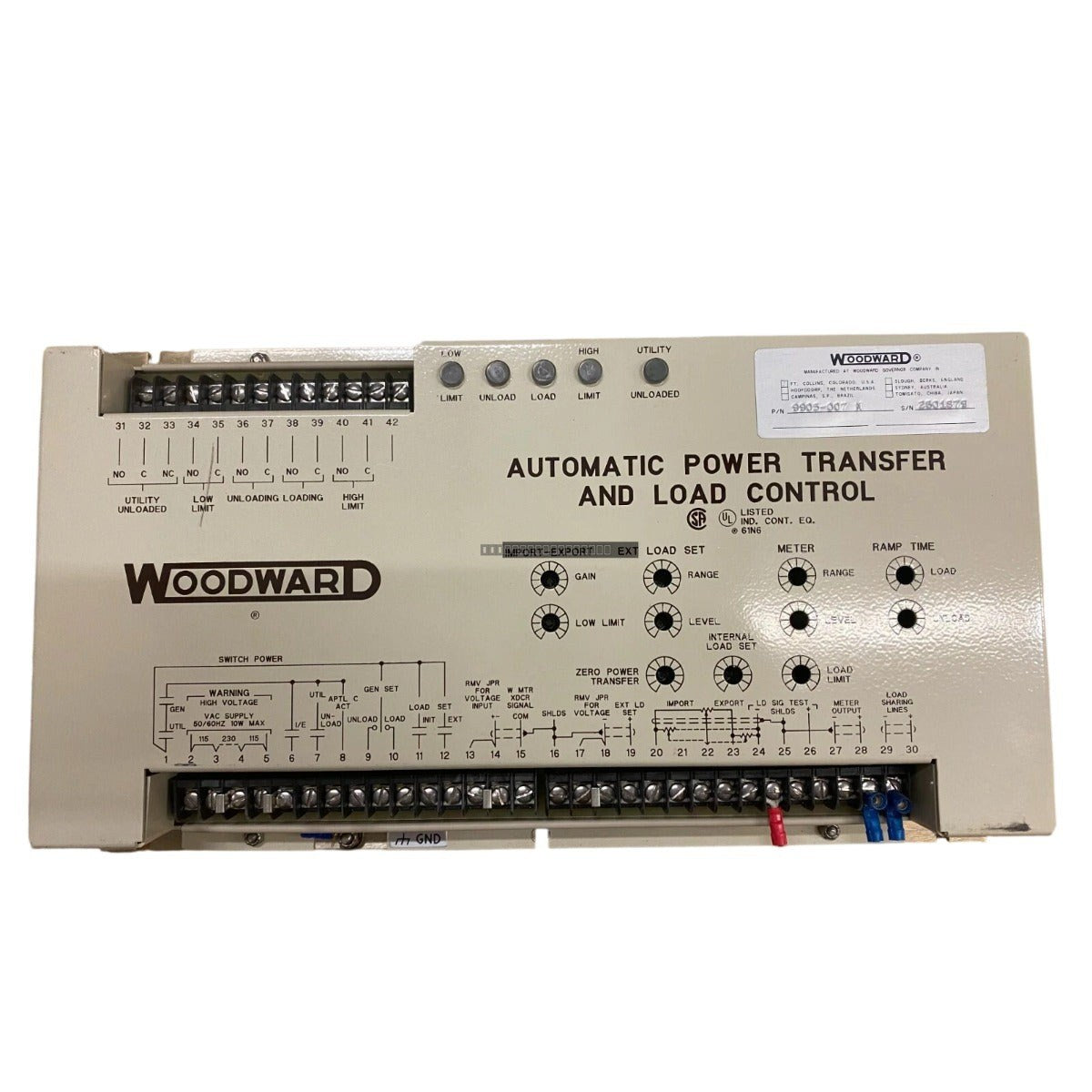

The Woodward 9905-007N is a specialized load control module engineered for precise power management within Woodward control systems. This component is essential for governor systems utilized in power generation facilities, offshore drilling platforms, and industrial pumping stations. By facilitating synchronized load sharing and speed control for prime movers, the module ensures grid stability and prevents engine overloads. It maintains exact electrical load distribution between multiple generator sets, thereby minimizing mechanical stress and reducing unplanned downtime in mission-critical environments.
Features
- Provides high-speed processing of load sensing signals for real-time fuel rack adjustment.
- Features robust analog-to-digital interface for seamless communication with Woodward electronic governors and speed controls.
- Equipped with internal isolation circuitry to protect sensitive control logic from high-voltage transients.
- Compact, vibration-resistant chassis design suitable for demanding industrial environments.
Applications
This module is primarily used in power generation, marine propulsion, and heavy-duty industrial pumping applications where precise load sharing and prime mover synchronization are required to maintain system integrity and efficiency.
Technical Specifications
| Model |
9905-007N |
| Brand |
Woodward |
| Product Type |
Load Control Module |
| Operating Temperature |
-40 to 70 deg C |
Installation Guidelines
- Ensure the module is mounted in a vibration-resistant enclosure, suitable for DIN rail or panel mounting.
- Always power down the control system before inserting or removing the module to prevent electrical damage.
- Ensure proper grounding of the chassis to mitigate EMI/RFI interference common in power distribution environments.
- Route signal cables away from high-voltage power lines to maintain signal integrity.
- Follow standard ESD (Electrostatic Discharge) handling procedures during installation and maintenance.
FAQ
What is the primary function of the 9905-007N?
The 9905-007N serves as a load control module that manages power distribution and load sharing between multiple generator sets, ensuring stable operation of prime movers.
Is this module compatible with other Woodward governors?
Yes, it is designed for integration with Woodward electronic governors and speed control systems to provide real-time adjustments to fuel rack positions based on load sensing signals.
What environmental conditions can this module withstand?
The unit is designed for industrial use with an operating temperature range of -40 to 70 deg C and a vibration-resistant housing.
