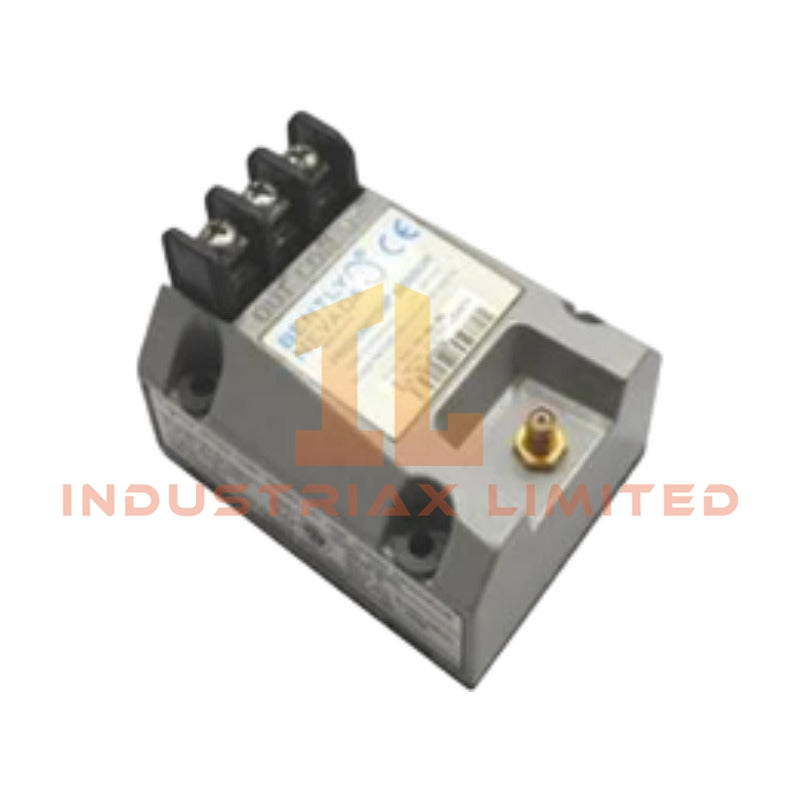

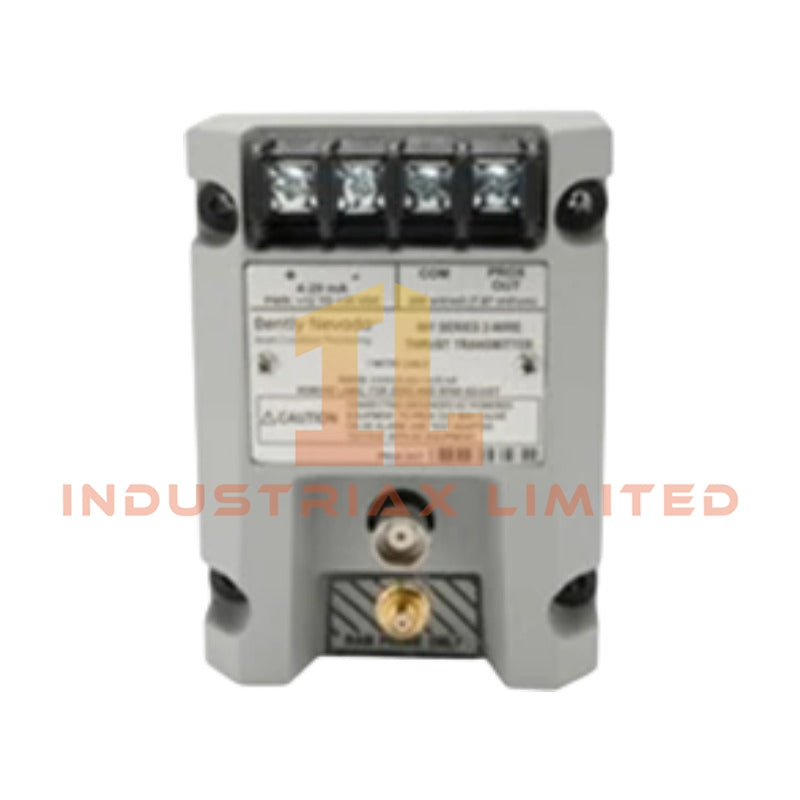

Bently Nevada 990-04-XX-03-00 Vibration Transmitter Configured for radial shaft vibration monitoring in API 670 compliant machinery protection architectures, the Bently...
Read more
Configured for radial shaft vibration monitoring in API 670 compliant machinery protection architectures, the Bently Nevada 990-04-XX-03-00 (base model 990) provides direct physical execution of 4-20 mA proportional current signaling derived from eddy-current proximity probe input without intermediate monitoring racks.
Suffix Breakdown & Model Matrix
Code Segment
Definition
990
990 Vibration Transmitter Series
04
Full-scale range: 0–4.0 mils pp
XX
System length option (typically 5.0 m or 7.0 m)
03
35 mm DIN-rail mounting
00
No agency approvals
Hardware Specifications
Parameter
Specification
Model Brand
Bently Nevada
Origin
USA
Weight
295 g
Dimensions
Polyamide housing, DIN-rail form factor
Operating Temp
-35 degC to +85 degC
Power Consumption
12–35 VDC loop power
Input Signal
3300 NSv proximity probe system
Output Signal
4–20 mA DC proportional to vibration amplitude
Accuracy
±6% FS over operating temp range
Buffered Output
Coaxial BNC, 7.87 V/mm nominal
Eddy-Current Probe Scaling and Gap Voltage Validation
The transmitter interfaces exclusively with the 3300 NSv eddy-current transducer system, requiring precise probe tip clearance to maintain linear measurement scaling. Calibration targets a -10 VDC gap voltage setpoint for optimal dynamic range. Signal conditioning includes cross-talk suppression between adjacent transducer channels to prevent mechanical resonance coupling errors in rotor dynamics analysis.
Frequently Asked Questions
Q: Can the unit be calibrated without removing it from the DIN rail?
A: Yes. Calibration can be performed in situ using the buffered BNC output while maintaining loop continuity.
Q: Does the transmitter support hot-swapping in live loops?
A: No. Loop power must be disconnected before removal to avoid transient overcurrent on the 4–20 mA line.
Q: What is the effect of incorrect system length selection?
Install the transmitter on a grounded 35 mm DIN rail within an IP-rated enclosure. Maintain separation between signal and power wiring to minimize electromagnetic interference. Terminate shield drains to earth ground at one end only. Verify probe gap voltage prior to final commissioning. Ensure all terminal screws meet torque specifications for 0.2–2.5 mm² conductors.
