Description

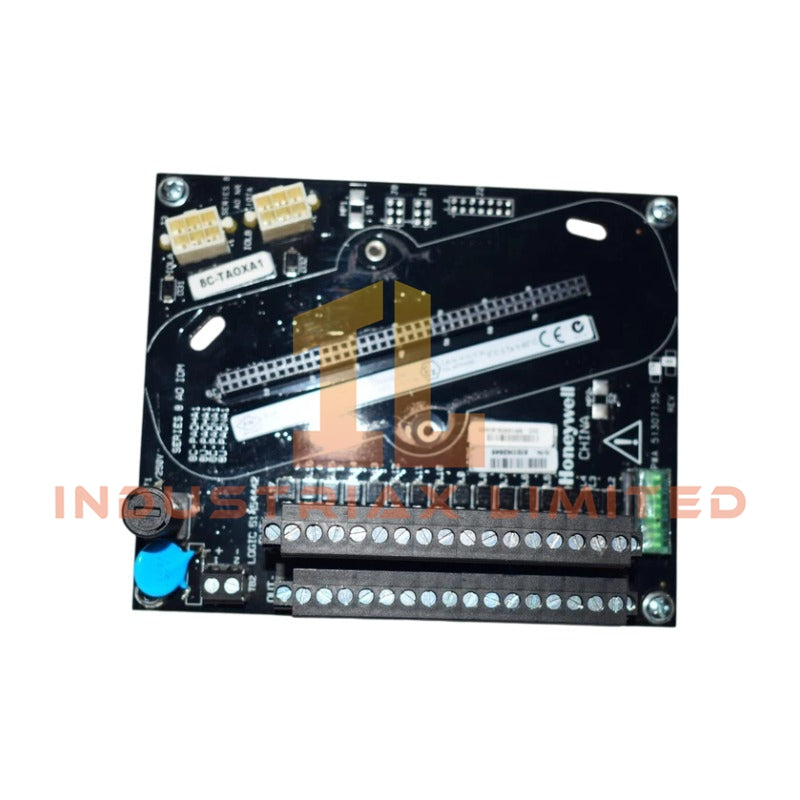

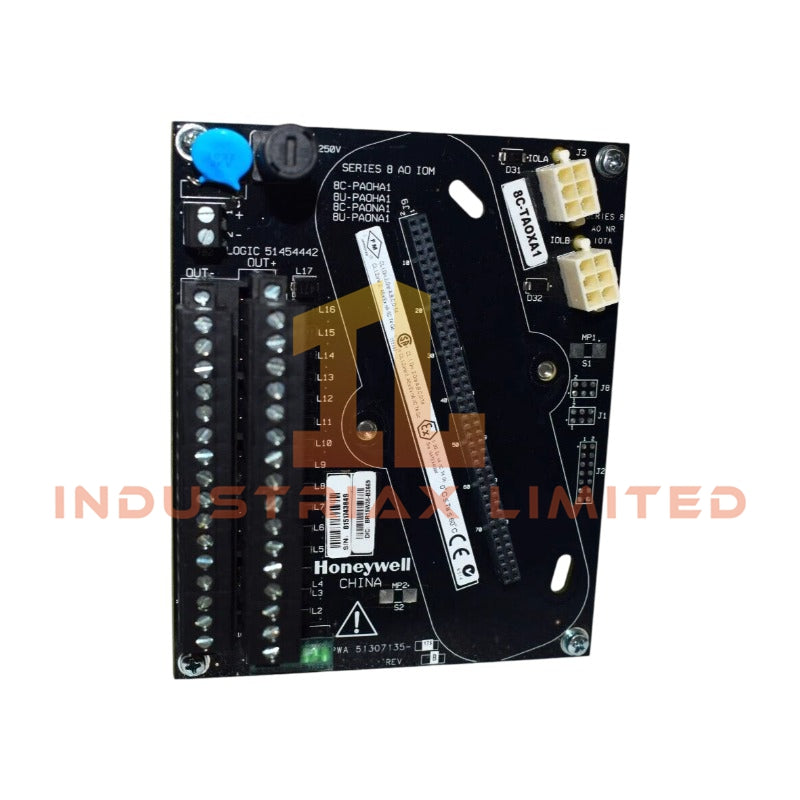

Honeywell 8U-TAOXA1 Analog Output Terminal Assembly

Configured for analog signal termination in the Honeywell Experion PKS Series 8 I/O system, the Honeywell 8U-TAOXA1 (8U-TAOXA1 Analog Output Terminal Assembly) provides direct field wiring interface and electrical connection execution between analog output modules and connected field devices.

Hardware Specifications

Parameter	Specification
Model	8U-TAOXA1
Brand	Honeywell
Origin	USA
Operating Temp	0 deg C to +60 deg C
Power Consumption	Passive terminal assembly; no independent power consumption
System Compatibility	Honeywell Experion PKS Series 8 I/O
Hardware Type	Analog Output Terminal Assembly
Coating Type	Uncoated (Non-conformal)
Signal Interface	4-20 mA DC analog output termination
Channel Capacity	16 channels
Mounting Method	Series 8 I/O carrier mounting
Field Connection	Screw terminal or equivalent field wiring termination
Communication Support	HART pass-through when paired with compatible analog output modules
Hot Swap Support	Supports replacement procedures within Series 8 I/O architecture according to system installation requirements

Process Control Signal Interface and Isolation Features

The Honeywell 8U-TAOXA1 provides the physical termination point for analog output loops connected to Experion PKS Series 8 I/O modules. Therefore, the assembly maintains field wiring organization and signal routing between control modules and external actuators.

When installed with compatible Honeywell analog output modules, the terminal assembly supports 4-20 mA HART loop protocol pass-through communication. In addition, the connected I/O architecture provides channel-to-channel signal management according to the selected Series 8 module design.

The terminal assembly does not perform analog signal conversion or independent signal processing. Instead, it transfers electrical signals between the I/O module terminals and field wiring connections while maintaining the specified cabinet wiring arrangement.

Frequently Asked Questions

Q: Does the 8U-TAOXA1 perform analog signal conversion?
A: No. The 8U-TAOXA1 is a terminal assembly that provides field wiring termination. The associated Analog Output I/O module performs signal generation and control processing.

Q: Can the 8U-TAOXA1 support HART communication?
A: Yes. HART pass-through communication is available when the terminal assembly operates with a compatible Honeywell Series 8 Analog Output module supporting HART functionality.

Q: Is the 8U-TAOXA1 suitable for redundant I/O configurations?
A: The terminal assembly can be installed within Series 8 I/O configurations that support redundancy. The exact redundant wiring arrangement depends on the selected I/O module and system design.

Field Installation Guidelines

Install the 8U-TAOXA1 on the designated Honeywell Series 8 I/O carrier position according to the system hardware configuration.

Before wiring, verify the terminal assignment between the Analog Output module and the connected field device. Maintain correct polarity for 4-20 mA current loops to prevent signal inversion or loop faults.

Use shielded instrumentation cable where required by the installation design. Connect cable shields according to the site grounding standard and avoid routing analog signal wiring parallel to high-current power cables.

Confirm that field wiring insulation, terminal tightening, and cabinet grounding meet the applicable industrial control installation requirements before system commissioning.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
