Description

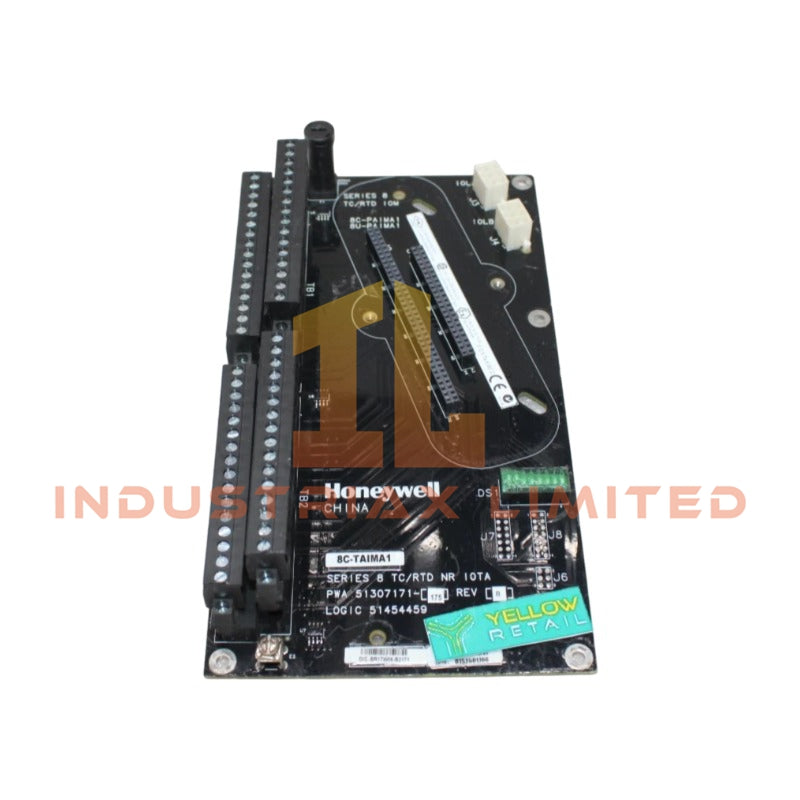

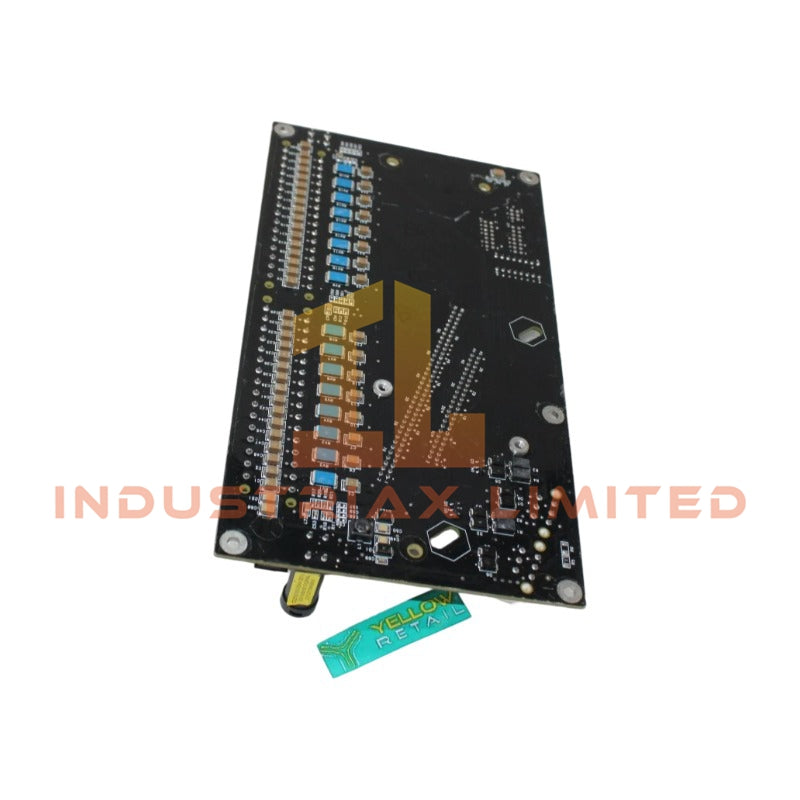

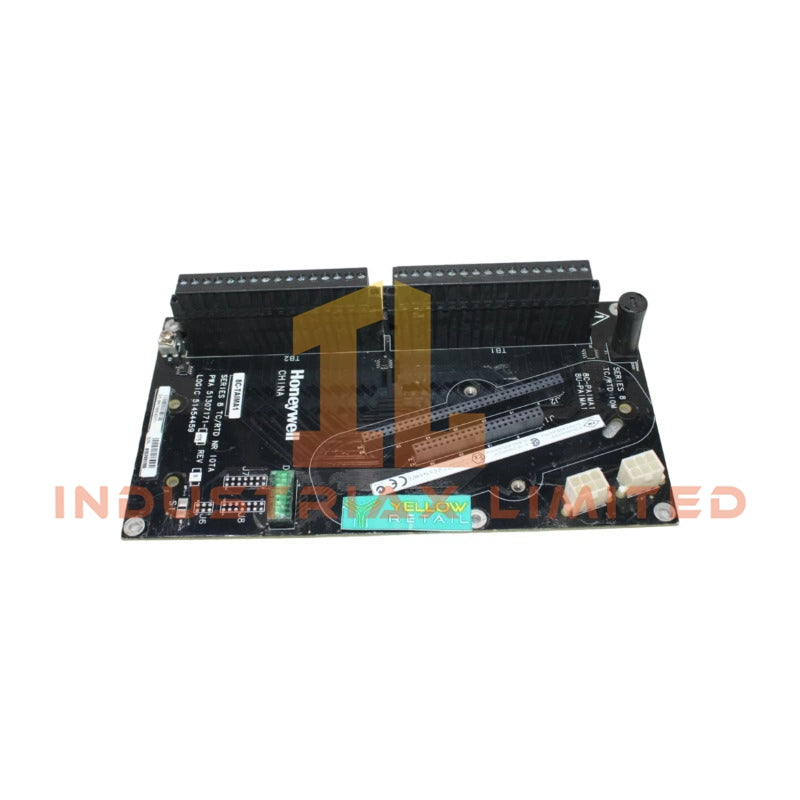

Honeywell 8U-TAIMA1 Low-Level Analog Input IOTA Assembly

Configured for thermocouple and RTD signal acquisition in Honeywell Experion PKS and Experion LX Series 8 systems, the Honeywell 8U-TAIMA1 (8U-TAIMA1 Low-Level Analog Input IOTA Assembly) provides direct field signal termination and electrical isolation for temperature measurement channels.

Hardware Specifications

Parameter	Specification
Model	Honeywell 8U-TAIMA1
Brand	Honeywell
Origin	USA
Dimensions	Series 8 9-inch size assembly
Operating Temp	0 deg C to +60 deg C
Power Consumption	Approximately 120 mA at 24 VDC
System Compatibility	Honeywell Experion PKS / Experion LX Series 8
Module Type	Low-Level Analog Input IOTA Assembly
Input Channels	16 fully isolated channels
Supported Sensors	Thermocouples (TC) and Resistance Temperature Detectors (RTD)
Signal Isolation	Channel-to-channel and channel-to-IOL isolation
Supply Voltage	24 VDC nominal
Coating Type	Uncoated version
Hot Swap Function	RIUP supported (Removal and Insertion Under Power)
Installation Format	Series 8 I/O cabinet mounting

Process Control Signal Isolation and Temperature Input Handling

The Honeywell 8U-TAIMA1 provides isolated temperature signal termination for TC and RTD field devices connected to Series 8 I/O architectures. Furthermore, the assembly separates individual input channels and the I/O Link interface to reduce electrical interference during analog measurement.

The module supports low-level temperature inputs that require stable signal conditioning before controller processing. In addition, thermocouple applications can use cold junction compensation (CJC) functions provided by the associated Series 8 analog input hardware to maintain temperature measurement accuracy.

The IOTA assembly design supports direct connection between field wiring and the Experion PKS I/O subsystem. Therefore, engineers can perform module replacement using the RIUP function without removing system power, when the overall cabinet configuration permits hot maintenance operations.

Frequently Asked Questions

Q: Does the Honeywell 8U-TAIMA1 support both thermocouple and RTD inputs?
A: Yes. The assembly is designed for low-level analog temperature inputs from thermocouples and resistance temperature detectors.

Q: What isolation functions are provided by the 8U-TAIMA1?
A: The module provides channel-to-channel isolation and channel-to-IOL isolation to separate field signals and reduce unwanted electrical interaction.

Q: Can the 8U-TAIMA1 be removed while the system remains powered?
A: Yes. The assembly supports RIUP functionality, allowing removal and insertion under power when used within a compatible Series 8 cabinet configuration.

Field Installation Guidelines

• Install the 8U-TAIMA1 in a compatible Honeywell Series 8 I/O cabinet location according to system hardware documentation.
• Connect thermocouple and RTD field wiring using the recommended terminal assignments for the selected input channel.
• Separate low-level temperature signal wiring from high-voltage power cables to reduce electromagnetic interference.
• Use appropriate cable shielding and connect shields according to the plant grounding standard.
• Verify sensor polarity before energizing the I/O assembly, especially for thermocouple circuits.
• Confirm controller configuration, channel scaling, and sensor type settings before placing the input channel into operation.
• Maintain cabinet environmental conditions within the specified operating temperature range.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
