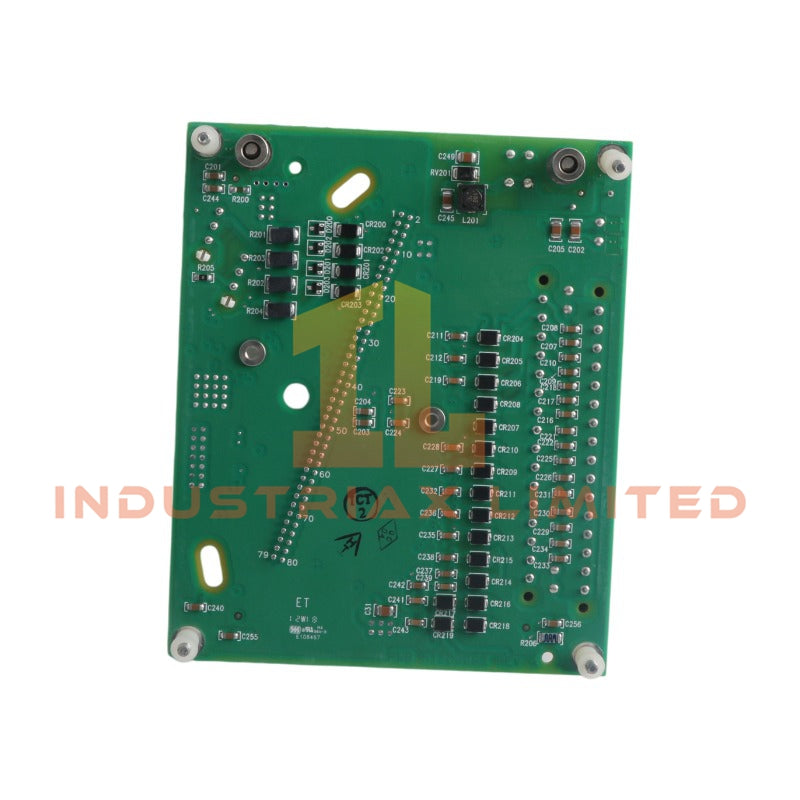

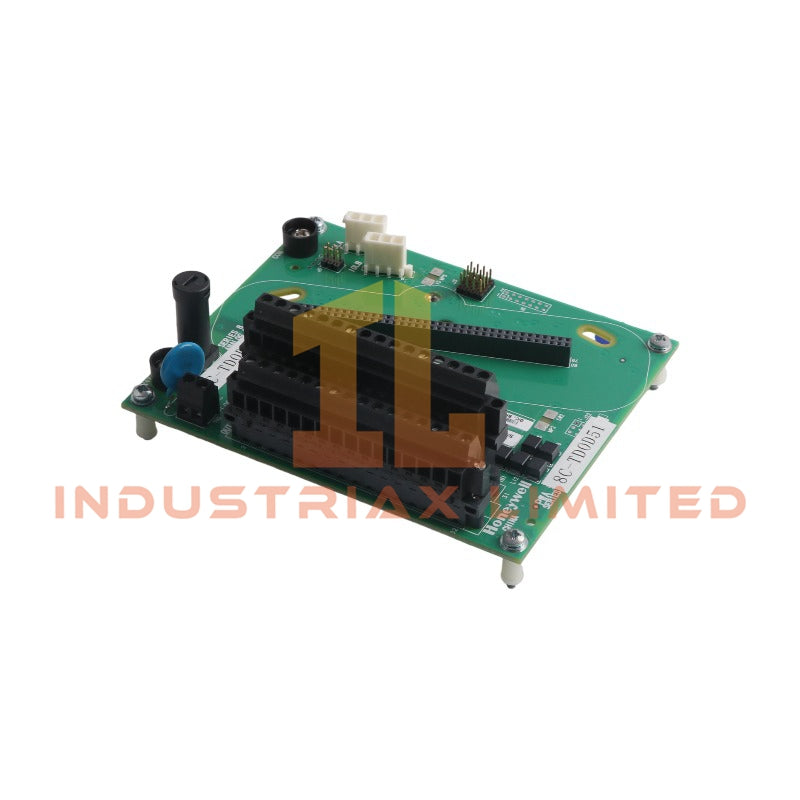

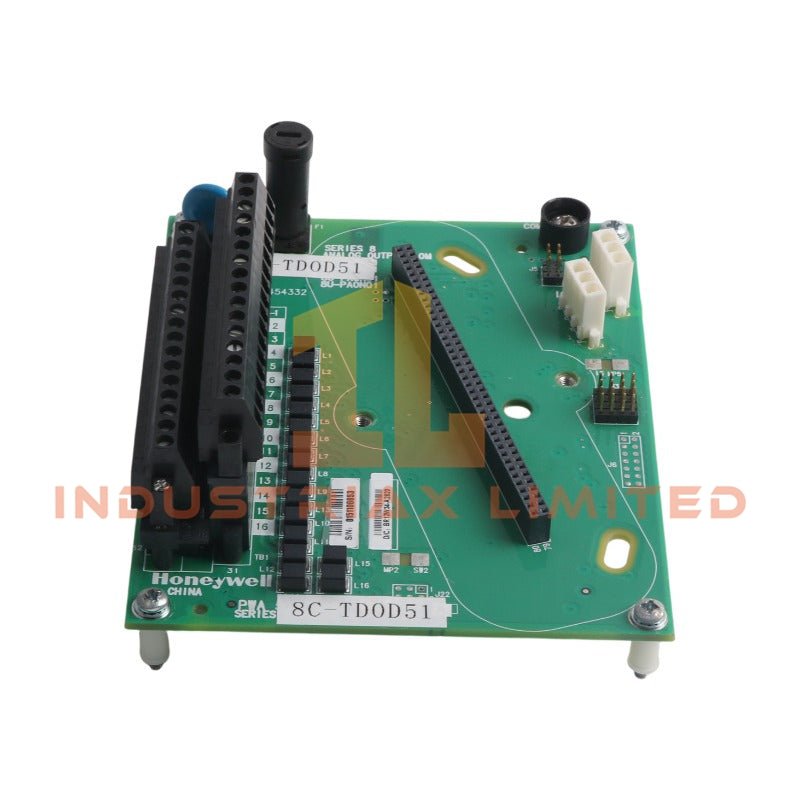

Honeywell 8C-TDOD51 51306975-175 Digital Output Module

Configured for discrete signal execution in Honeywell control system I/O networks, the Honeywell 8C-TDOD51 51306975-175 (8C-TDOD51 Digital Output Module) provides direct physical electrical switching through 32 sink output channels.

Hardware Specifications

Parameter	Specification
Model	8C-TDOD51 51306975-175
Brand	Honeywell
Product Type	Digital Output Module
Origin	USA
Weight	0.24 kg
Dimensions	12 x 14.5 x 6.5 cm
Output Channels	32
Output Type	SINK (Open Drain)
Load Voltage	30 VDC maximum
Load Current	0.1 A per channel maximum
Galvanic Isolation	1000 VAC RMS system-to-field isolation
On-State Voltage	0 VDC at 0.1 A maximum load current
Output Modes	Latched, pulsed, or pulse-width modulated output per channel
Protection Function	Electronic overcurrent protection
Diagnostic Function	Internal diagnostics for data integrity monitoring
Redundancy Option	Supported
Safe State Configuration	Configurable FAILOPT safe-state behavior

Channel Isolation and Process Output Control

The Honeywell 8C-TDOD51 51306975-175 provides 32 discrete output channels using SINK (open drain) switching technology. Each channel controls field loads with a maximum load voltage of 30 VDC and a maximum current of 0.1 A.

Furthermore, the module applies galvanic isolation between the system side and field side. The 1000 VAC RMS isolation rating separates control electronics from external wiring circuits and reduces electrical interference between connected devices.

The module includes internal diagnostic functions that monitor output operation and maintain data integrity during control execution. Additionally, electronic overcurrent protection prevents excessive current conditions from damaging individual output channels.

Frequently Asked Questions

Q: Does the 8C-TDOD51 51306975-175 support redundant operation?
A: Yes. The module supports optional redundancy configuration. The actual redundancy arrangement depends on the installed Honeywell control system architecture.

Q: What output switching modes are available on this digital output module?
A: Each output channel supports configurable operation modes including latched output, pulsed output, and pulse-width modulated output.

Q: How does the module handle field circuit protection?
A: The module uses electronic overcurrent protection on output channels to monitor abnormal current conditions and protect the output circuitry.

Field Installation Guidelines

Install the Honeywell 8C-TDOD51 51306975-175 module according to the applicable Honeywell I/O subsystem installation manual and cabinet wiring requirements.

Verify that field wiring matches the SINK output configuration before energizing the module. Connect field return paths according to the approved control system grounding design.

Use appropriate cable separation between digital output wiring and high-voltage or high-current conductors to reduce electrical noise coupling. Maintain correct shielding and grounding practices for connected field circuits.

Before commissioning, verify channel addressing, FAILOPT safe-state settings, output polarity, and field device response through system diagnostics. Confirm that external loads remain within the specified 30 VDC and 0.1 A per channel limits.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
