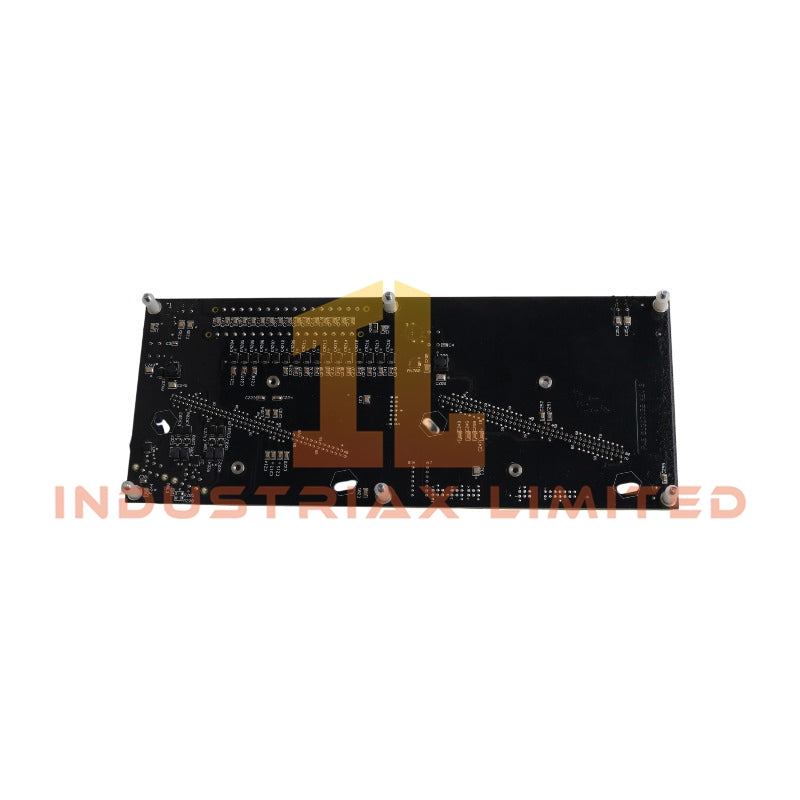

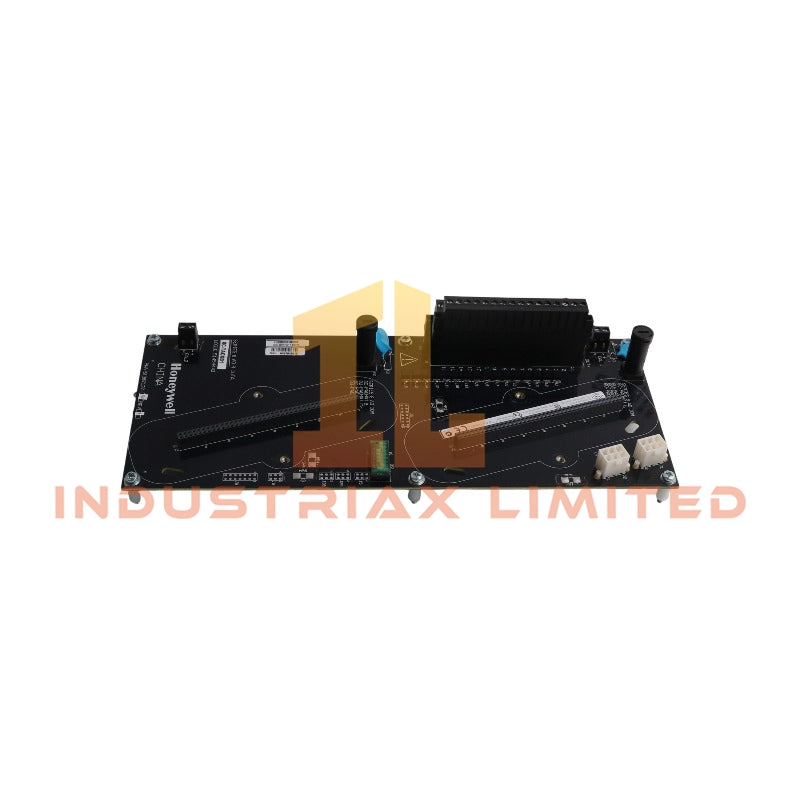

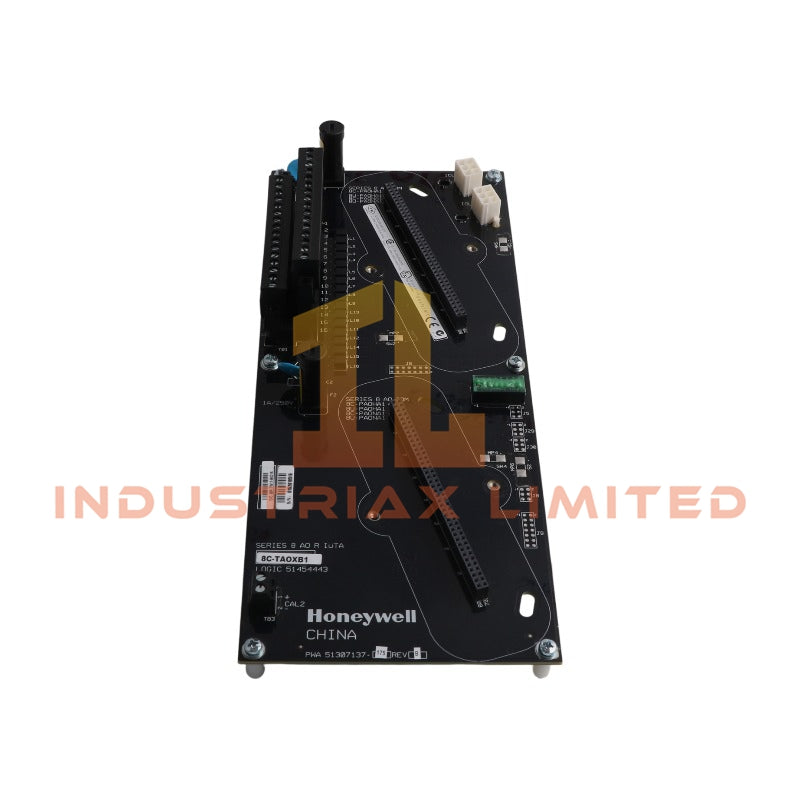

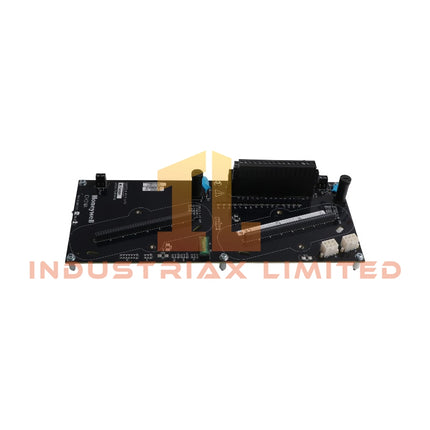

Honeywell 8C-TAOXB1 51307137-175 Series 8 Analog Output Module

Configured for analog current signal execution in Honeywell Experion PKS Series 8 I/O systems, the Honeywell 8C-TAOXB1 51307137-175 (8C-TAOXB1 Analog Output Module) provides direct physical/electrical output control for field devices through 16 analog output channels.

Hardware Specifications

Parameter	Specification
Model	8C-TAOXB1 51307137-175
Brand	Honeywell
Product Type	Analog Output Module
Series	Experion PKS Series 8
Spare Model	51307137-175
Origin	USA
Weight	0.34 kg
Dimensions	29.3 x 12 x 6.5 cm
Operating Temp	0 to 60 deg C
Storage Temp	-40 to 85 deg C
Power Consumption	24 VDC, 190 mA module current rating
Output Channels	16
Output Current Range	2.9 mA to 21.1 mA directly settable
Load Resistance	50-800 ohm
Maximum Open Circuit Voltage	22 V
Resolution	+/- 0.05% of Full Scale
Voltage Rating	24 VDC
Diagnostic Function	Extensive self diagnostics
Redundancy Support	Optional redundancy configuration

Process Control Signal Characteristics

The Honeywell 8C-TAOXB1 51307137-175 provides 16 analog output channels for continuous current signal transmission in Series 8 I/O architectures. The module generates configurable output currents from 2.9 mA to 21.1 mA and supports field load resistance between 50 ohm and 800 ohm.

Furthermore, the module design supports Honeywell process control applications requiring channel-to-channel signal integrity and controlled analog output behavior. The hardware provides self diagnostic functions to monitor internal operating conditions and output performance.

For Honeywell DCS environments, analog output modules typically interface with field instruments using standardized current loops. The module can support integration considerations involving 4-20 mA HART loop protocol architectures when combined with compatible field devices and system configurations.

Frequently Asked Questions

Q: How many analog output channels does the 8C-TAOXB1 51307137-175 provide?
A: The module provides 16 analog output channels for continuous current signal transmission.

Q: What power supply voltage does the module require?
A: The module operates with a 24 VDC supply and has a module current rating of 190 mA.

Q: Does the module support redundant operation?
A: The 8C-TAOXB1 supports optional redundancy configurations within compatible Honeywell Series 8 I/O system architectures.

Field Installation Guidelines

Install the 8C-TAOXB1 module in the designated Honeywell Series 8 I/O termination and controller environment according to system hardware requirements.

Use appropriate shielded field wiring practices for analog current signal connections. Connect cable shields according to site grounding standards to reduce electrical interference.

Verify the field device load resistance remains within the specified 50-800 ohm range before commissioning. Confirm the 24 VDC supply wiring polarity and current capacity before module startup.

Separate analog signal wiring from high-voltage power cables and switching circuits to minimize induced noise. After installation, perform system diagnostics to verify channel output status and module operating condition.

Specifications

• Brand: Honeywell

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
