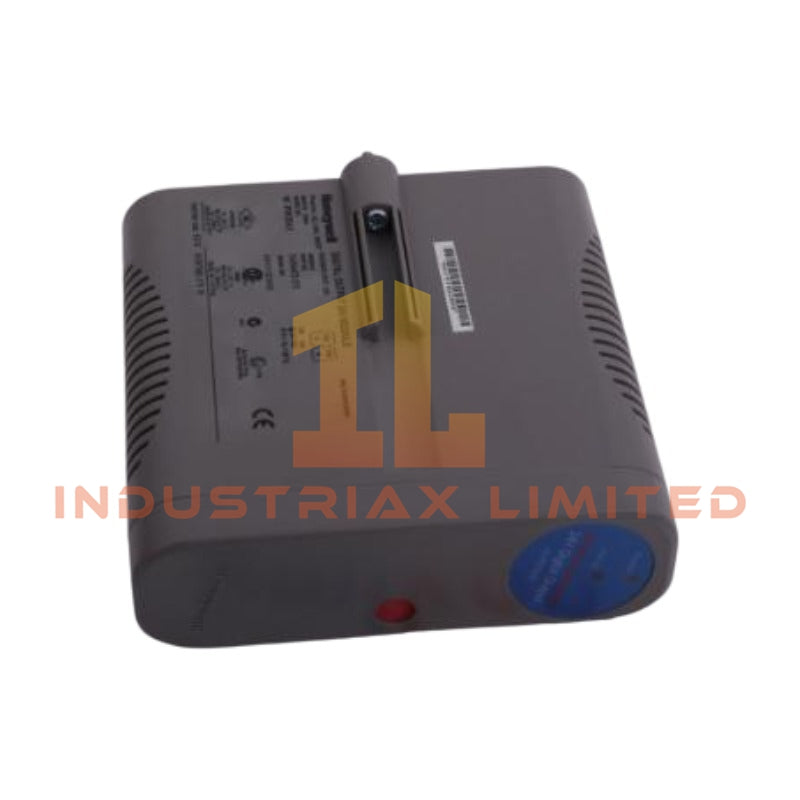

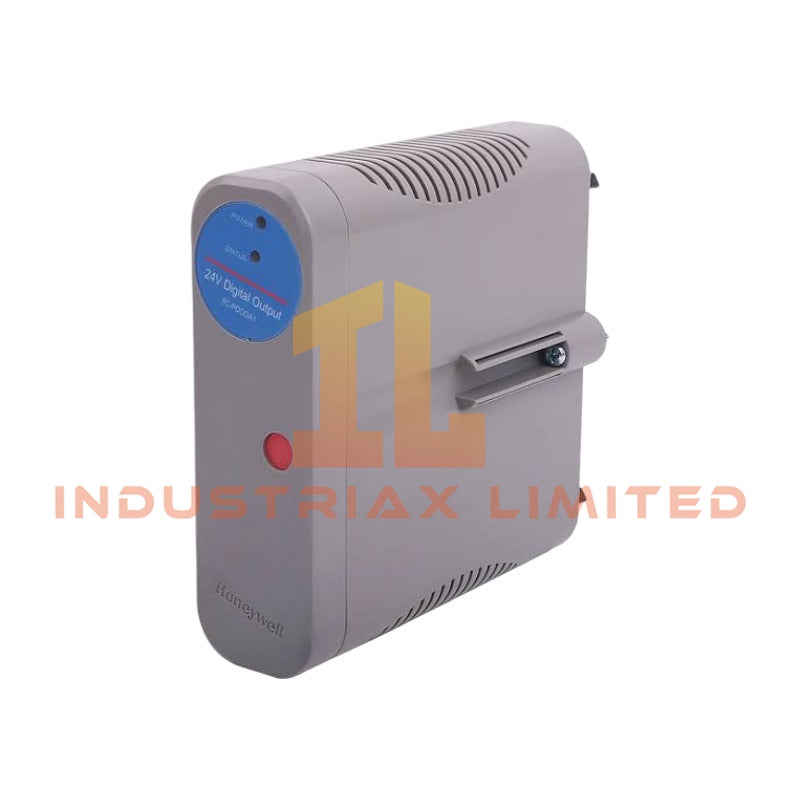

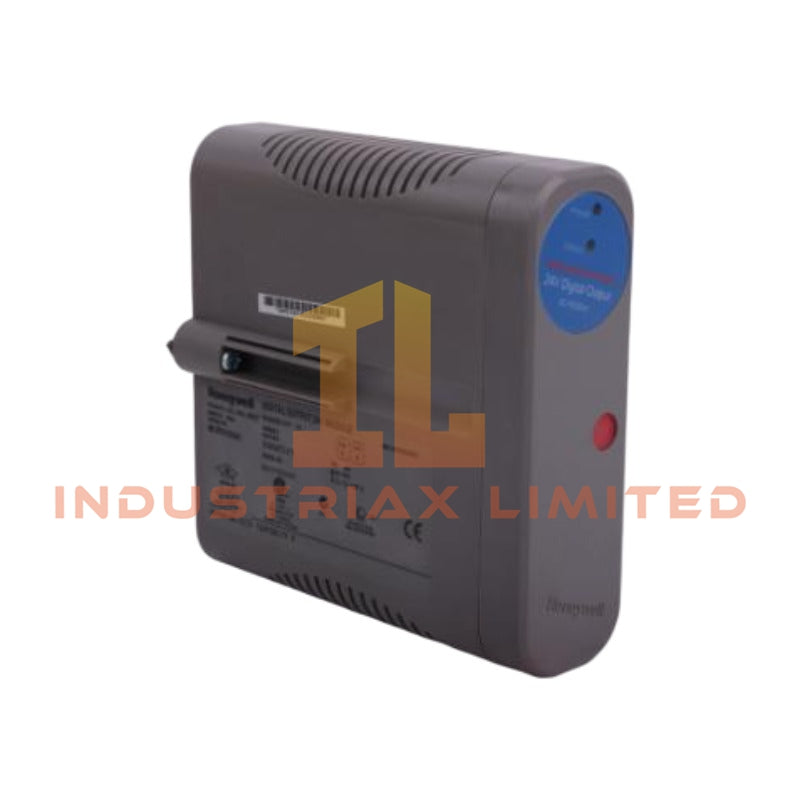

Honeywell 8C-PDIDA1 Series 8 Digital Input Module

The Honeywell 8C-PDIDA1, also cataloged as the 8C-PDIDA1 Digital Input Module, operates as a dedicated hardware component for discrete signal acquisition within the Honeywell Experion PKS Series 8 I/O system. It receives 24 VDC field contact signals and transfers processed status information to the C300 controller through the Series 8 I/O architecture.

Hardware Specifications

Parameter	Specification
Model	8C-PDIDA1
Brand	Honeywell
Product Series	Experion PKS Series 8 I/O
Module Type	Digital Input Module
Origin	USA
Operating Temp	-40 deg C to +70 deg C
Storage Temp	-40 deg C to +85 deg C
Power Consumption	Typically less than 3 W
Input Channels	32 channels
Input Signal Type	24 VDC discrete input
Input Compatibility	Dry contact and solid-state field devices
Operating Voltage Range	18 VDC to 30 VDC
Input Logic	OFF: 0 VDC to 5 VDC; ON: 15 VDC to 30 VDC
Isolation Method	Channel-to-system optical isolation
Conformal Coating	Standard 8C Series coated construction
Hot Swap Function	Supports Removal and Insertion Under Power (RIUP)
Diagnostics	Module status and channel-level diagnostics
Installation Platform	Honeywell Series 8 I/O Carrier

Channel Isolation and Process Control Interface

The Honeywell 8C-PDIDA1 applies optical isolation between field input circuits and the control system interface. Therefore, the module limits electrical interference transfer from field wiring to the Experion PKS controller. In addition, each input channel provides status monitoring through integrated diagnostic functions.

The module is designed for discrete process signals rather than analog measurement loops. It accepts switching states from field devices such as limit switches, relay contacts, and digital transmitters. Furthermore, the Series 8 I/O architecture supports compact cabinet installation with direct communication to Honeywell C300 controllers.

Frequently Asked Questions

Q: Does the 8C-PDIDA1 support hot replacement during system operation?
A: Yes. The module supports Removal and Insertion Under Power (RIUP), allowing replacement procedures without removing power from the I/O carrier. Field wiring conditions must follow approved maintenance procedures.

Q: What type of field signals can the 8C-PDIDA1 process?
A: The module processes 24 VDC discrete signals from dry contacts and solid-state switching devices. It does not provide analog current or voltage measurement functions.

Q: How does the module protect controller-side circuits from field disturbances?
A: The module uses optical isolation between field input channels and system electronics to reduce electrical coupling between external wiring and internal control circuits.

Field Installation Guidelines

• Install the 8C-PDIDA1 on the designated Honeywell Series 8 I/O carrier position according to system configuration documentation.
• Verify that field wiring polarity and voltage levels match the 24 VDC digital input requirements before energizing the circuit.
• Separate digital input wiring from high-voltage power cables and high-current switching conductors to reduce electromagnetic interference.
• Connect cable shields according to site grounding standards and avoid creating multiple ground paths.
• Confirm channel status indicators after installation to verify correct field signal recognition.
• Use approved maintenance procedures when performing RIUP operations to prevent accidental signal interruption.
