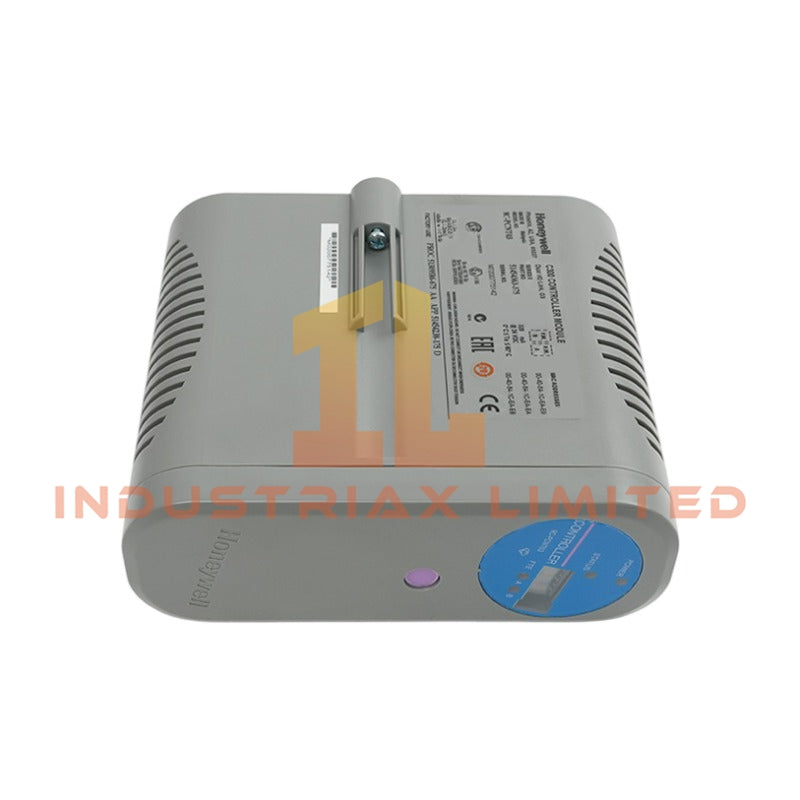

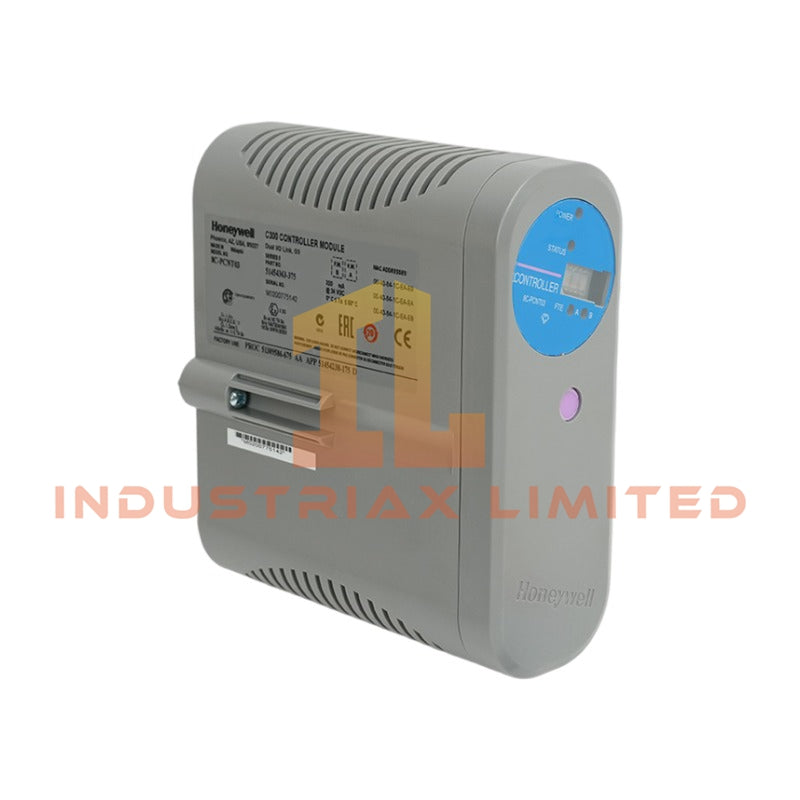

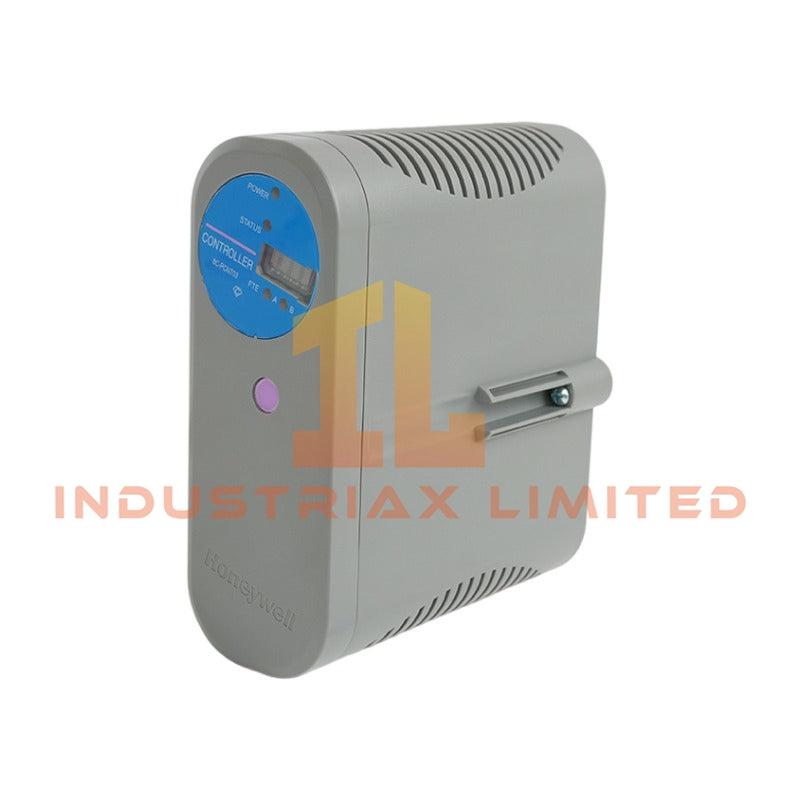

Honeywell 8C-PCNT03 Series 8 C300 Controller Module

The Honeywell 8C-PCNT03 51454363-275, also cataloged as the 8C-PCNT03 C300 Controller Module, executes deterministic control strategies and process logic within Honeywell Experion PKS Series 8 control networks.

Hardware Specifications

Parameter	Specification
Model	8C-PCNT03
Brand	Honeywell
Origin	USA
Operating Temp	0 deg C to +60 deg C
Power Consumption	Supplied through Series 8 power distribution system, value not specified
Component Part Number	51454363-275
System Compatibility	Honeywell Experion PKS / Experion LX Series 8
Controller Type	C300 Control Processor Module
Associated IOTA	8C-TCNTA1
Control Software Environment	Control Execution Environment (CEE)
Uplink Communication	Dual Fault Tolerant Ethernet (FTE) ports
I/O Communication	Two redundant I/O links, up to 750 kbps per link
Supported I/O Capacity	Up to 80 I/O Units, 40 per I/O link
Execution Period	50 ms to 2000 ms configurable
Control Capacity	5,500 Execution Units and 4,095 tagged objects
Environmental Protection	Conformal coating for harsh industrial atmosphere applications
Mounting Method	Direct installation on Series 8 IOTA assembly

4-20 mA HART and DCS Process Interface Functions

The Honeywell Series 8 control architecture integrates process signal management through distributed I/O modules connected to the C300 controller. Therefore, the controller coordinates analog and digital process execution while maintaining deterministic scan timing through the Control Execution Environment (CEE).

The Series 8 platform supports process instrumentation integration, including 4-20 mA HART loop protocol communication, FOUNDATION Fieldbus and Profibus PA connectivity through compatible I/O interfaces. Additionally, channel-to-channel isolation within supported I/O modules separates field signal paths and reduces electrical interference between measurement channels.

The 8C-PCNT03 focuses on controller execution rather than direct field signal conversion. It processes configured control algorithms, manages I/O communication cycles, and maintains synchronized data exchange with the Experion supervisory layer.

Frequently Asked Questions

Q: Does the 8C-PCNT03 support redundant controller operation?
A: Yes. The 8C-PCNT03 supports non-redundant and 1:1 redundant controller configurations when installed in compatible Series 8 architectures.

Q: Which communication interfaces are integrated into the controller module?
A: The module provides dual Fault Tolerant Ethernet (FTE) ports for supervisory communication and redundant I/O links for Series 8 I/O expansion.

Q: Can the 8C-PCNT03 directly connect field transmitters?
A: No. The controller does not provide direct field termination. Field devices connect through compatible Series 8 I/O modules and IOTA assemblies.

Field Installation Guidelines

• Install the 8C-PCNT03 only with the specified Series 8 IOTA assembly, such as the 8C-TCNTA1.
• Verify cabinet grounding before controller installation to maintain proper electrical reference potential.
• Keep Ethernet communication cables separated from high-voltage power conductors to reduce electromagnetic interference.
• Confirm redundant communication wiring before placing the controller into service.
• Use approved firmware and CEE configuration files compatible with the installed Experion PKS or Experion LX system version.
• Inspect the conformal coating condition before installation in corrosive industrial environments.
• Follow Honeywell cabinet layout requirements for power distribution, grounding, and signal routing.
