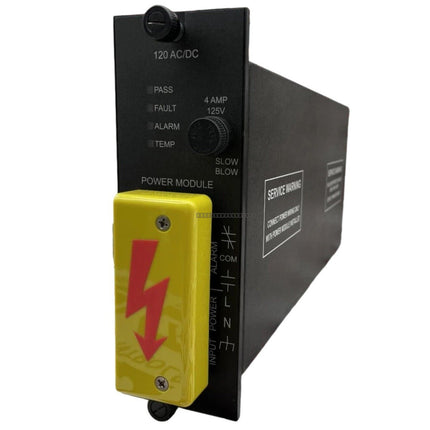

The Triconex 8305A is a high-performance Power Supply Module designed specifically for the Triconex Triple Modular Redundant (TMR) safety system. This module is engineered to provide reliable DC power to critical safety-related components in demanding industrial environments, including oil and gas refineries, chemical processing facilities, and mining operations. As a key component in a SIL 3 certified safety loop, the 8305A ensures continuous process safety and high system availability through its robust, fail-safe architecture.
Features
-
TMR Compatibility: Designed for seamless integration into Triple Modular Redundant safety architectures.
-
Hot-Swappable Design: Supports maintenance and module replacement without requiring a system-wide power down, minimizing downtime.
-
Advanced Diagnostics: Features internal monitoring circuits to track output health and voltage stability in real-time.
-
SIL 3 Certified: Suitable for use in safety-critical applications requiring high levels of functional safety.
-
Scalable Architecture: Built to accommodate evolving plant I/O requirements and system expansions.
Applications
The 8305A is primarily utilized in safety instrumented systems (SIS) where high availability and fault tolerance are mandatory. Typical applications include emergency shutdown systems (ESD), burner management systems (BMS), and high-integrity pressure protection systems (HIPPS) within process industries.
Technical Specifications
| Model |
8305A |
| Brand |
Triconex |
| Module Type |
Power Supply Module |
| Safety Rating |
SIL 3 |
| Architecture |
Triple Modular Redundant (TMR) |
| Nominal Input Voltage |
24 VDC |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
-
ESD Precautions: Always use a grounded wrist strap when handling the module to prevent electrostatic discharge damage to internal components.
-
Rack Seating: Ensure the module is fully seated in the designated chassis slot and that the locking mechanism is engaged to maintain proper electrical contact.
-
Ventilation: Maintain adequate clearance around the safety rack to ensure proper airflow and heat dissipation, keeping the ambient temperature within the 0-60 deg C range.
-
Power-Down Procedure: While the module is hot-swappable, verify system documentation for specific software-level precautions before removal in a live environment.
-
Wiring: Ensure all input power connections are secure and routed away from high-EMI sources to maintain signal integrity.
FAQ
Is the 8305A hot-swappable?
Yes, the 8305A is designed to be hot-swappable, allowing for replacement without powering down the entire safety rack.
What is the primary application for this module?
It is designed for use in Triconex TMR safety systems, specifically for providing reliable power to critical safety-related control hardware.
