Description

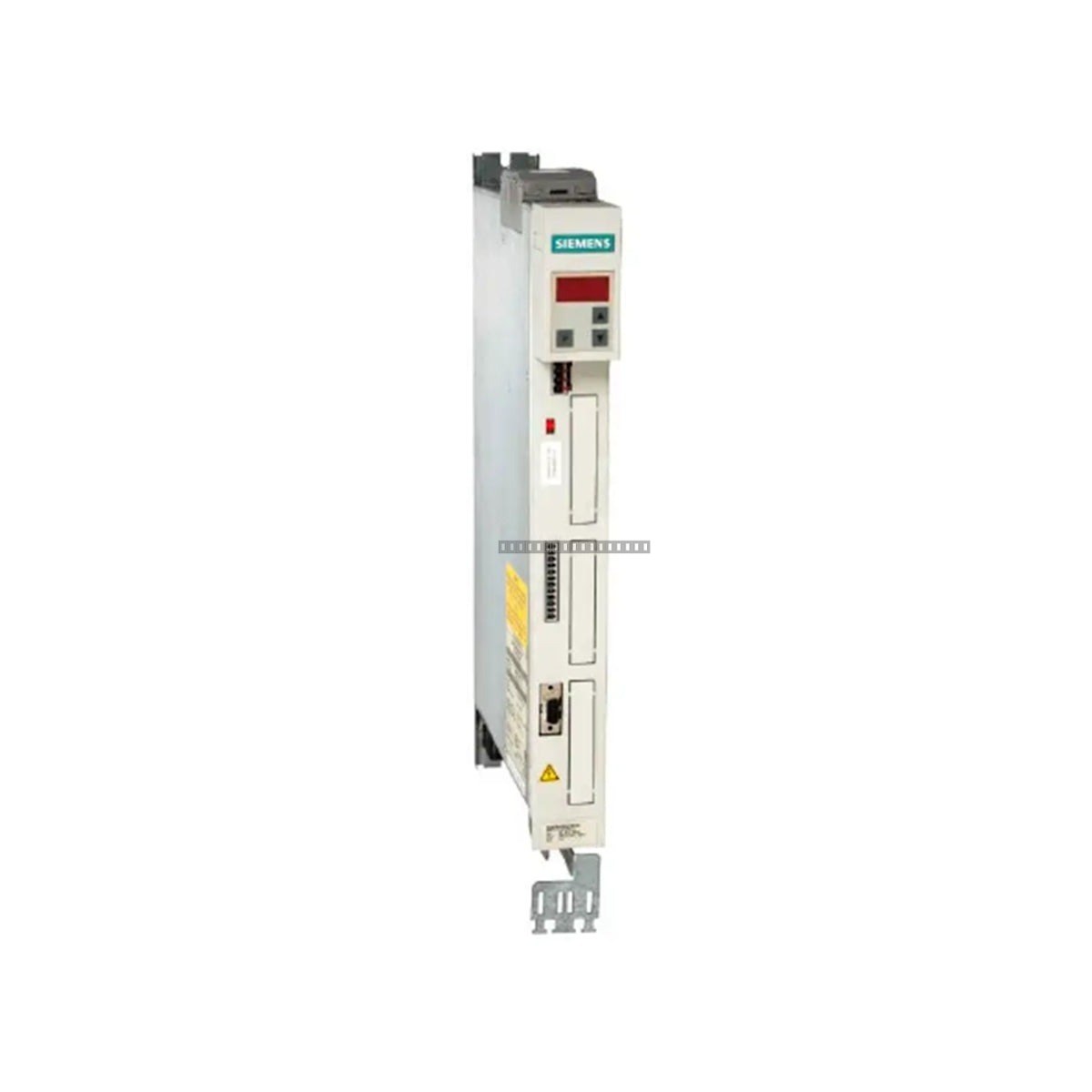

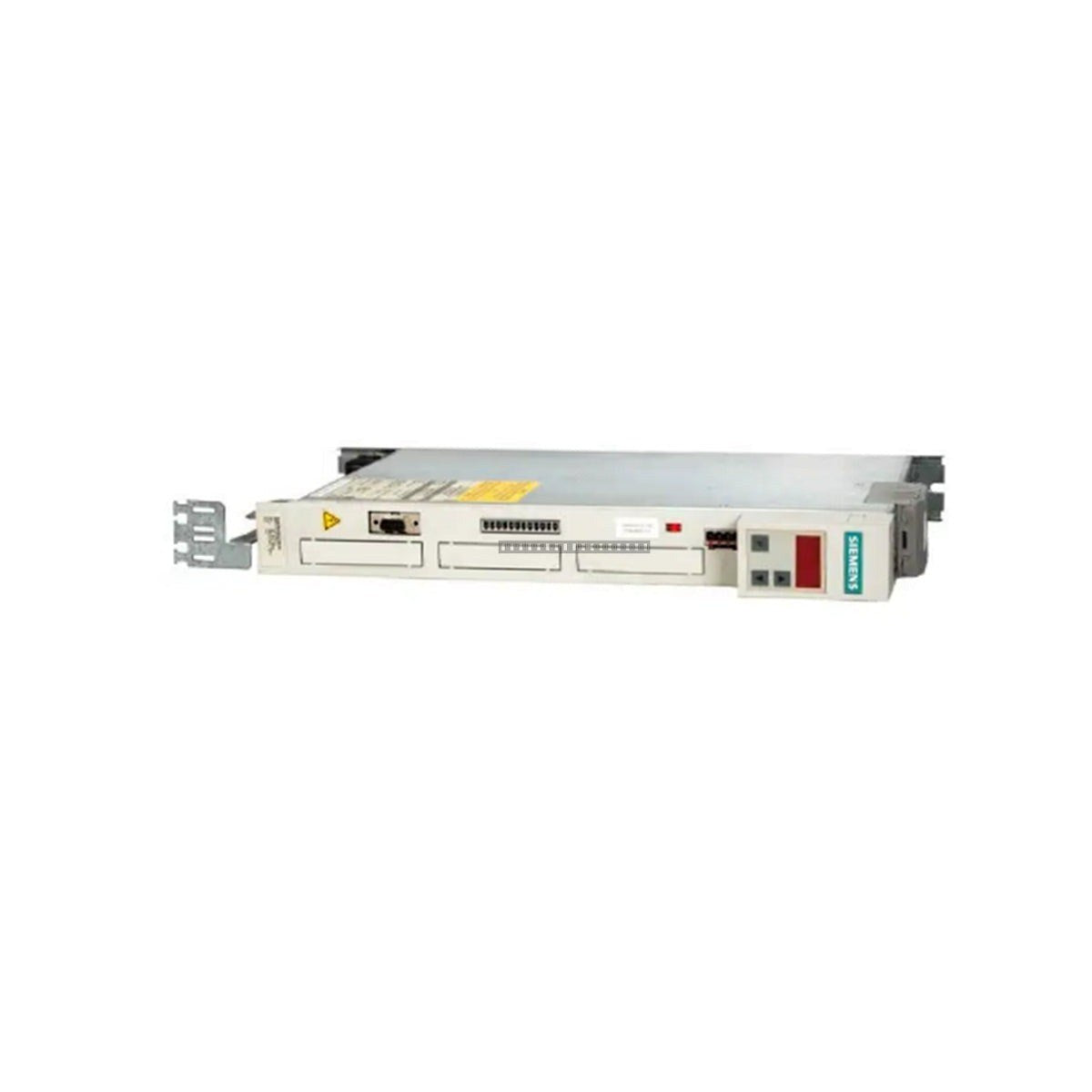

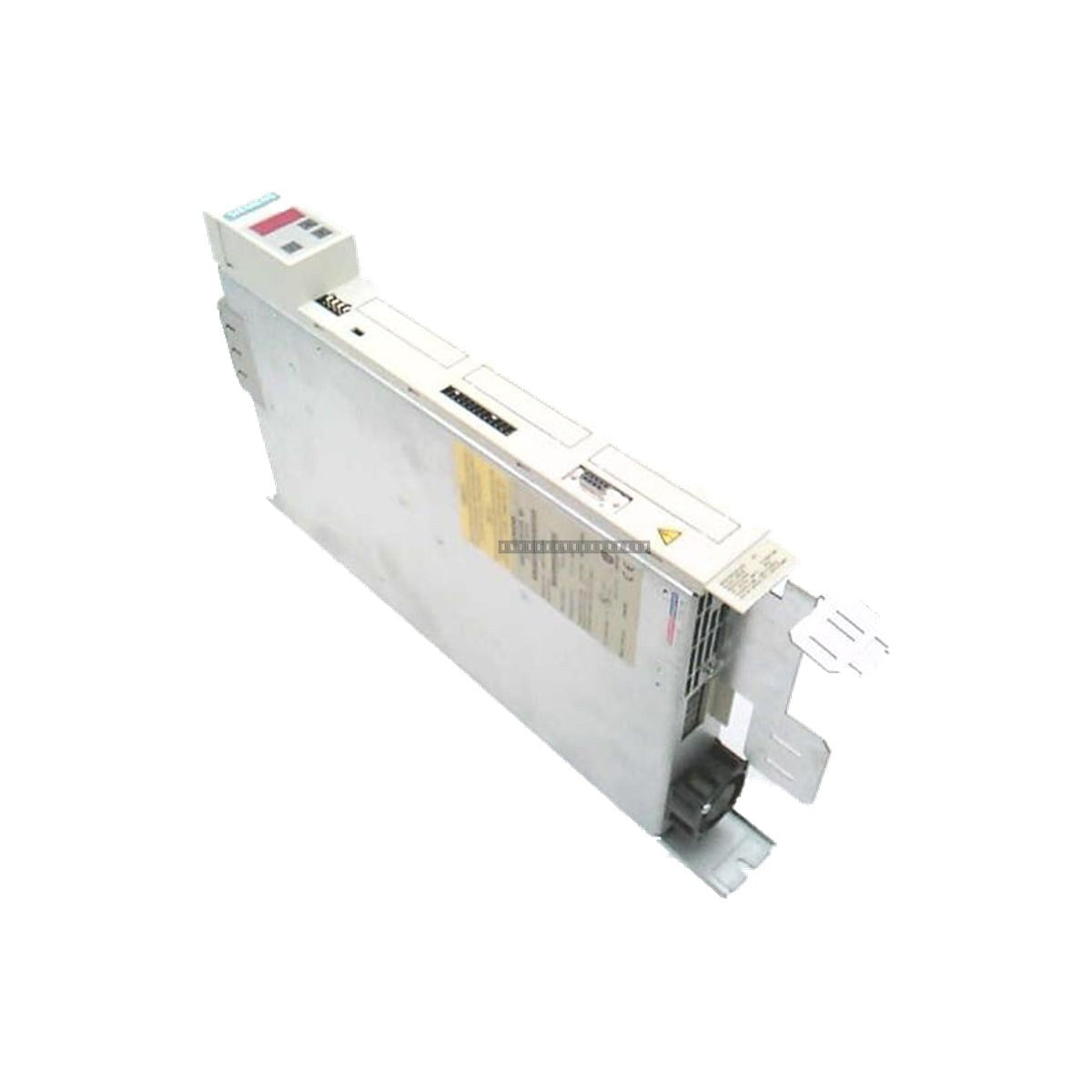

The Siemens 6SE7012-0TP50 is a high-performance AC/DC power converter module within the SIMOVERT MASTERDRIVES MC (Motion Control) series. Engineered for precision servo applications, this unit facilitates energy conversion between 510-650 VDC input and a variable 0-480 VAC three-phase output. It is designed to meet the rigorous demands of automated production lines, textile machinery, and high-speed packaging systems. By providing precise torque and speed control for permanent magnet synchronous motors or induction motors, this drive optimizes machine throughput and minimizes unscheduled downtime in heavy industrial environments such as automotive manufacturing and metal processing.
Features
-
High-Speed Control: Utilizes advanced motion control loops with high dynamic response times, supporting synchronized multi-axis movements.
-
IGBT Technology: Internal circuitry employs insulated-gate bipolar transistors for efficient pulse-width modulation (PWM) switching.
-
Thermal Management: Compact chassis designed for vertical mounting with integrated cooling pathways to maintain stability during continuous operation.
-
System Integration: Designed to interface with SIMATIC S7 controllers via standard fieldbus protocols for transparent diagnostics and parameterization.
Applications
This drive is suitable for a variety of industrial motion control tasks, including:
- Automated assembly and production lines
- High-speed packaging and labeling machinery
- Textile manufacturing equipment
- Metal processing and material handling systems
Technical Specifications
| Model |
6SE7012-0TP50 |
| Series |
SIMOVERT MASTERDRIVES MC |
| Input Voltage |
510-650 VDC |
| Output Voltage |
0-480 VAC (3-Phase) |
| Output Frequency |
0-400 Hz |
| Rated Current |
2 A |
| Power Rating |
0.75 kW (1 HP) |
| Operating Temperature |
0 to 50 deg C |
| Status |
Discontinued (09/30/2020) |
Installation Guidelines
-
Mounting: Ensure vertical installation to allow for proper airflow through the cooling channels. Maintain required clearance around the unit as specified in the original Siemens manual.
-
Environment: Install in a clean, dry, and vibration-free enclosure. Ensure ambient temperature does not exceed 50 deg C.
-
Wiring: Use shielded cables for motor connections to minimize EMI. Ensure proper grounding of the drive chassis to the common machine ground point.
-
Safety: Always disconnect power and wait for the DC bus capacitors to discharge completely before performing any wiring or maintenance.
FAQ
Is this drive still supported by Siemens?
The 6SE7012-0TP50 was officially discontinued by the manufacturer on September 30, 2020. While support may be limited, it remains a critical component for legacy systems, and refurbished or surplus units are often used for maintenance and repair.
What type of motors can this drive control?
This unit is designed to control both permanent magnet synchronous motors and standard induction motors, providing precise torque and speed regulation.
