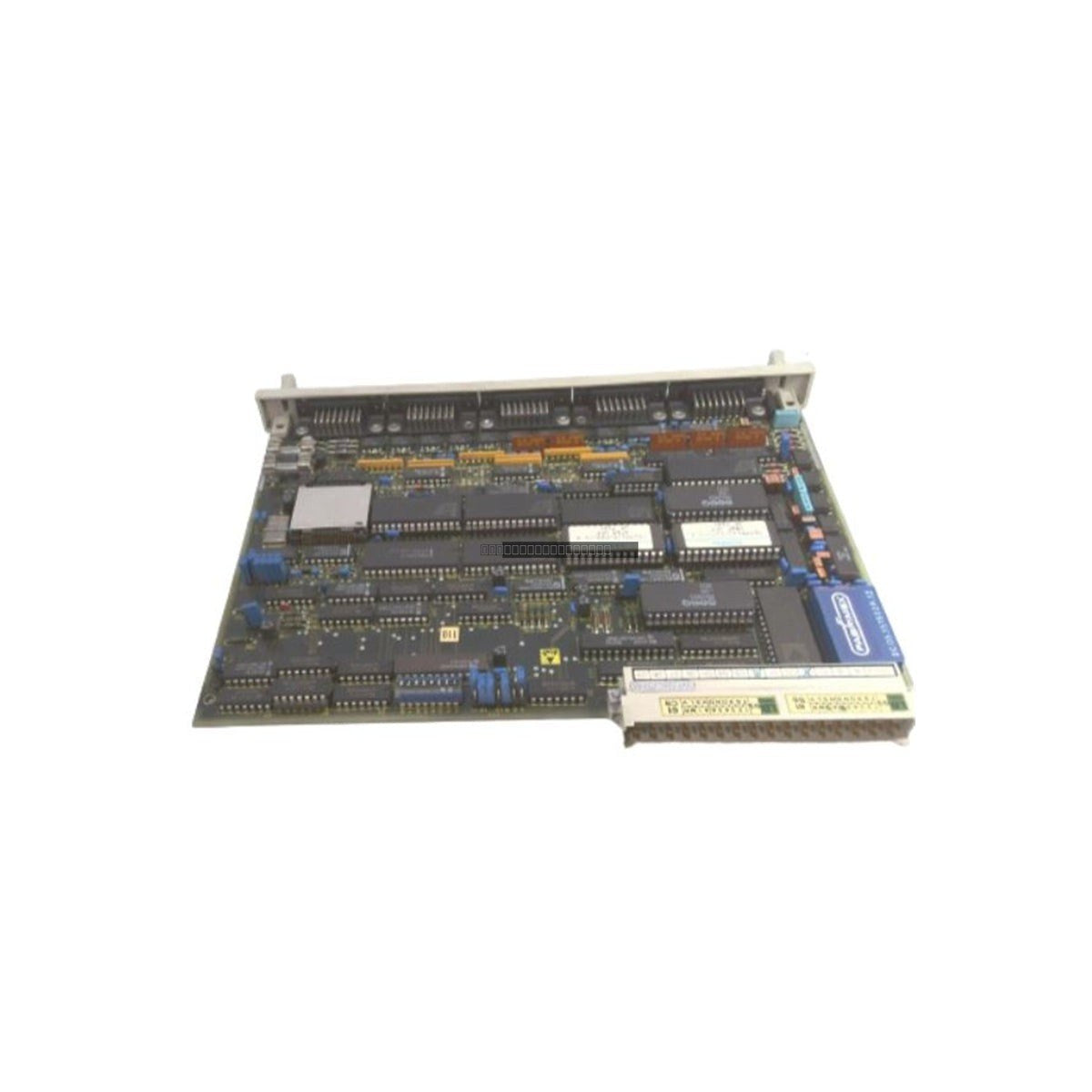

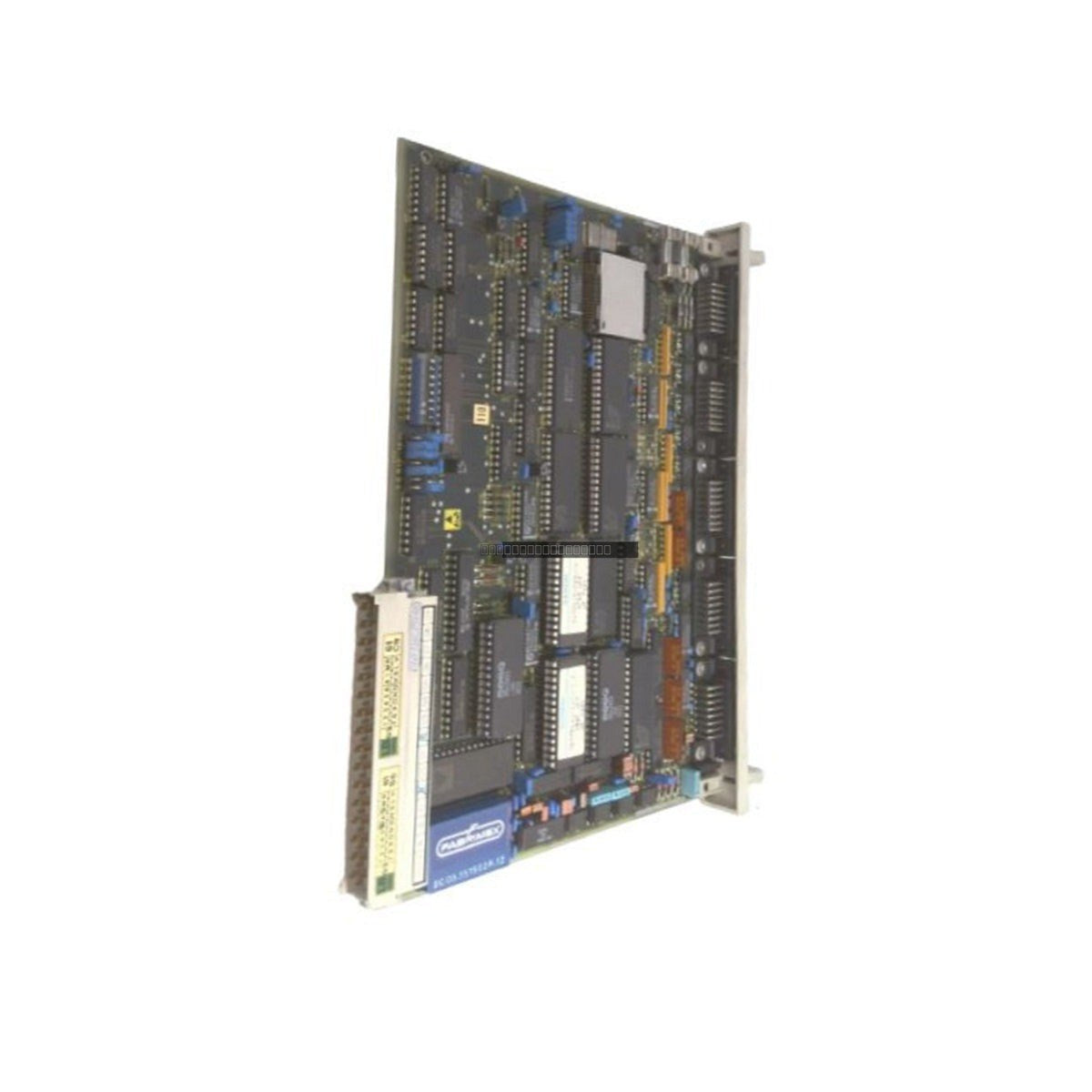

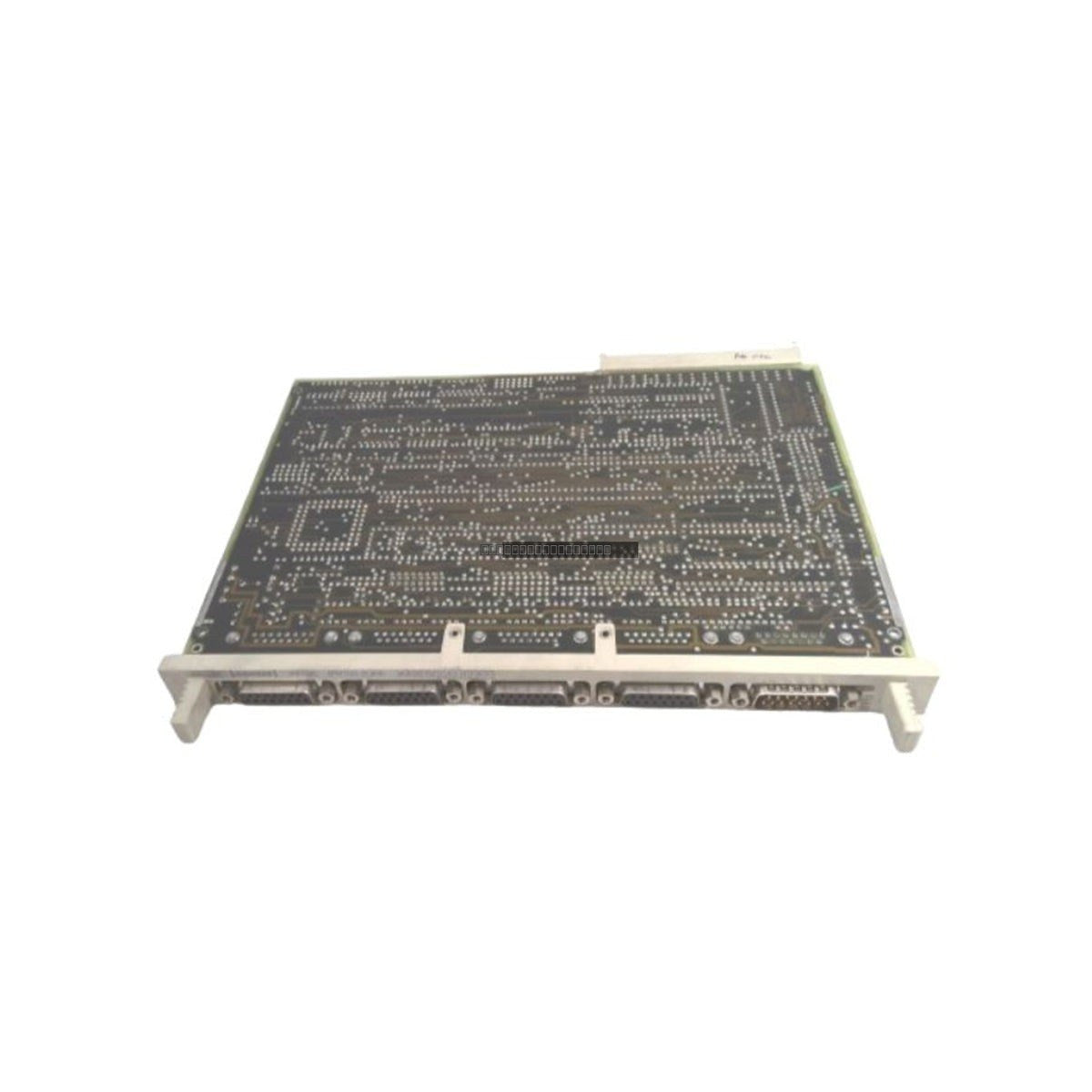

The Siemens 6FM1726-3CA10 is a specialized positioning module engineered for the Simatic S5-135 and S5-155 PLC systems. Identified as the WF726C (Version 1.7), this module provides robust motion control capabilities, facilitating precise axis positioning for industrial machinery. By offloading complex motion algorithms and position calculations from the main CPU to the module hardware, it ensures deterministic performance and high-speed feedback processing in demanding environments such as steel processing, conveyor systems, and heavy manufacturing.
Features
- Supports both serial-absolute (SSI) and incremental encoder interfaces.
- Executes high-speed motion control without jerk limitation.
- Reduces CPU load by processing position calculations locally on the module.
- Designed for integration into the S5-135 and S5-155 backplane architecture.
- Ensures reliable signal integrity for closed-loop motion feedback.
Applications
This module is primarily utilized in legacy Simatic S5 automation systems requiring high-precision axis control. Typical applications include automated rolling mills, paper processing lines, and material handling conveyors where accurate synchronization and tracking are critical to operational safety and output quality.
Technical Specifications
| Model |
6FM1726-3CA10 (WF726C V 1.7) |
| System Compatibility |
Siemens Simatic S5-135/155 |
| Encoder Support |
Serial-absolute (SSI) and incremental square-wave |
| Operating Temperature |
0 to 55 deg C |
| Power Supply |
5 VDC (backplane) and 24 VDC (external encoder supply) |
Installation Guidelines
- Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
- Verify that the module is correctly seated in the S5 backplane to maintain rigid signal integrity.
- Use shielded cabling for encoder connections to minimize EMI interference in high-vibration environments.
- Maintain adequate ventilation within the control cabinet to ensure the module operates within the specified 0-55 deg C range.
- Handle with standard ESD precautions to protect internal circuitry during installation.
FAQ
What is the primary function of the 6FM1726-3CA10?
It acts as a dedicated positioning controller for the Simatic S5-135/155 series, managing motion control tasks and encoder feedback to improve system accuracy and reduce CPU overhead.
Does this module support SSI encoders?
Yes, the WF726C supports point-to-point interfacing with absolute encoders via Synchronous Serial Interface (SSI) in addition to standard incremental signals.
