Description

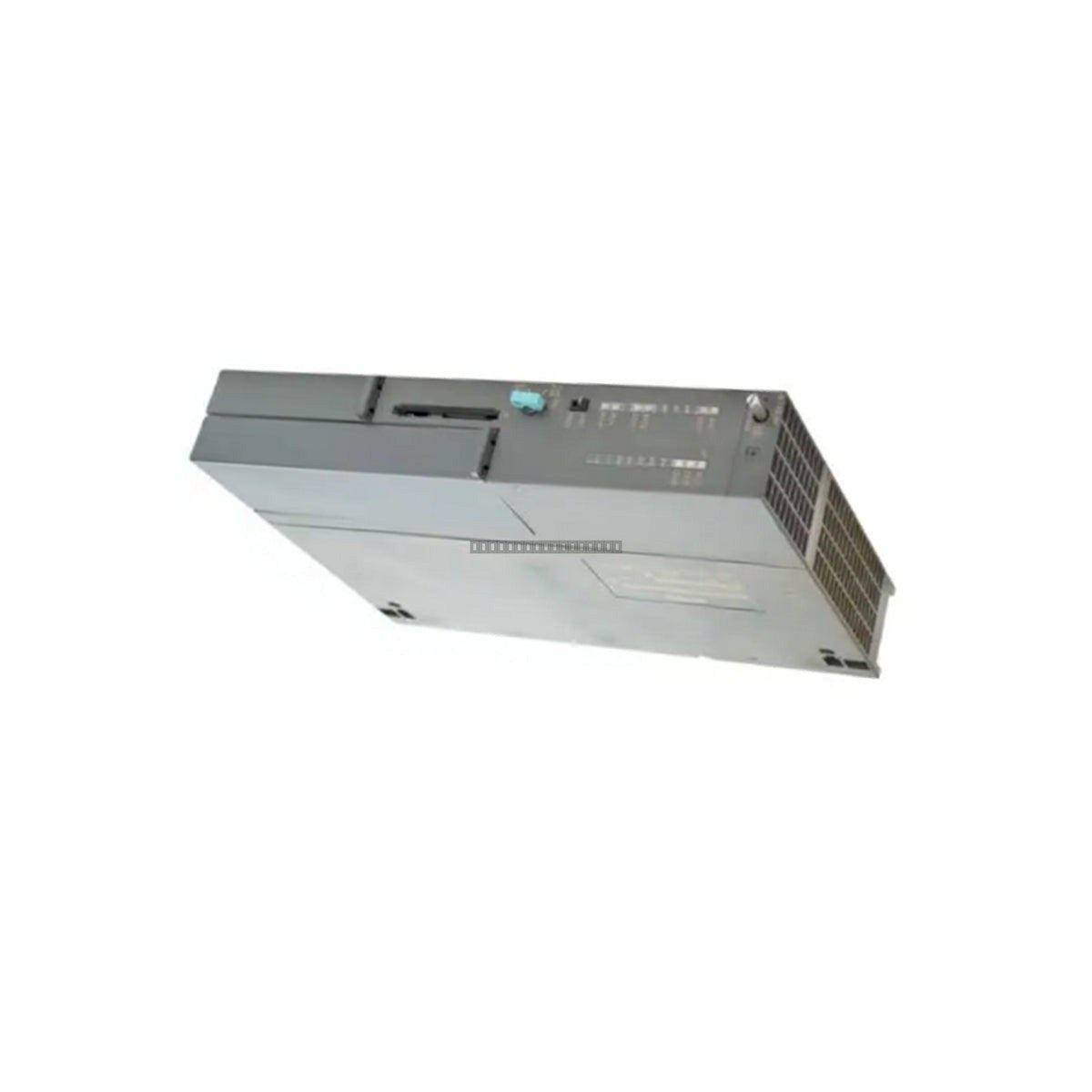

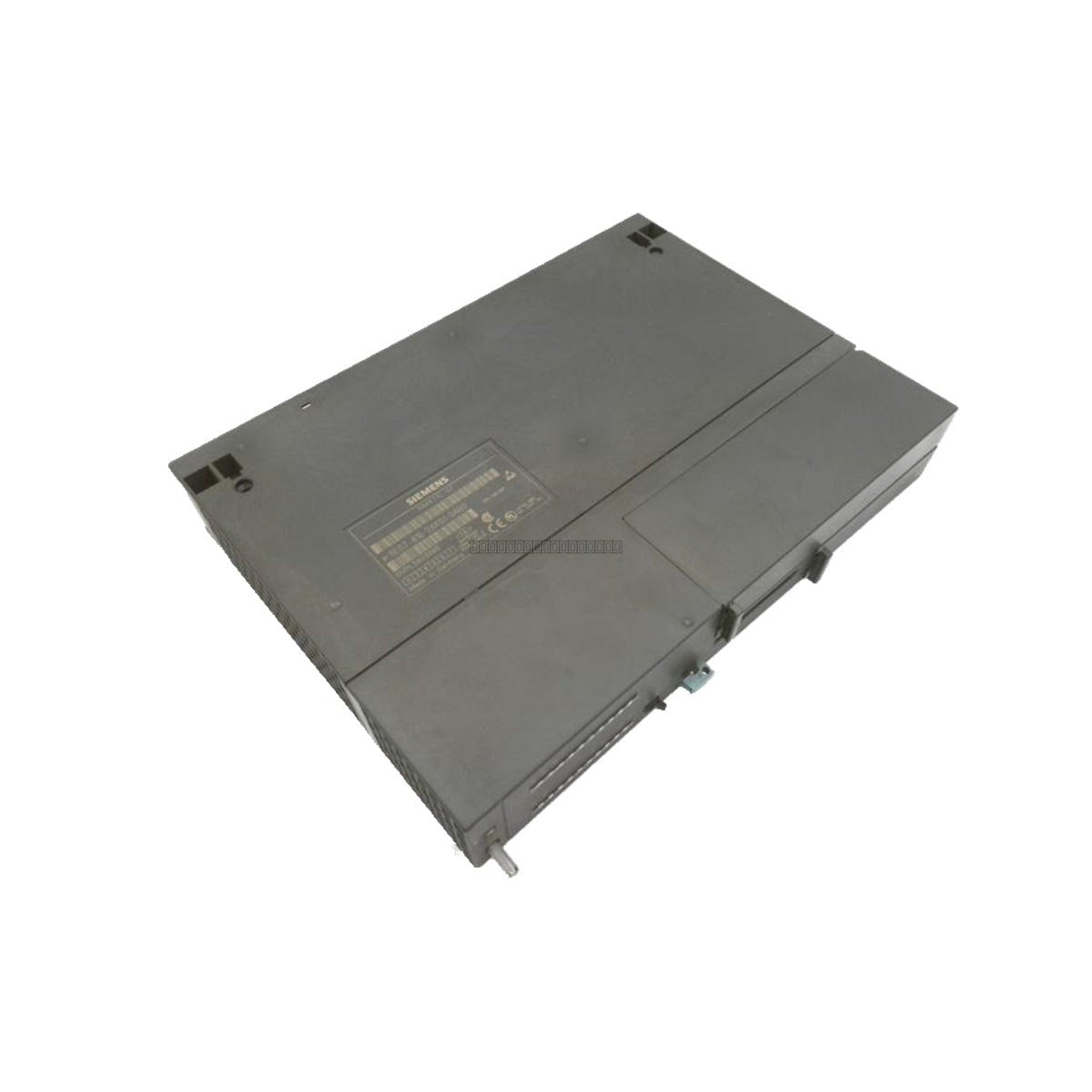

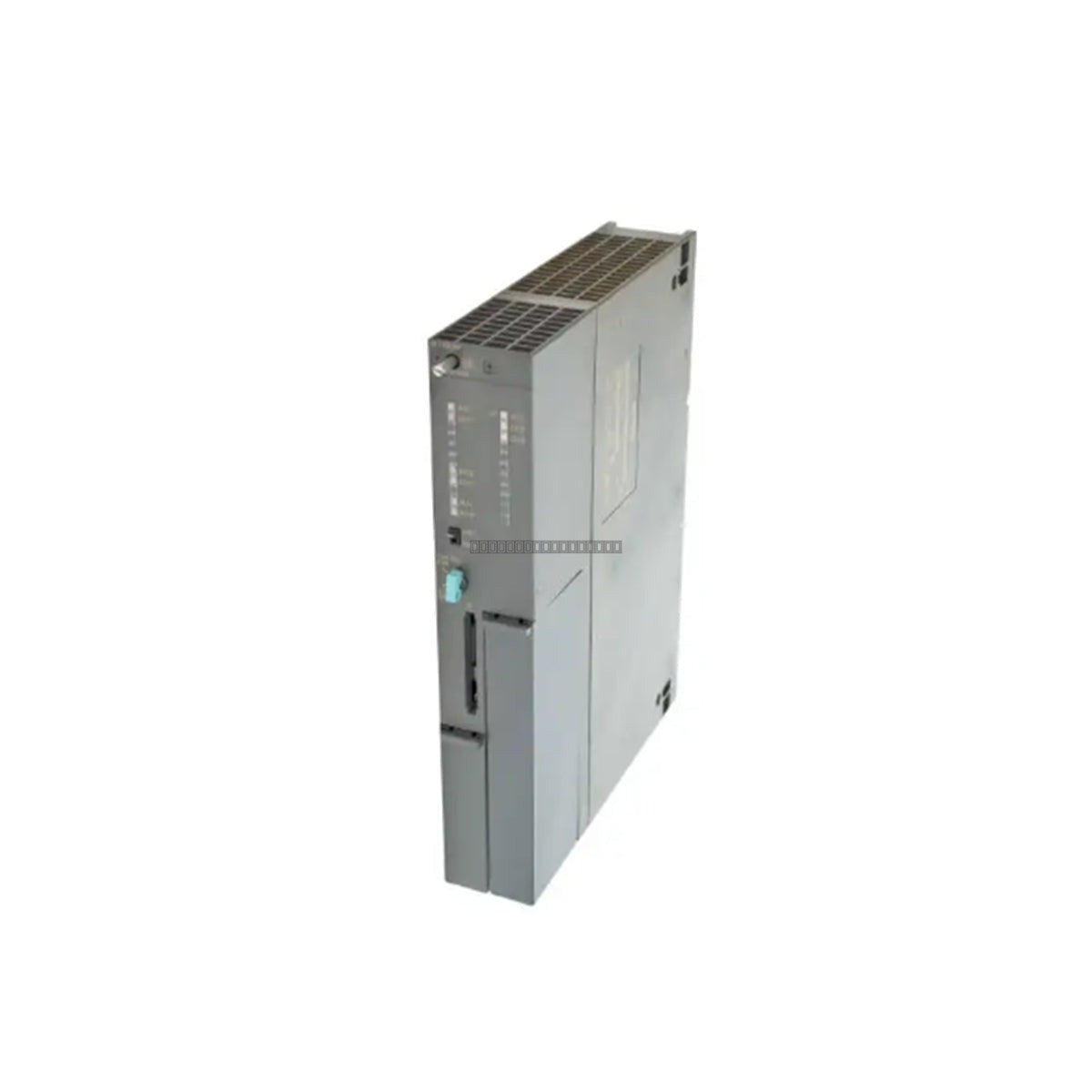

The Siemens 6ES7416-2XK01-0AB0 is a high-performance central processing unit (CPU) designed for the SIMATIC S7-400 automation system. Engineered for complex, large-scale industrial control tasks, this processor provides robust computational power and flexible communication capabilities. It is widely utilized in demanding environments such as power generation, oil and gas processing, and large-scale manufacturing to manage extensive I/O configurations with minimal cycle times.
Features
- Integrated 0.8 MB work memory (0.4 MB for program, 0.4 MB for data).
- Dual-interface architecture: Integrated MPI/DP interface and a dedicated PROFIBUS DP interface.
- High-speed communication support up to 12 Mbps on the PROFIBUS DP port.
- Supports hardware-based synchronization for high-availability configurations.
- Advanced diagnostic capabilities for system monitoring and fault detection.
Applications
This CPU is designed for mid-to-high-end automation applications, including:
- Large-scale process control in refineries and chemical plants.
- Power plant automation and grid management.
- Complex material handling and mining operations.
- High-availability systems requiring redundant rack configurations.
Technical Specifications
| Model |
6ES7416-2XK01-0AB0 |
| Series |
SIMATIC S7-400 |
| Work Memory |
0.8 MB |
| Interfaces |
MPI/DP, PROFIBUS DP |
| Communication Speed |
Up to 12 Mbps |
| Input Voltage |
5 VDC (via backplane) |
| Operating Temperature |
0 to 60 degC |
Installation Guidelines
- Ensure the S7-400 rack is powered down before inserting or removing the CPU module.
- Handle the module using proper ESD (Electrostatic Discharge) protection practices to prevent damage to internal circuitry.
- Ensure the module is fully seated in the rack slot and the locking mechanism is engaged.
- Use shielded cables for PROFIBUS DP communication to minimize EMI interference in industrial environments.
- Maintain adequate ventilation around the rack to ensure the operating temperature remains within the specified 0-60 degC range.
FAQ
What is the primary function of the 6ES7416-2XK01-0AB0?
This module acts as the central processing unit for the SIMATIC S7-400 PLC system, responsible for executing user programs, managing I/O data, and handling communication across MPI and PROFIBUS DP networks.
Can this CPU be used in redundant systems?
Yes, the CPU 416-2 supports hardware-based synchronization, allowing it to be integrated into high-availability or redundant S7-400 configurations when paired with appropriate software and hardware components.
What is the memory allocation for this unit?
The 0.8 MB of total work memory is divided into 0.4 MB for program instructions and 0.4 MB for data storage.
