Description

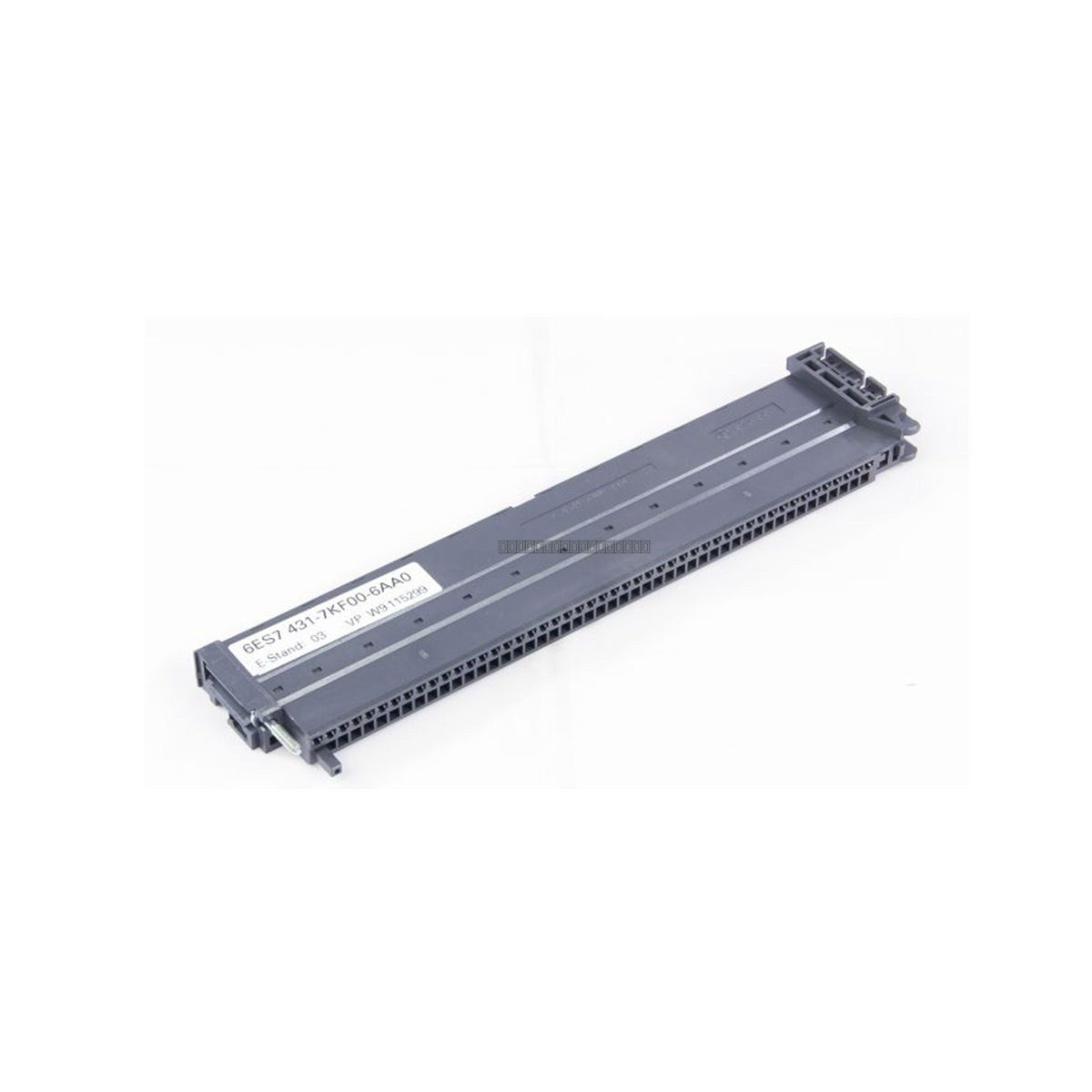

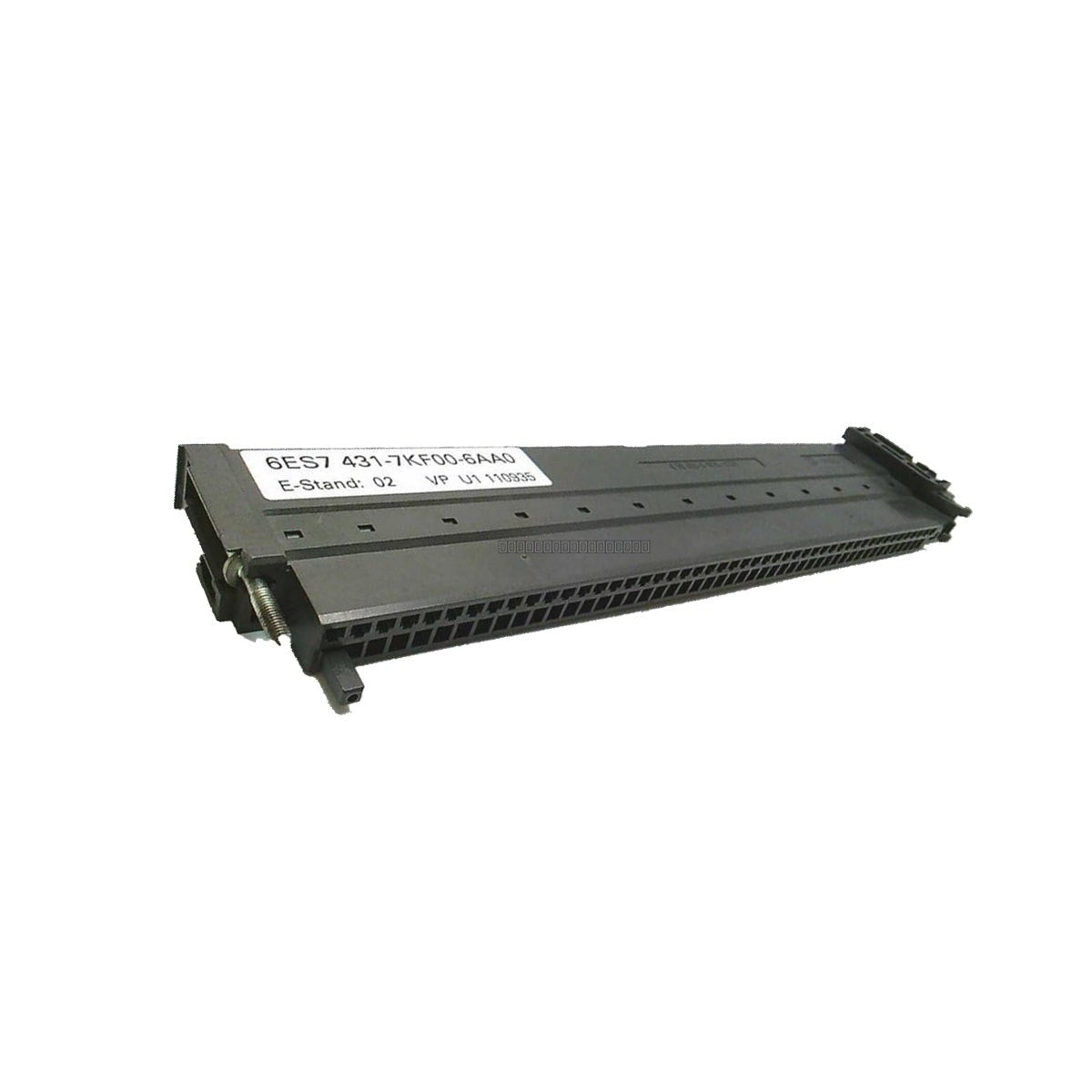

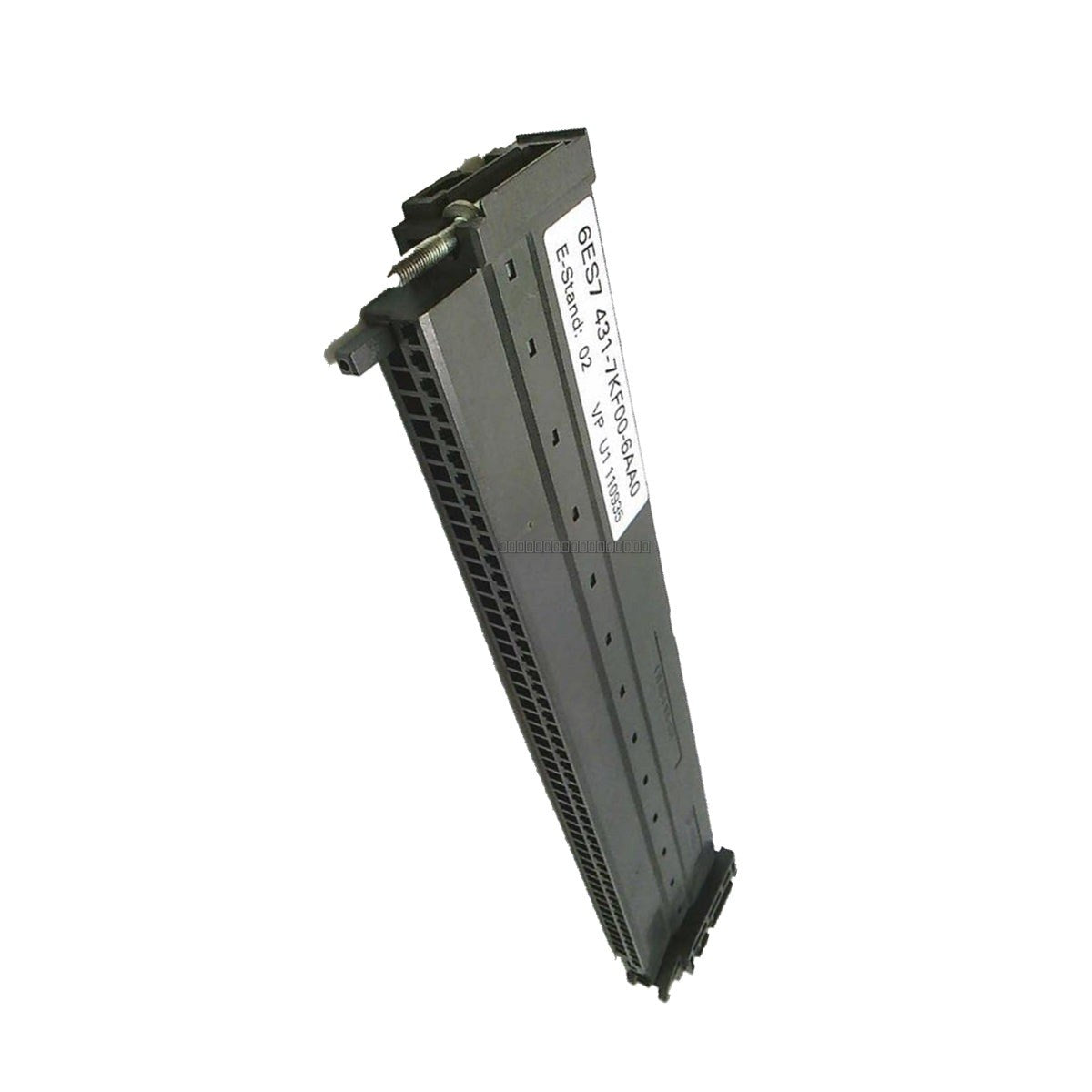

The Siemens 6ES7431-7KF00-6AA0 is a front connector designed for use with the SIMATIC S7-400 automation system. This component is specifically engineered for integration with the 6ES7431-7KF00-0AB0 analog input module, which supports reference temperature detection. It provides a reliable, screw-terminal interface for field wiring, ensuring secure connections for industrial signal processing.
Features
- Designed for SIMATIC S7-400 series modules.
- Screw-type contact terminals for secure, vibration-resistant wiring.
- Optimized for use with modules requiring reference temperature detection.
- Standardized interface for consistent signal transmission in S7-400 racks.
Applications
This front connector is utilized in industrial control environments where the S7-400 PLC system is deployed, particularly in applications involving analog signal acquisition, temperature monitoring, and process automation where precise, stable connections are required for thermocouple or analog inputs.
Technical Specifications
| Product Model |
6ES7431-7KF00-6AA0 |
| Manufacturer |
Siemens |
| Product Type |
Front Connector |
| Compatibility |
SIMATIC S7-400 (specifically for 6ES7431-7KF00-0AB0) |
| Connection Type |
Screw Contacts |
| Tariff Code |
8538903000 |
Installation Guidelines
- Ensure the PLC power supply is disconnected before installing or removing the front connector from the module.
- Verify that the module is correctly seated in the S7-400 rack before attaching the connector.
- Use appropriate wire gauges as specified by the module documentation to ensure proper fit within the screw terminals.
- Tighten screws to the recommended torque to prevent loose connections and signal interference.
- Maintain proper cable management and routing to avoid strain on the connector and to minimize EMI exposure.
FAQ
Is this connector compatible with all S7-400 modules?
No, this connector is specifically designed for use with the 6ES7431-7KF00-0AB0 module. Please verify your module part number before installation.
Does this connector include the housing?
This is a standard front connector assembly for the S7-400 series, providing the necessary screw-terminal interface for field wiring to the module.
