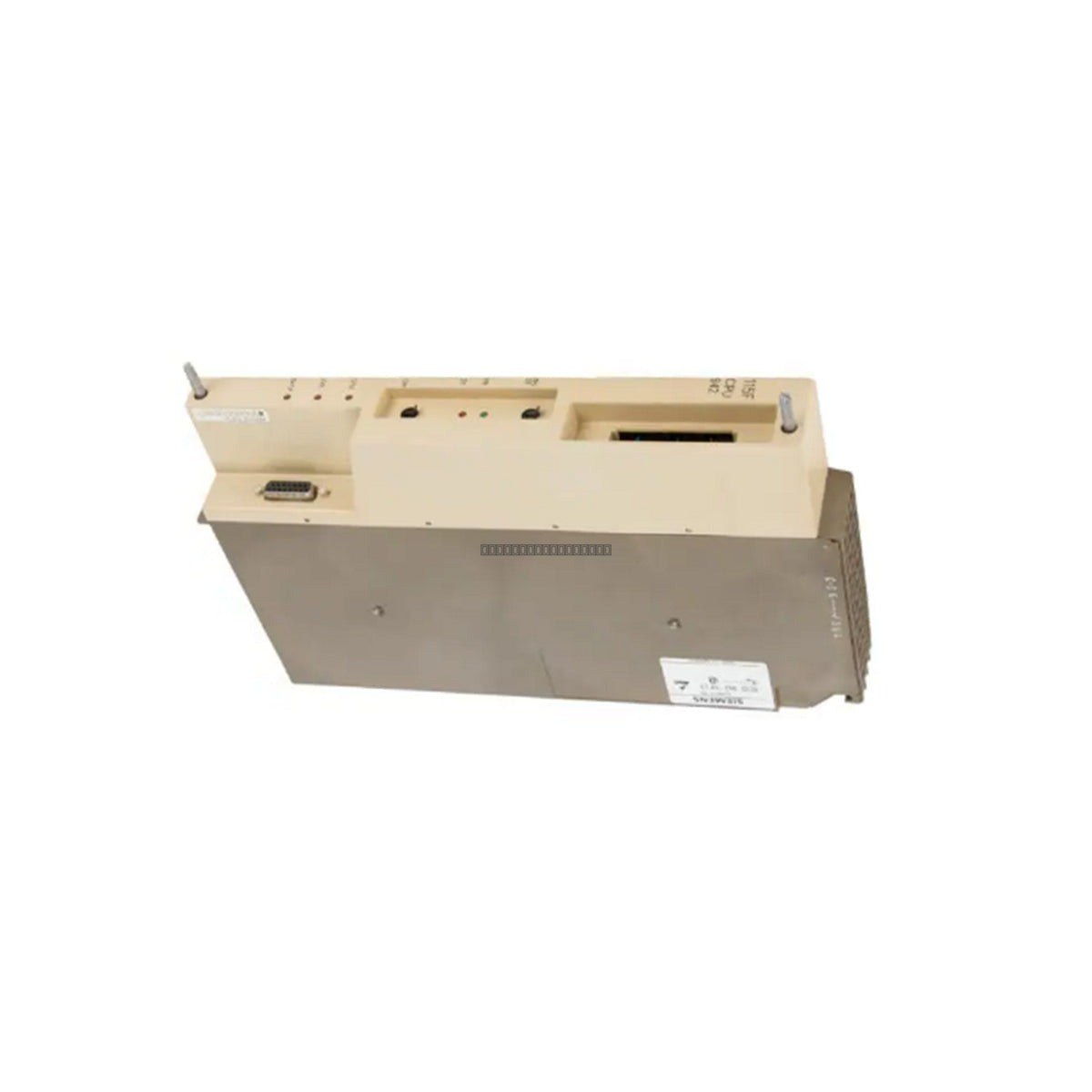

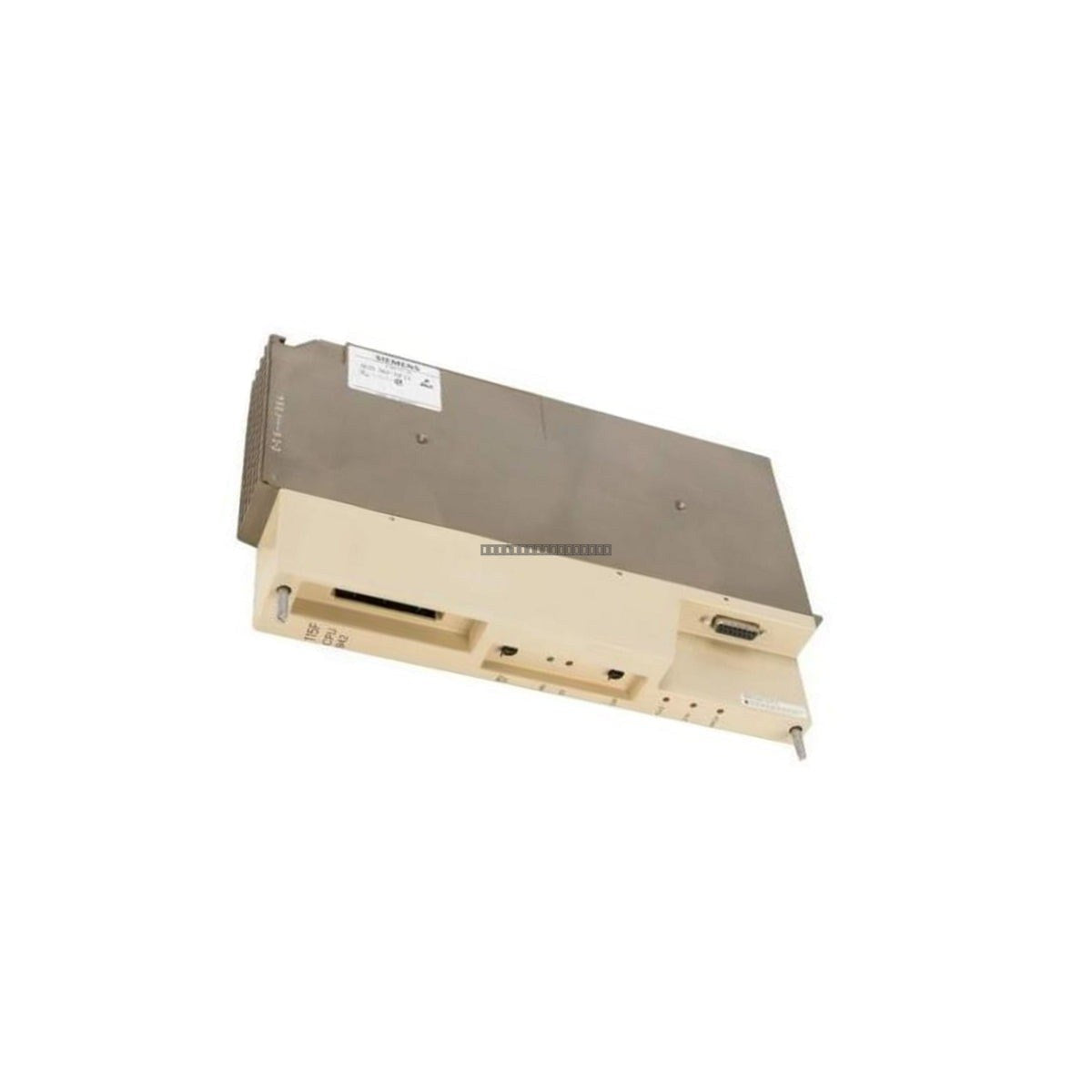

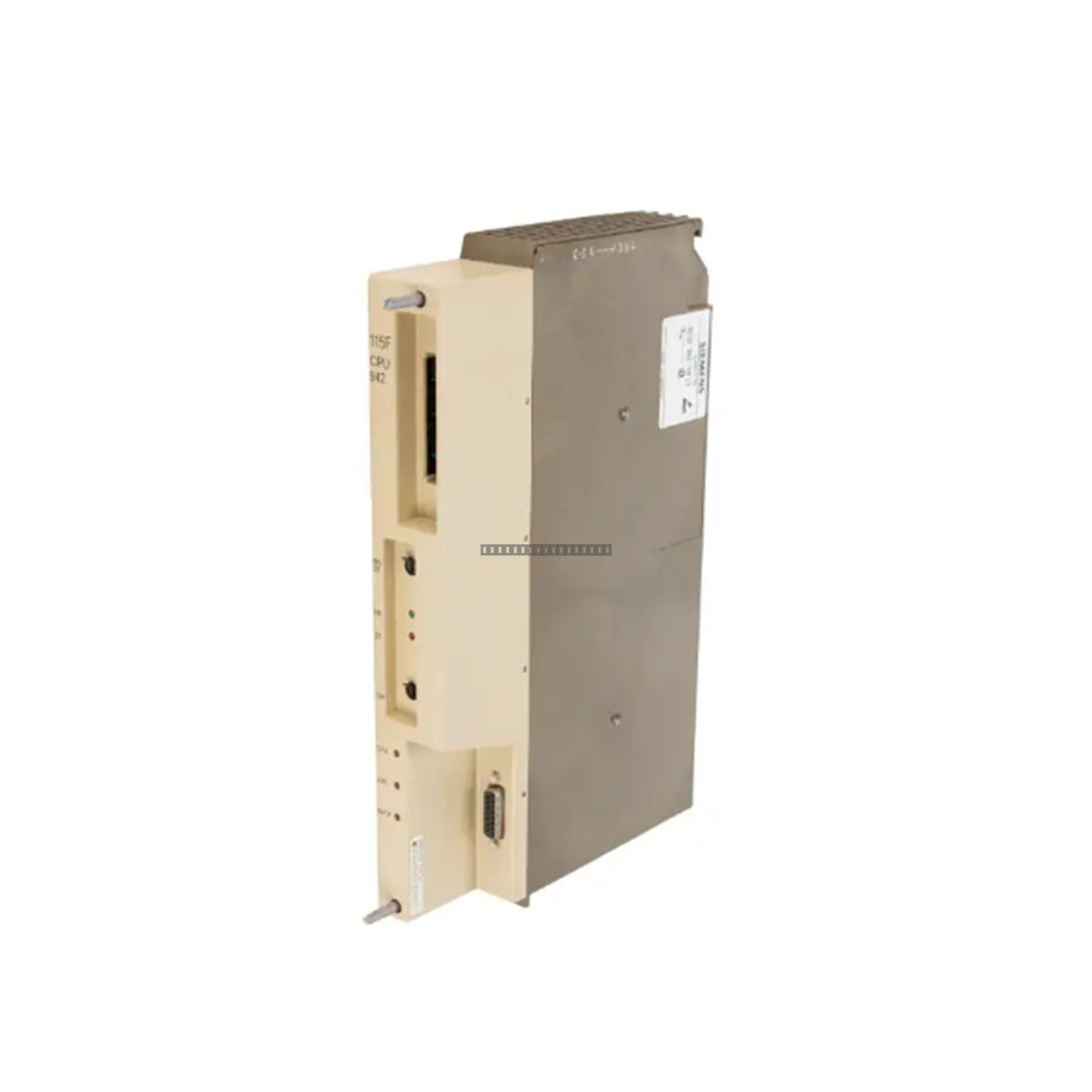

The Siemens Simatic S5 6ES5942-7UF13 (CPU 942F) is a high-reliability, fail-safe central processing unit engineered specifically for the Simatic S5-115F automation system. This specialized processor utilizes dual-channel, redundant architecture to perform continuous cross-checking of execution logic and internal register states. Designed for critical safety-instrumented systems (SIS), the unit is capable of immediate transition to a secure, de-energized state upon detecting internal or external fault conditions.
Features
- Dual-channel redundant processing architecture for high-integrity safety logic execution.
- Continuous self-testing of the arithmetic logic unit (ALU), memory blocks, and internal bus communication.
- Integrated fail-safe safety protocols for monitoring rack-mounted or remote digital I/O.
- Master safety contact loop control for immediate isolation of field actuators during fault detection.
- Integrated RAM with support for external EPROM/EEPROM memory modules.
Applications
This CPU is intended for use in high-risk industrial environments where safety-critical control is mandatory, including chemical processing refineries, nuclear power generation, and automated mining hoist mechanisms.
Technical Specifications
| Model |
6ES5942-7UF13 (CPU 942F) |
| Series |
Simatic S5-115F |
| Module Type |
Fail-Safe CPU |
| Operating Temperature |
0 to 55 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Power Consumption |
5 VDC (max 2.5 A) |
| Memory |
Integrated RAM with EPROM/EEPROM slot |
Installation Guidelines
- Ensure the system power is completely disconnected before inserting or removing the CPU module from the S5-115F rack.
- Verify that the backplane connectors are free of debris and oxidation to ensure reliable communication.
- Maintain proper ventilation within the control cabinet to keep ambient temperatures within the specified 0 to 55 deg C range.
- Use shielded cables for all I/O connections to minimize electromagnetic interference (EMI) in safety-critical loops.
- Handle the module using ESD-safe practices to prevent damage to sensitive internal circuitry.
- Ensure the module is fully seated and the locking mechanisms are engaged to prevent intermittent contact due to vibration.
FAQ
Is this module still in production?
No, the Siemens 6ES5942-7UF13 was discontinued by the manufacturer on January 11, 1994. It is recommended to maintain on-site spares to ensure the continued operation of existing S5-115F safety systems.
What is the primary function of the CPU 942F?
The CPU 942F serves as the central controller for the S5-115F system, specifically managing fail-safe logic and monitoring for hardware discrepancies or fault conditions to trigger a safe system shutdown.
