Description
Overview

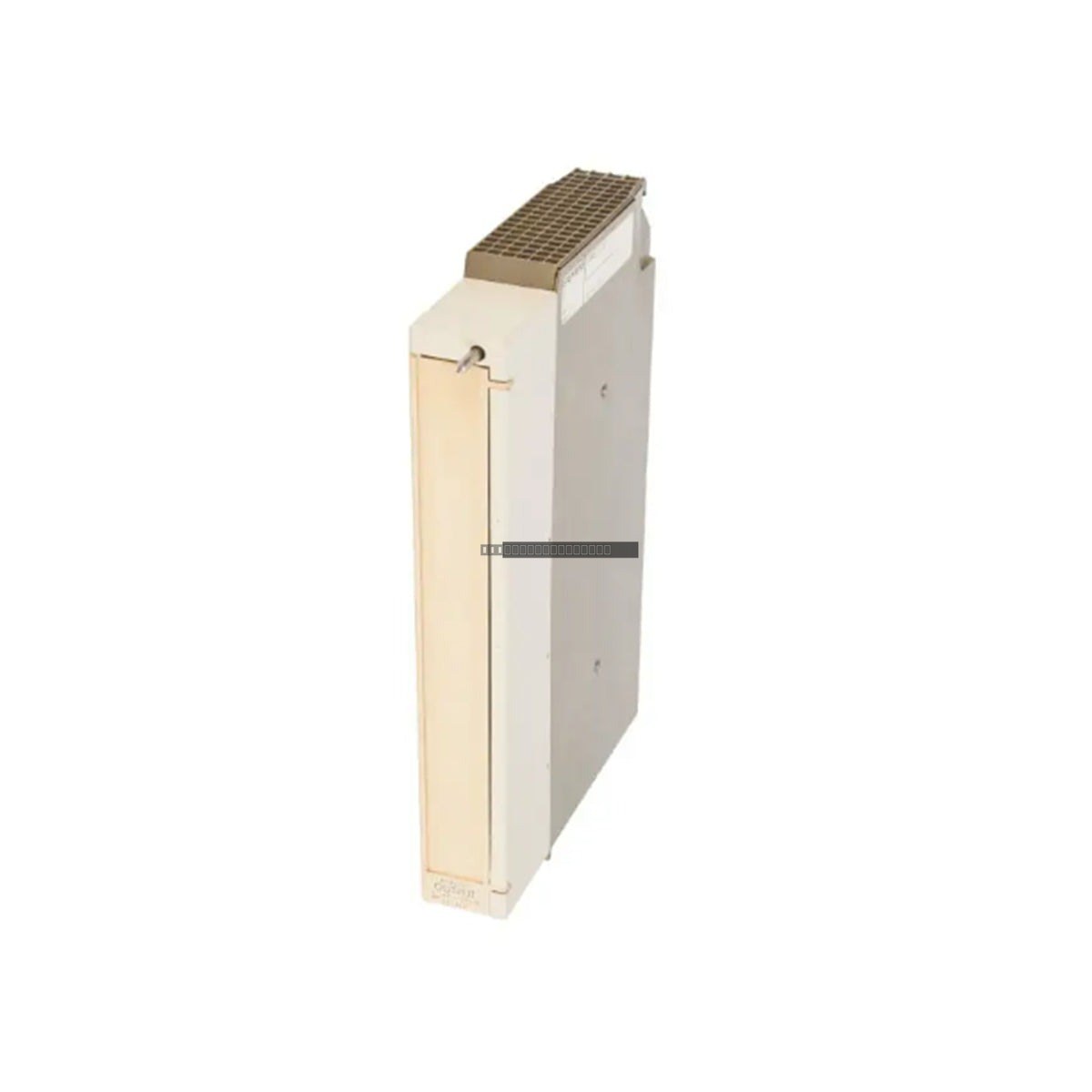

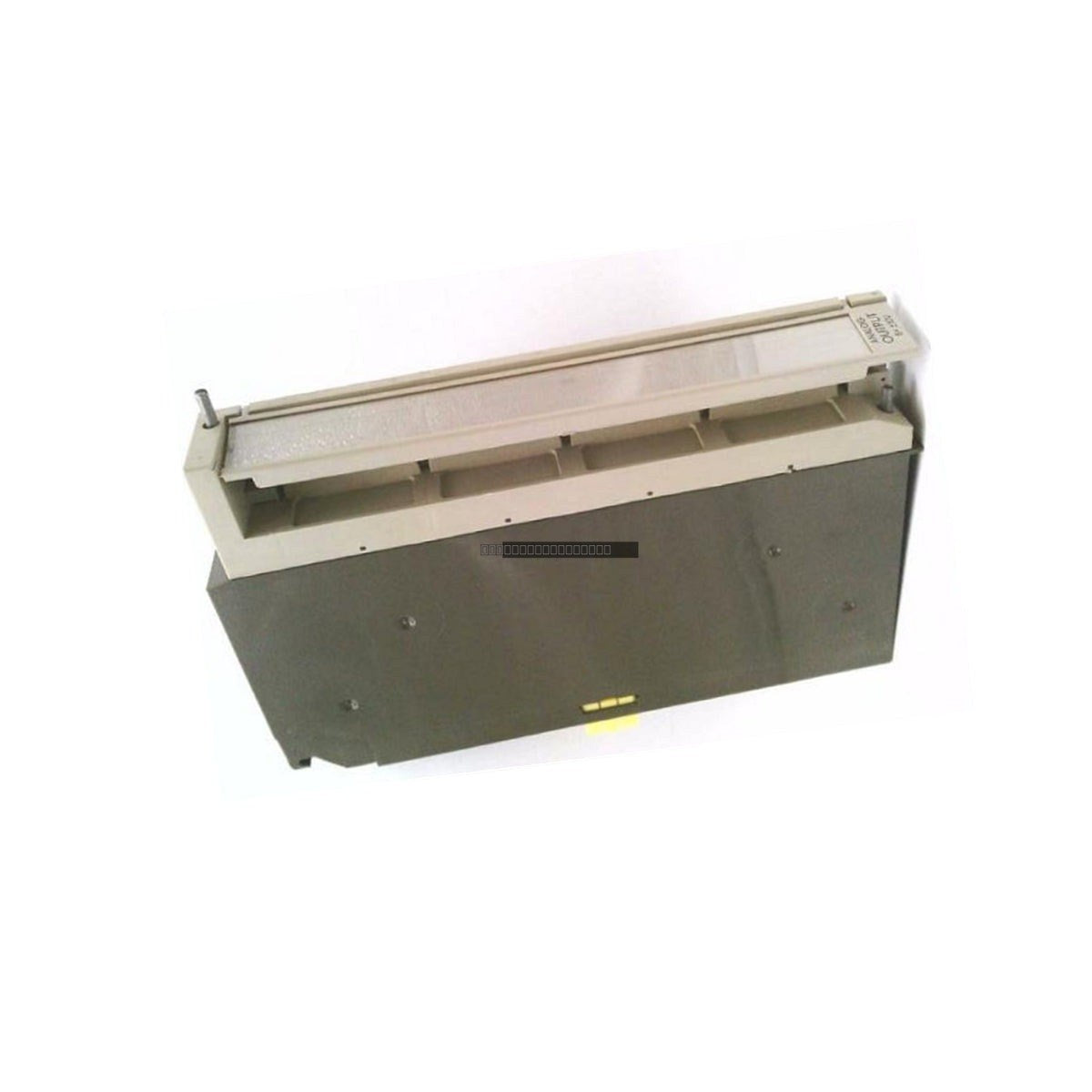

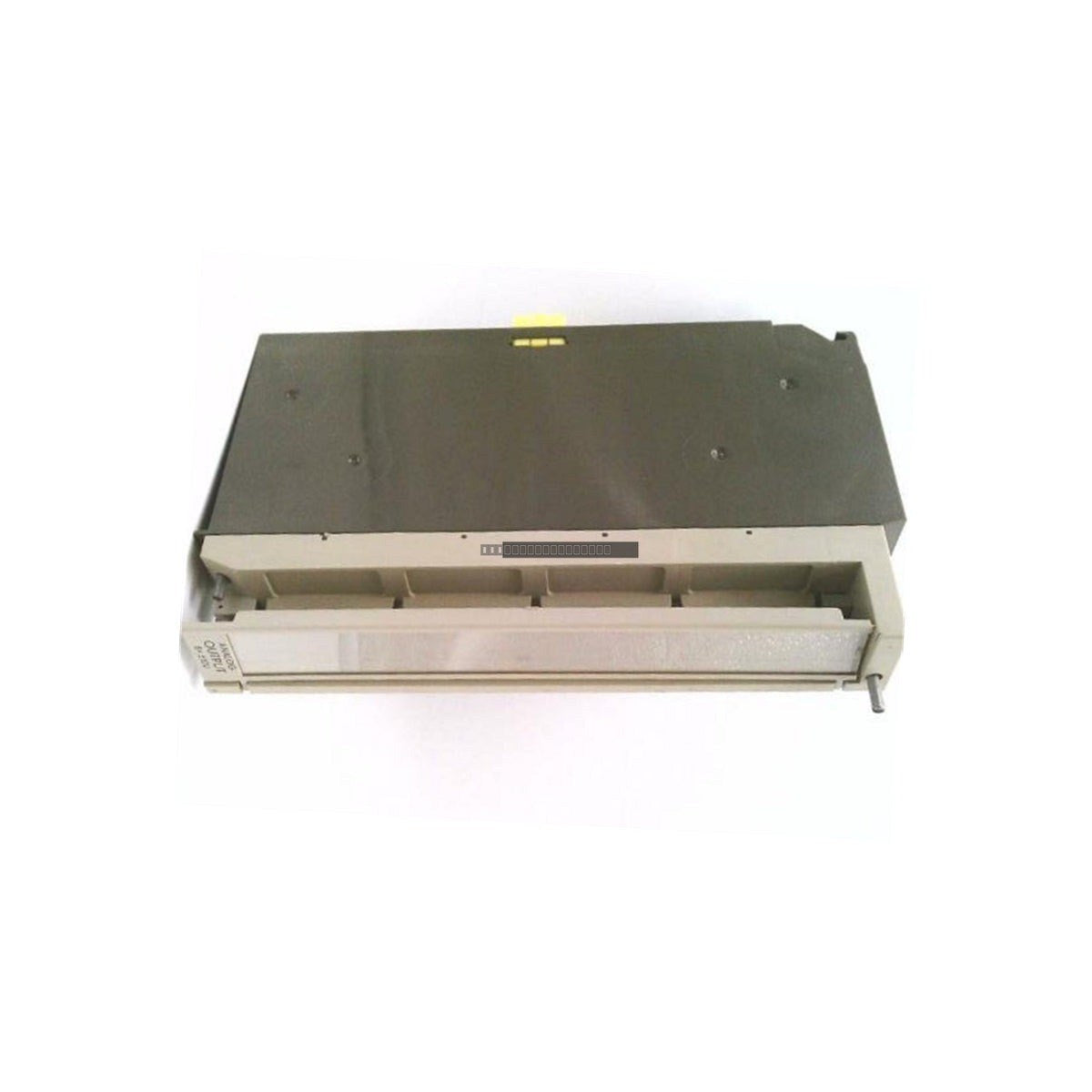

The Siemens 6ES5470-7LC11 is a specialized analog output module designed for integration within the legacy Simatic S5 PLC platform. This module serves as a bridge between the central processor and external field devices, converting digital control data into precise voltage signals. It is engineered to maintain stable output performance in demanding industrial environments, ensuring consistent control over actuators, valves, and other voltage-sensitive instrumentation.
Features
- Provides 8 independent analog output channels for multi-loop control applications.
- Designed for seamless integration with the Simatic S5 rack-based architecture.
- Incorporates galvanic isolation to protect the CPU from field-side electrical interference and noise.
- Integrated diagnostic LEDs facilitate rapid troubleshooting of channel status and communication health.
- Features internal circuitry for short-circuit protection on individual output loops.
Applications
This module is widely deployed in legacy automation systems across heavy industries, including chemical processing, power generation, and automated manufacturing. It is primarily used to drive field equipment requiring a 1 to 5 V control signal, such as electronic speed governors, proportional control valves, and pneumatic positioners.
Technical Specifications
| Model |
6ES5470-7LC11 |
| Channels |
8 |
| Signal Range |
1 to 5 V |
| Power Consumption |
3.5 W |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the PLC rack is powered down before inserting or removing the 6ES5470-7LC11 module to prevent electrical damage.
- Verify that the module is securely seated in the designated backplane slot to ensure reliable bus communication.
- Use shielded cabling for all analog output connections to minimize EMI/RFI impact on signal integrity.
- Maintain proper ventilation in the control cabinet to ensure the ambient temperature remains within the 0 to 60 deg C range.
- Follow standard ESD precautions when handling the module to avoid damage to internal sensitive components.
FAQ
Is the 6ES5470-7LC11 compatible with all S5 series racks?
This module is designed for the standard Simatic S5 system. Please refer to your specific PLC rack documentation to confirm slot compatibility and backplane power requirements.
What does the diagnostic LED indicate?
The front-panel LEDs provide visual confirmation of the module's operational state and individual channel health, allowing for quick identification of signal faults or communication errors.
