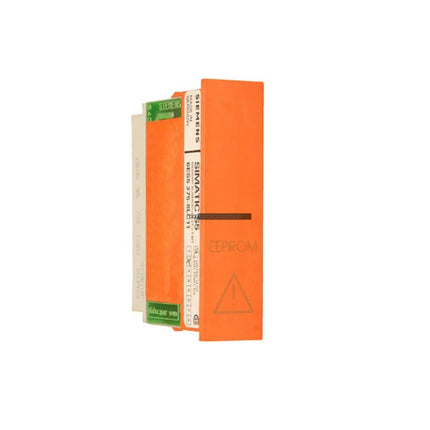

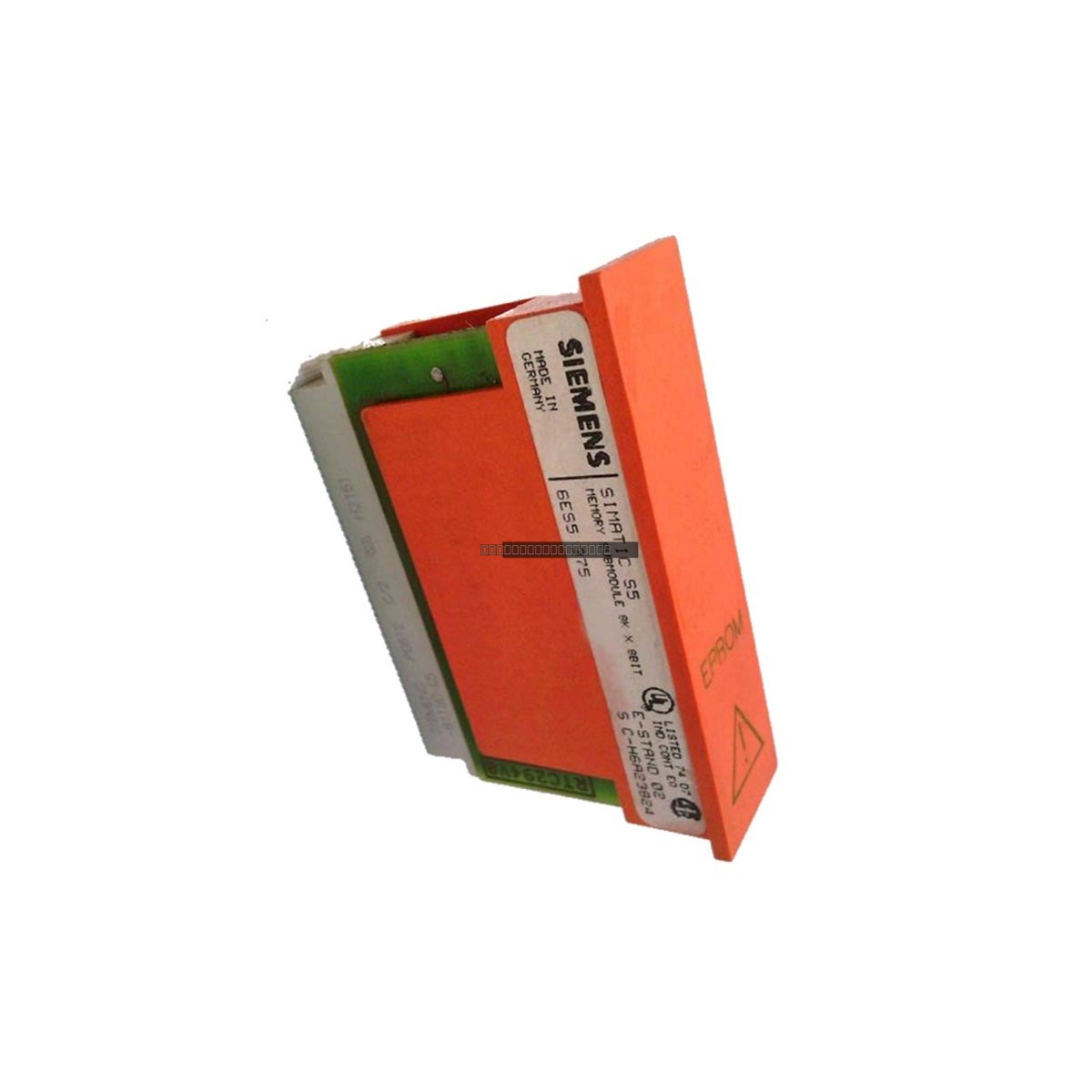

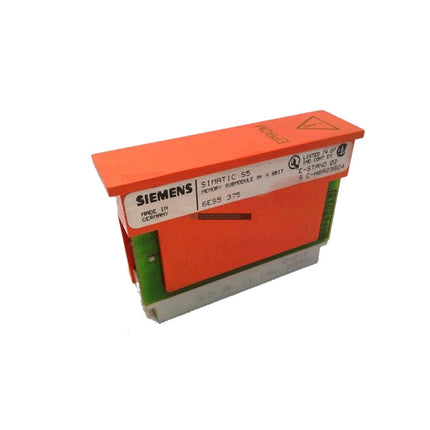

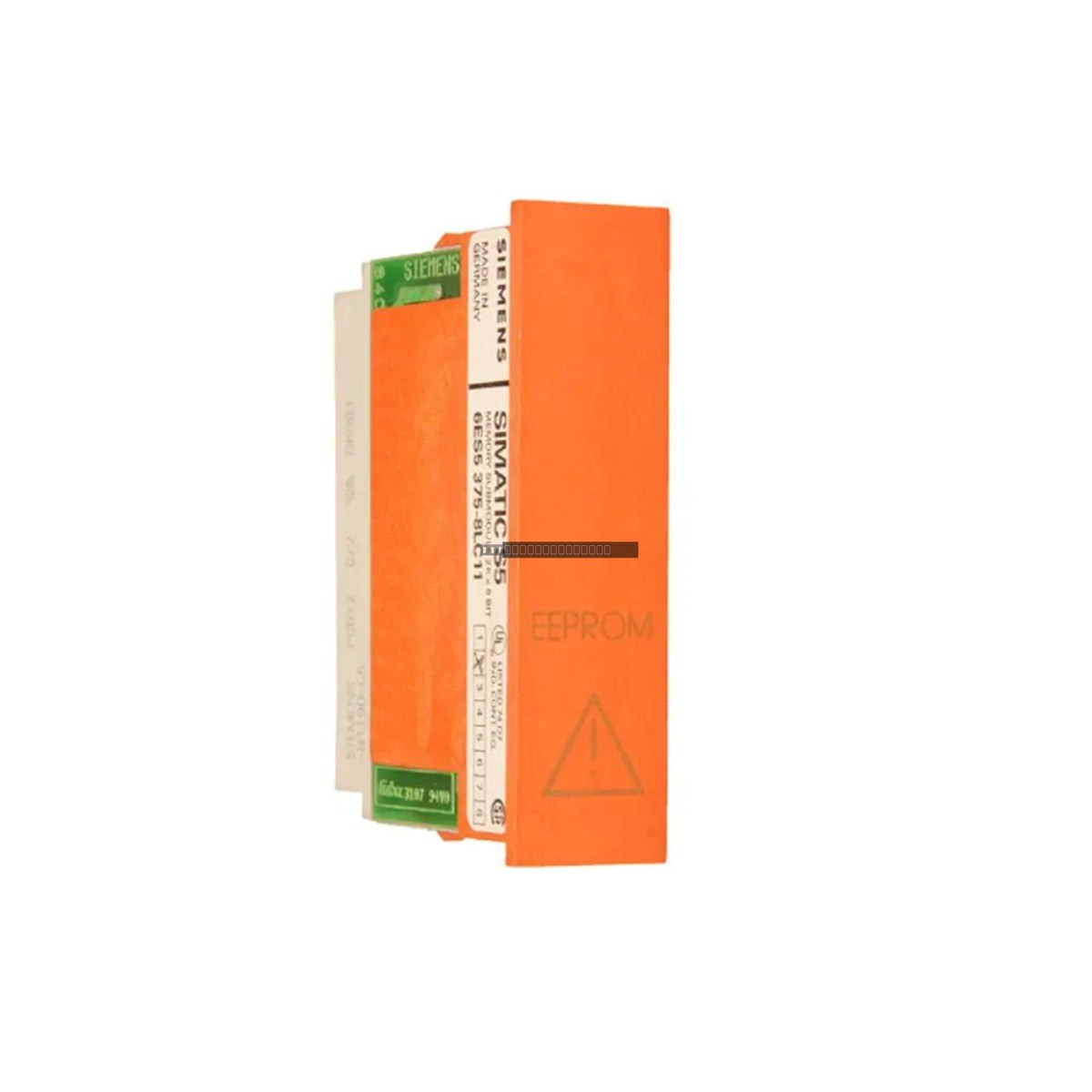

The 6ES5375-8LC11 is an EEPROM memory submodule engineered for the Siemens SIMATIC S5 PLC series. This non-volatile storage component provides 2 KB of capacity, ensuring reliable retention of control software and machine-specific parameters without the requirement for battery-backed support. It is designed to facilitate efficient maintenance and rapid hardware replacement within legacy S5 automation systems.
Features
- Non-volatile EEPROM technology for secure data retention during power cycles.
- 2 KB storage capacity for application logic and configuration parameters.
- Direct integration with the SIMATIC S5 submodule interface.
- High-stability read/write performance for industrial control environments.
- Eliminates the need for external battery support for data integrity.
Applications
This memory module is intended for use in legacy Siemens SIMATIC S5 PLC architectures, serving critical roles in energy distribution, chemical processing, and heavy manufacturing sectors where long-term system reliability and rapid recovery from hardware faults are required.
Technical Specifications
| Model |
6ES5375-8LC11 |
| Manufacturer |
Siemens |
| Memory Type |
EEPROM (Non-volatile) |
| Capacity |
2 KB |
| Operating Temperature |
0 to 60 deg C |
| Compatibility |
Siemens SIMATIC S5 Series |
Installation Guidelines
- Ensure the PLC power is switched off before inserting or removing the memory submodule to prevent electrical damage or data corruption.
- Handle the module by its edges to avoid electrostatic discharge (ESD) damage to the internal components.
- Align the module carefully with the S5 controller's submodule slot and press firmly until it is fully seated.
- Verify that the module is correctly recognized by the CPU upon system power-up.
- Store in a dry, low-vibration environment to maintain long-term component integrity.
FAQ
Does this module require a battery?
No, the 6ES5375-8LC11 uses EEPROM technology, which is non-volatile and does not require a battery to retain data during power loss.
Is this module compatible with all S5 PLCs?
This module is designed for the SIMATIC S5 ecosystem. Please verify your specific CPU model's documentation to ensure compatibility with the 2 KB EEPROM submodule format.
