Description

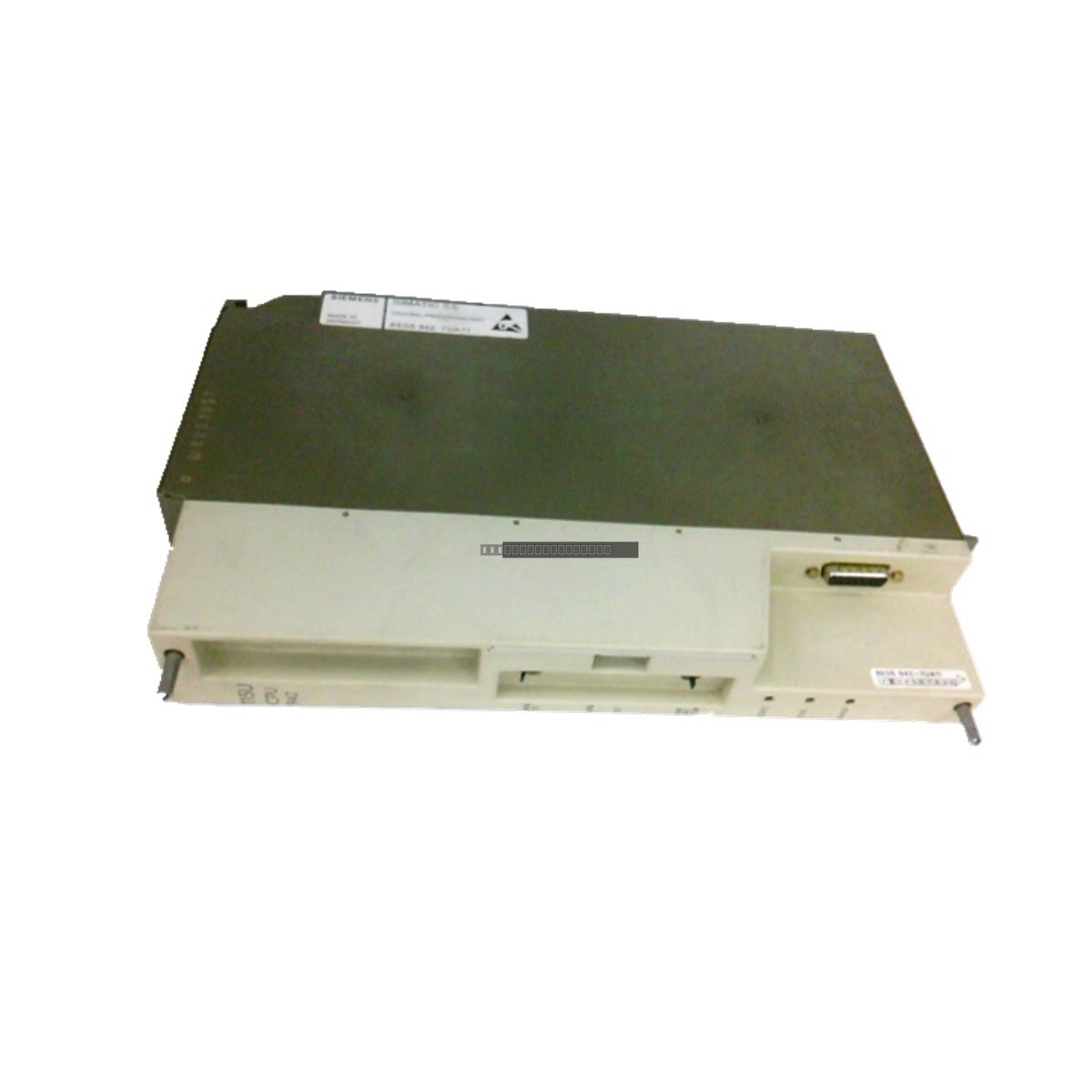

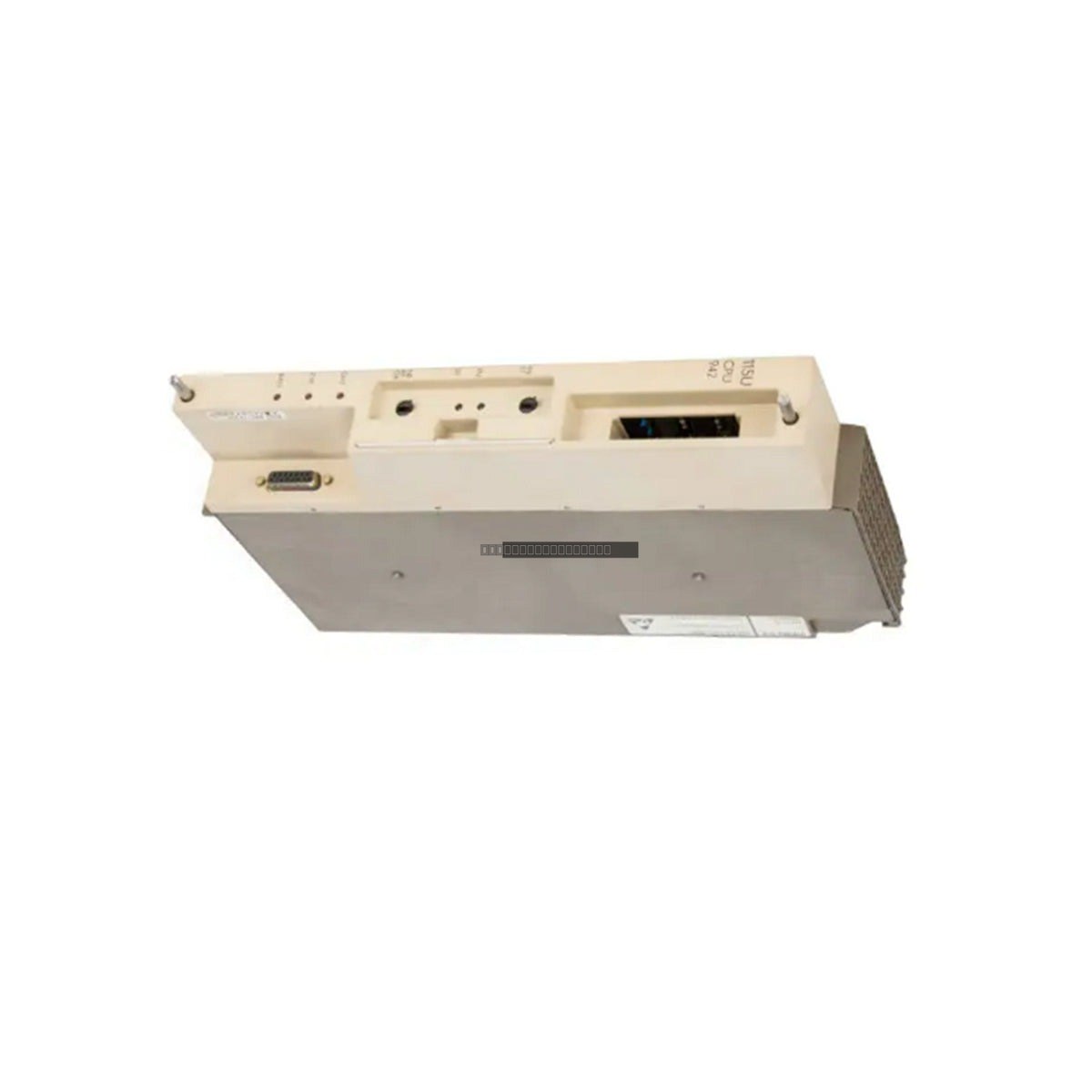

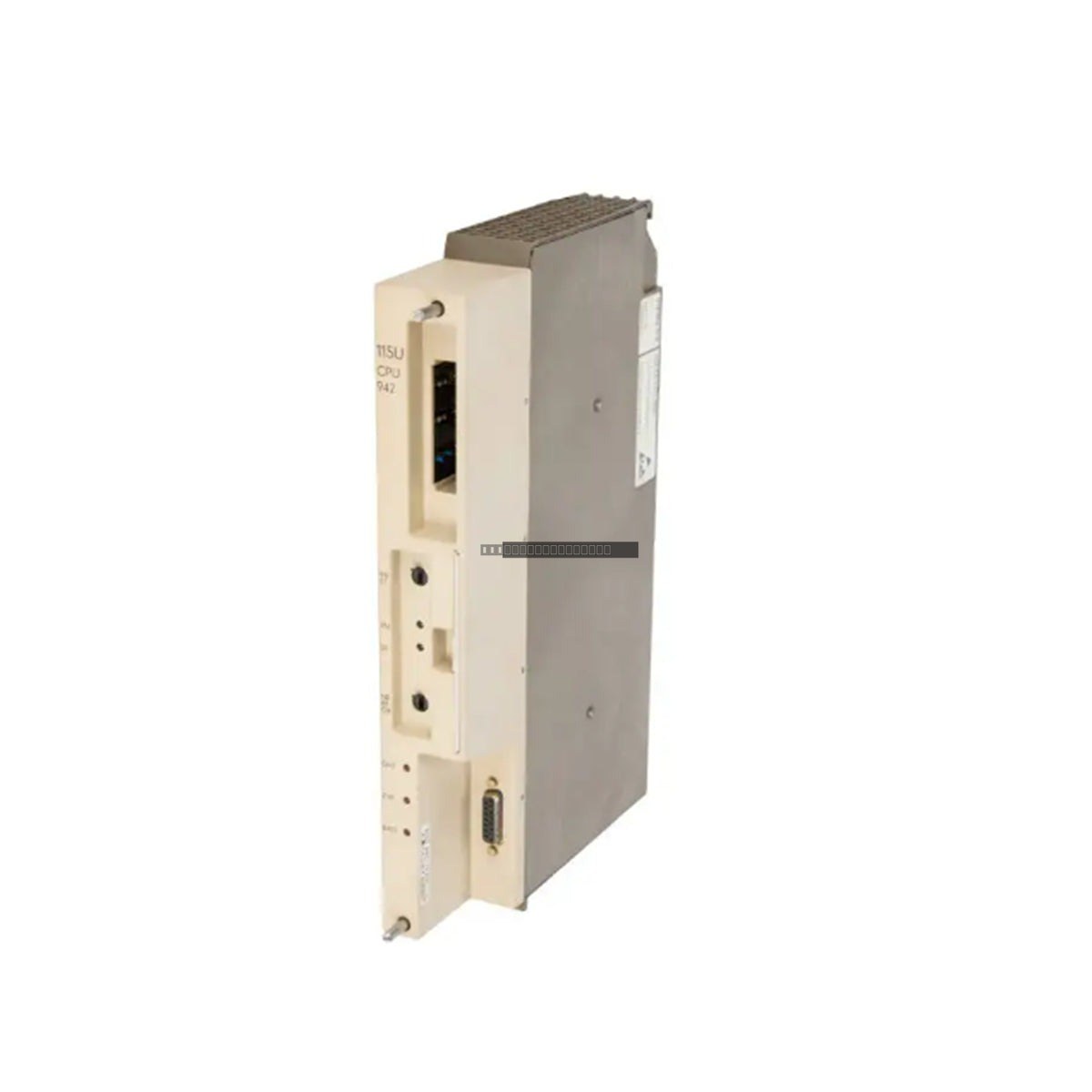

The Siemens 6ES5942-7UA11 is a high-performance central processing unit designed for the Simatic S5-115U PLC platform. This module serves as the primary controller for industrial automation tasks, providing reliable execution of complex logic, sequential control, and data processing. It is engineered to handle demanding industrial environments, ensuring consistent uptime and precise control over automated systems.
Features
- Integrated 10 KB RAM with expansion capability up to 32 KB using external memory sub-modules.
- Rapid execution times for binary operations (0.2 microseconds).
- Dedicated interface for EPROM/EEPROM modules to ensure non-volatile program storage.
- Built-in battery backup circuit for retention of volatile data and registers during power loss.
- Front-mounted mode switch for RUN/STOP control and clear LED diagnostic indicators for system status, battery health, and bus fault monitoring.
Applications
This CPU is widely utilized in legacy industrial infrastructure, including thermal power generation, petrochemical processing, and heavy manufacturing facilities where the S5-115U architecture remains a critical component of the control loop.
Technical Specifications
| Model |
6ES5942-7UA11 |
| Series |
Simatic S5-115U |
| Base Memory |
10 KB RAM |
| Max Memory Capacity |
32 KB |
| Binary Execution Time |
0.2 microseconds |
| Backplane Current Consumption |
0.9 A at 5 VDC |
| Operating Temperature |
0 to 55 deg C |
| Storage Temperature |
-40 to 70 deg C |
Installation Guidelines
- Ensure the PLC rack is powered down before inserting or removing the CPU module to prevent electrical damage.
- Verify that the module is properly seated in the designated CPU slot of the S5-115U backplane.
- Maintain proper ventilation in the control cabinet to keep ambient temperatures within the specified 0-55 deg C operating range.
- Handle with standard ESD precautions; use a grounded wrist strap when touching internal components or connectors.
- Ensure the backup battery is installed and replaced according to the maintenance schedule to prevent loss of volatile memory.
FAQ
Is the memory expandable on this CPU? Yes, the onboard 10 KB RAM can be expanded up to 32 KB through the use of compatible plug-in memory sub-modules.
What is the primary function of the front-facing LEDs? The LEDs provide immediate visual feedback on the CPU state, including RUN/STOP status, bus fault alerts, and battery voltage warnings.
