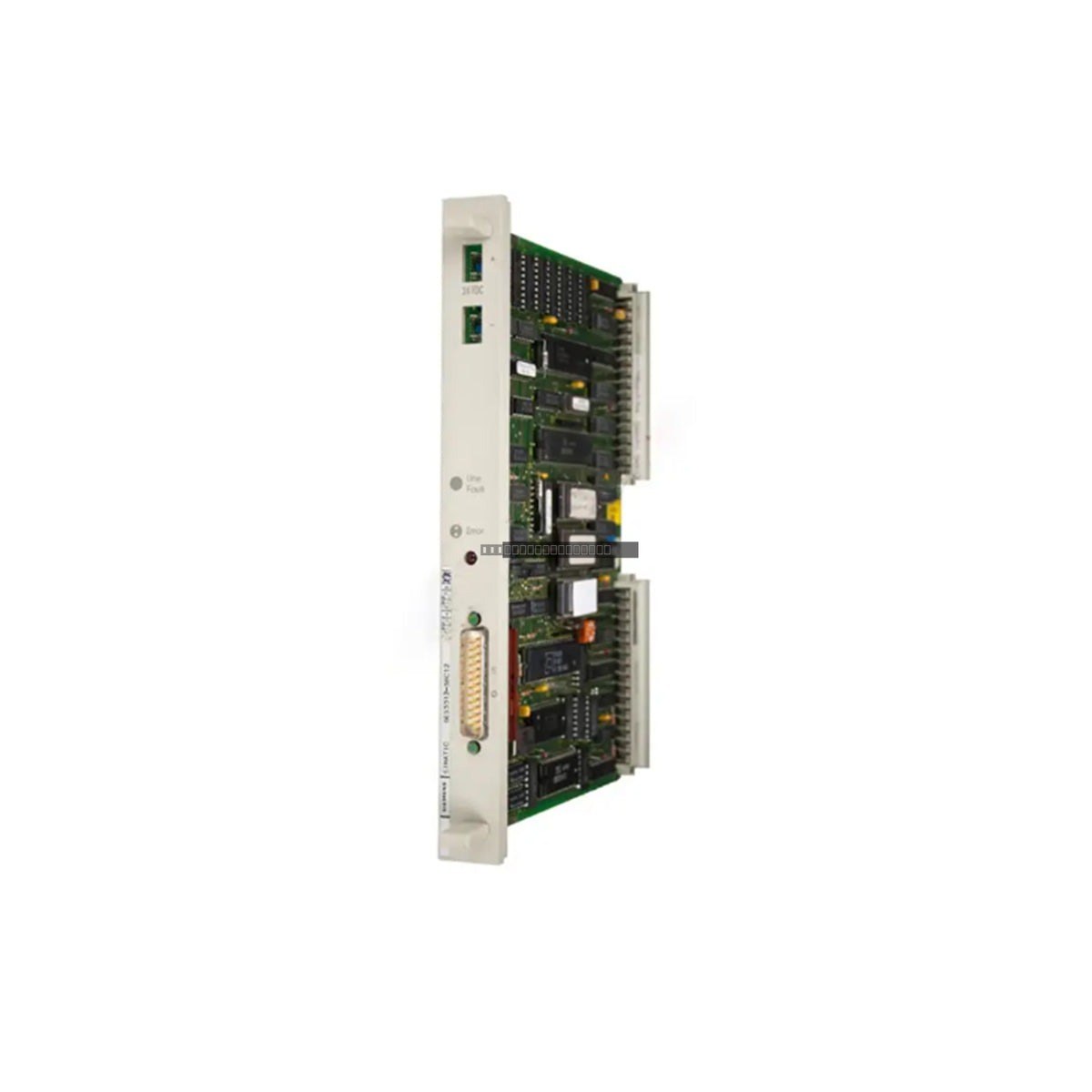

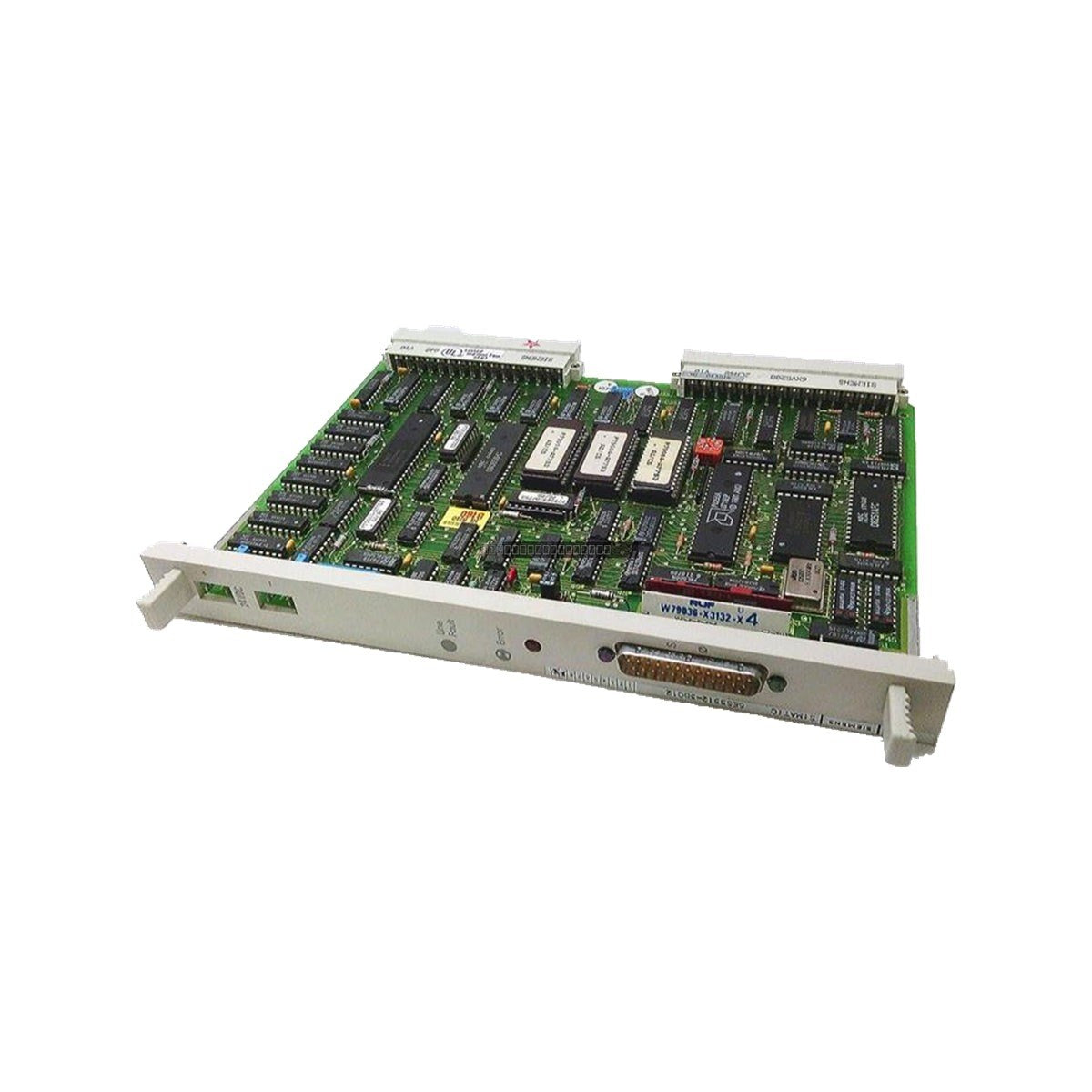

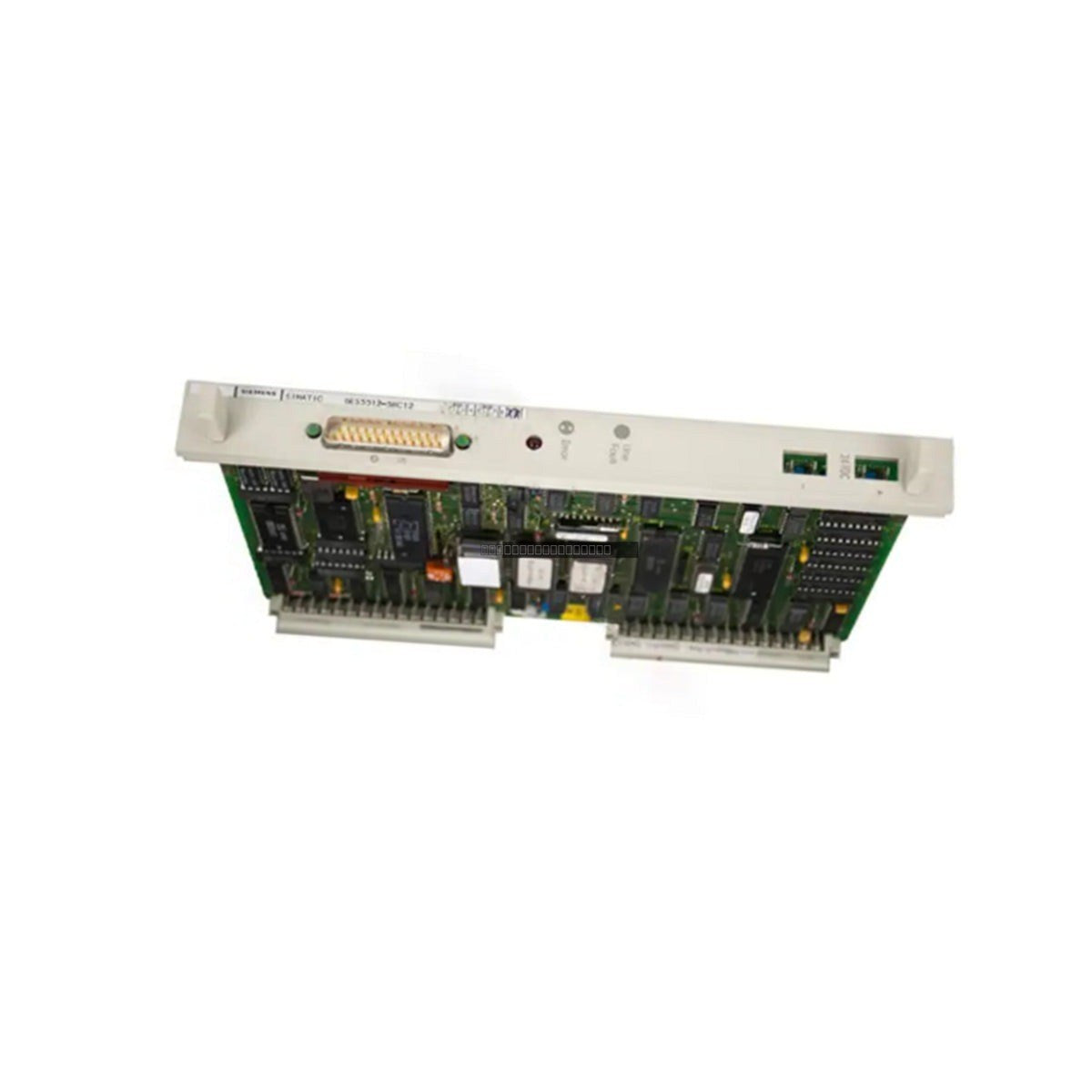

The Siemens 6ES5512-5BC12 is a dedicated AS512 drive interface module designed for integration within the legacy Simatic S5 programmable logic controller environment. This board facilitates essential communication between the central processing unit and industrial drive systems, ensuring precise regulation of speed, torque, and positioning loops. By offloading high-speed drive communication and signal conditioning tasks from the main PLC, this module reduces bus latency and enhances overall system stability. It is frequently employed in demanding industrial applications such as metal processing lines, material handling systems, and large-scale power generation cooling infrastructure.
Features
- Designed for seamless integration with the Simatic S5 backplane architecture.
- Provides autonomous management of drive communication protocols to ensure real-time synchronization.
- Features integrated optical isolation on I/O channels to protect the CPU from electrical noise and voltage transients.
- Supports precise processing of encoder feedback and generation of accurate speed reference signals.
- Rugged construction suitable for long-term deployment in heavy-duty industrial environments.
Applications
This module is typically utilized in systems requiring high-speed synchronization of multiple drive axes. Common use cases include:
- Automated mining hoists and conveyor control.
- Metal rolling mills and precision positioning equipment.
- Power generation plant auxiliary cooling and pumping systems.
- Legacy automation retrofits requiring drive-to-PLC connectivity.
Technical Specifications
| Model |
6ES5512-5BC12 |
| Brand |
Siemens |
| Series |
Simatic S5 / AS512 |
| Module Type |
Drive Interface Basic Board |
| Operating Voltage |
24 VDC |
| Internal Current Draw |
0.85 A (via backplane) |
| Operating Temperature |
0 to 55 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Relative Humidity |
95% non-condensing |
Installation Guidelines
- Ensure the PLC rack power is completely disconnected before inserting or removing the module to prevent electrical damage or bus errors.
- Handle the module by the edges; avoid touching sensitive electronic components on the PCB to prevent ESD damage.
- Verify that the module is firmly seated into the backplane connector to ensure reliable communication.
- Route signal cables away from high-voltage power lines and high-EMI sources to maintain signal integrity.
- Maintain proper ventilation in the control cabinet to ensure the ambient temperature remains within the specified 0 to 55 deg C range.
FAQ
Is this module compatible with modern S7 systems? No, the 6ES5512-5BC12 is specifically engineered for the Simatic S5 series architecture and is not directly compatible with S7 or TIA Portal-based systems without specific gateway hardware.
What is the primary function of the AS512 interface? The AS512 interface acts as a bridge to manage drive-specific communication, allowing the S5 PLC to execute complex motion control routines while maintaining real-time synchronization across connected drives.
