Description

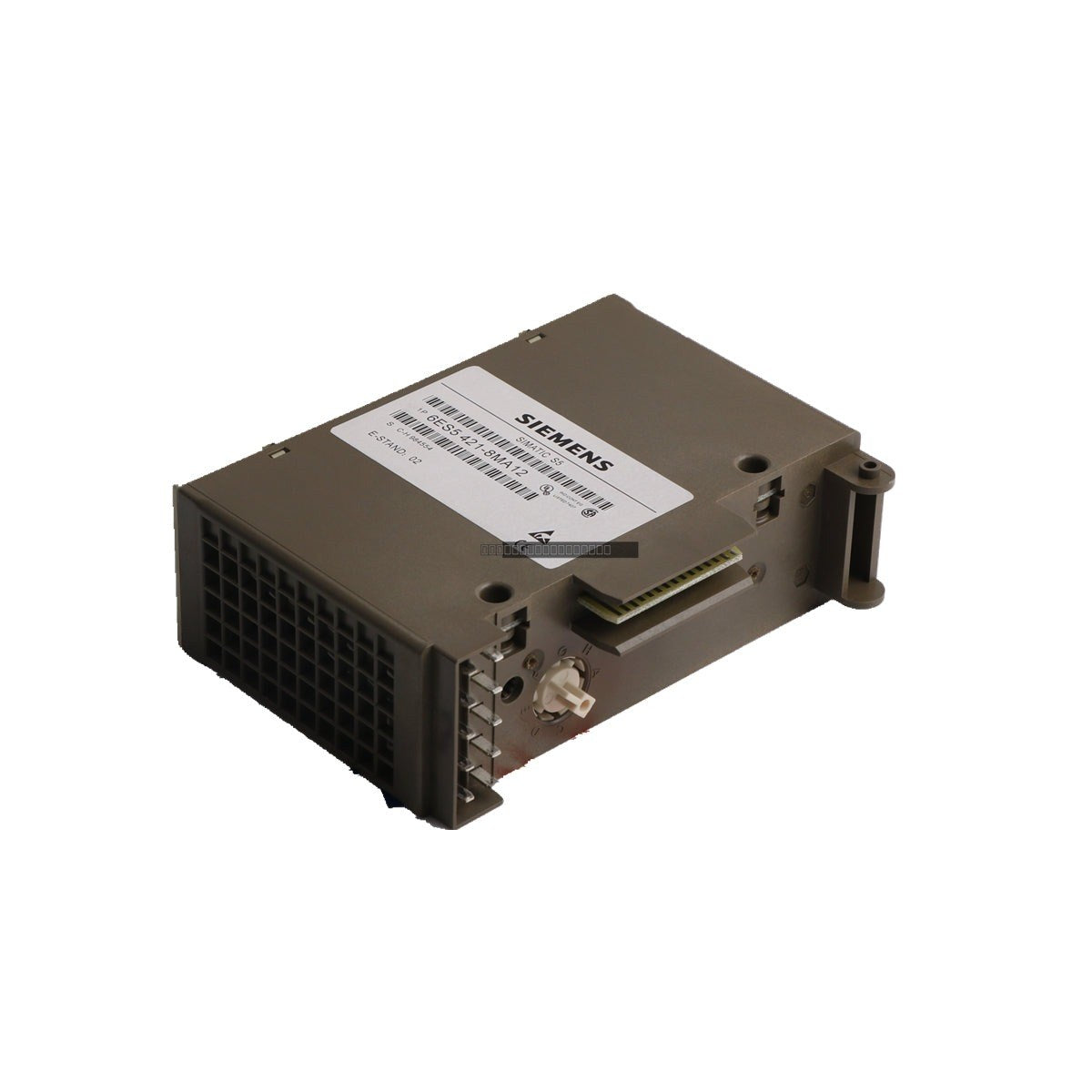

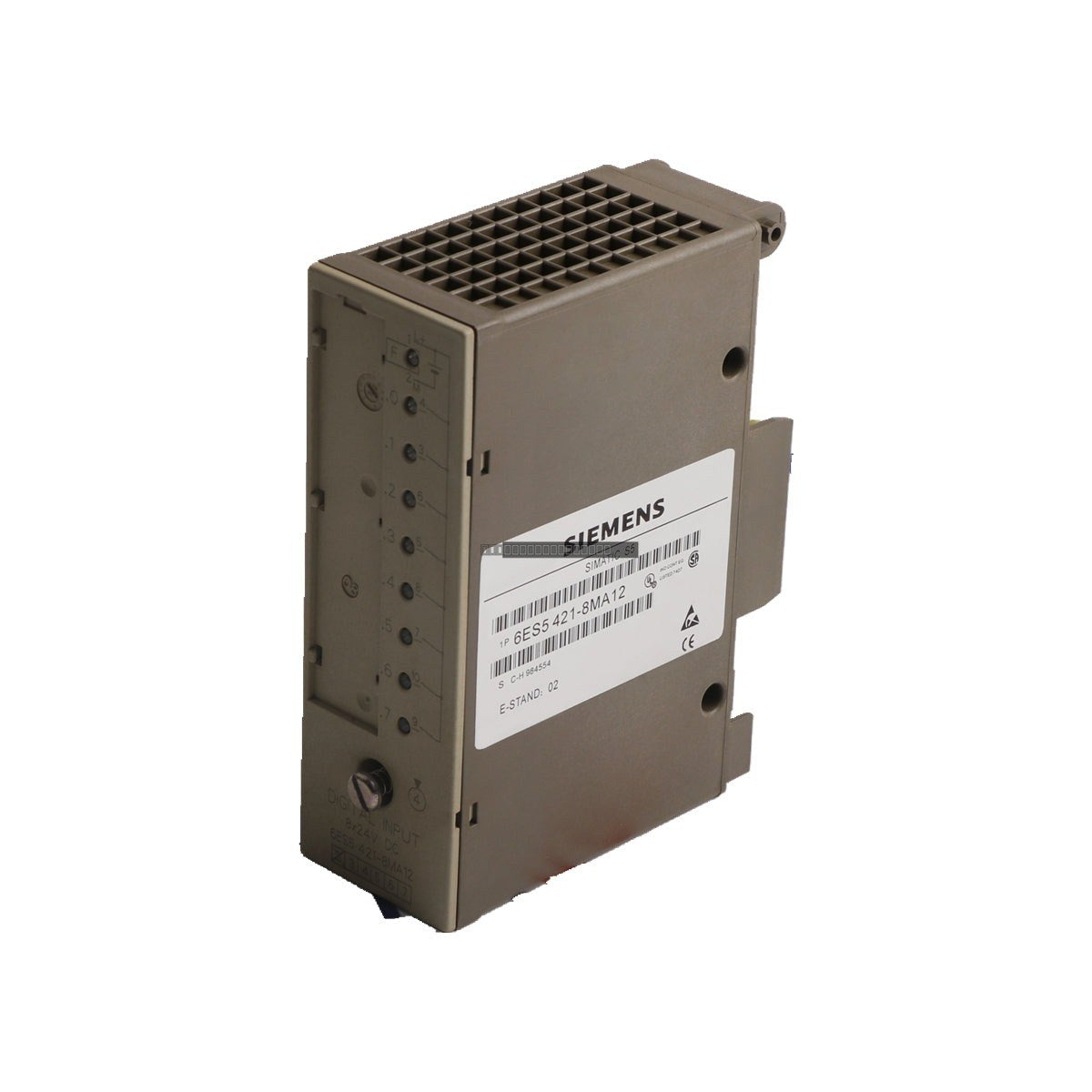

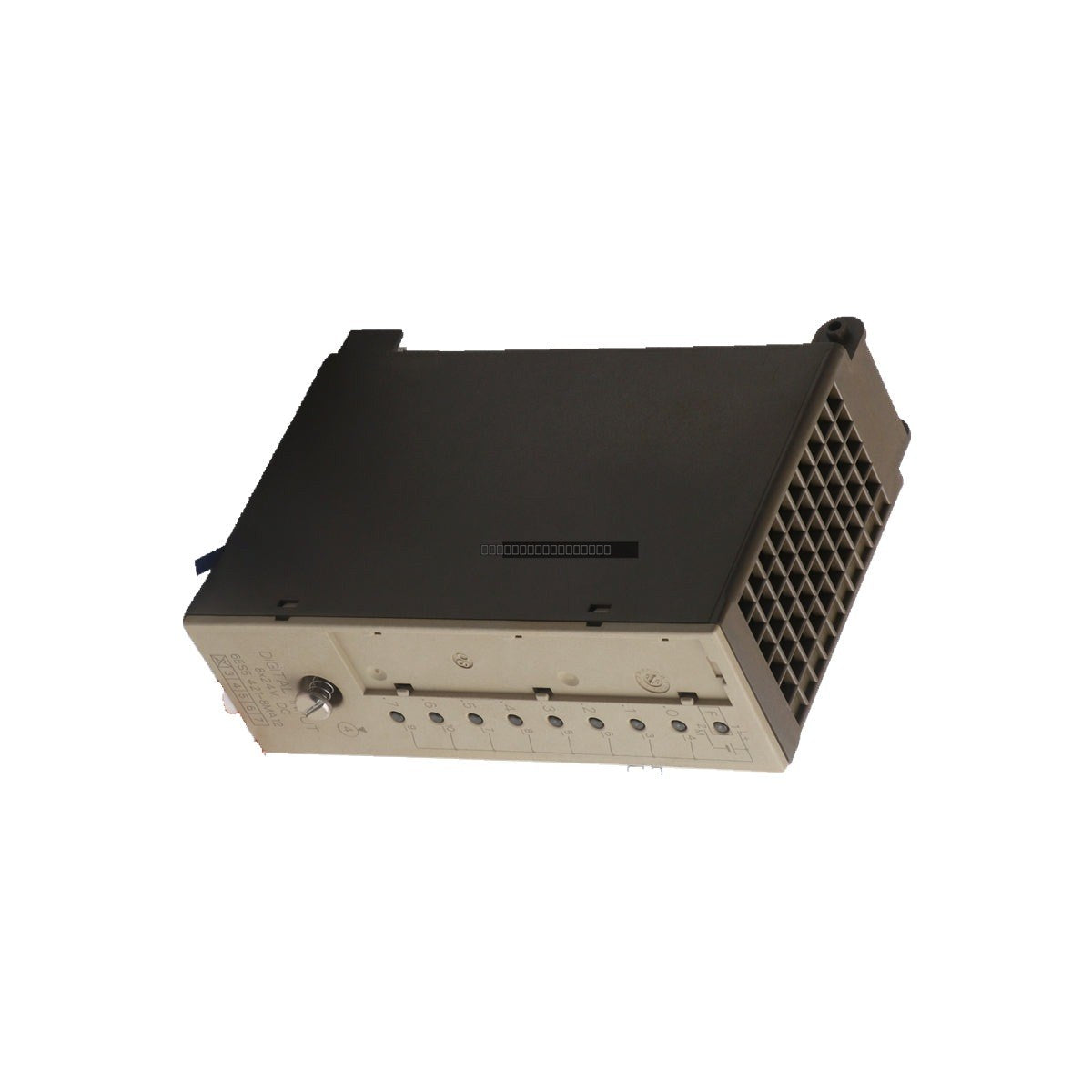

The Siemens 6ES5421-8MA12 is a digital input module engineered for the Simatic S5-090, S5-095, and S5-100 automation families. This 8-channel module is designed to interface field-level sensors, switches, and proximity devices with the central controller, converting DC field signals into reliable binary logic for processing. It is specifically optimized for applications requiring compact, high-density I/O, such as discrete manufacturing, automated assembly, and material handling systems.
Features
- 8-channel digital input configuration for high-density signal acquisition.
- Native integration with Simatic S5 backplane architectures.
- Integrated RC filtering to mitigate contact bounce and high-frequency EMI.
- Low power consumption design, drawing minimal current from the backplane bus.
- Standardized 24 VDC input logic suitable for common industrial sensor interfaces.
Applications
This module is frequently utilized in small-to-medium scale automation tasks including:
- Automated assembly line status monitoring.
- Material handling and conveyor control systems.
- Water treatment facility process instrumentation.
- General discrete manufacturing logic control.
Technical Specifications
| Model |
6ES5 421-8MA12 |
| Number of Inputs |
8 channels |
| Input Voltage |
24 VDC |
| Signal Logic |
Type 1 |
| Input Current |
7 mA typical at 24 VDC per channel |
| Power Consumption |
0.5 W max (from backplane) |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
Installation Guidelines
- Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
- Verify that the module is correctly seated in the backplane slot to ensure reliable ribbon connection.
- Route signal wiring away from high-voltage power cables and sources of heavy electromagnetic interference to maintain signal integrity.
- Ensure the ambient operating temperature remains within the specified 0 to 60 deg C range to prevent thermal degradation.
- Use appropriate shielded cabling for field inputs to minimize noise pickup in high-EMI environments.
FAQ
Does this module require external power for the inputs?
The 6ES5421-8MA12 typically utilizes the 24 VDC supply provided through the system backplane or common field power; please refer to your specific S5 CPU rack wiring diagram for exact power distribution requirements.
Is this module compatible with S5-115U systems?
No, this module is specifically designed for the Simatic S5-090, 095, and 100 series. It is not intended for use in the S5-115U or higher-tier rack systems.
