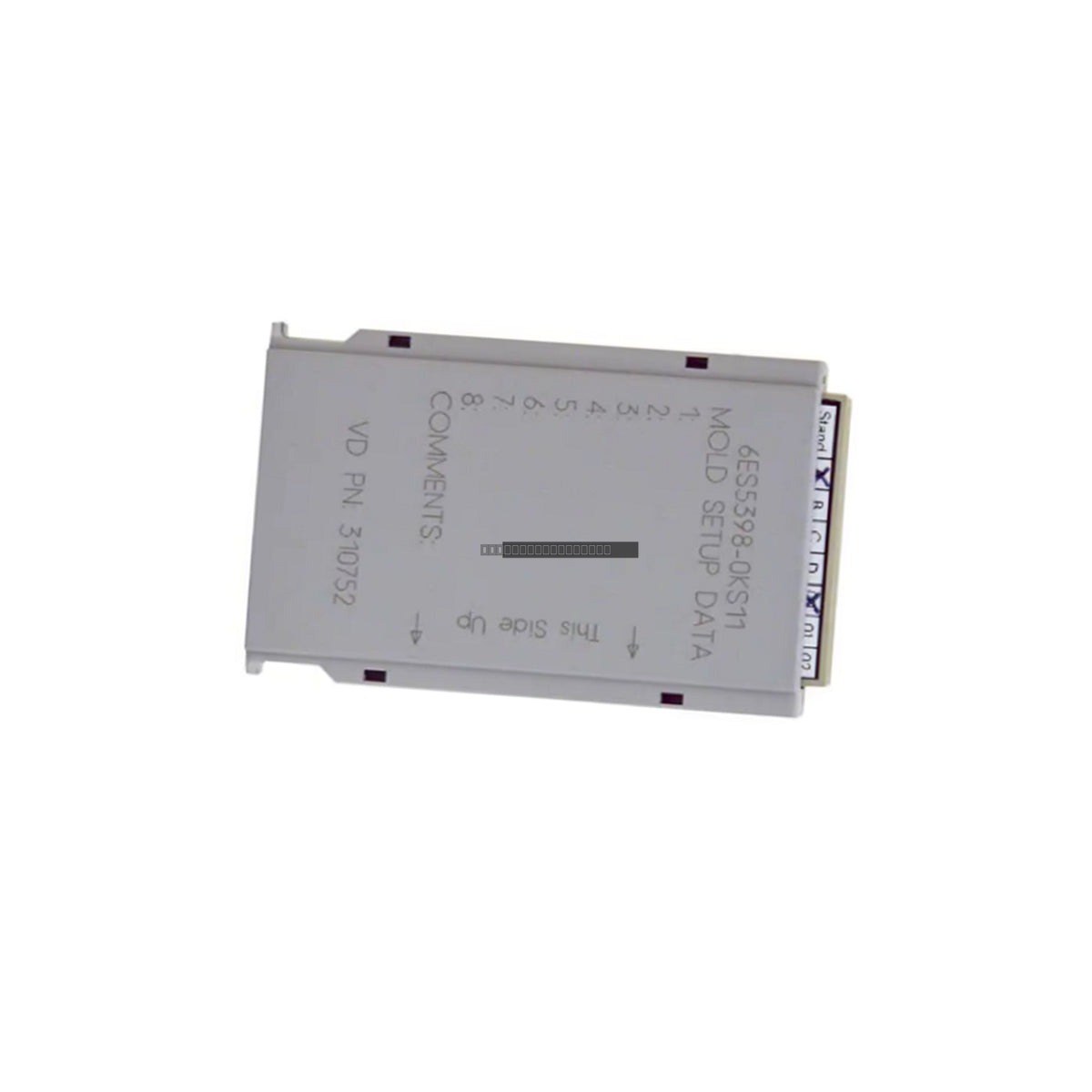

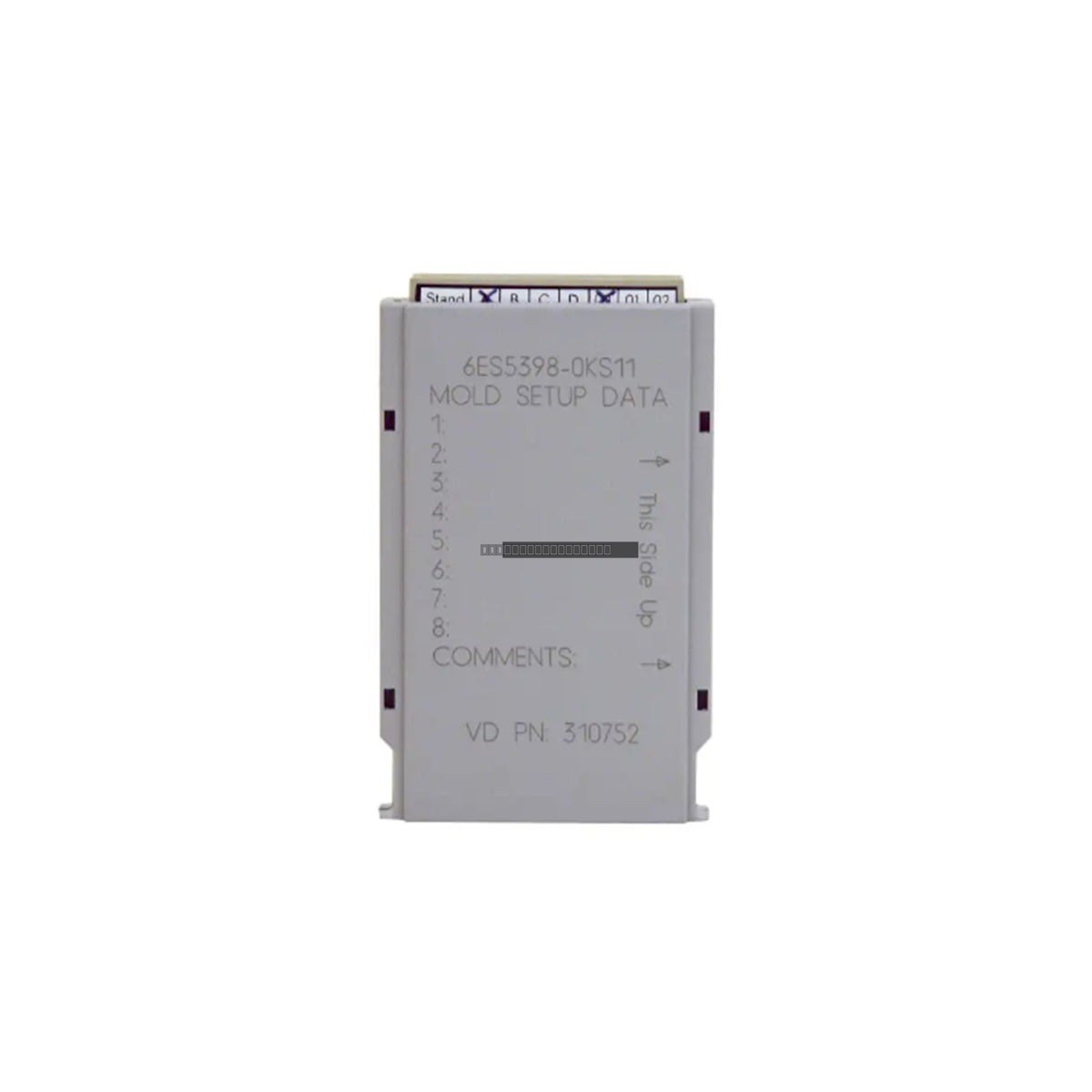

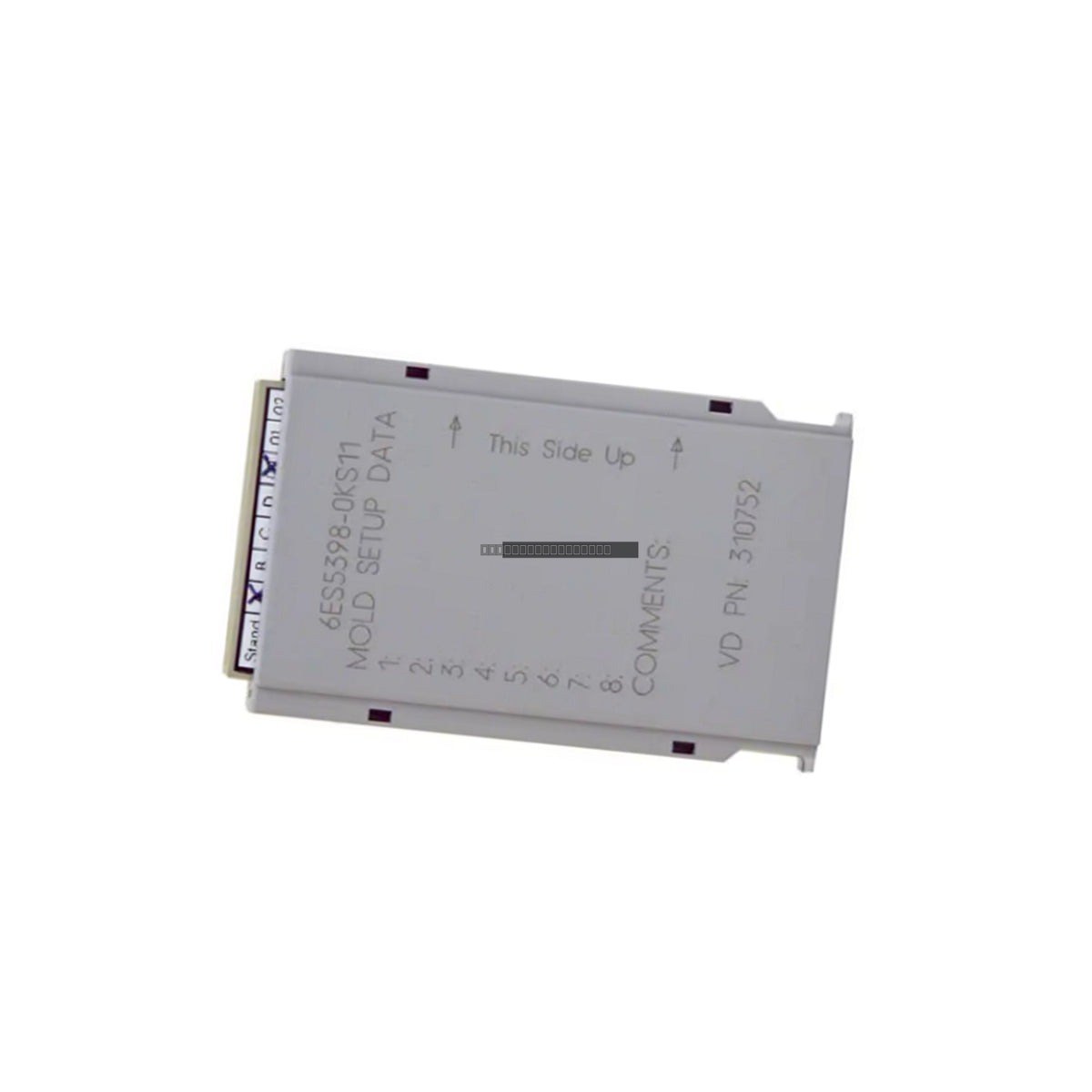

The Siemens 6ES5398-0KS11 (often referenced as 6ES5 398-0KS11-V) is a dedicated setup memory cartridge designed for the Simatic S5 PLC platform. This module provides reliable, non-volatile storage for user programs, system configurations, and essential operational parameters. It is engineered to maintain data integrity independently of the CPU's internal backup battery, serving as a critical component for ensuring rapid system recovery and consistent performance in industrial automation environments.
Features
- Non-volatile storage technology ensures program persistence during power loss or battery failure.
- Designed for seamless integration with the Simatic S5 CPU memory sub-bus.
- Ruggedized housing protects internal semiconductor components from dust, static, and minor mechanical impact.
- High-reliability contact interface designed for secure seating in high-vibration industrial settings.
- Low power consumption profile, utilizing minimal energy from the host processor.
Applications
This memory cartridge is widely utilized in legacy Simatic S5 control systems across various sectors, including power generation, water treatment, material handling, and heavy manufacturing. It is an essential spare part for maintaining uptime in systems where program security and rapid restart capabilities are required.
Technical Specifications
| Model |
6ES5398-0KS11 |
| Brand |
Siemens |
| Series |
Simatic S5 |
| Memory Type |
Non-volatile solid-state |
| Operating Temperature |
0 to 60 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Power Consumption |
0.5 W (typical) |
| Relative Humidity |
95% non-condensing |
Installation Guidelines
- Ensure the CPU is powered down before inserting or removing the memory cartridge to prevent electrical damage.
- Handle the module by the casing edges; avoid touching the gold-plated contact pins to prevent oil or static contamination.
- Align the cartridge carefully with the CPU interface slot and apply firm, even pressure until the module is fully seated.
- Verify that the module is correctly locked in position to prevent intermittent connectivity caused by machine vibration.
- Store in a cool, dry environment away from strong magnetic fields when not in use.
FAQ
Does this cartridge require an external battery?
No, this model uses non-volatile memory technology that does not rely on an external battery for data retention, making it an ideal solution for long-term storage of critical control logic.
Is this module compatible with all S5 CPUs?
This cartridge is designed specifically for the Simatic S5 series. Please verify your specific CPU model's documentation to ensure compatibility with this memory module type.
