Description

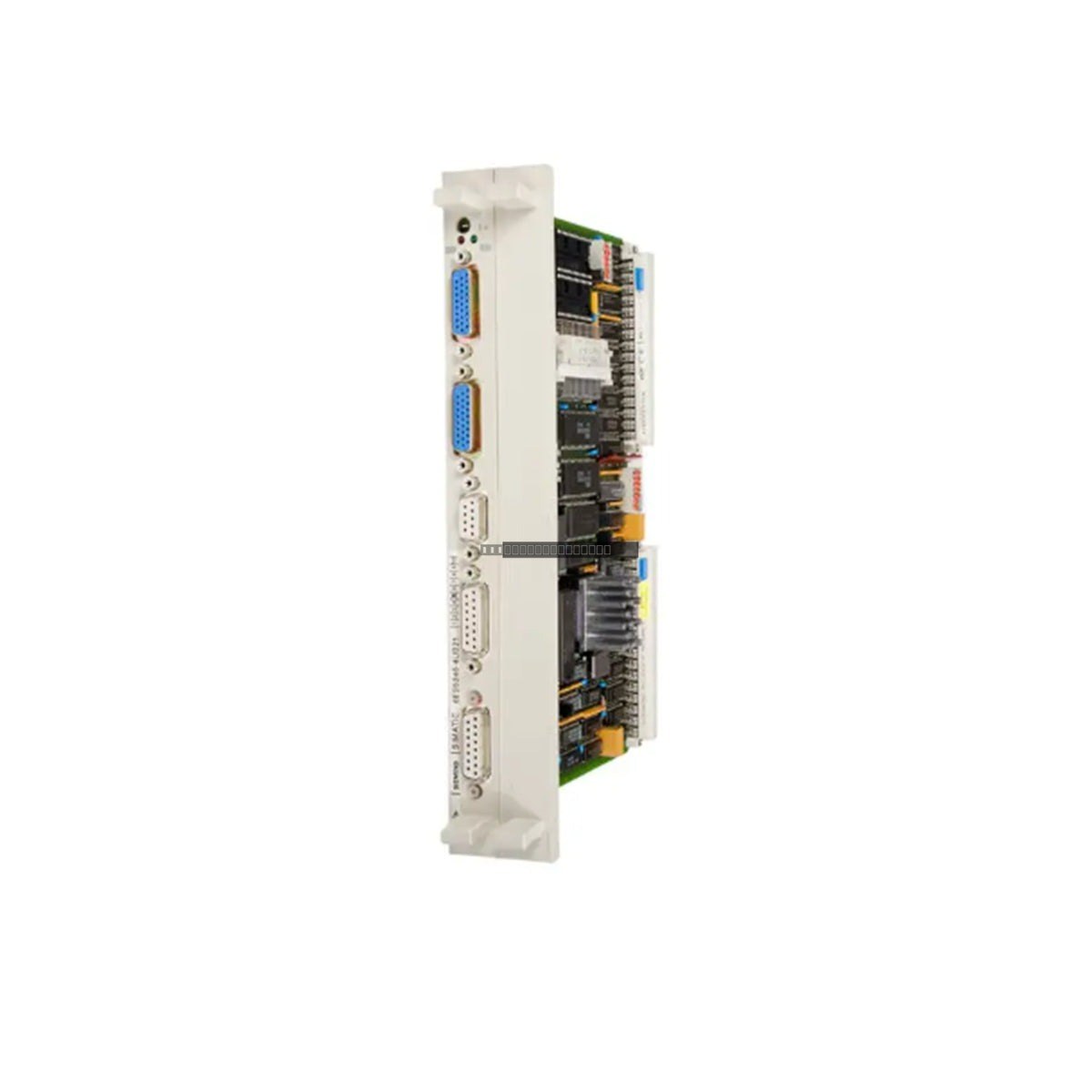

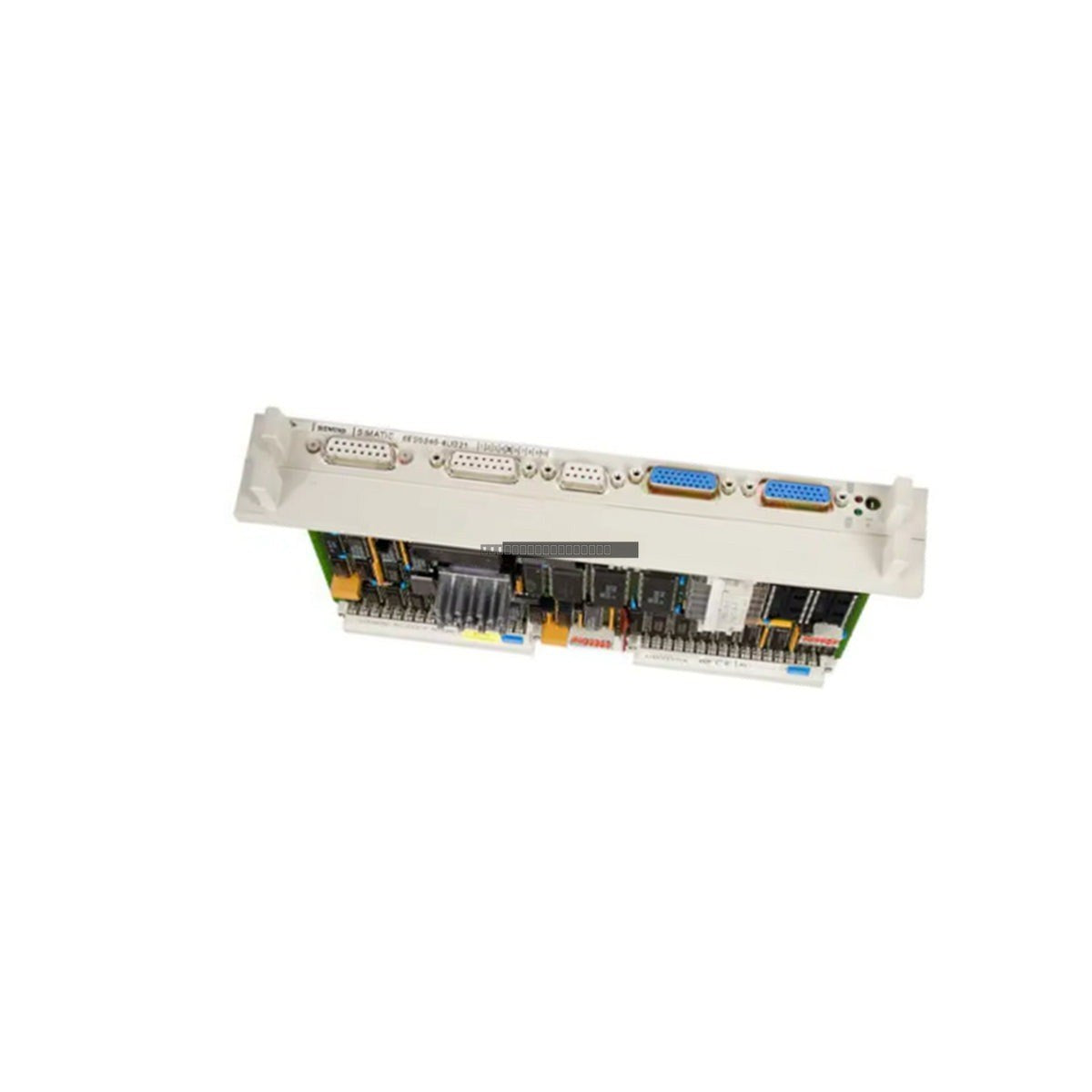

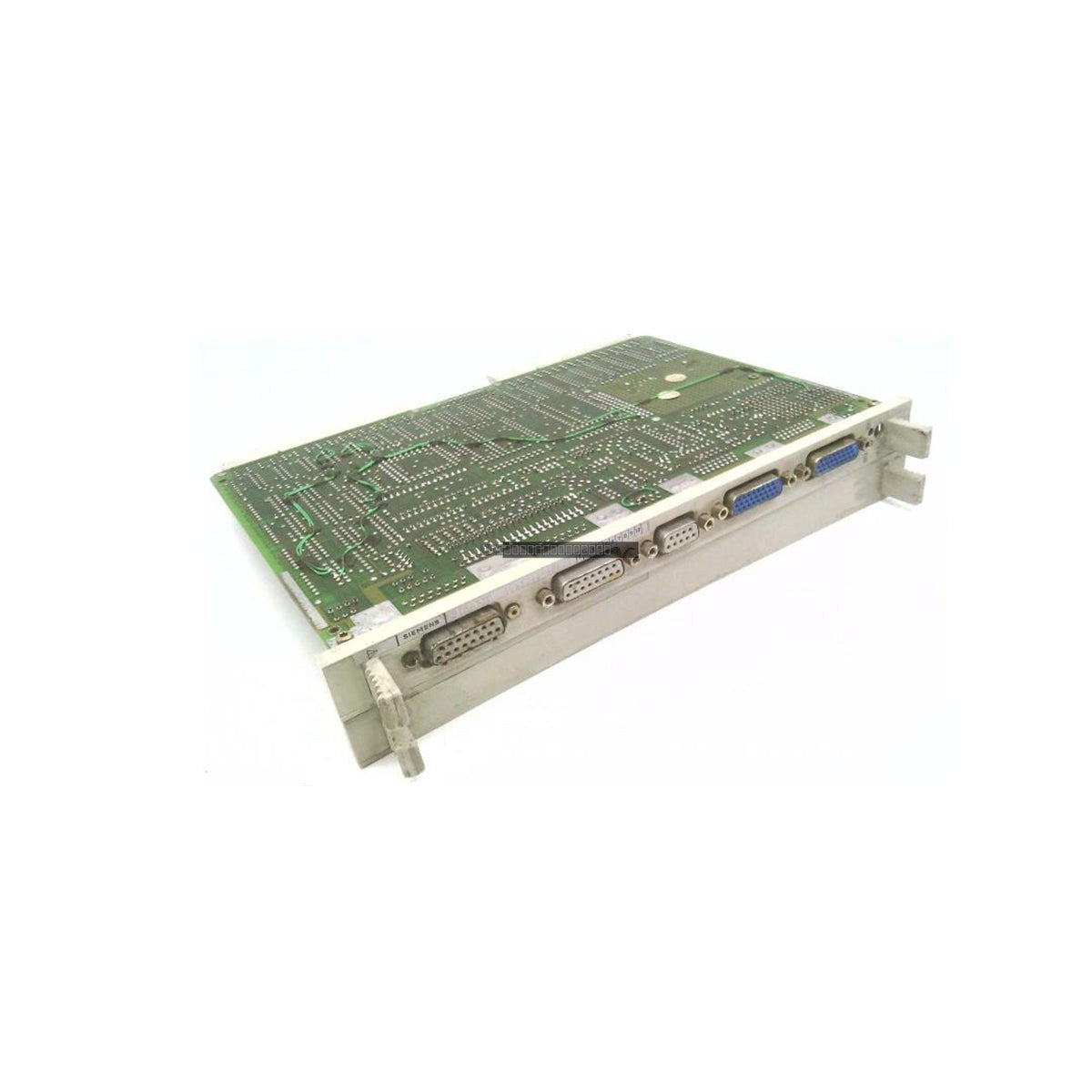

The Siemens 6ES5 246-4UB21, also identified as the IP 246, is a sophisticated intelligent peripheral module designed for the SIMATIC S5 automation platform. This positioning module is specifically engineered to manage motion control loops for DC motor drive systems, utilizing input from digital absolute encoders to achieve precise mechanical positioning. By offloading motion-related calculations from the main CPU, the module provides high-speed response times, reducing latency and ensuring accurate control in demanding industrial applications such as material handling, stamping presses, and heavy-duty hoist systems.
Features
- Dedicated positioning control for DC drive architectures.
- Interface support for digital absolute encoder feedback.
- Decentralized processing architecture to minimize CPU scan cycle impact.
- Passive, self-ventilated thermal management for reliable operation in harsh environments.
- Robust backplane communication for direct register mapping to the S5 controller.
- Designed for high-EMI and high-vibration industrial settings.
Applications
This module is widely deployed in legacy automation environments requiring precise motion control, including:
- Metal stamping and forming machinery.
- Sub-surface mining and industrial hoisting equipment.
- Automated materials handling and conveyor systems in power plants.
- Legacy DC drive motion control loops.
Technical Specifications
| Model |
6ES5 246-4UB21 |
| Brand |
Siemens |
| Series |
SIMATIC S5 IP 246 |
| Module Type |
Positioning Module |
| Compatible Drive |
DC Drives |
| Feedback Interface |
Absolute Digital Encoder |
| Power Consumption |
6.5 W |
| Operating Temperature |
0 to 55 deg C |
| Cooling |
Passive / Self-ventilated |
Installation Guidelines
- Ensure the SIMATIC S5 rack is powered down before inserting or removing the module to prevent damage to the backplane connectors.
- Verify that the module is fully seated in the rack slot and secured according to standard S5 mounting procedures.
- Ensure adequate clearance around the module to allow for natural convection and passive cooling.
- Use shielded cabling for encoder feedback signals to maintain signal integrity and minimize susceptibility to electromagnetic interference.
- Maintain operating environments within the specified 0 to 55 deg C range to ensure long-term component reliability.
FAQ
What type of encoder is compatible with the 6ES5 246-4UB21?
This module is designed for use with digital absolute encoders, which provide specific position data directly to the module for closed-loop control.
Does this module require external cooling fans?
No, the 6ES5 246-4UB21 features a self-ventilated passive cooling design, eliminating the need for external mechanical fans.
Can this module be used with AC drives?
The IP 246 is specifically optimized for DC motor drive systems; please consult your system documentation if attempting integration with alternative drive technologies.
