Description

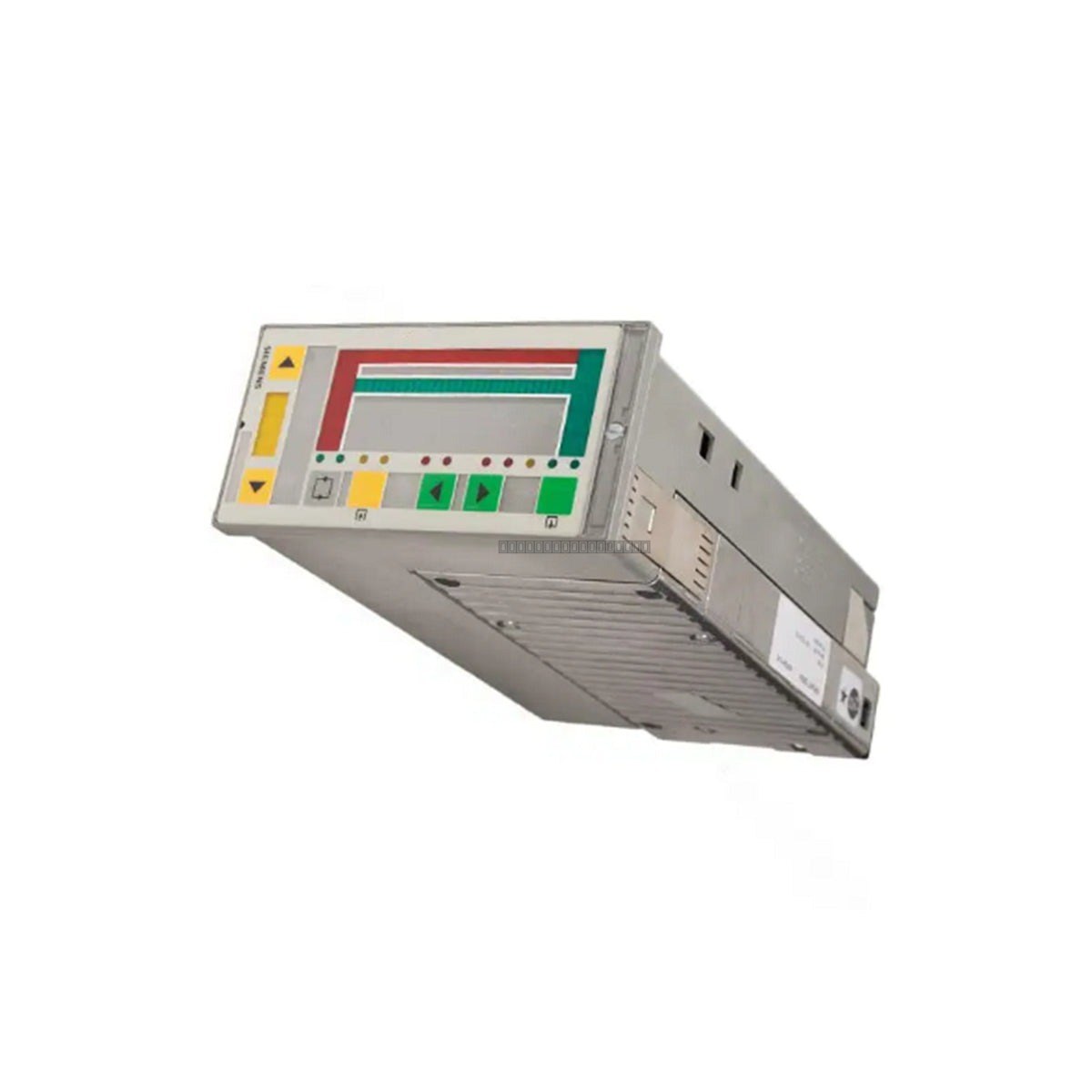

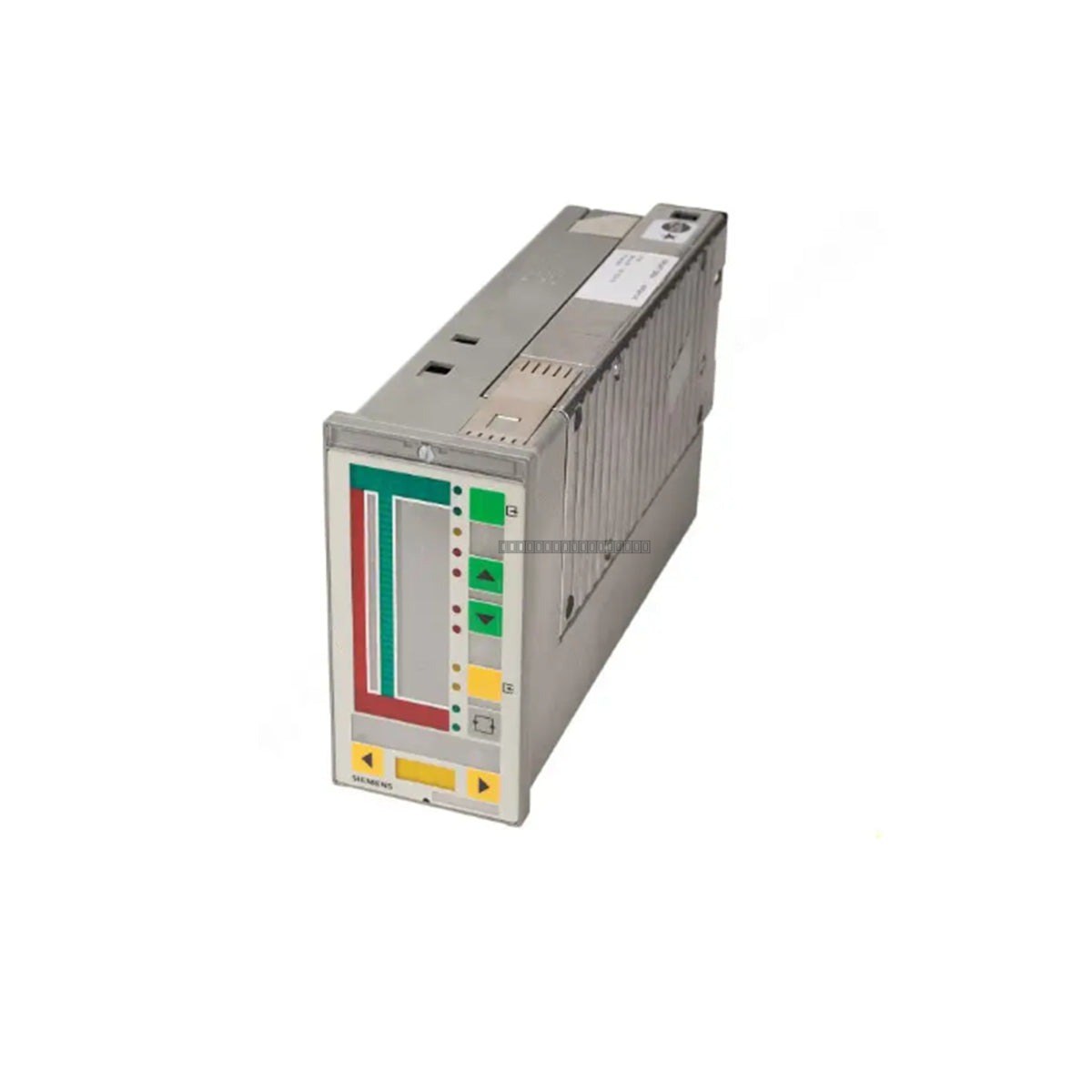

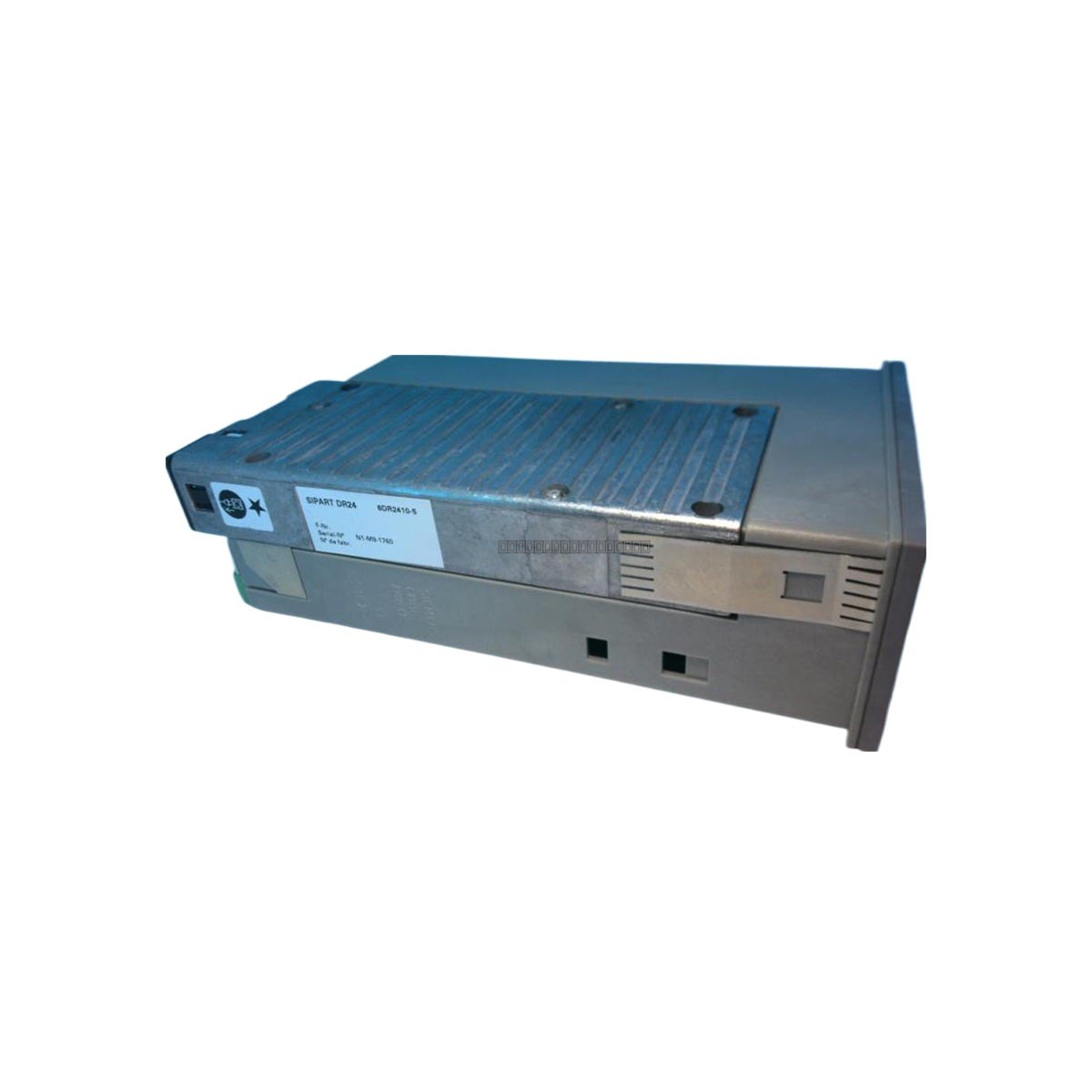

The Siemens 6DR2410-5 is a high-performance multi-function process controller from the Sipart DR24 series. Designed for demanding industrial applications, this controller provides robust PID control and advanced logic processing capabilities. It is engineered to optimize closed-loop control precision in complex continuous processes, such as those found in oil refineries, chemical plants, and power generation facilities, helping to minimize downtime and improve operational stability.
Features
- Advanced PID control with support for cascade, ratio, and feed-forward compensation strategies.
- Integrated modular architecture for high-reliability signal processing.
- Wide power supply input range (115-230 VAC) for versatile installation.
- Configurable analog inputs and outputs for flexible sensor and actuator interfacing.
- Robust design with high electromagnetic compatibility for harsh industrial environments.
Applications
This controller is suitable for a variety of process automation tasks, including flow, pressure, temperature, and level control. It is commonly utilized in continuous process industries where high-precision regulation and sequential logic are required for safe and efficient operation.
Technical Specifications
| Model |
6DR2410-5 |
| Brand |
Siemens |
| Series |
Sipart DR24 |
| Power Supply |
115-230 VAC |
| Analog Inputs |
3 channels (0/4-20 mA or 0/2-10 V) |
| Analog Outputs |
3 channels (0/4-20 mA) |
| Digital Inputs |
4 channels (24 VDC) |
| Digital Outputs |
8 channels (24 VDC) |
| Operating Temperature |
0 to 50 deg C |
Installation Guidelines
- Ensure the controller is mounted in a clean, dry, and vibration-free environment.
- Maintain adequate clearance around the unit to ensure proper ventilation and cooling.
- Use shielded cables for all analog signal connections to minimize EMI interference.
- Verify that the power supply voltage matches the 115-230 VAC specification before applying power.
- Always disconnect power before performing any wiring changes or module maintenance.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module.
FAQ
What is the primary function of the 6DR2410-5?
The 6DR2410-5 is a multi-function process controller used for closed-loop PID control and complex logic processing in industrial automation systems.
Can this unit handle different analog signal types?
Yes, the analog inputs are configurable to support either 0/4-20 mA or 0/2-10 V signals, allowing for compatibility with a wide range of industrial transmitters.
