Description
Description

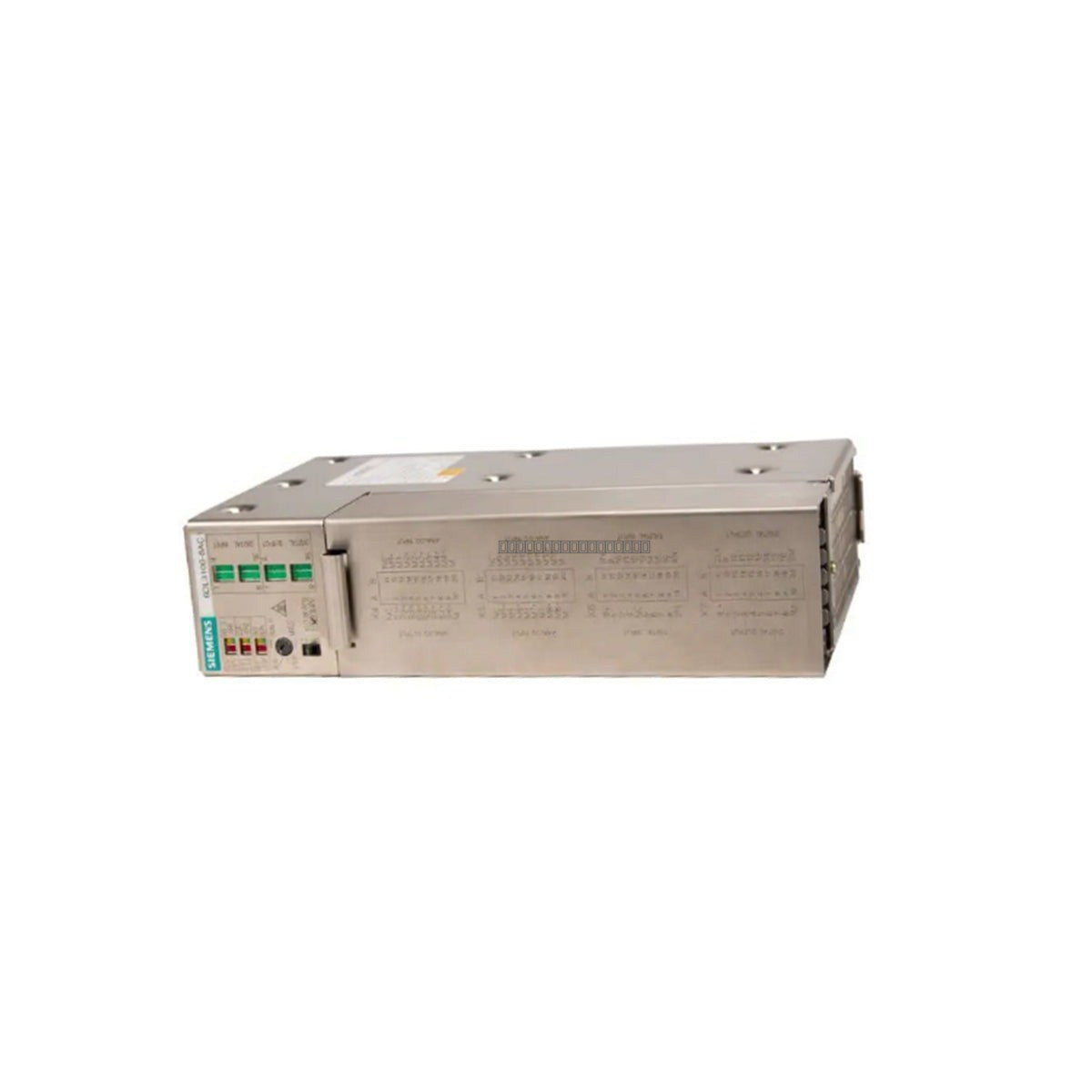

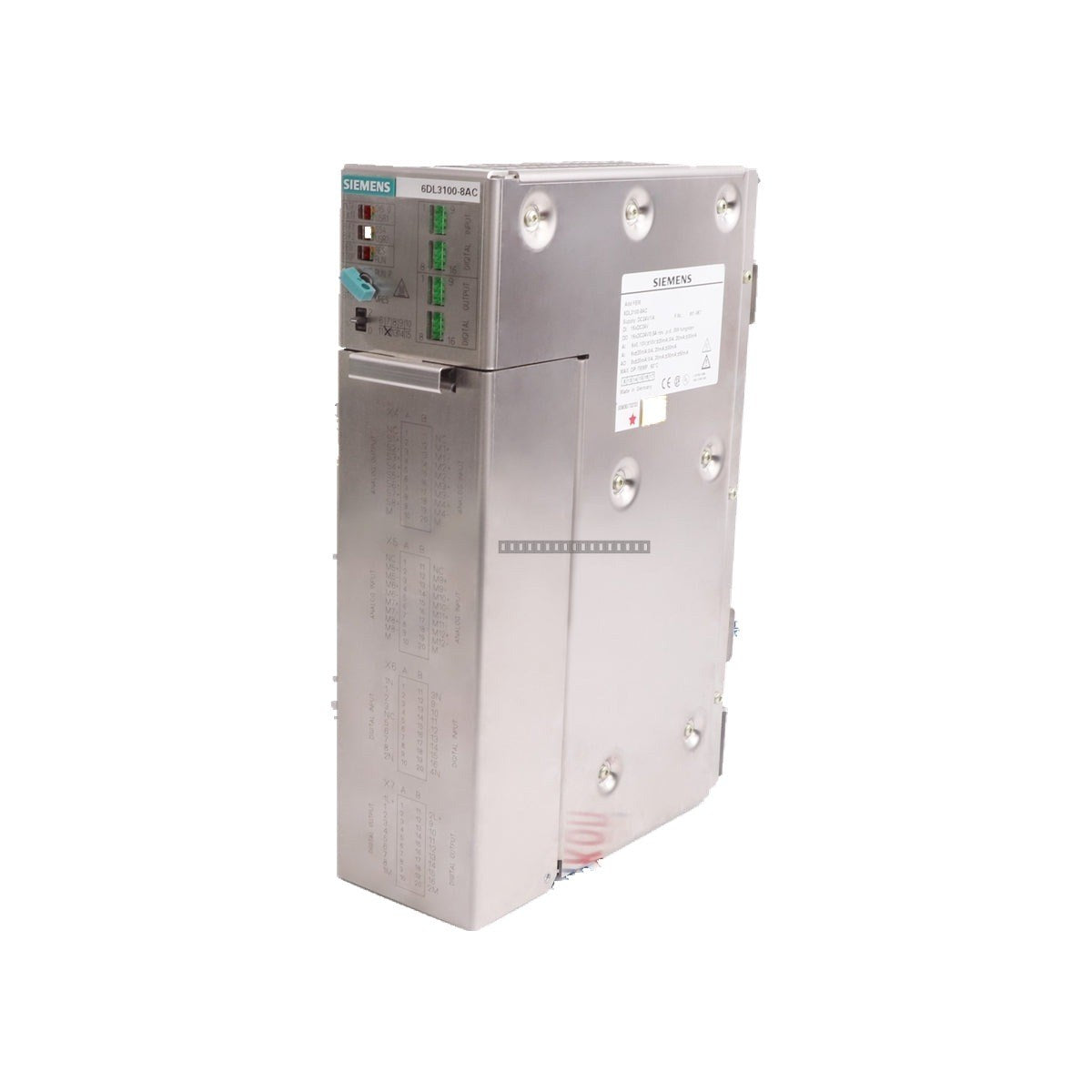

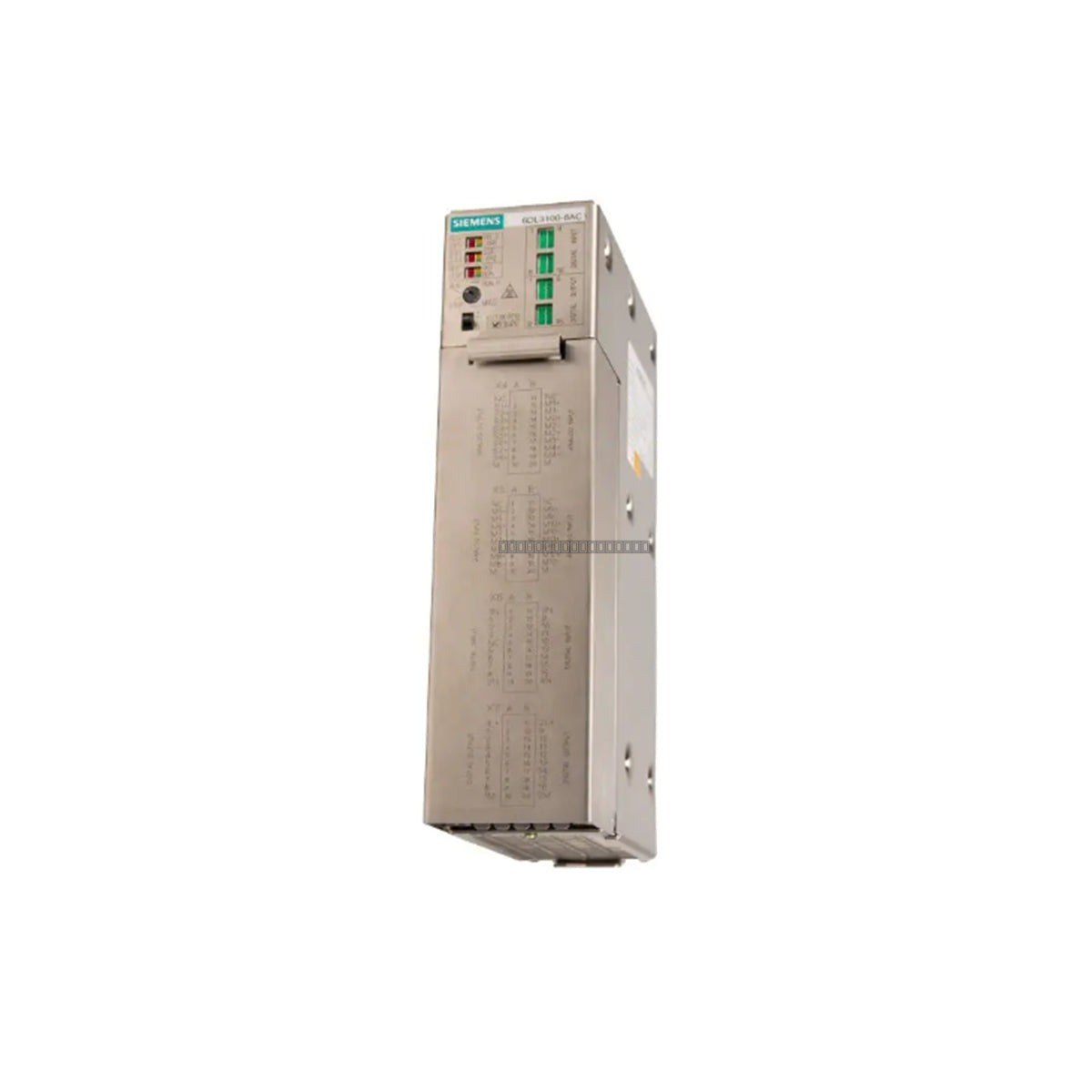

The Siemens 6DL3100-8AC is a high-performance Front End Module (ADDFEM) designed for industrial automation environments. This module serves as a PROFIBUS-connected device, providing high-speed I/O processing capabilities. It is engineered to support redundant configurations, ensuring high availability and reliability in critical control applications. The module utilizes Front End Function (FEF) logic to manage data acquisition and communication tasks efficiently within a distributed control system.
Features
- High-speed I/O processing for real-time control requirements.
- Integrated PROFIBUS interface for seamless network integration.
- Support for redundant operation to enhance system fault tolerance.
- Designed for robust industrial performance and reliability.
Applications
This module is typically deployed in large-scale industrial automation systems, such as power generation, chemical processing, and manufacturing plants where high-speed data acquisition and redundant communication paths are required for process stability.
Technical Specifications
| Product Model |
6DL3100-8AC |
| Device Type |
Front End Module (ADDFEM) |
| Communication Protocol |
PROFIBUS |
| Functionality |
Front End Function (FEF) |
| Redundancy |
Supported |
| Tariff Code |
8537101190 |
Installation Guidelines
- Ensure the system power is disconnected before installing or removing the module from the rack.
- Verify that the module is correctly seated in the designated slot to ensure proper backplane connection.
- Use appropriate grounding techniques to minimize electromagnetic interference (EMI) and protect sensitive electronic components.
- Ensure adequate ventilation around the module to maintain operating temperatures within the manufacturer's specified range.
- Handle with care to prevent electrostatic discharge (ESD) damage; use an ESD-safe workstation if available.
FAQ
What is the primary function of the 6DL3100-8AC?
The 6DL3100-8AC is a Front End Module that acts as a high-speed I/O interface for PROFIBUS networks, specifically designed to handle Front End Functions (FEF) in redundant system architectures.
Does this module support redundancy?
Yes, the 6DL3100-8AC is designed to support redundant configurations to ensure continuous operation in critical industrial processes.
