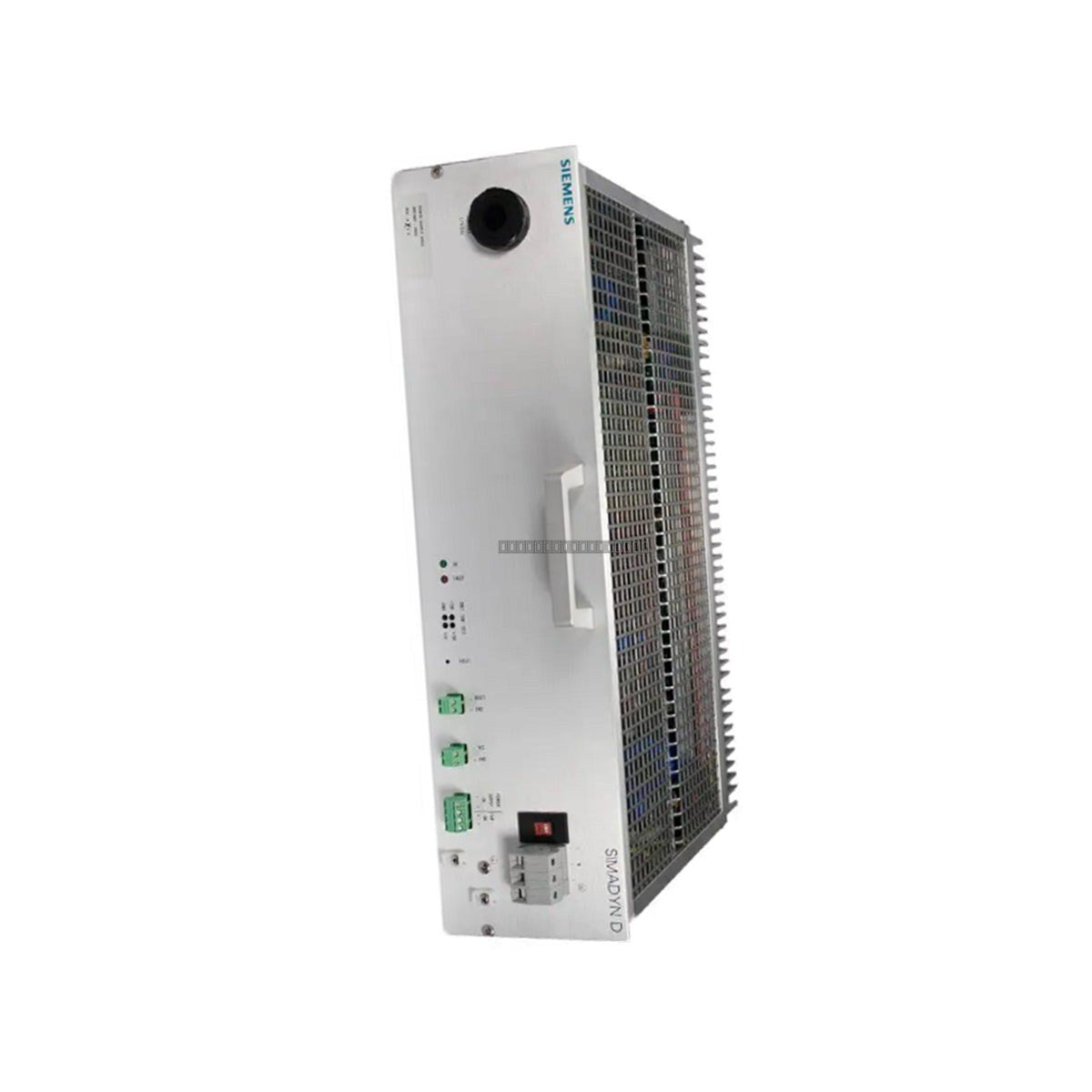

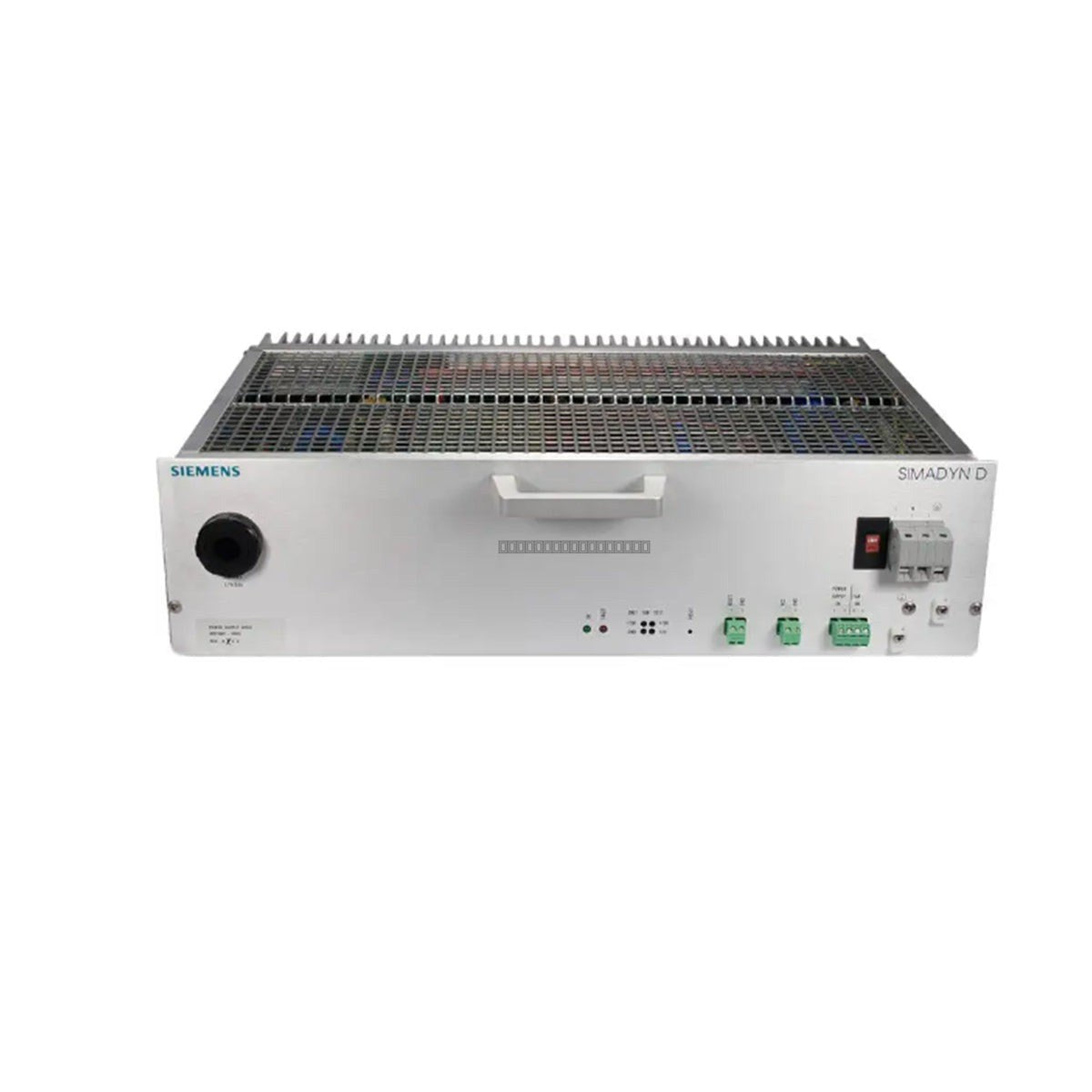

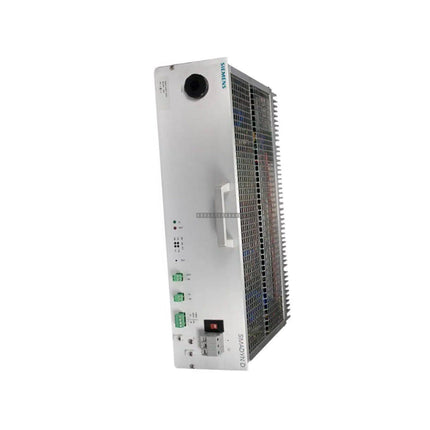

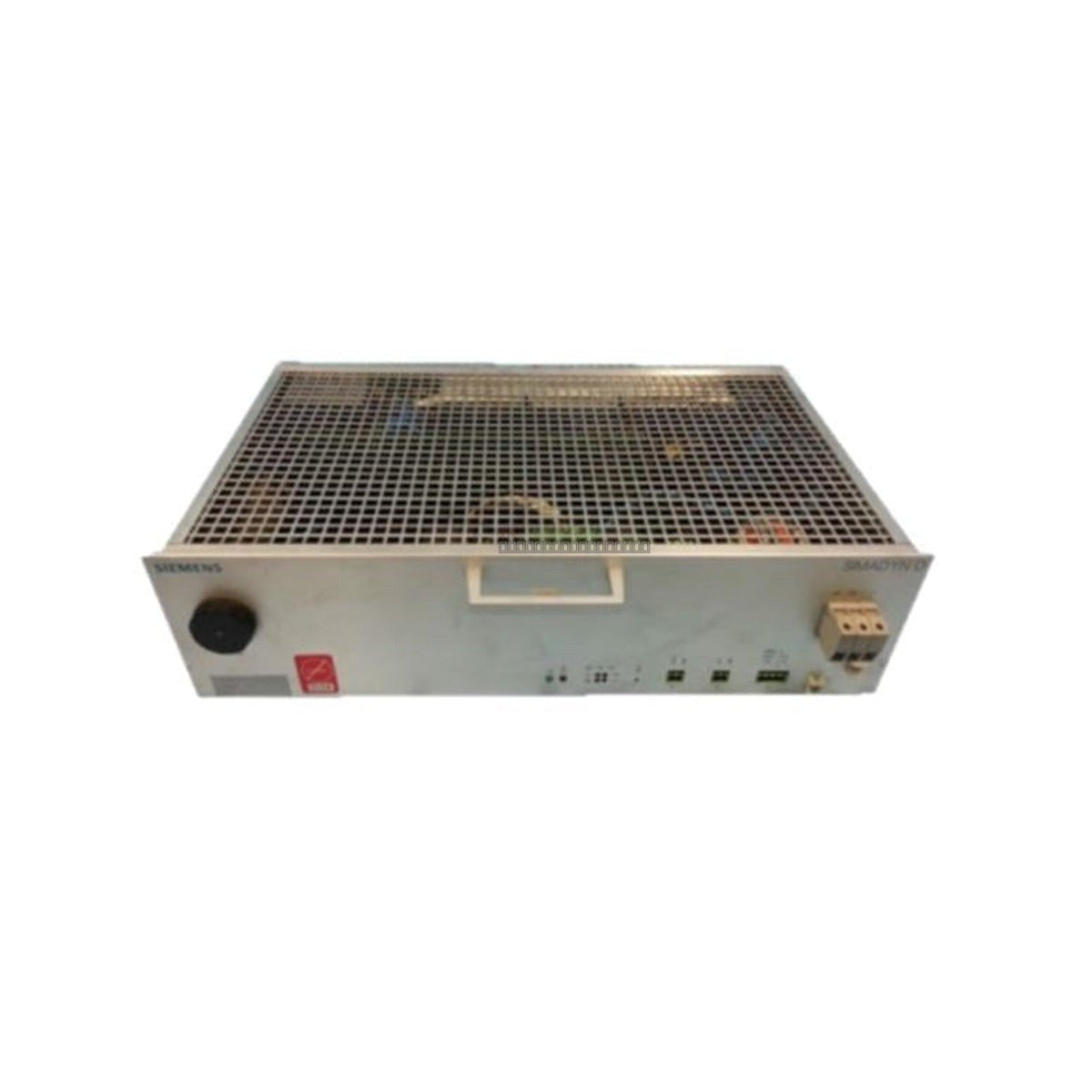

The Siemens 6DD1683-0BC5 (SP8.5) is a high-performance, heavy-duty power supply unit designed specifically for the SIMADYN D control system. This module provides stable, high-current DC power essential for the operation of high-speed multiprocessor control systems in demanding industrial applications, such as large-scale rolling mills, mining excavators, and power distribution infrastructure. By delivering a consistent 5 VDC at 52A and a secondary 15 VDC output, the SP8.5 ensures the reliability of sensitive control electronics, protecting against grid fluctuations and minimizing process downtime.
Features
-
High-Current Output: Capable of delivering 52A at 5 VDC to support power-intensive control racks.
-
Dual-Voltage Input: Supports 115/230 VAC input configurations at 50/60 Hz.
-
Integrated Thermal Management: Features an active, forced-air fan-cooled design to ensure stability and component longevity under continuous full-load conditions.
-
Industrial Grade: Engineered for integration within SIMADYN D subracks, meeting IP20 protection standards.
Applications
This power supply unit is primarily used in complex drive applications and industrial automation environments where high-speed, reliable control is required. Typical installations include heavy-duty metal processing equipment, large-scale mining machinery, and critical power distribution control systems.
Technical Specifications
| Model |
6DD1683-0BC5 |
| Brand |
Siemens |
| Series |
SIMADYN D |
| Module Type |
Power Supply Unit SP8.5 |
| Input Voltage |
115/230 VAC |
| Input Frequency |
50/60 Hz |
| Output 1 |
5 VDC / 52A |
| Output 2 |
15 VDC |
| Cooling System |
Integrated Forced-Air Fan |
| Operating Temperature |
0 to 55 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Protection Rating |
IP20 |
Installation Guidelines
-
Power Down: Ensure all power is disconnected from the subrack before inserting or removing the module.
-
Mounting: Designed for installation within standard SIMADYN D subracks. Ensure the module is fully seated and secured to maintain proper electrical contact.
-
Ventilation: Do not obstruct the internal fan intake or exhaust. Maintain adequate clearance around the subrack to allow for proper airflow and thermal dissipation.
-
Grounding: Ensure the subrack is properly grounded according to local industrial electrical codes to prevent EMI and protect against surges.
-
Handling: Use ESD-safe handling practices when installing or servicing the module to prevent damage to internal logic circuits.
FAQ
Is the 6DD1683-0BC5 suitable for high-temperature environments?
The module is rated for operation in ambient temperatures between 0 and 55 deg C. Ensure the cabinet or subrack is adequately ventilated to stay within this range during peak operation.
Does this unit require external cooling?
No, the unit features an integrated forced-air fan. However, it must be installed in a location that allows for sufficient air intake and exhaust to prevent overheating.
