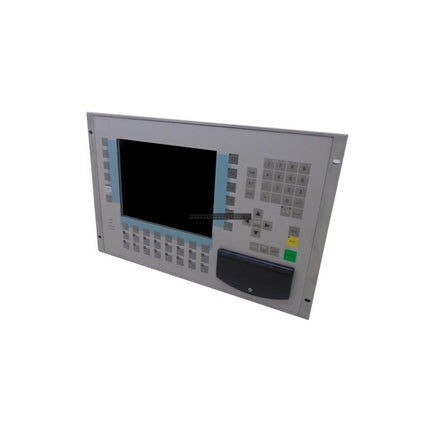

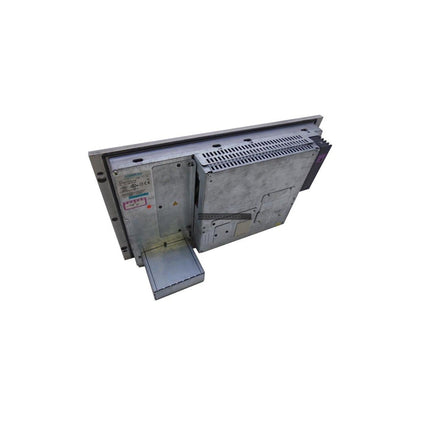

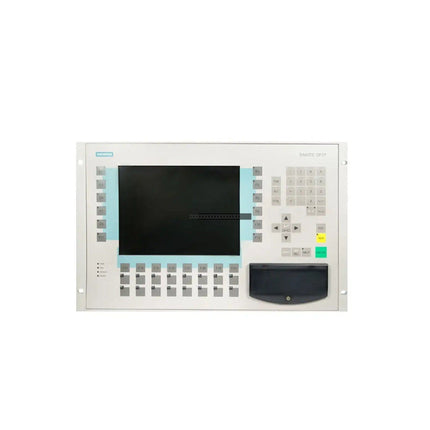

The Siemens 6AV3637-1ML00-0FX0 is a high-performance industrial operator interface from the Simatic OP37 series, specifically engineered for legacy machine coordination within Simatic S5 automation environments. This human-machine interface (HMI) features a 10.4-inch TFT LCD active-matrix color display with a native resolution of 640 x 480 pixels, integrated with a durable membrane keypad for reliable operator input. Powered by an Intel Pentium 100 MHz microprocessor, the unit provides robust local graphics rendering, trend archiving, and alarm matrix tracking. This device is essential for maintaining legacy control systems in industries such as petrochemical refining, power generation, and heavy mining, where it helps mitigate downtime risks associated with obsolete control hardware.
Features
- 10.4-inch TFT LCD color display for clear process visualization.
- Intel Pentium 100 MHz processor for localized graphic and register scaling.
- Integrated serial communication ports supporting RS232, RS422, and RS485 protocols.
- 2 MB Flash memory and 8 MB DRAM for project and driver storage.
- Industrial-grade front panel sealing for protection against dust and liquid spray when flush-mounted.
- Non-volatile flash storage ensures project data retention during power loss.
Applications
The OP37 is designed for use in demanding industrial environments requiring direct interface with Simatic S5 PLC systems. Typical applications include control room monitoring, machine-level status reporting, and distributed network management in continuous process industries.
Technical Specifications
| Model |
6AV3637-1ML00-0FX0 |
| Series |
Simatic OP37 |
| Display |
10.4 inch TFT LCD Color |
| Resolution |
640 x 480 Pixels |
| Processor |
Intel Pentium 100 MHz |
| Memory |
2 MB Flash / 8 MB DRAM |
| Interfaces |
RS232, RS422, RS485 |
| Input Voltage |
24 VDC |
| Operating Temperature |
0 to 50 deg C |
| Storage Temperature |
-20 to 60 deg C |
Installation Guidelines
- Ensure the control cabinet cutout is prepared to the manufacturer's specifications to maintain the integrity of the front panel seal.
- Use appropriate mounting hardware to secure the unit flush against the cabinet door.
- Verify that the 24 VDC power supply is stable and properly grounded before connection.
- Route communication cables away from high-voltage lines or high-EMI sources to prevent signal interference.
- Power down the unit before performing any maintenance or cable adjustments.
- Handle the unit with care to avoid damage to the LCD screen or membrane keypad.
FAQ
Is this unit compatible with modern S7 PLCs? The OP37 is primarily designed for the Simatic S5 environment. Compatibility with newer systems may require specific communication drivers or protocol converters not native to this legacy hardware.
Does this unit require a battery for memory retention? No, the device utilizes non-volatile flash memory to store screen projects and communication profiles, eliminating the need for battery backups for data retention.
