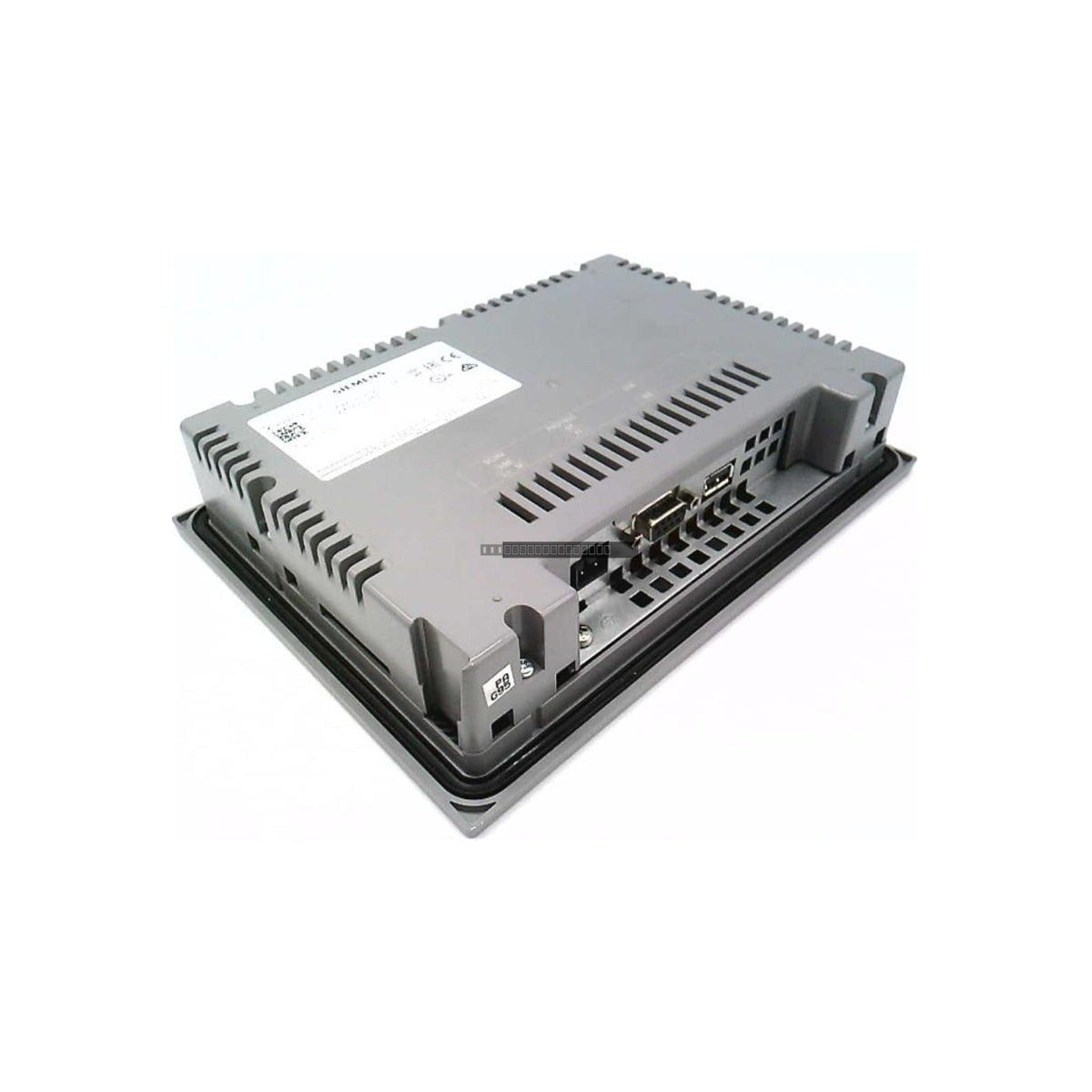

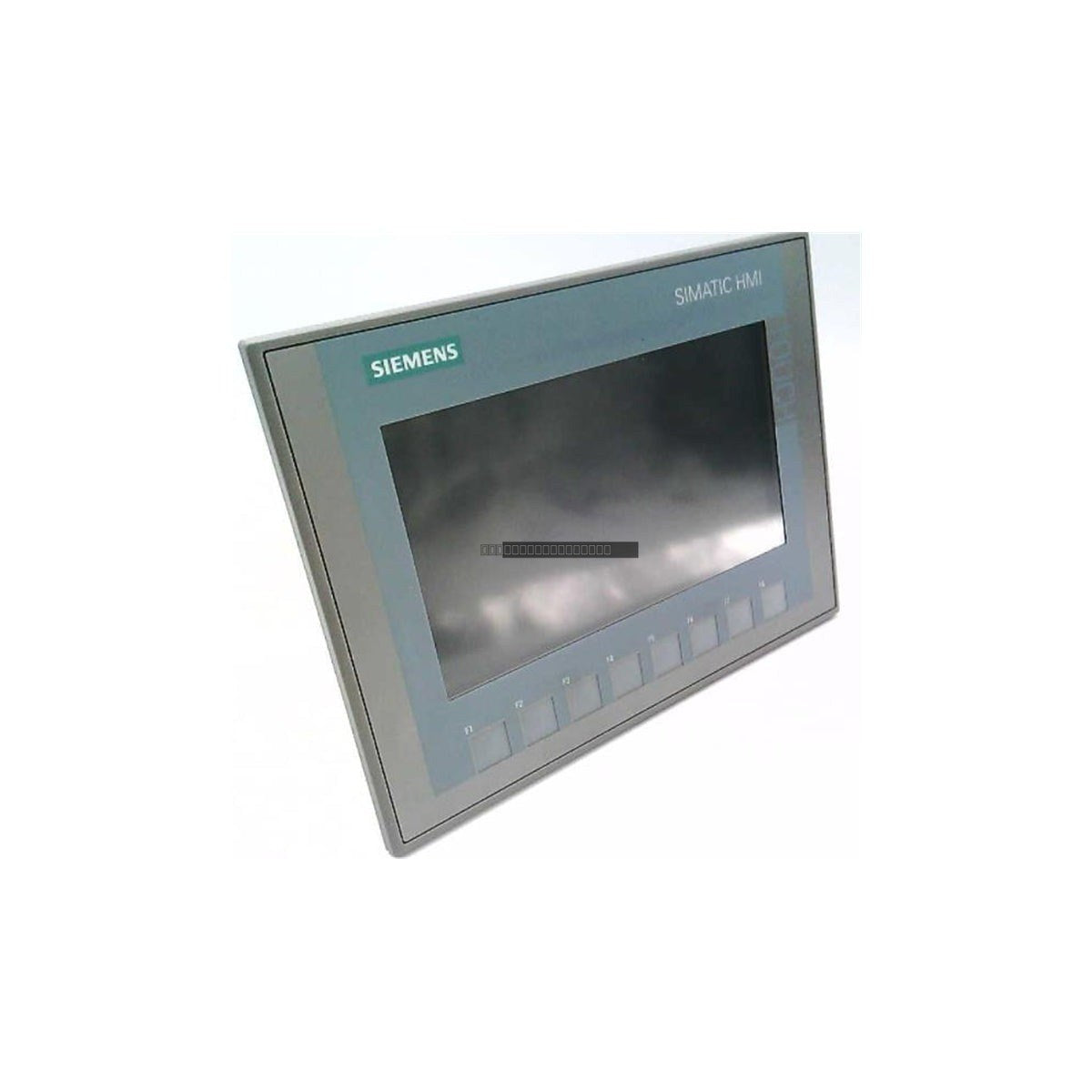

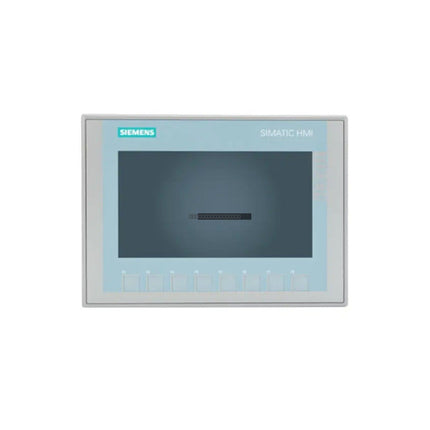

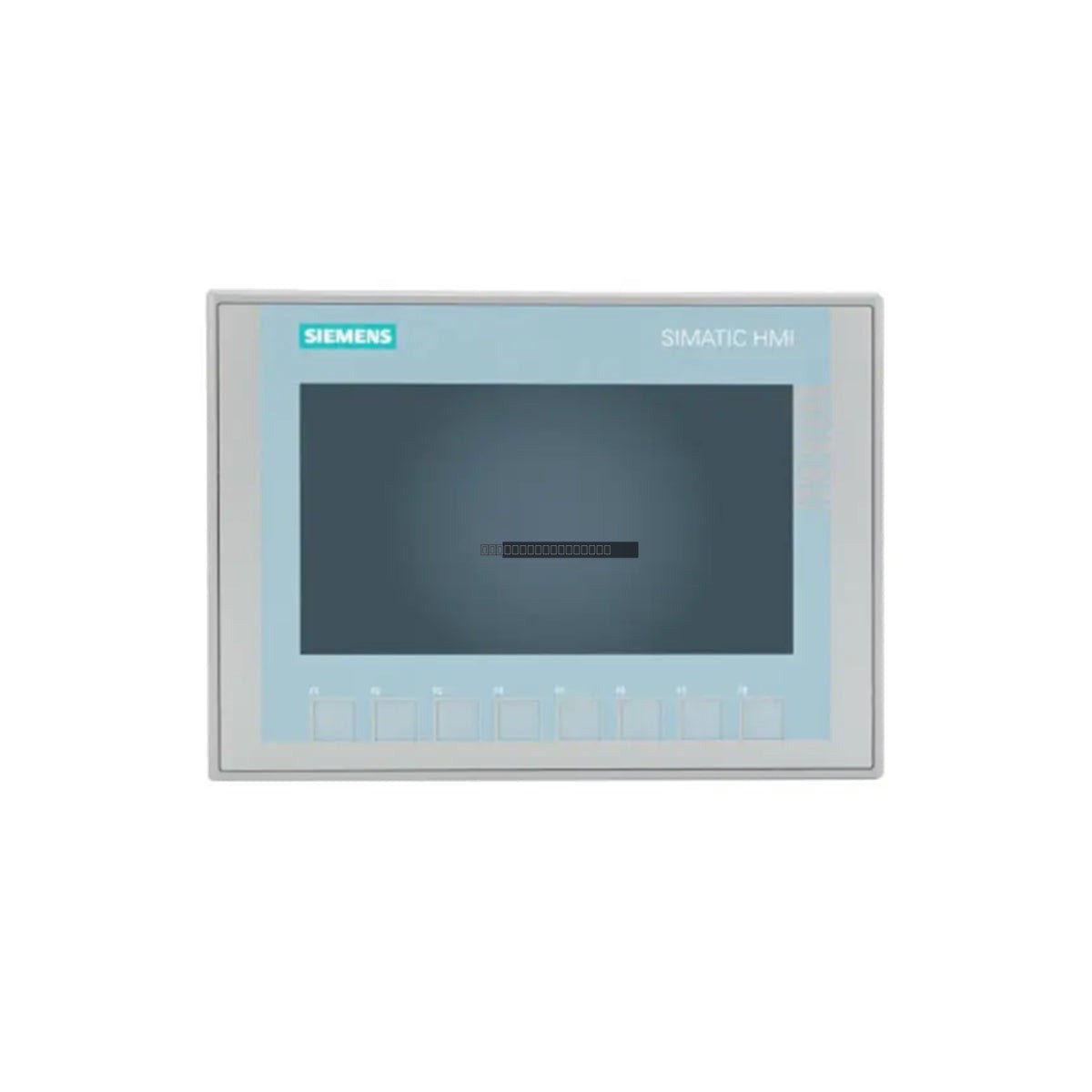

The Siemens 6AV2123-2GA03-0AX0 (SIMATIC HMI KTP700 Basic DP) is a 7-inch widescreen operator panel designed for cost-effective, machine-level visualization. This HMI unit integrates a high-resolution TFT display with both touch-sensitive screen controls and eight tactile function keys, providing operators with reliable input options in demanding industrial environments. It is specifically equipped with a PROFIBUS DP interface, making it an ideal solution for legacy automation systems and distributed control architectures requiring robust fieldbus communication.
Features
- 7-inch TFT widescreen display with 65536 colors for clear process visualization.
- Resolution of 800 x 480 pixels optimized for industrial readability.
- Integrated PROFIBUS DP interface (RS 485) supporting communication speeds up to 12 Mbit/s.
- Combined input method: Touch screen and 8 configurable tactile function keys.
- IP65-rated front panel protection against dust and moisture ingress.
- Seamless integration with Siemens TIA Portal (WinCC Basic V13 or higher).
Applications
The KTP700 Basic DP is widely used in manufacturing, water treatment, and food processing industries. It serves as a localized HMI for machine monitoring, alarm management, and recipe handling, effectively reducing downtime by providing operators with immediate diagnostic feedback.
Technical Specifications
| Model |
6AV2123-2GA03-0AX0 |
| Display Size |
7 inch TFT Widescreen |
| Resolution |
800 x 480 pixels |
| Interface |
1 x RS 485 (PROFIBUS DP) |
| Input Voltage |
24 VDC |
| Power Consumption |
5.5 W |
| Operating Temperature |
0 to 50 deg C |
| Enclosure Rating |
IP65 (front), IP20 (rear) |
Installation Guidelines
- Ensure the panel is mounted in a clean, dry environment within the specified temperature range.
- Use the provided mounting clips to secure the HMI into a cutout on the control cabinet door or console.
- Ensure the front gasket is properly seated to maintain the IP65 seal.
- Connect the 24 VDC power supply using the appropriate terminal block, ensuring correct polarity.
- Route PROFIBUS communication cables away from high-voltage power lines to minimize EMI interference.
- Always power down the device before performing any wiring or maintenance tasks.
FAQ
Is this HMI compatible with PROFINET?
No, the 6AV2123-2GA03-0AX0 is the DP (PROFIBUS) version. For PROFINET connectivity, please refer to the PN-specific models in the SIMATIC Basic Panel series.
What software is required to configure this panel?
This device requires Siemens TIA Portal software, specifically WinCC Basic V13 or higher, for project configuration and deployment.
