Description

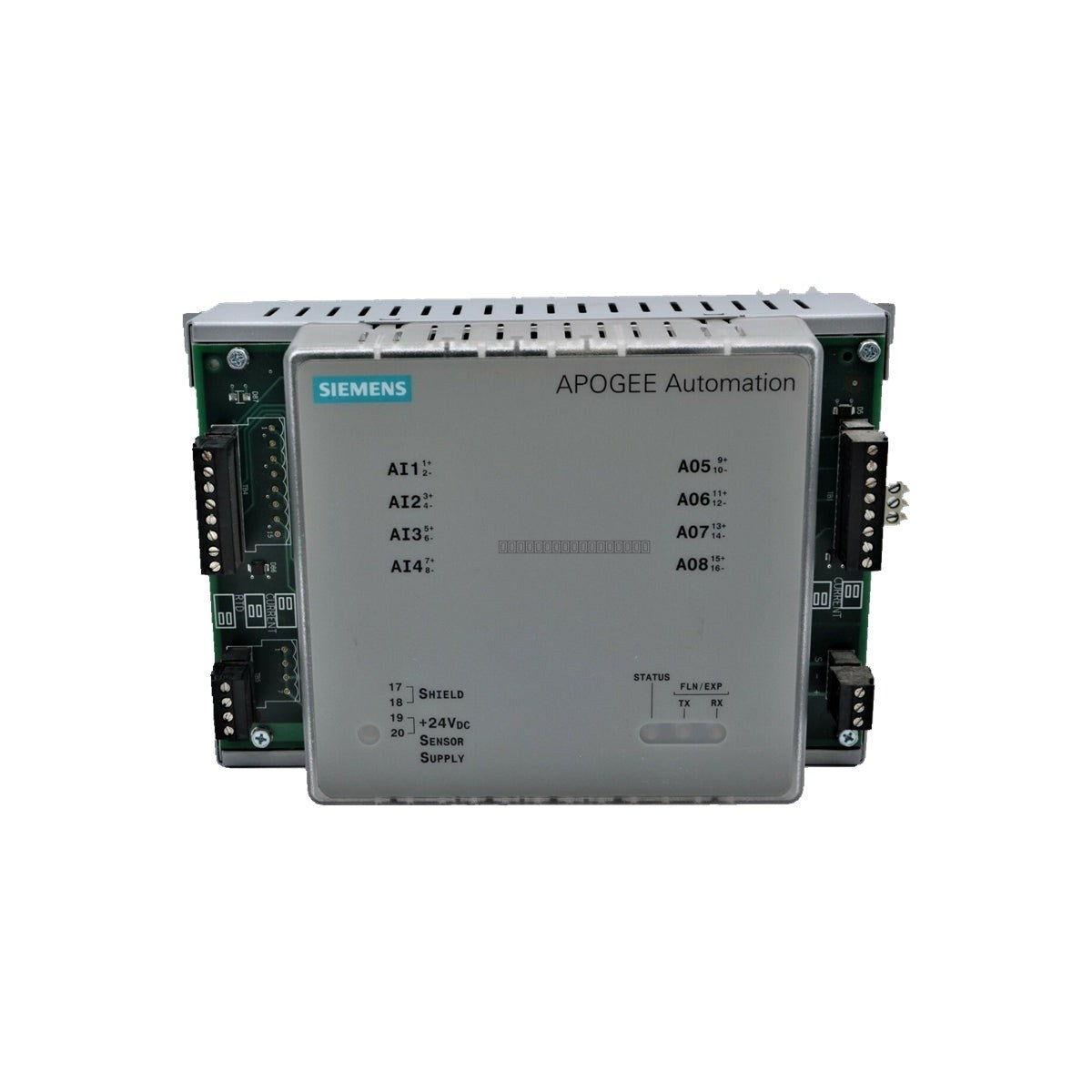

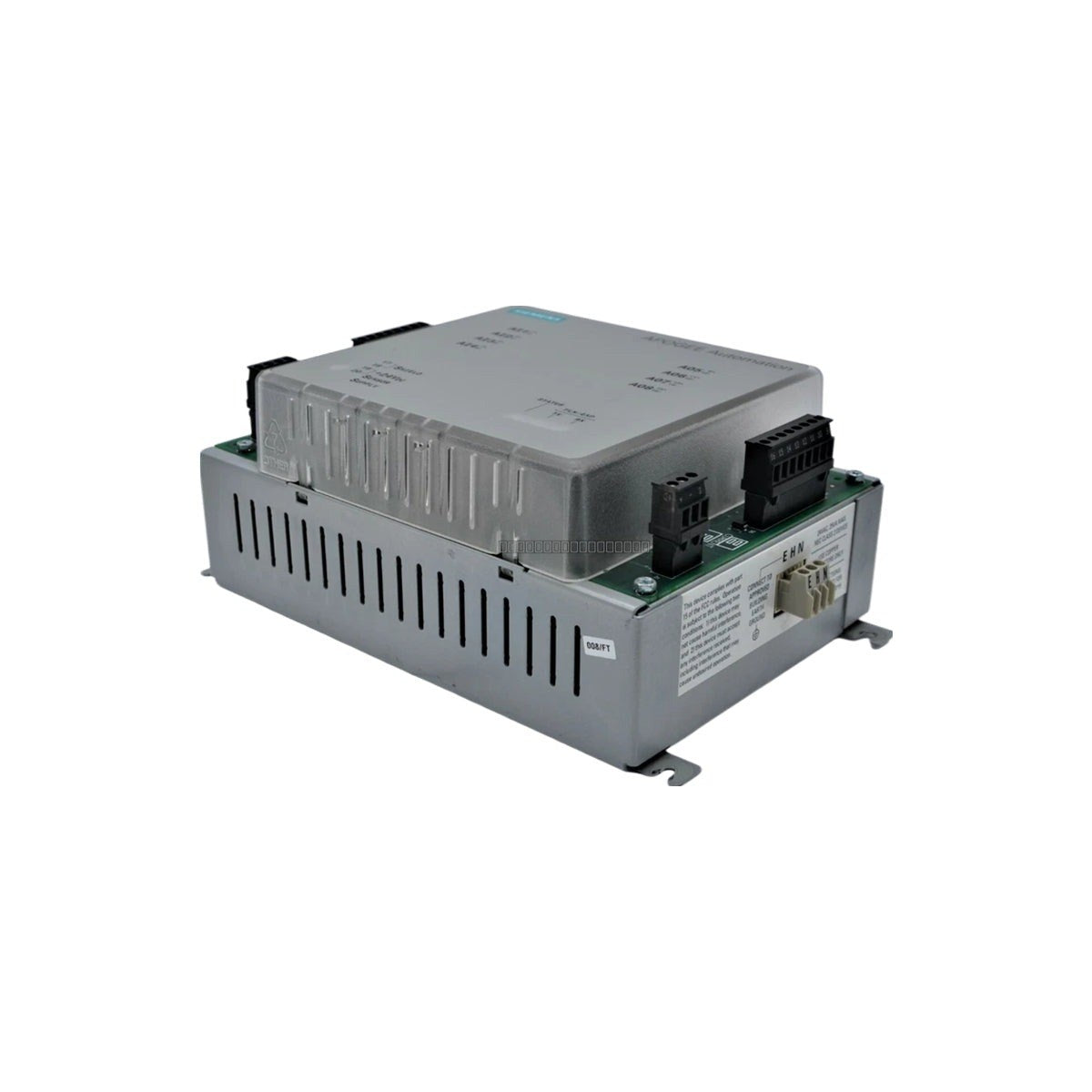

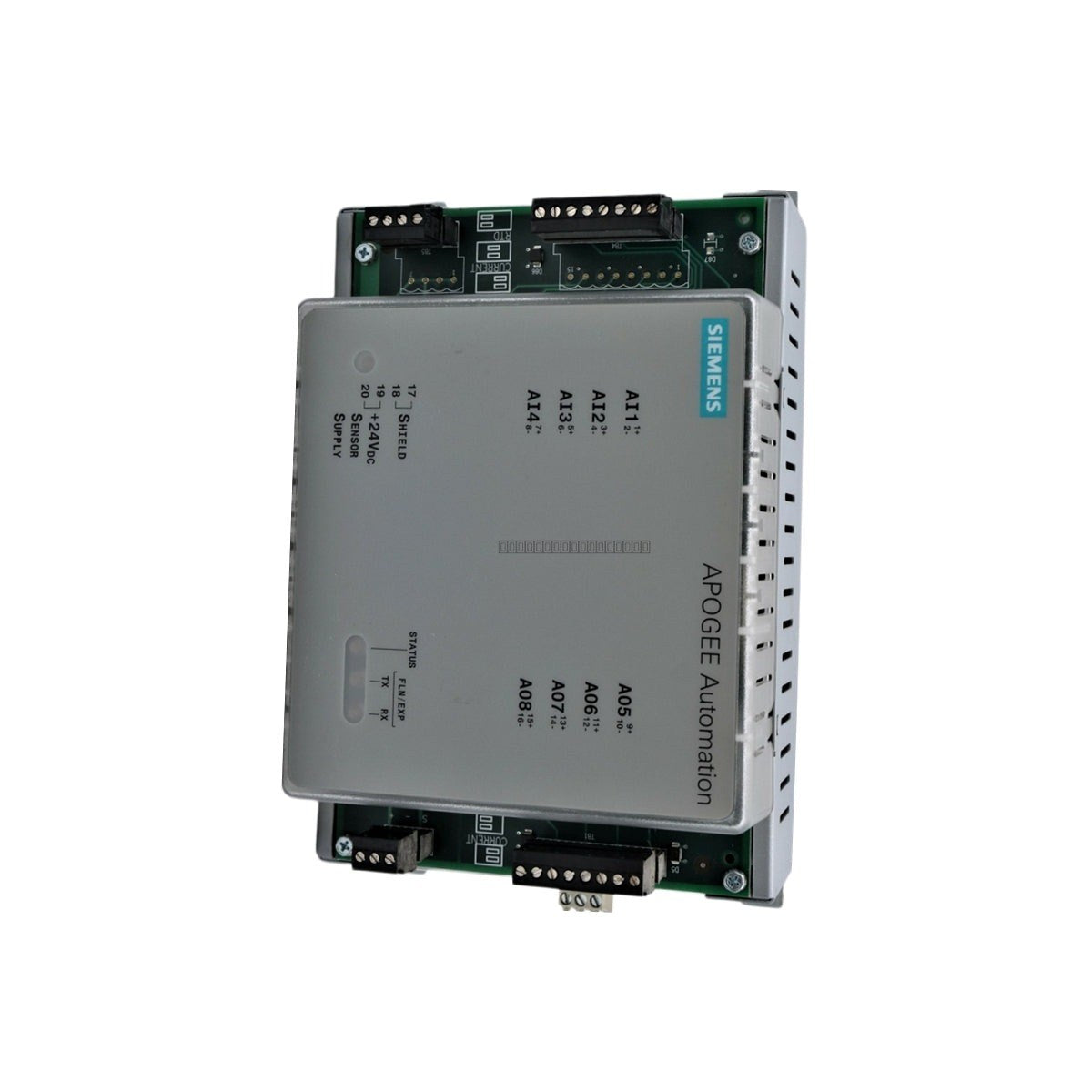

The Siemens 549-214 is an expansion module designed to provide additional analog point capacity for compatible Siemens control systems. As a specialized hardware component, this module facilitates the integration of analog signals into the automation network, allowing for expanded monitoring and control capabilities within industrial processes.
Features
- Designed for seamless integration with Siemens control architectures.
- Provides dedicated analog point expansion functionality.
- Robust construction suitable for industrial environments.
- Direct replacement or expansion component for legacy systems.
Applications
This expansion module is typically utilized in building automation, HVAC control systems, and industrial process control applications where additional analog input or output points are required to manage field instrumentation such as sensors, actuators, and transducers.
Technical Specifications
| Product Model |
549-214 |
| Module Type |
Expansion Module |
| Functionality |
Analog Point Expansion |
| Manufacturer |
Siemens |
| Weight |
1.3 kg |
Installation Guidelines
- Ensure the control system is powered down before installing or removing the module to prevent electrical damage.
- Mount the module in a clean, dry, and vibration-free environment, preferably within a standard industrial enclosure.
- Follow proper ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
- Ensure all terminal connections are secure and wiring is routed away from high-voltage power lines to minimize electromagnetic interference (EMI).
- Verify that the module is correctly seated in the backplane or mounting rail before applying power.
FAQ
Is this product still in production?
No, the Siemens 549-214 has been discontinued by the manufacturer. We provide these units as spare parts for legacy system maintenance and support.
What is the primary function of this module?
The 549-214 serves as an expansion module to increase the number of analog points available in a Siemens control system setup.
