Description

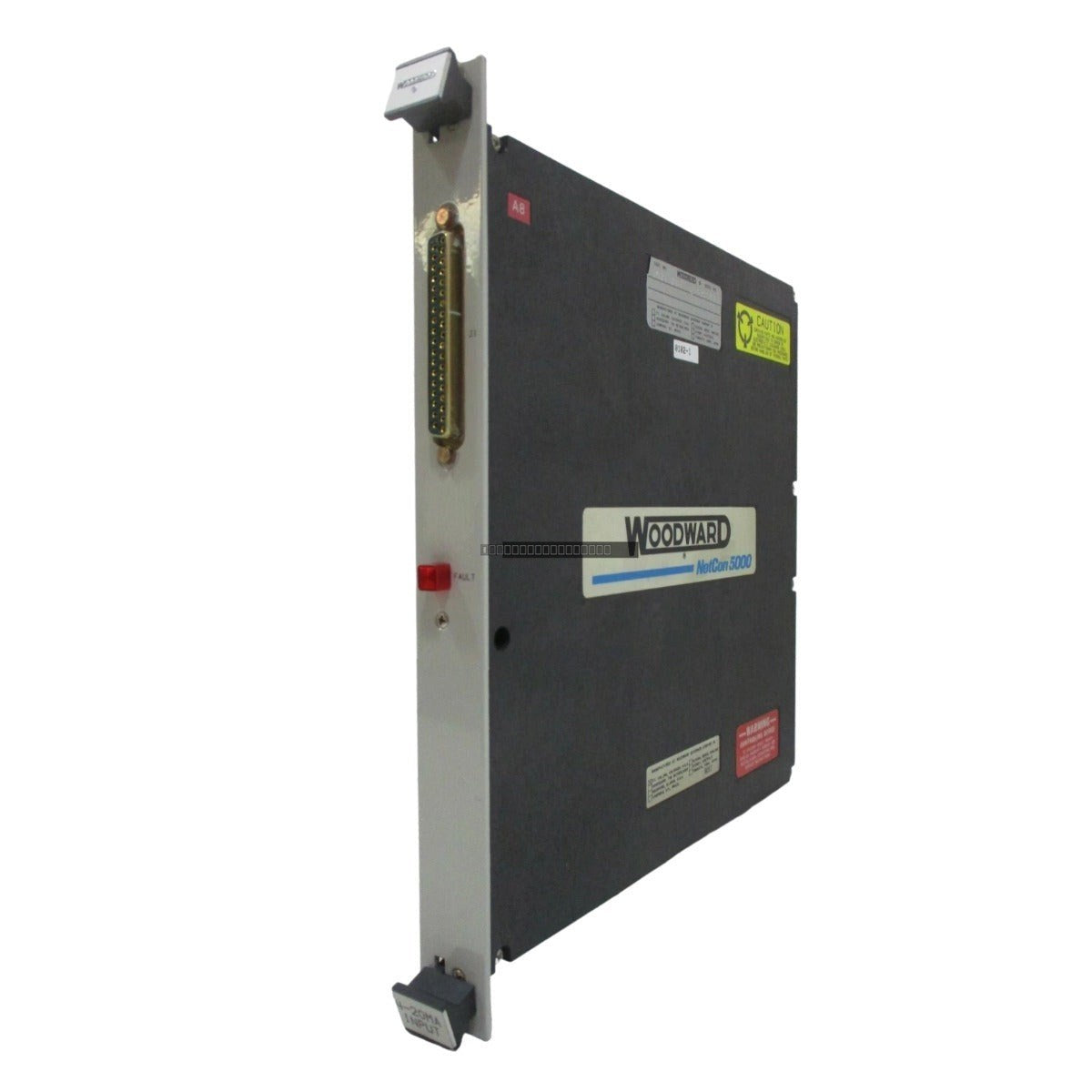

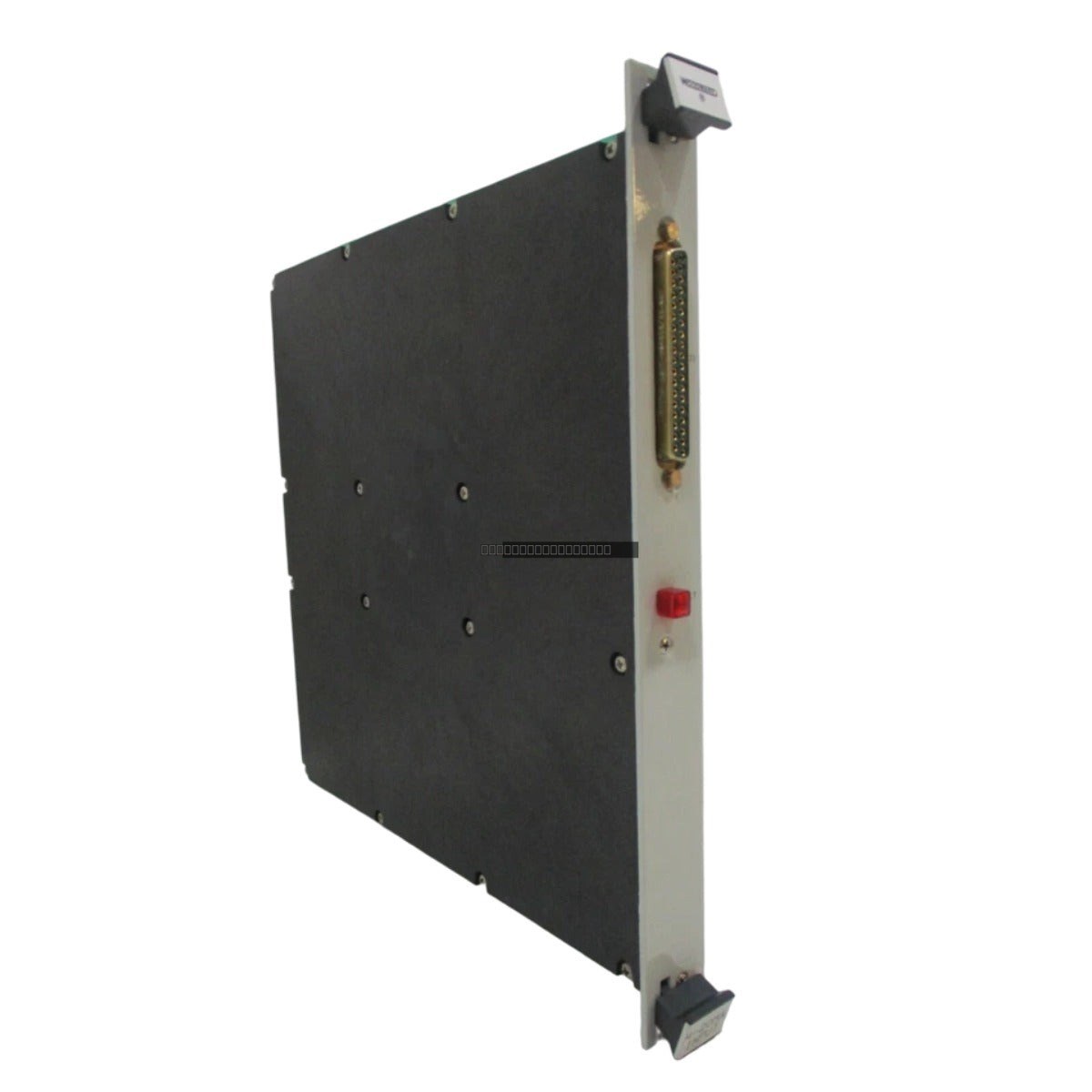

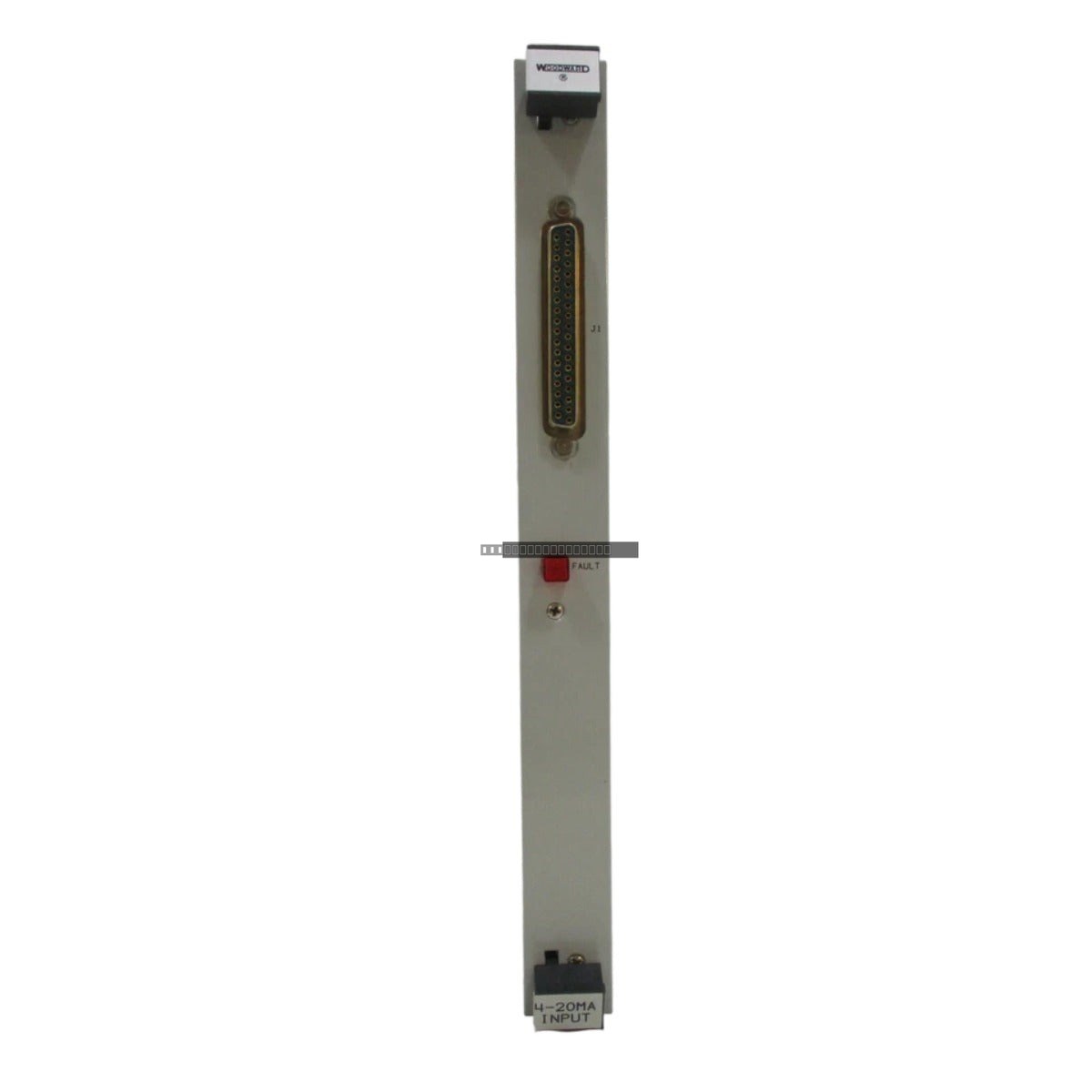

The Woodward 5463-785 is a specialized 8-channel analog input module developed for integration within the Netcon control system platform. This unit serves as a critical interface for high-precision data acquisition, transforming standard 4-20 mA current loop signals into digitized inputs for the central processor. By providing robust galvanic isolation on every channel, the module effectively mitigates the risk of ground loops and protects sensitive backplane electronics from electrical noise common in industrial field environments.
Features
- Eight isolated analog input channels designed for 4-20 mA loop monitoring.
- Galvanic isolation per channel to enhance system reliability and noise immunity.
- High-speed backplane communication for real-time signal processing and diagnostic feedback.
- Optimized for demanding applications in power generation and oil and gas sector infrastructure.
- Integrated signal conditioning hardware for stable and accurate data conversion.
Applications
This module is typically deployed in Woodward Netcon systems managing turbine control, compressor regulation, and other complex industrial automation processes where precise analog signal monitoring is required for safe and efficient operation.
Technical Specifications
| Model |
5463-785 |
| Manufacturer |
Woodward |
| Series |
Netcon |
| Module Type |
Isolated Analog Input |
| Channel Count |
8 |
| Input Signal |
4-20 mA |
| Input Impedance |
250 Ohms |
| Power Consumption |
6.5 W (Nominal) |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the control system power is fully disconnected before inserting or removing the module from the Netcon rack.
- Verify that all field wiring is properly shielded and grounded to maintain the integrity of the 4-20 mA loops.
- Use caution when handling the module to prevent electrostatic discharge (ESD) damage to internal circuitry.
- Confirm proper seating within the rack backplane to ensure reliable high-speed data connectivity.
- Maintain adequate ventilation around the control rack to stay within the specified 0 to 60 deg C operating range.
FAQ
What is the primary function of the Woodward 5463-785?
The 5463-785 is an 8-point analog input module designed to convert field-based 4-20 mA current signals into digital data for processing by the Woodward Netcon control system.
Does this module provide channel-to-channel isolation?
Yes, the module features individual channel isolation, which is critical for preventing ground loops and protecting the controller from field-side electrical interference.
