Description

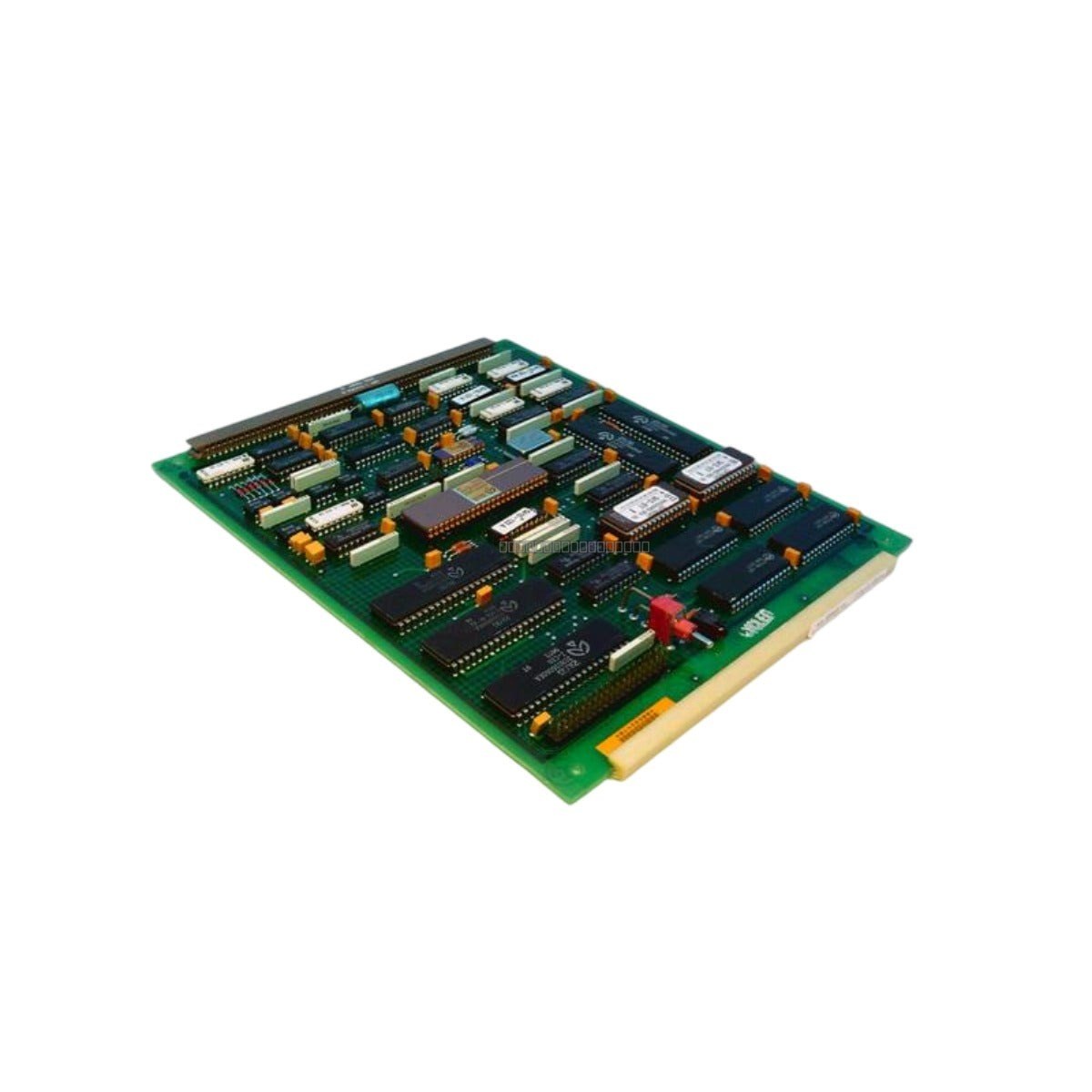

The Woodward 5463-473 is a specialized Smart Input/Output (SIO) module designed for integration within Woodward control system architectures. This PC board-level component serves as a critical interface for data acquisition and signal processing, commonly utilized in demanding industrial environments including offshore oil platforms, thermal power plants, and gas turbine control systems. The module is engineered for high-speed logic execution and reliable communication, ensuring system stability and uptime within complex control loops.
Features
-
System Integration: Optimized for seamless backplane integration with Woodward Netcon and related chassis architectures.
-
Firmware: Pre-flashed with Version 4.4 Operating System (OPSYS) for enhanced I/O scanning and timing.
-
Hardware Interface: Equipped with a male pin header for secure electrical connectivity and high-speed data transfer.
-
Manual Control: Features an integrated on-board toggle switch for localized hardware testing and status configuration.
Applications
This module is primarily deployed in industrial automation and power generation control systems where precise signal processing is required. Typical applications include turbine management, power plant auxiliary control, and critical data acquisition tasks in harsh industrial environments.
Technical Specifications
| Model |
5463-473 |
| Brand |
Woodward |
| Category |
SIO Module / PC Board PLC |
| Operating System |
VER 4.4 OPSYS |
| Interface Type |
Male Pin Header |
| Control |
On-Board Toggle Switch |
| Power Consumption |
3.5 W (Nominal) |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
-
ESD Precautions: Always use a grounded wrist strap and anti-static mat when handling the PCB to prevent damage from electrostatic discharge.
-
Power Down: Ensure the rack or chassis power is completely disconnected before inserting or removing the module.
-
Seating: Ensure the module is fully seated in the backplane slot to maintain secure electrical contact with the male pin headers.
-
Environment: Maintain the module within the specified operating temperature range of 0 to 60 deg C and ensure adequate ventilation within the cabinet.
FAQ
Is this module compatible with all Woodward control systems?
The 5463-473 is designed for specific Woodward architectures, such as the Netcon series. Please verify your system's hardware revision and firmware requirements before installation.
What is the function of the on-board toggle switch?
The toggle switch allows for localized hardware testing and status switching, enabling technicians to perform diagnostics without requiring external software intervention.
