Description

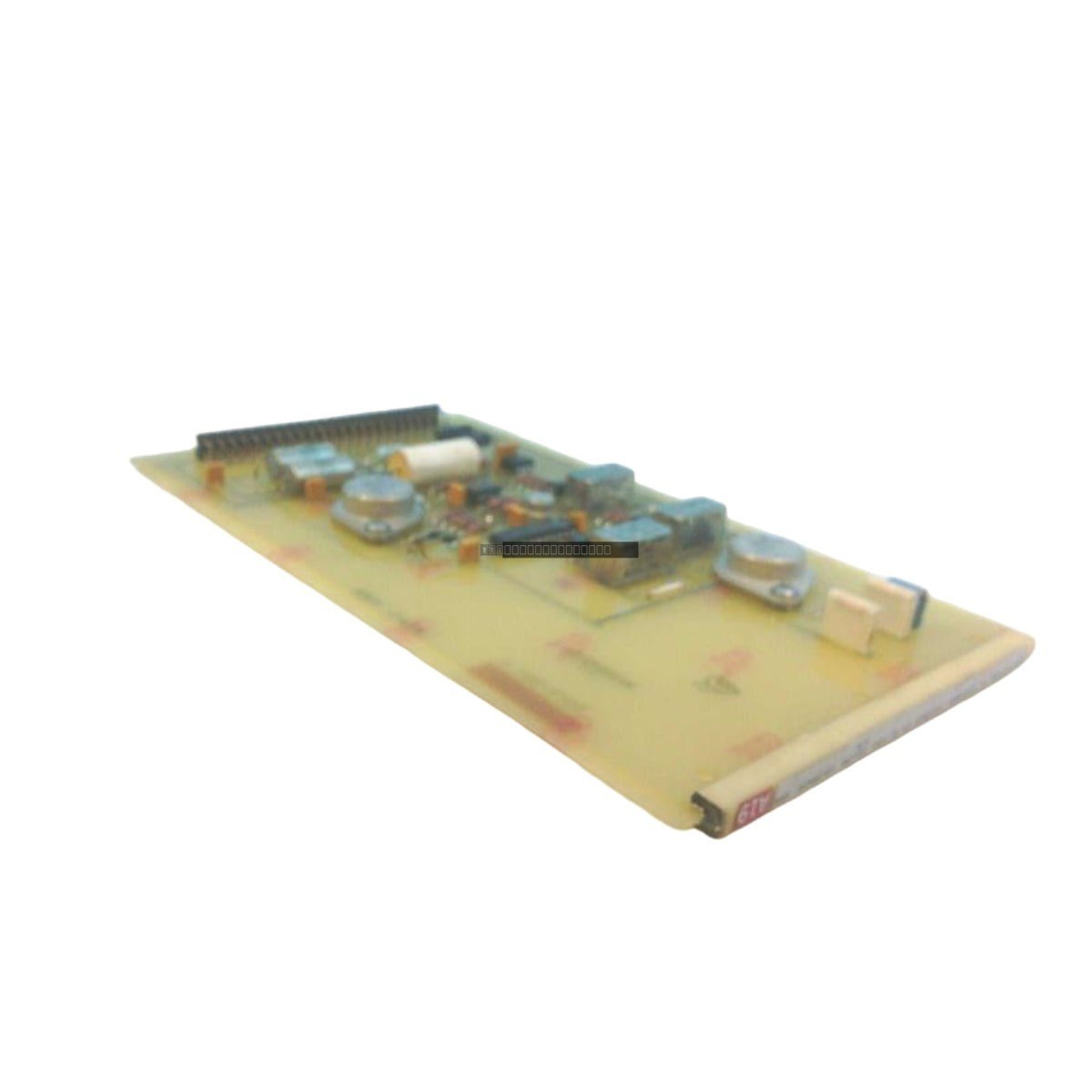

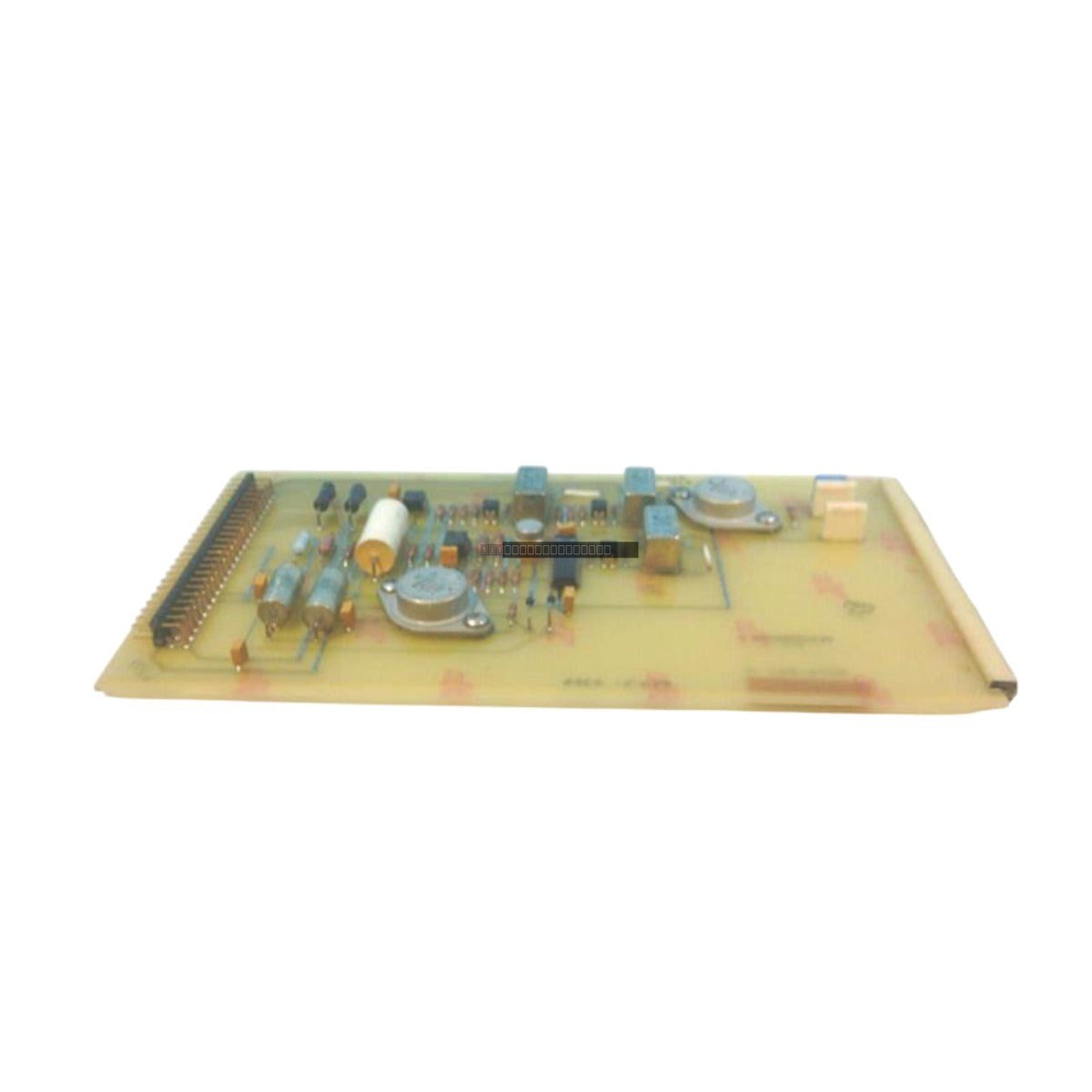

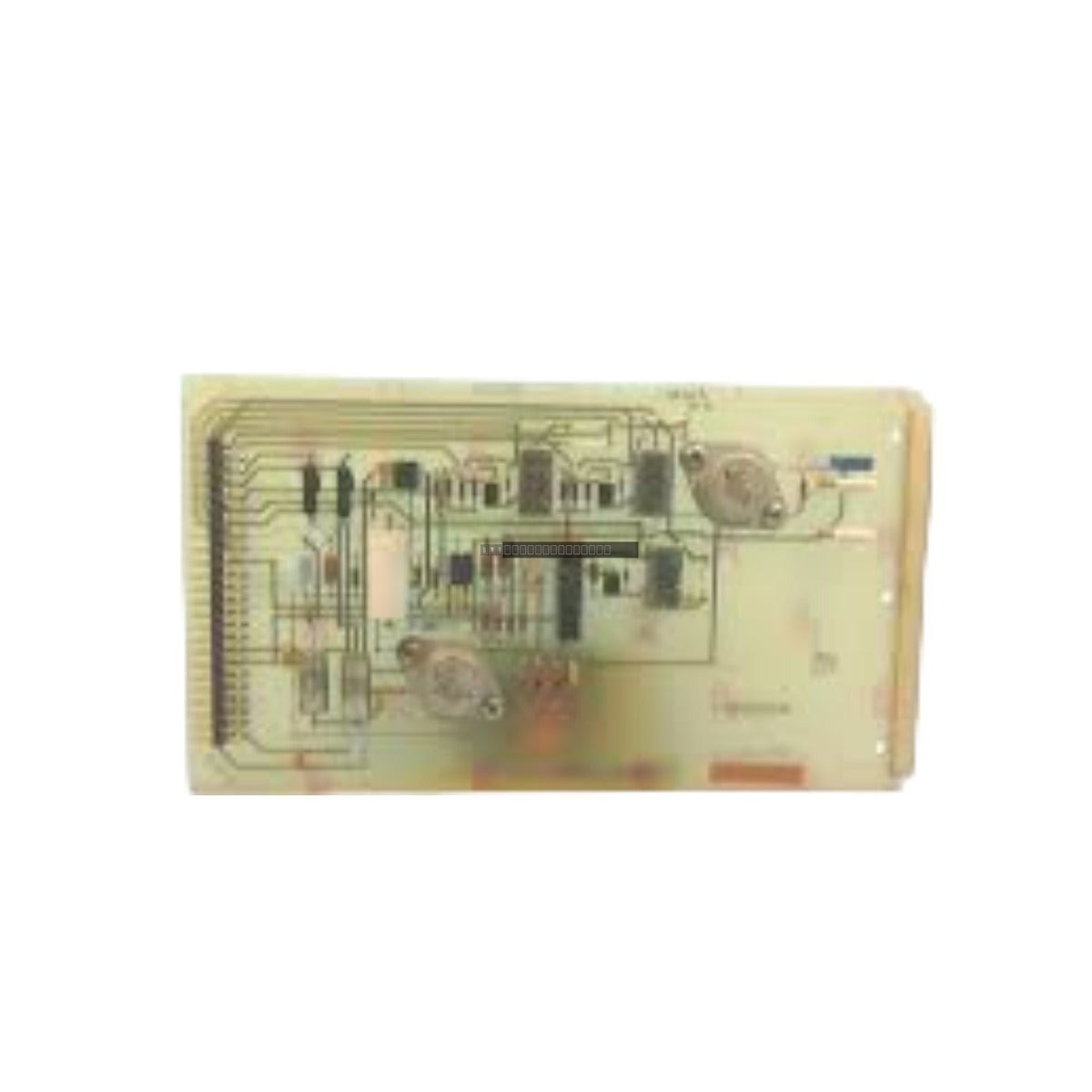

The Woodward 5463-034 is a dedicated Power Auxiliary Control Board designed for integration into legacy Woodward turbine and engine management systems. This component functions as a critical interface for power regulation and distribution, ensuring that auxiliary power remains stable for sensitive sensors and downstream actuators. It is frequently utilized in power generation, marine propulsion, and industrial processing environments to maintain the reliability of older control architectures.
Features
- Designed specifically for Woodward legacy control system compatibility.
- Integrated power regulation for auxiliary loops to prevent signal instability.
- Robust PCB construction engineered for long-term thermal durability.
- Normally Closed (N.C.) circuit configuration for fail-safe auxiliary power monitoring.
- High-density 48-pin male header interface for secure connection to the backplane or wiring harnesses.
- Advanced noise suppression and voltage isolation to mitigate electromagnetic interference (EMI).
Applications
This control board is primarily used in aging industrial control loops where auxiliary power integrity is vital for system uptime. It is commonly found in:
- Gas and steam turbine control systems.
- Industrial engine management and monitoring platforms.
- Chemical processing plant automation.
- Marine engine room power distribution systems.
Technical Specifications
| Model |
5463-034 |
| Manufacturer |
Woodward |
| Connector |
48-Pin Male Header |
| Configuration |
Normally Closed (N.C.) |
| Operating Temperature |
-40 to 70 deg C |
| Power Compatibility |
24 VDC / 48 VDC systems |
Installation Guidelines
- Ensure all power is disconnected from the control cabinet before removing or inserting the module.
- Handle the board by its edges to prevent electrostatic discharge (ESD) damage to sensitive components.
- Verify that the 48-pin connector is properly aligned and fully seated before engaging the locking mechanism.
- Ensure that the surrounding environment is free from excessive moisture and corrosive vapors, consistent with standard industrial control cabinet requirements.
- Check that all shielded cabling is properly grounded to minimize noise pickup on the auxiliary power lines.
FAQ
Is the 5463-034 compatible with all Woodward systems?
This module is designed for specific legacy Woodward turbine and engine control architectures. Please verify your system's parts manual or existing hardware revision to confirm compatibility with the 5463-034 part number.
What is the primary function of this board?
The 5463-034 acts as a power distribution and regulation interface, providing clean auxiliary power to actuators and sensors, which helps prevent system faults caused by voltage fluctuations.
