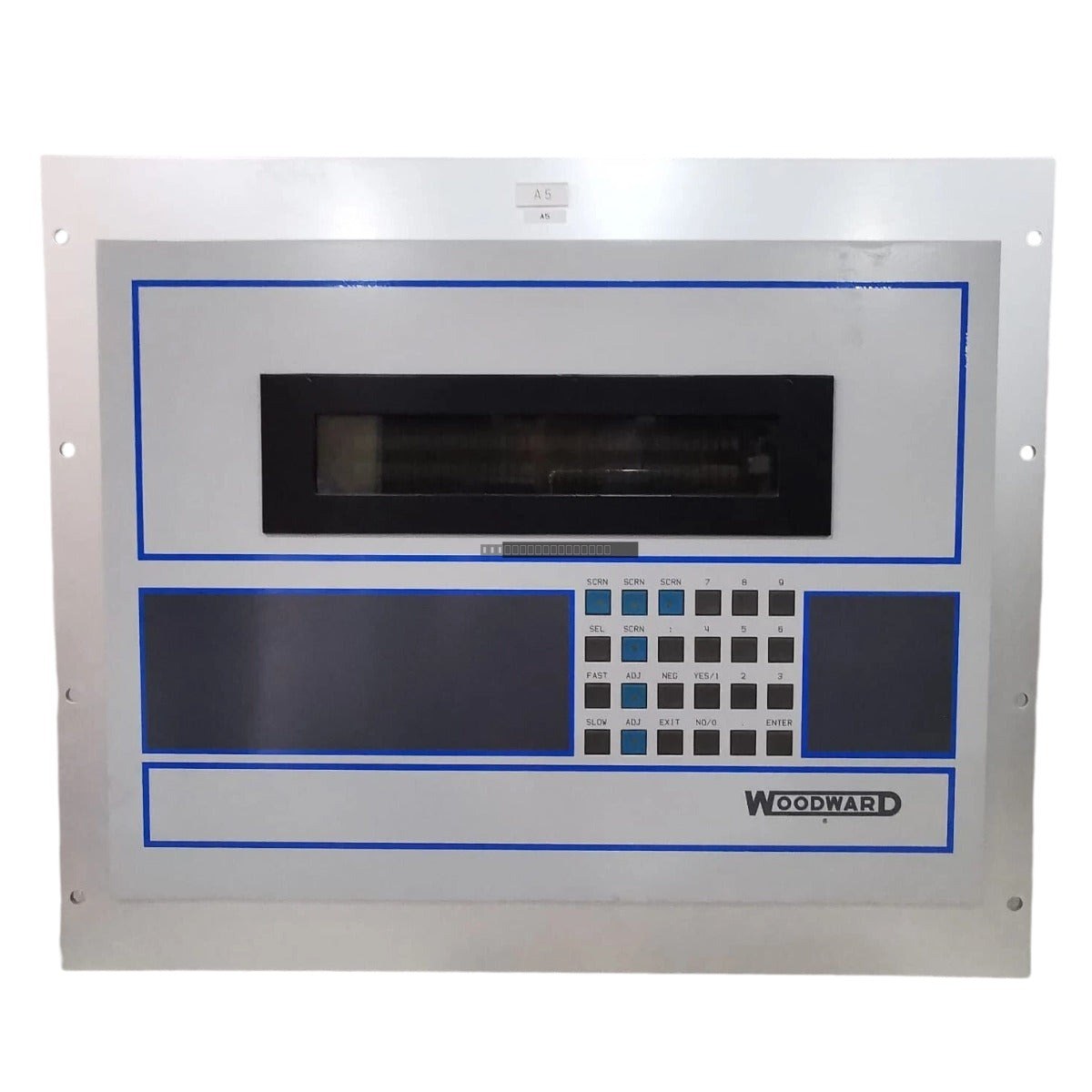

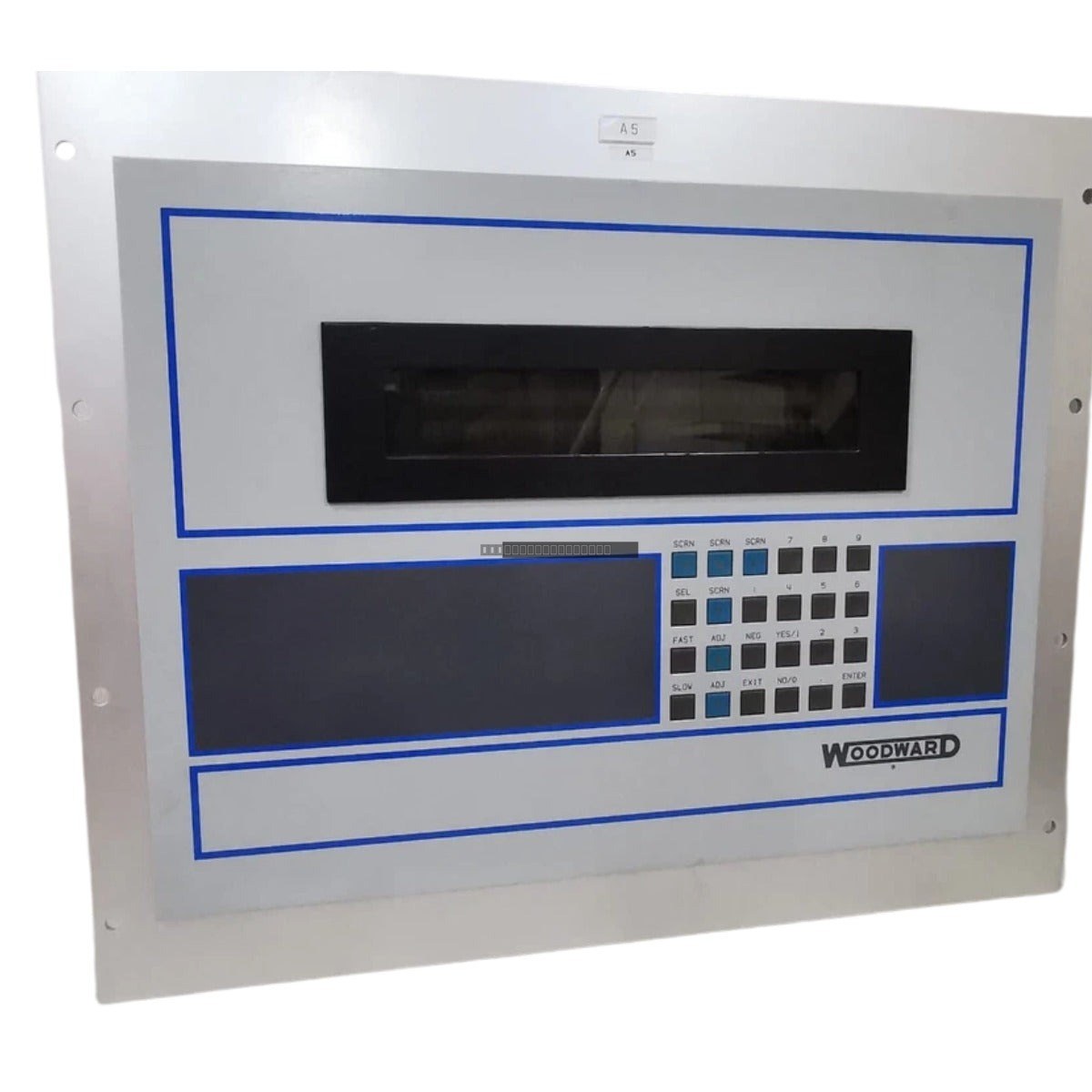

The Woodward 5453-203 is a dedicated Operator Interface Panel designed for use with the Woodward Micronet control system. This panel features a 2-line LED display and an integrated keypad, providing operators with a robust interface for monitoring system parameters, viewing alarms, and managing control settings directly at the point of operation. Its panel-mount design ensures secure integration into industrial control cabinets and consoles.
Features
- Integrated 2-line LED display for clear status and data visualization.
- Tactile keypad for local operator input and system navigation.
- Designed specifically for compatibility with Woodward Micronet control architectures.
- Panel-mount configuration for streamlined installation in industrial enclosures.
- Supports RS232 and RS422 communication protocols for reliable data exchange.
Technical Specifications
| Product Model |
5453-203 |
| Manufacturer |
Woodward |
| Display Type |
2-Line LED |
| Communication Ports |
RS232, RS422 |
| Connector Type |
DB9 |
| Input Power |
12VDC at 650 mA |
| Operating Temperature |
-40 degC to 70 degC |
Installation Guidelines
- Ensure the panel is mounted in a location protected from excessive vibration and direct exposure to harsh environmental contaminants.
- Verify that the panel cutout dimensions are correct before mounting to ensure a proper seal and secure fit.
- Use shielded communication cables for RS232/RS422 connections to minimize the risk of electromagnetic interference (EMI).
- Always disconnect power to the control system before connecting or disconnecting the interface panel to prevent electrical damage.
- Ensure proper grounding of the panel chassis to the cabinet ground bus to maintain signal integrity and safety.
FAQ
What is the primary function of the Woodward 5453-203?
The 5453-203 serves as a local operator interface for the Woodward Micronet control system, allowing users to view system status and input commands via the integrated display and keypad.
What communication protocols does this interface support?
This unit supports RS232 and RS422 communication standards, utilizing a DB9 connector for integration with the control network.
