Description
Description

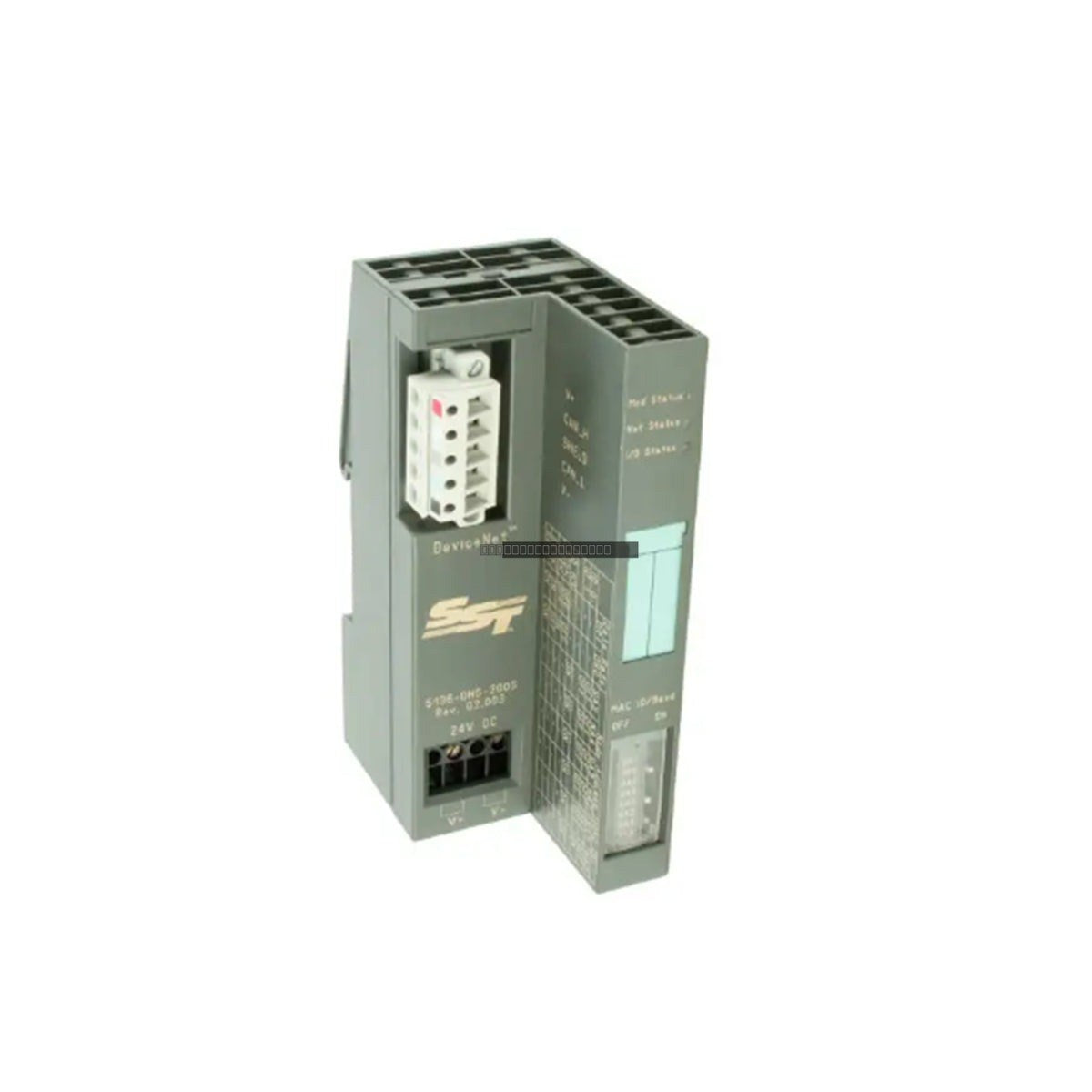

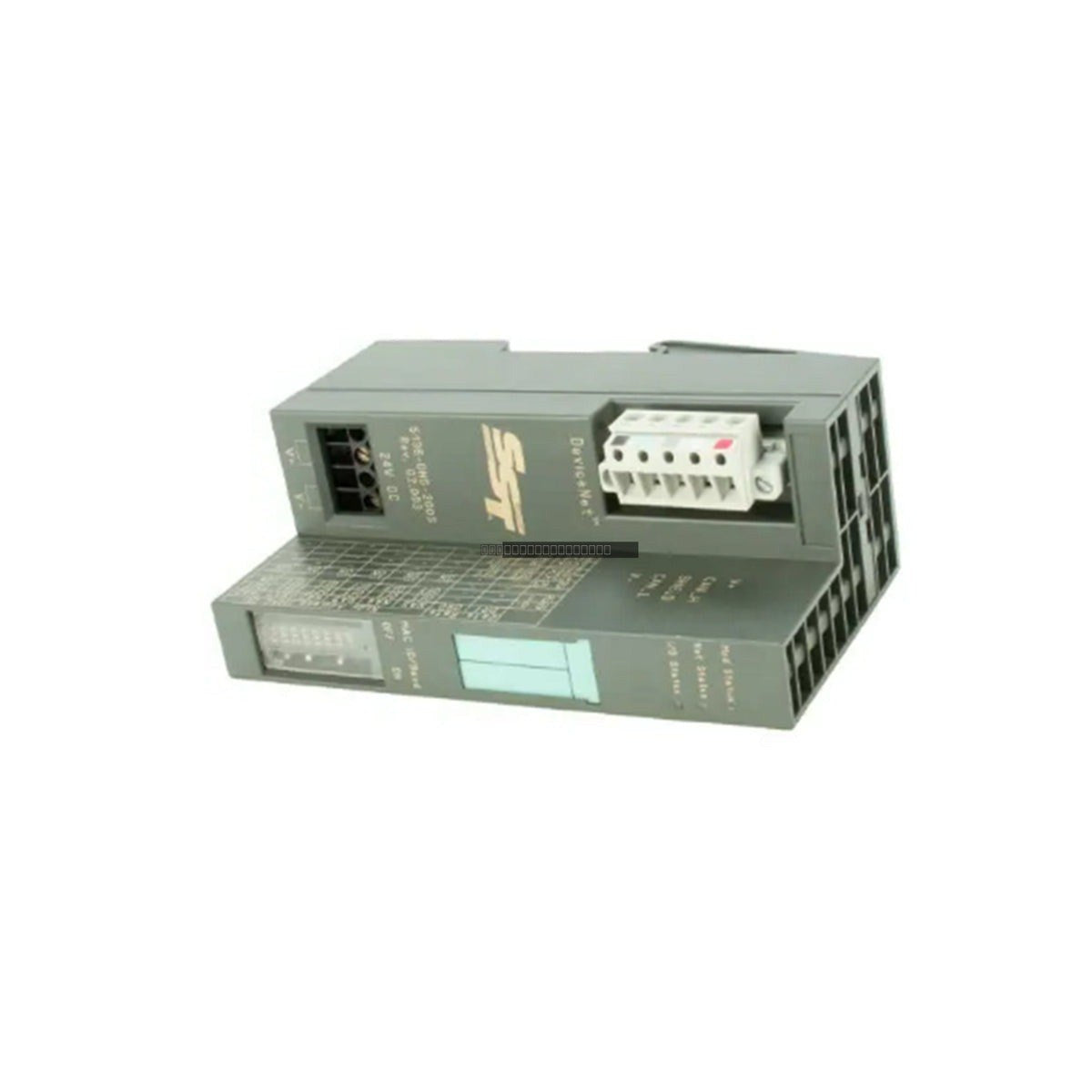

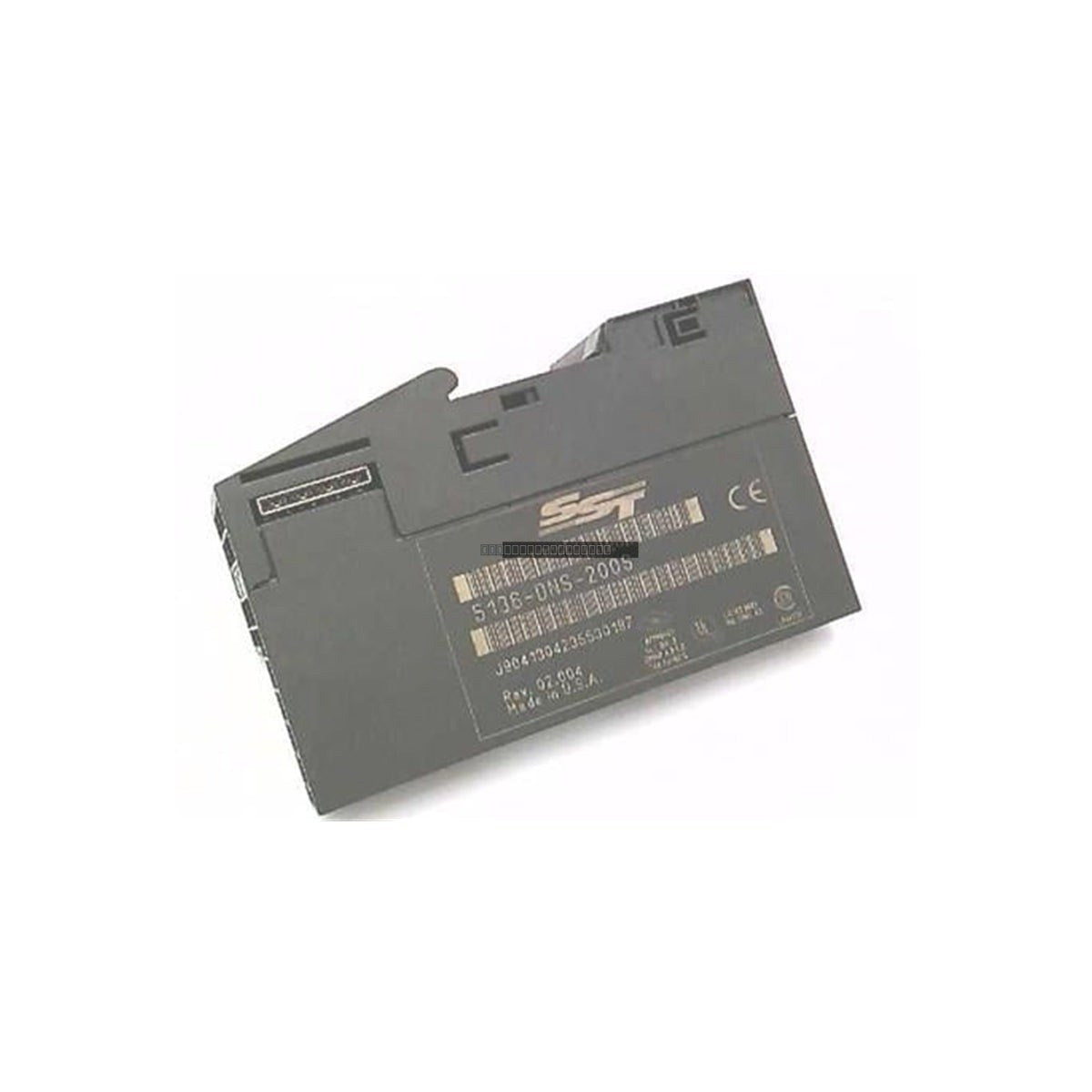

The Siemens 5136-DNS-200S is a specialized communication module designed to function as a DeviceNet Slave Adapter. This module facilitates seamless integration and data exchange within industrial automation networks, specifically engineered for compatibility with the ET200S distributed I/O system. As a communication interface, it enables the connection of field devices to a DeviceNet network, allowing for efficient monitoring and control in complex industrial environments.
Features
- Dedicated DeviceNet slave functionality for reliable network communication.
- Designed for integration with the Siemens ET200S modular I/O system.
- Compact form factor suitable for space-constrained control cabinets.
- Robust industrial design to support consistent data throughput.
Applications
This module is primarily utilized in industrial automation systems where DeviceNet protocols are required to bridge field-level I/O devices with a master controller. It is commonly found in manufacturing, process control, and material handling applications where the ET200S platform is deployed to manage distributed sensor and actuator arrays.
Technical Specifications
| Product Model |
5136-DNS-200S |
| Function |
DeviceNet Slave Adapter |
| System Compatibility |
ET200S |
| Manufacturer |
Siemens |
| Tariff Code |
8517620050 |
Installation Guidelines
- Ensure the power supply to the ET200S rack is disconnected before attempting to install or remove the communication module.
- Verify that the module is correctly seated in the designated slot to ensure proper backplane connection.
- Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
- Ensure that the DeviceNet network cabling is properly shielded and routed away from high-voltage power lines to minimize electromagnetic interference (EMI).
- Confirm that the network termination resistors are correctly applied at both ends of the DeviceNet trunk line according to network specifications.
FAQ
Is this module still in production?
No, the 5136-DNS-200S has been discontinued by the manufacturer. We provide these units as part of our inventory of legacy and hard-to-find industrial automation components.
What is the primary function of this module?
The 5136-DNS-200S acts as a slave adapter, allowing ET200S I/O stations to communicate with a DeviceNet master controller, facilitating the exchange of process data across the network.
