Description

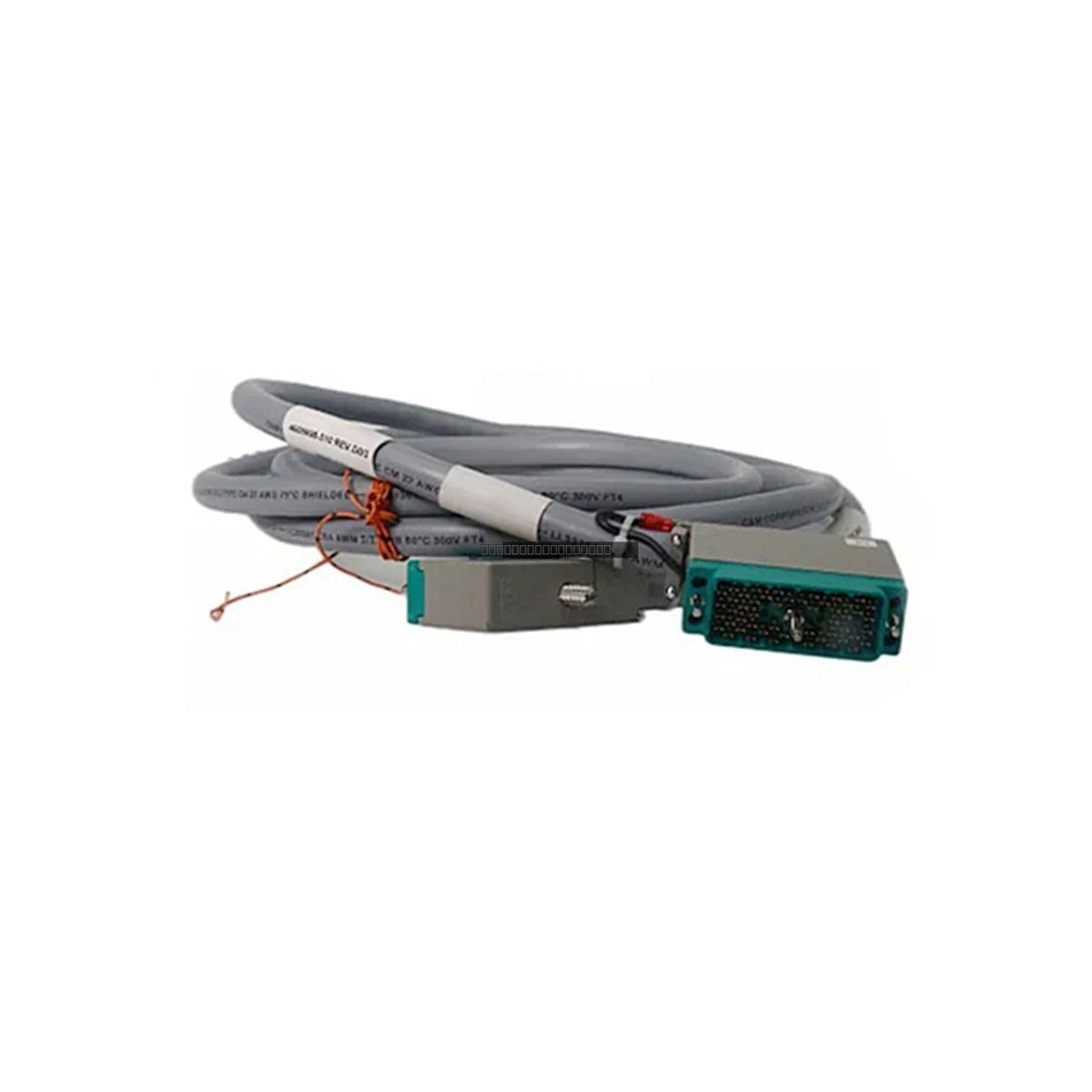

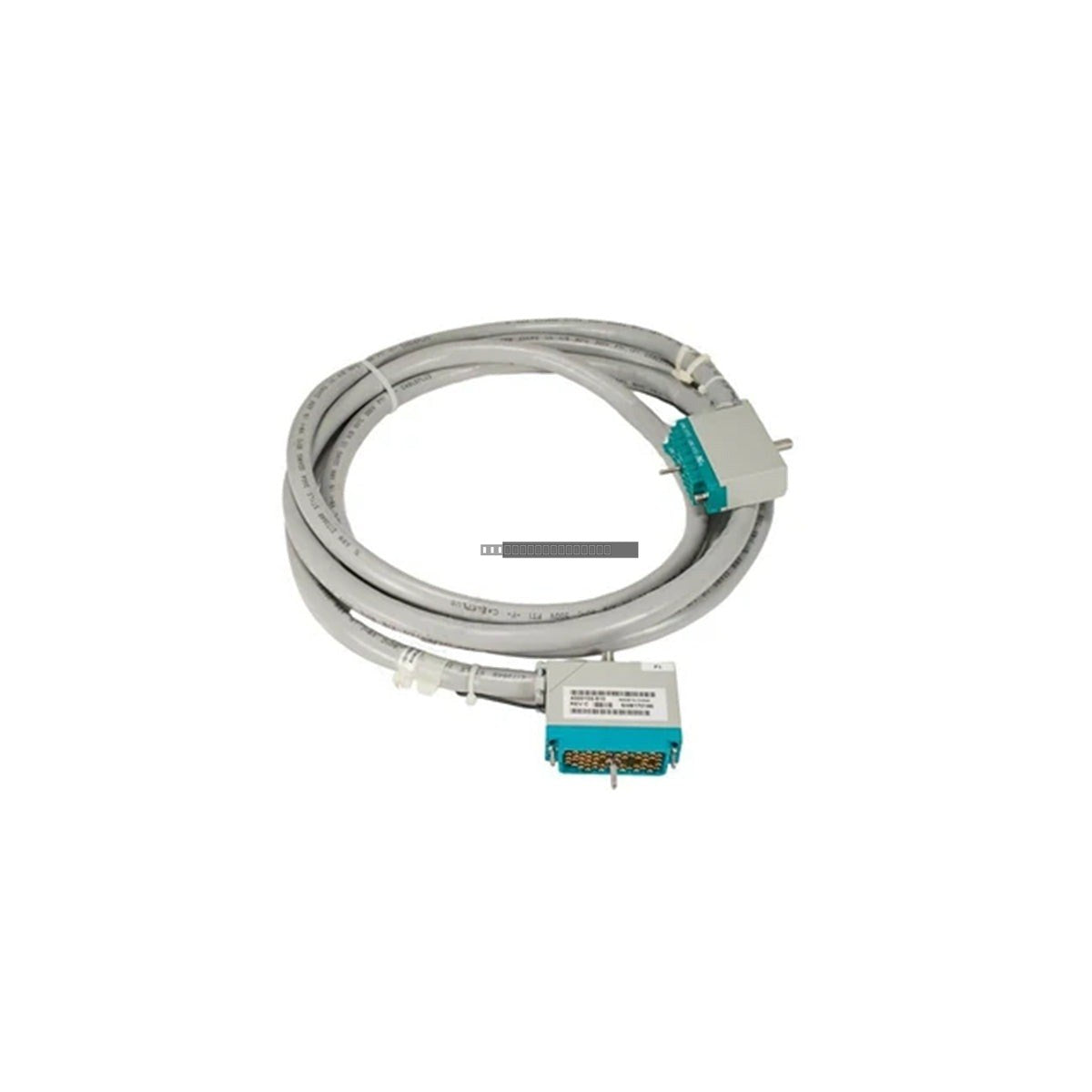

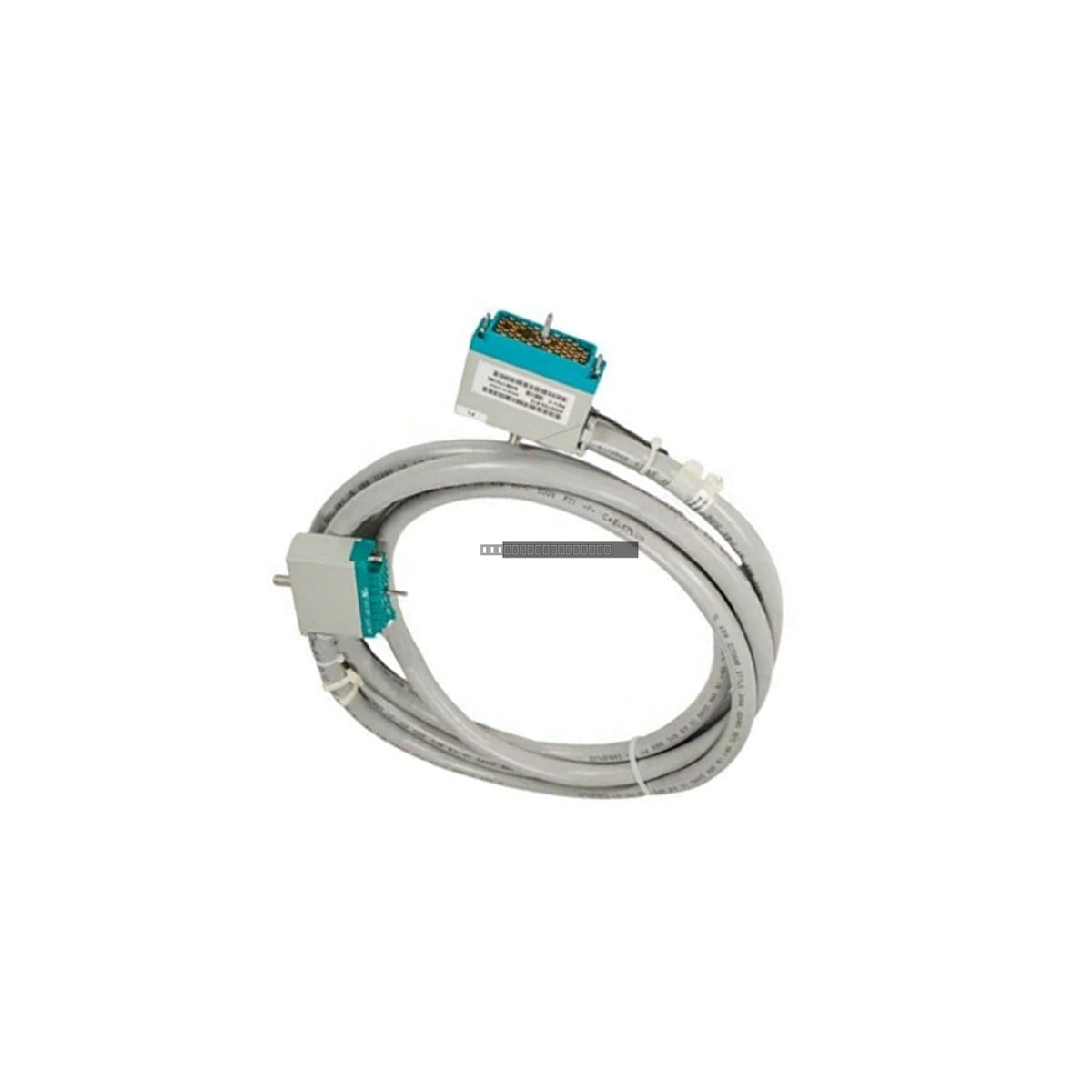

The Invensys Triconex 4000103-510 is a specialized 10-foot (3.05 meter) Quick Disconnect (QD) cable assembly engineered for robust signal transmission within high-integrity safety systems. Designed to serve as a reliable interface between field instrumentation and the control rack, this assembly supports the stringent requirements of Safety Instrumented Systems (SIS). It provides consistent signal integrity in demanding industrial environments, such as petrochemical facilities and power plants, where vibration and electromagnetic noise are prevalent.
Features
-
Quick Disconnect Interface: Facilitates rapid installation and maintenance, allowing for efficient instrument replacement without the need for specialized tools.
-
High-Integrity Shielding: Multi-layer shielding protects against electromagnetic interference (EMI) and signal attenuation, ensuring precise data transmission for critical safety loops.
-
Industrial-Grade Build: Constructed with a chemical-resistant outer jacket to withstand moisture, abrasion, and harsh atmospheric conditions.
-
TMR Compatibility: Optimized for use with Triconex Triple Modular Redundant (TMR) architectures to maintain system reliability.
Applications
This cable assembly is intended for use in mission-critical safety applications, including:
- Safety Instrumented Systems (SIS) field wiring.
- Interconnection of field-mounted sensors and switches to junction boxes.
- High-vibration industrial monitoring environments.
- Hazardous area instrumentation loops.
Technical Specifications
| Model |
4000103-510 |
| Length |
10 ft (3.05 m) |
| Connector Type |
Industrial Quick Disconnect (QD) |
| Jacket Material |
Industrial-grade PVC/PUR |
| Operating Temperature |
-25 to 80 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Protection Class |
IP67 (when mated) |
Installation Guidelines
- Ensure the connection point is clean and free of debris before mating the QD connectors to maintain the IP67 seal.
- Route cables away from high-voltage power lines or variable frequency drive (VFD) cabling to minimize potential EMI.
- Secure the cable with appropriate strain relief to prevent mechanical stress on the connector pins during operation.
- Verify that the cable length is sufficient to allow for a drip loop if installed in outdoor or washdown environments.
- Always power down the associated I/O modules before connecting or disconnecting field wiring to prevent electrical arcing.
FAQ
Is this cable compatible with all Triconex systems?
The 4000103-510 is designed for use within the Invensys Triconex safety system family. Please verify your specific module's pinout and connector requirements against your system documentation before installation.
What is the purpose of the QD interface?
The Quick Disconnect interface is designed to reduce downtime during maintenance cycles by allowing field technicians to swap instruments quickly without performing manual terminal block wiring.
