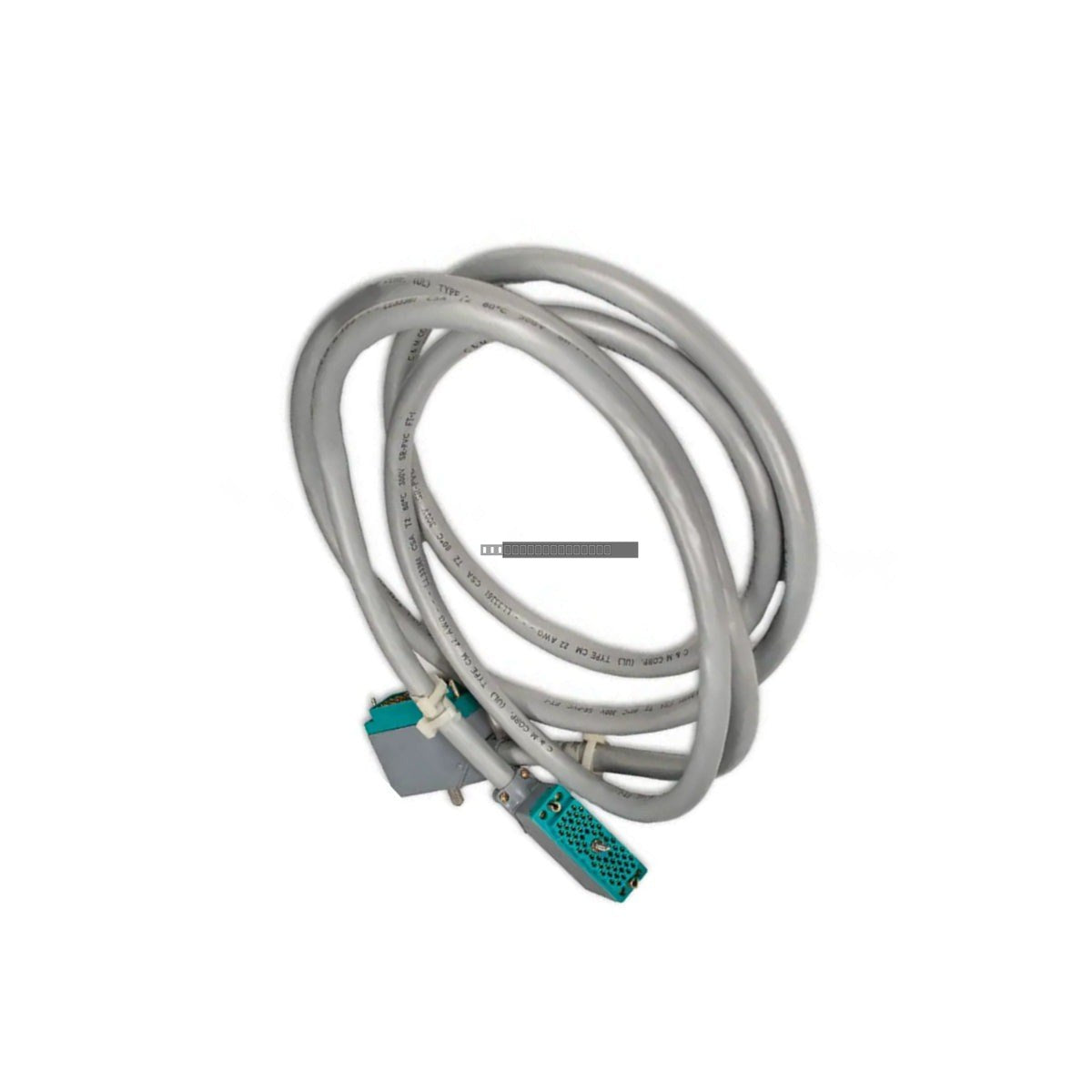

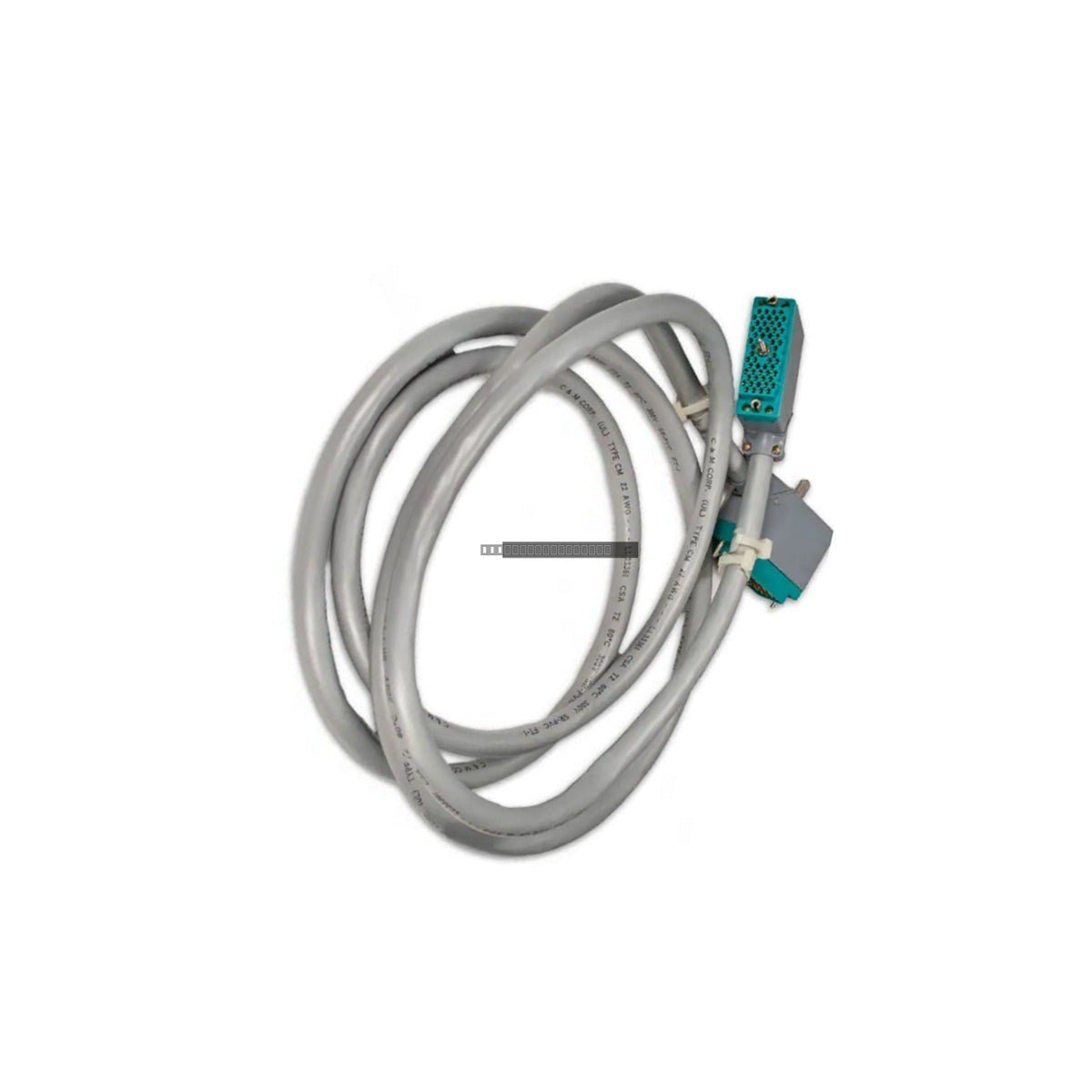

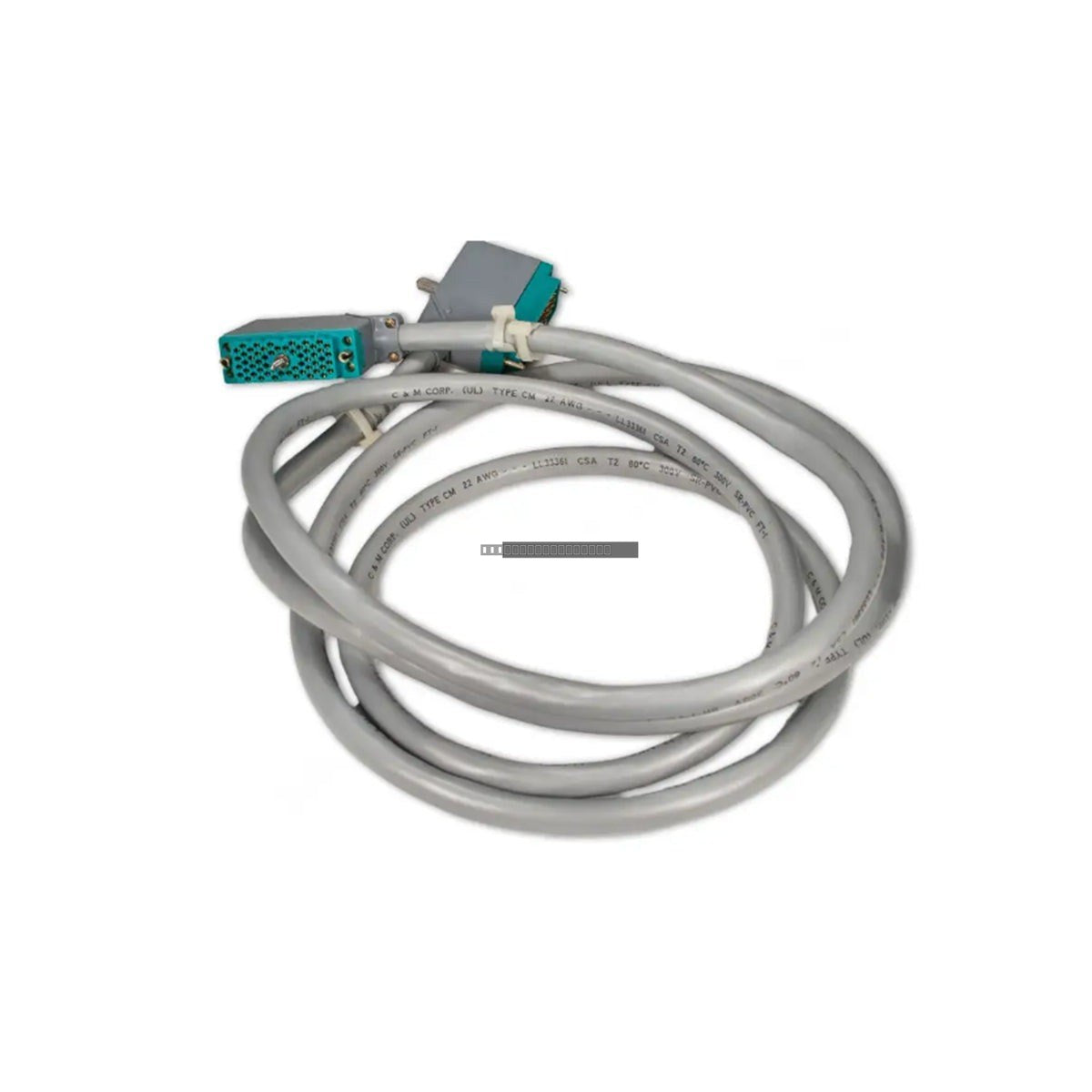

The 4000042-310 is a high-precision interface cable assembly engineered for the Invensys Triconex Safety Instrumented System (SIS). This specialized conductor facilitates critical signal routing between Tricon controller modules and termination panels or peripheral hardware. Primarily utilized in high-reliability industrial sectors such as offshore oil platforms, chemical processing, and nuclear power generation, the cable ensures the integrity of safety-critical data streams. By employing industrial-grade shielding and specialized connector pinouts, it eliminates signal interference and maintains low-latency communication. Integrating this validated cable into the safety loop architecture minimizes the risk of intermittent faults, directly reducing unscheduled system downtime in complex Triple Modular Redundancy (TMR) configurations.
Features
- High-density shielding to protect against electromagnetic interference (EMI) and radio frequency interference (RFI).
- Precision-terminated connectors ensuring a low-impedance electrical path.
- Multi-core design optimized for high-speed digital and sensitive analog signal transmission.
- Constructed with high-purity tinned copper conductors.
- Industrial-grade flame-retardant polymer insulation.
- Color-coded or numbered wiring for rapid diagnostic testing and installation.
Applications
This cable is specifically designed for intra-cabinet or short-range rack-to-rack applications within Triconex safety systems where high-fidelity signal coupling is mandatory for safety loop verification and TMR module communication.
Technical Specifications
| Model |
4000042-310 |
| Brand |
Invensys (Triconex) |
| Product Type |
Interface Cable Assembly |
| Connector Type |
Specialized Triconex Multi-pin Interface |
| Conductor Material |
High-purity tinned copper |
| Operating Temperature |
-20 to 70 deg C |
| Storage Temperature |
-40 to 85 deg C |
| Insulation Rating |
Industrial grade flame-retardant polymer |
Installation Guidelines
- Ensure the system is powered down before connecting or disconnecting the cable assembly to prevent electrical arcing or damage to module pins.
- Route cables away from high-voltage power lines and heavy inductive loads to minimize potential EMI/RFI noise pickup.
- Verify that all connectors are fully seated and locked into their respective ports to ensure reliable signal continuity.
- Handle with care to avoid sharp bends or mechanical stress on the connector housing, which could compromise the integrity of the internal wiring.
- Use appropriate cable management (cable ties or trays) to secure the cable within the cabinet, ensuring it does not obstruct airflow or cooling paths.
FAQ
Is this cable compatible with all Triconex systems?
The 4000042-310 is designed for specific Triconex SIS configurations. Please verify your system's hardware manual or the specific pinout requirements of your termination panel before installation to ensure compatibility.
What is the primary purpose of the shielding in this cable?
The shielding is critical for maintaining signal integrity in high-noise industrial environments, protecting sensitive safety-critical data from EMI and RFI that could otherwise cause intermittent faults or communication errors.
