Description

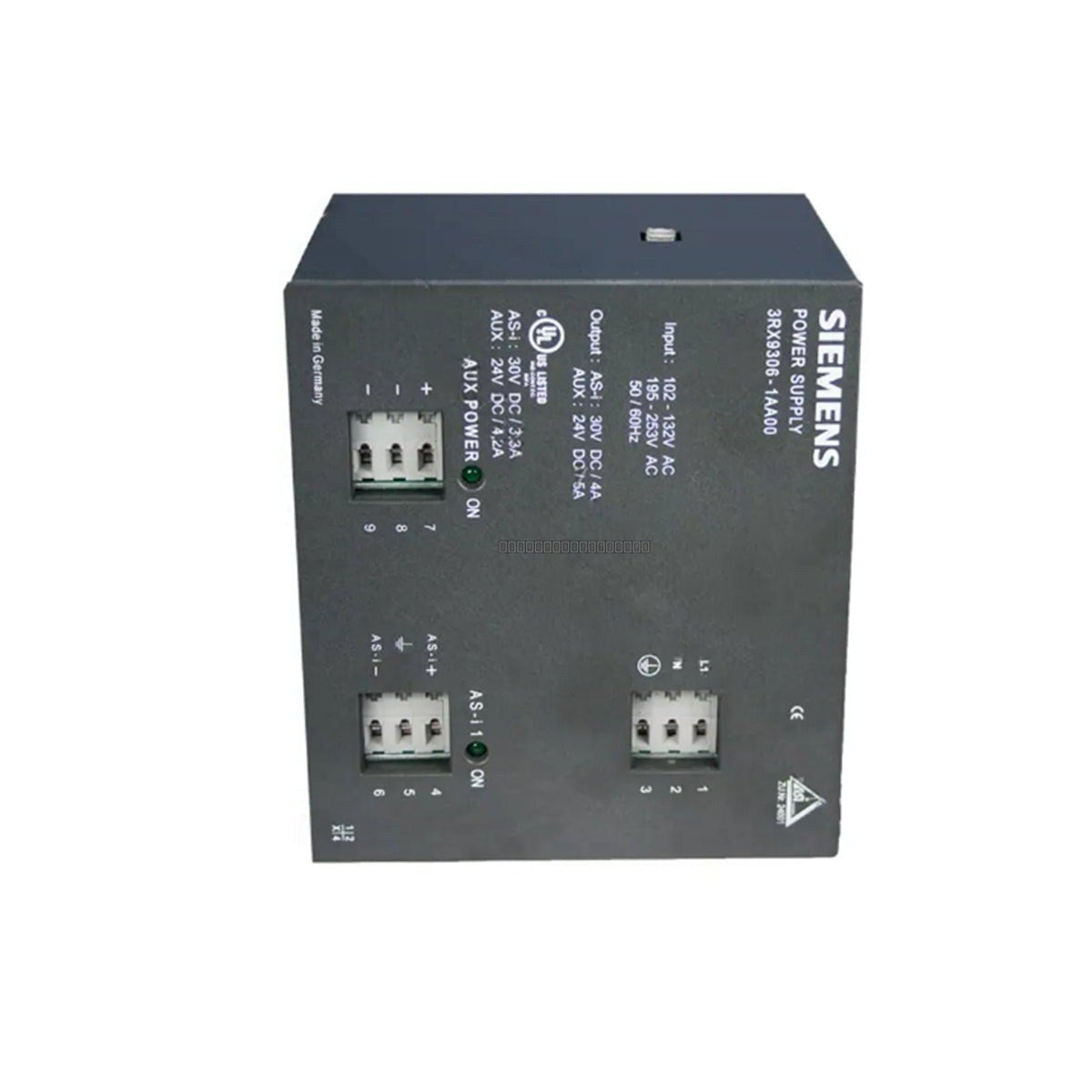

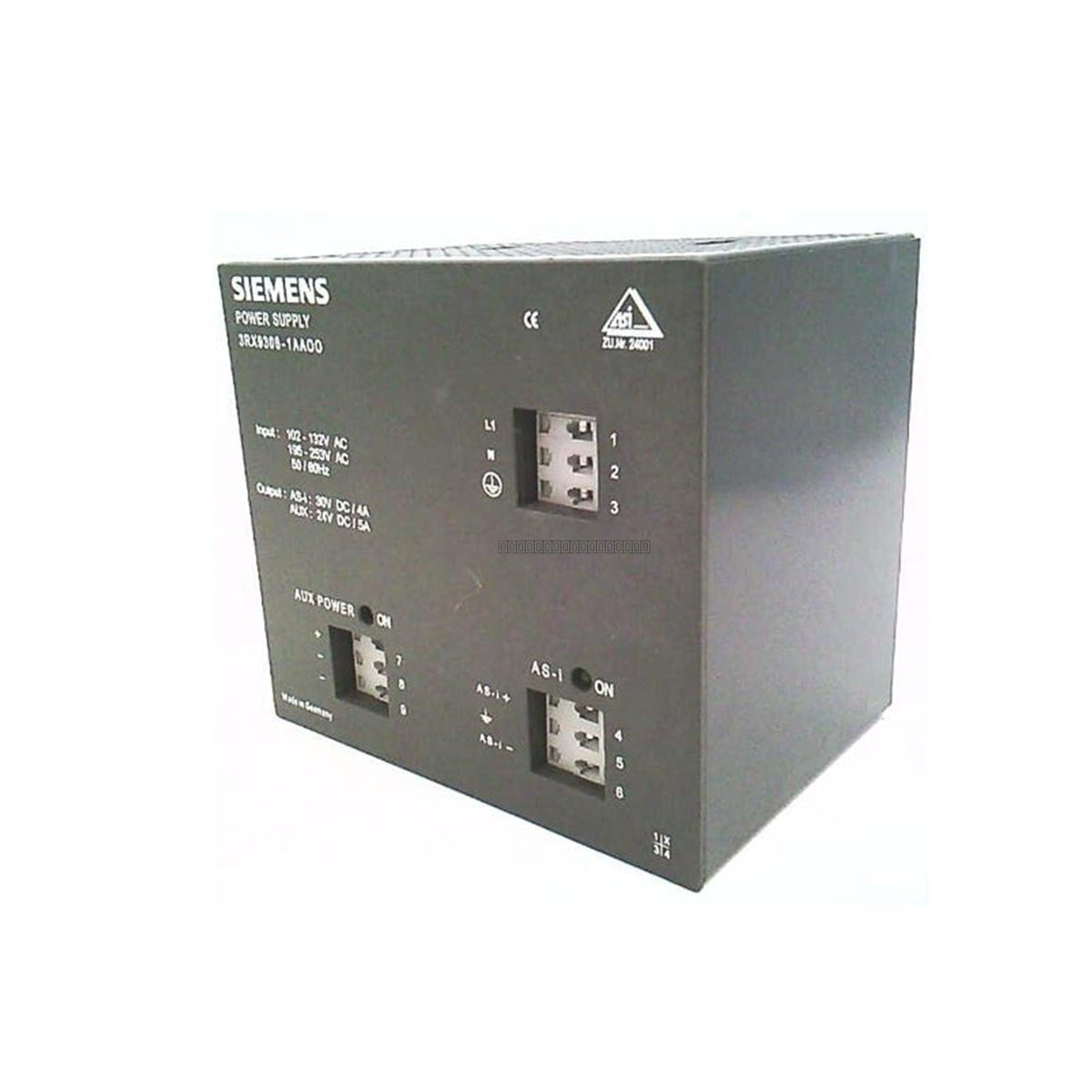

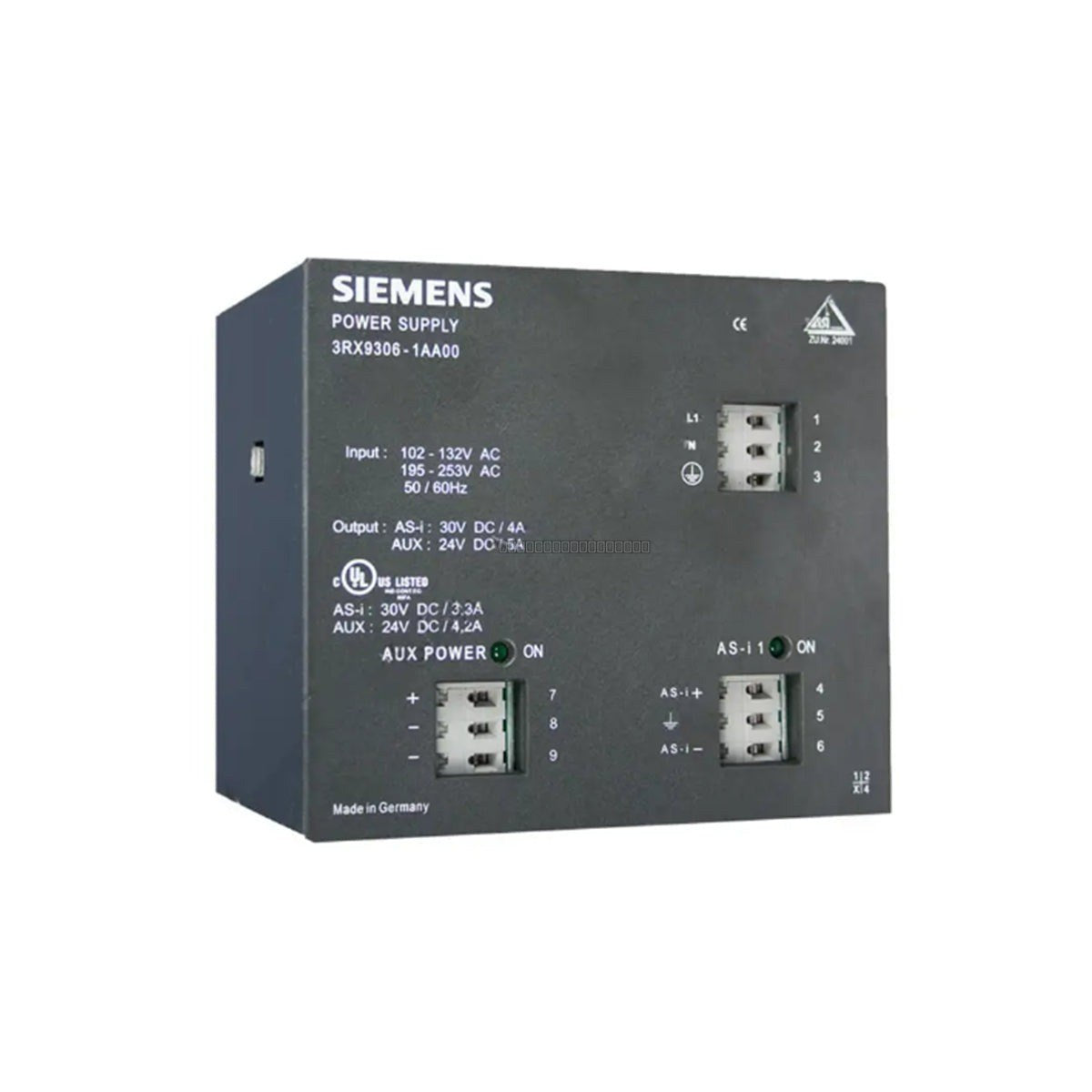

The Siemens 3RX9306-1AA00 is a dedicated power supply unit designed specifically for AS-Interface (AS-i) networks. This module provides the necessary DC voltage required to operate AS-i sensors, actuators, and communication nodes within an industrial automation environment. It is engineered to ensure stable and reliable power delivery to the AS-i bus, maintaining signal integrity and system uptime.
Features
- Designed for AS-Interface network integration
- Dual input voltage capability: 115/230V AC
- Output configuration: 30V DC / 4A for AS-i bus power
- Auxiliary output: 24V DC / 5A for peripheral device support
- Robust industrial design for reliable performance in control cabinets
Applications
This power supply is utilized in industrial automation systems where AS-Interface is employed for field-level communication. It is commonly found in manufacturing lines, material handling systems, and machine building applications where decentralized I/O, sensors, and actuators are connected via the AS-i bus.
Technical Specifications
| Product Model |
3RX9306-1AA00 |
| Manufacturer |
Siemens |
| Input Voltage |
115/230V AC |
| AS-i Output |
30V DC / 4A |
| Auxiliary Output |
24V DC / 5A |
Installation Guidelines
- Ensure the power supply is mounted in a vertical position to allow for proper convection cooling.
- Maintain adequate clearance around the unit to prevent overheating.
- Verify that the input voltage matches the selected range (115V or 230V) before applying power.
- Use appropriate wire gauges for the load requirements and ensure all terminal connections are tightened to the specified torque.
- Always disconnect the main power supply before performing any wiring, maintenance, or module replacement.
- Ensure the unit is properly grounded to the cabinet chassis to minimize electromagnetic interference (EMI).
FAQ
Is this power supply suitable for standard 24V control circuits?
The 3RX9306-1AA00 provides both a 30V output specifically for the AS-Interface bus and a 24V auxiliary output. The 24V output can be used for secondary control devices, but the 30V output must be reserved for the AS-i network components.
What is the primary function of this module?
Its primary function is to provide the regulated 30V DC power required for AS-Interface communication and to power connected field devices, ensuring the network operates within the required voltage tolerances.
