Description

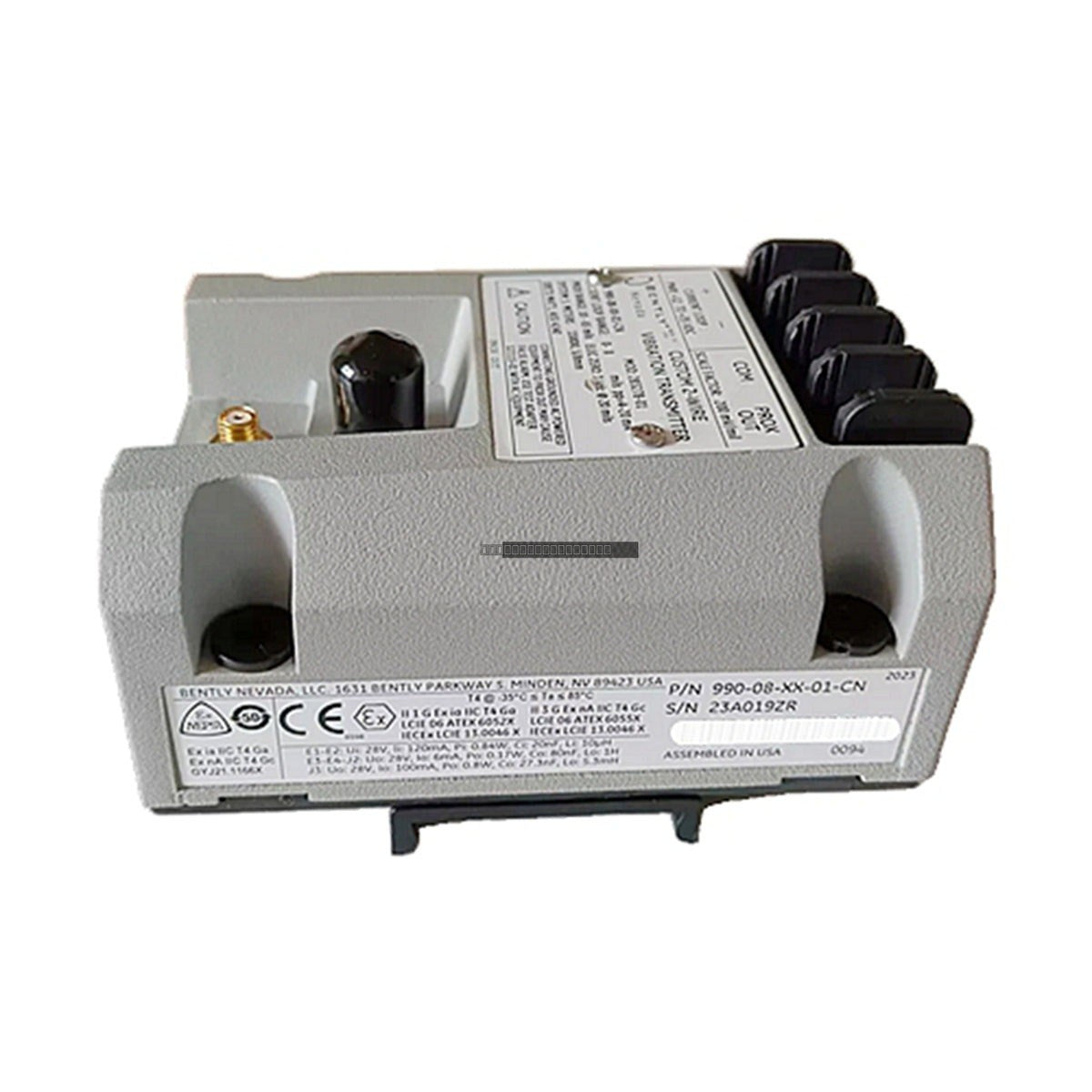

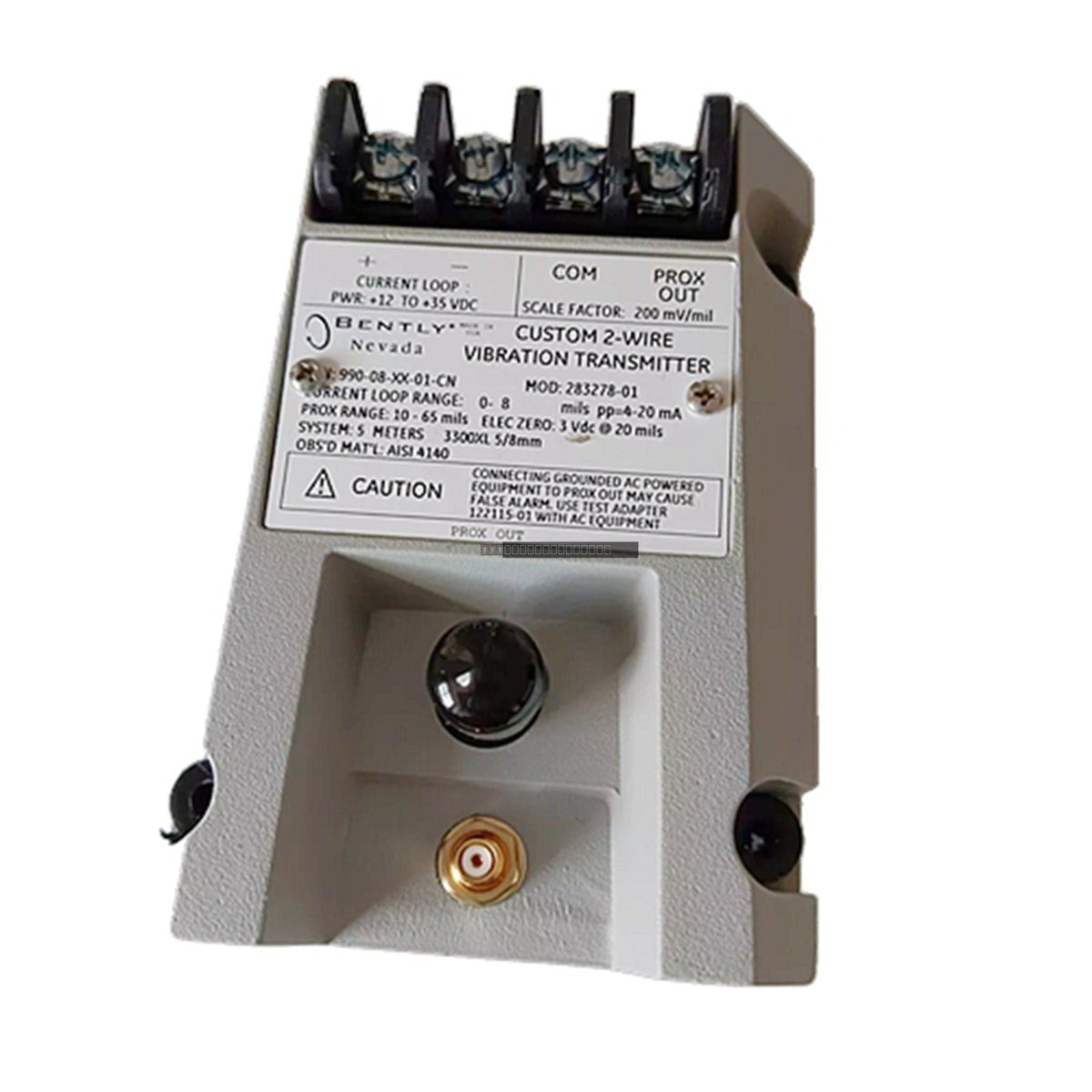

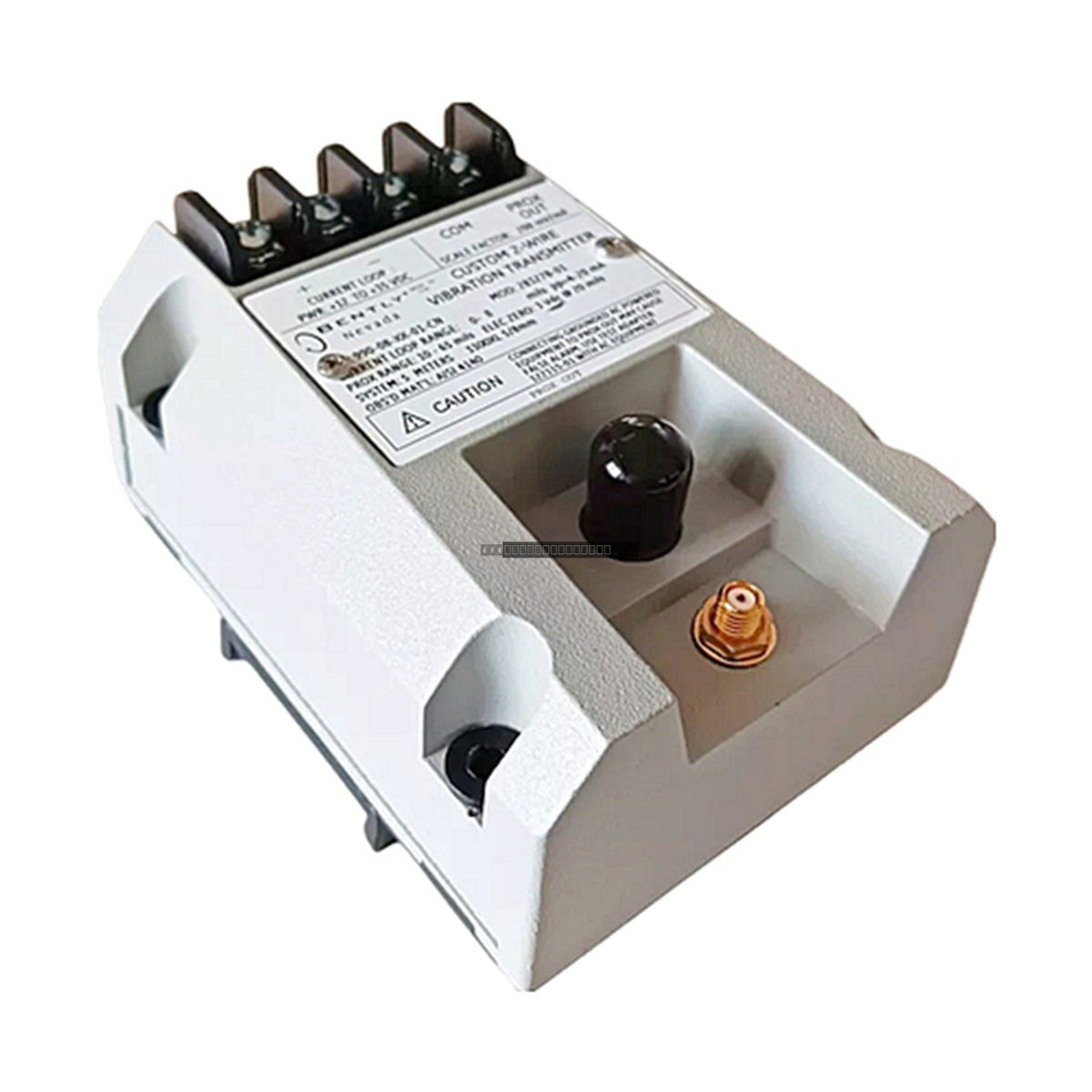

The Bently Nevada 990-08-XX-01-00 is a specialized vibration transmitter designed for continuous monitoring of machinery vibration in industrial environments. This unit provides a reliable interface for converting transducer signals into a standard 4-20 mA output, facilitating integration with PLC, DCS, or SCADA control systems.
Features
- Designed for integration with 35 mm DIN rail mounting systems.
- Supports a wide power supply range of +12 to +35 Vdc at the transmitter terminal.
- Maximum loop resistance capability of 1,000 ohms when operating at 35 Vdc.
- Integrated current limiting feature set to 23 mA typical for circuit protection.
- Certified for use in ATEX Zone 2 hazardous locations and includes ABS maritime approval for marine-grade reliability.
Applications
This transmitter is primarily utilized in industrial rotating machinery monitoring, including pumps, fans, compressors, and motors. It is well-suited for applications where direct vibration data transmission to a control system is required without the need for a full-scale rack-based monitoring system.
Technical Specifications
| Product Model |
990-08-XX-01-00 |
| Device Type |
Vibration Transmitter |
| Power Supply |
+12 to +35 Vdc |
| Max Loop Resistance |
1,000 Ohm |
| Current Limiting |
23 mA |
| Certifications |
ATEX Zone 2, ABS Maritime |
| Weight |
0.44 kg |
Installation Guidelines
- Ensure the device is mounted securely on a standard 35 mm DIN rail.
- Verify that the power supply voltage is within the specified +12 to +35 Vdc range at the terminals before energizing.
- Maintain proper shielding on signal cables to minimize EMI interference in industrial environments.
- Always power down the system before performing wiring changes or module removal to prevent electrical damage.
- Ensure the installation environment complies with relevant safety standards for ATEX Zone 2 areas.
FAQ
What is the primary function of the 990-08-XX-01-00? It acts as a signal converter that takes raw vibration input and outputs a 4-20 mA current loop signal for control system monitoring.
Does this unit require specific mounting hardware? It is designed for standard 35 mm DIN rail mounting, which is included with this specific configuration.
