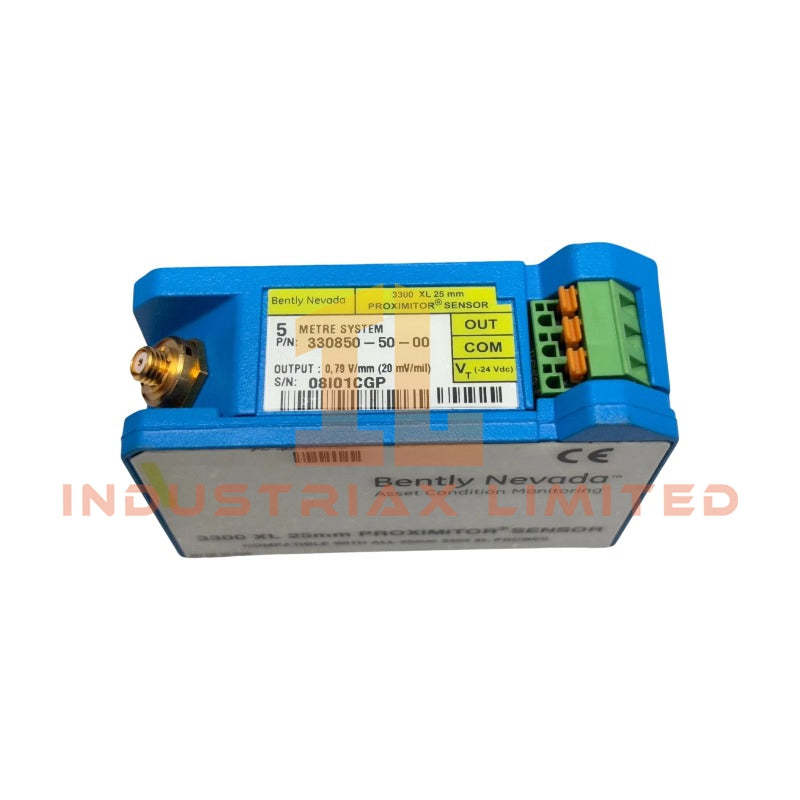

Bently Nevada 330850-50-00 3300 XL 25 mm Proximitor Sensor
TheBently Nevada 330850-50-00，also cataloged as the330850-50-00 Proximitor Sensor, operates as a dedicated hardware component for eddy-current displacement signal conditioning within the 3300 XL proximity measurement system.
Eddy-Current Scaling and Gap Voltage Validation (-10 VDC Targets)
The 3300 XL 25 mm Proximitor architecture processes probe-induced eddy-current variations into proportional voltage outputs used for radial vibration and axial position tracking. The signal conditioning stage maintains calibrated transfer characteristics referenced to gap voltage behavior centered around -10 VDC nominal operating region. Cross-channel interaction is minimized through internal filtering topology to support stable rotor-dynamic measurement chains.
SuffixBreakdown&ModelMatrix
No officially published internal suffix segmentation or functional matrix breakdown is provided for 330850-50-00. Configuration is defined at system assembly level within the 3300 XL probe + extension cable + proximitor chain.
HardwareSpecifications
Parameter
Specification
Model Brand
Bently Nevada 330850-50-00
Origin
USA
Weight
0.22 kg
Dimensions
8 x 6 x 6.5 cm (shipping size)
OperatingTemp
N/A
PowerConsumption
N/A
System Length
5.0 m (16.4 ft) system length
Output Resistance
50 W
Average Scale Factor
0.787 V/mm (20 mV/mil) nominal
Bently Nevada Eddy-Current Signal Conditioning Characteristics
The 3300 XL proximitor signal path is designed for eddy-current probe linearization and sensitivity scaling. Probe-to-target air gap variations are converted into analog voltage output with defined scale factor behavior. The conditioning stage is optimized for stable amplitude response under rotating machinery shaft dynamics, with suppression of parasitic coupling between adjacent measurement channels in multi-probe installations.
Frequently Asked Questions
Q: Can the 330850-50-00 be hot-swapped during operation? A: The proximitor is typically part of a wired measurement chain. Replacement requires signal loop isolation and removal of excitation from the probe circuit.
Q: Does the system support direct backplane communication? A: The module functions as an analog signal conditioning unit and does not provide digital backplane protocol communication.
Q: What limits signal stability in long extension cable configurations? A: Cable capacitance, connector integrity, and shielding continuity directly affect eddy-current signal amplitude and phase stability.
