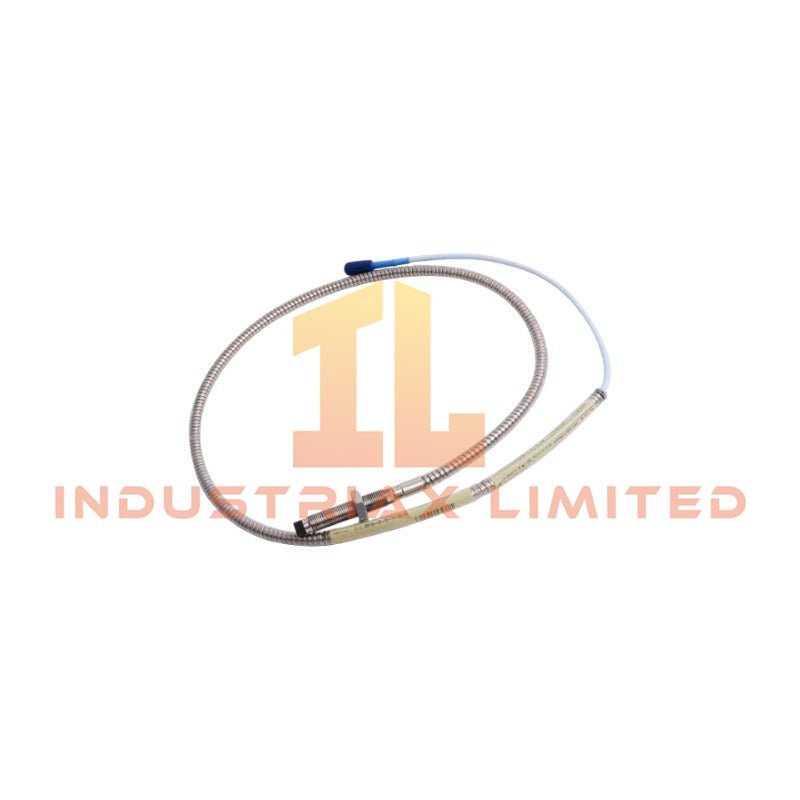

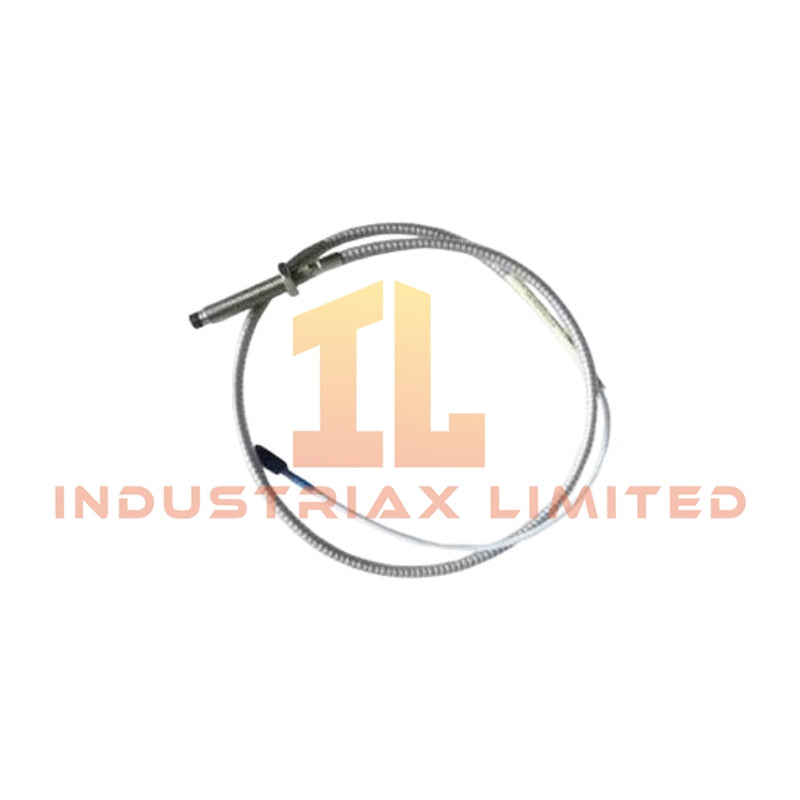

Bently Nevada 330104-00-08-05-02-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-00-08-05-02-00, also cataloged as the 330104 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for non-contact shaft displacement measurement within Bently Nevada TSI monitoring systems.

Hardware Specifications

Parameter	Specification
Model	330104-00-08-05-02-00
Brand	Bently Nevada
Product Series	3300 XL 8 mm Proximity Probe
Origin	USA
Weight	0.3 kg
Dimensions	Estimated shipping size: 1.8 x 1.6 x 121 cm
Power Consumption	Passive probe element, powered by compatible Proximity Transducer System
Probe Type	Eddy-current proximity probe
Thread Type	M10 x 1 thread
Armor Option	Armored probe construction
Minimum Unthreaded Length	0 mm
Overall Case Length	80 mm
Total Length	0.5 meter (1.6 feet)
Connector Type	Miniature coaxial ClickLoc connector
Cable Type	Standard cable
Agency Approval	Not required

Eddy-Current Measurement and Rotor Dynamics Monitoring

The Bently Nevada 330104 series uses eddy-current probe scaling to convert shaft displacement changes into proportional electrical signals. The probe operates with compatible Bently Nevada proximity systems to monitor radial vibration, shaft position, and rotor dynamic behavior.

The probe design supports gap voltage validation procedures, where field technicians verify probe installation conditions against standard operating targets, including -10 VDC gap voltage references. Additionally, the miniature coaxial ClickLoc connector maintains signal connection integrity while reducing installation complexity in machinery monitoring assemblies.

The armored construction protects the probe cable section against mechanical stress during routing and installation. Therefore, correct probe orientation, target surface clearance, and cable separation from high-noise sources help maintain accurate vibration measurement signals.

Frequently Asked Questions

Q: What measurement technology does the Bently Nevada 330104-00-08-05-02-00 use?
A: The probe uses eddy-current sensing technology to measure shaft displacement without physical contact with the rotating target.

Q: What connector configuration is included with this model?
A: This model includes a miniature coaxial ClickLoc connector with a standard cable configuration.

Q: Does the probe require agency approval certification?
A: The specified 330104-00-08-05-02-00 configuration does not include agency approval requirements.

Field Installation Guidelines

• Install the M10 x 1 threaded probe into the designated mounting location with proper mechanical alignment.
• Maintain correct probe tip orientation toward the monitored shaft surface to ensure accurate displacement measurement.
• Verify probe gap voltage after installation using compatible Bently Nevada monitoring equipment.
• Route the miniature coaxial cable away from high-voltage power conductors and strong electromagnetic interference sources.
• Connect the ClickLoc connector securely and confirm mechanical locking before system operation.
• Check cable armor condition during installation to prevent damage from vibration, abrasion, or contact with moving components.
