Description

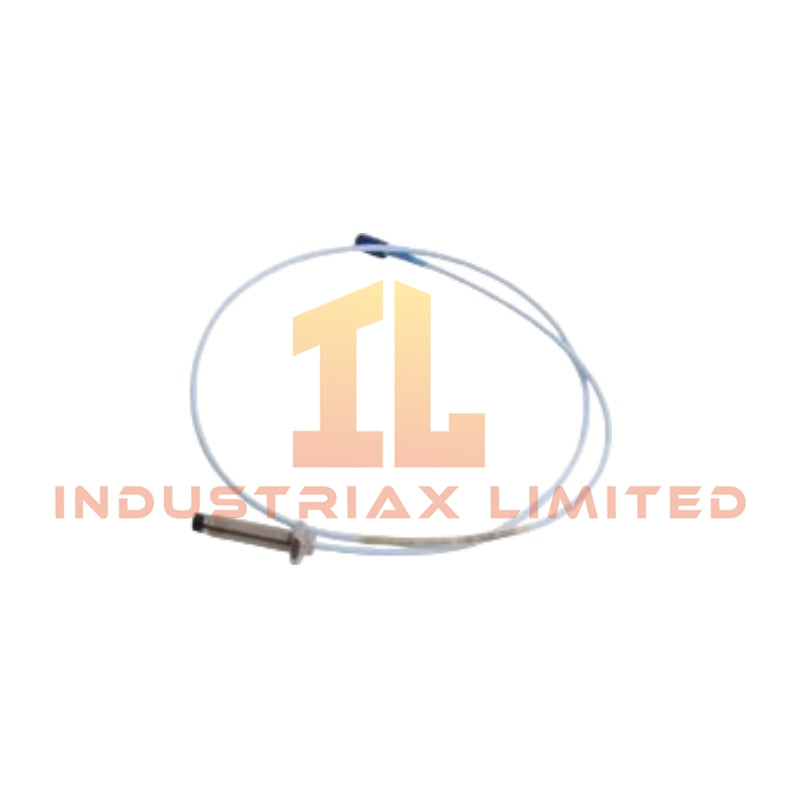

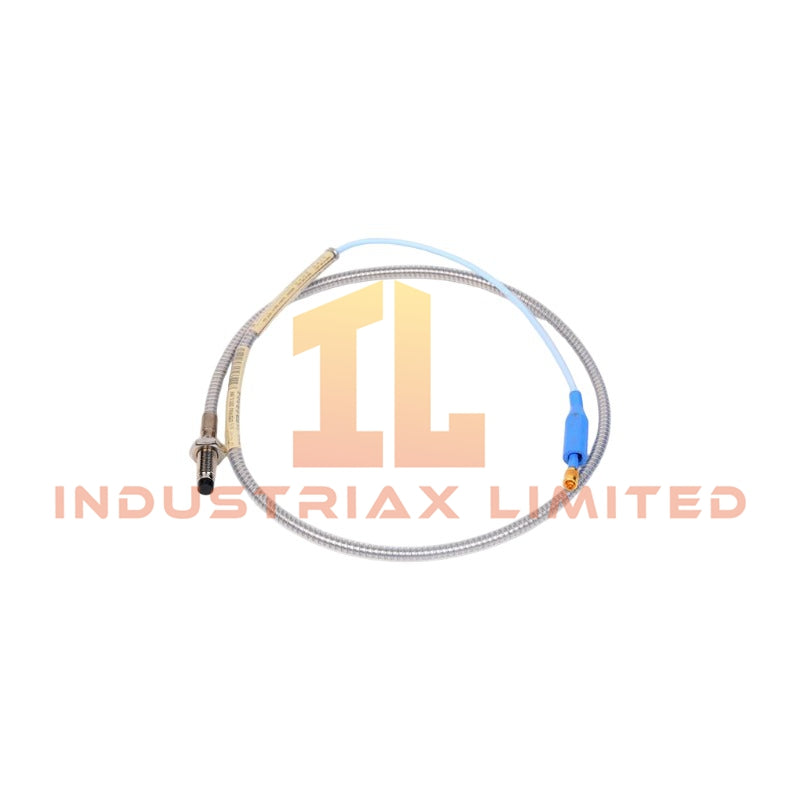

Bently Nevada 330104-00-06-10-01-05 3300 XL 8 mm Proximity Probe

The Bently Nevada 330104-00-06-10-01-05, also cataloged as the 330104 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for eddy-current displacement measurement and vibration monitoring within the 3300 XL Proximity Transducer System.

Hardware Specifications

Parameter	Specification
Model	330104-00-06-10-01-05
Brand	Bently Nevada
Product Series	3300 XL 8 mm Proximity Probe
Product Type	Proximity Sensor
Origin	USA
Weight	0.2 kg
Dimensions	Estimated shipping size: 32 x 30 x 2 cm
Thread Type	M10 x 1 thread
Probe Diameter	8 mm
Unthreaded Length	0 mm
Overall Case Length	60 mm
Cable Length	1.0 m (3.3 ft)
Cable Type	Standard cable with Miniature Coaxial ClickLoc Connector and connector protector
Armor Option	Armored probe construction
Agency Approvals	CSA, ATEX, IECEx Certifications
Measurement Principle	Eddy-current proximity measurement
Signal Output	Voltage output proportional to probe tip distance from conductive target
Measurement Range	Supports static position and dynamic vibration measurements
Power Consumption	Supplied through compatible 3300 XL Proximitor Sensor interface

Eddy-Current Probe Scaling and Rotor Dynamics Monitoring

The 330104-00-06-10-01-05 uses an eddy-current sensing principle to convert the physical gap between the probe tip and the conductive machine surface into an electrical voltage signal. The system maintains calibrated displacement measurement performance through matched probe, extension cable, and Proximitor sensor configurations.

The 3300 XL 8 mm system supports rotor dynamics monitoring by measuring shaft displacement, radial vibration, axial position, and Keyphasor reference signals. Additionally, the probe design maintains signal stability during rotating machinery operation through controlled electromagnetic characteristics and defined mechanical geometry.

The proximity system uses gap voltage validation with typical -10 VDC target conditions to verify probe operating position and measurement accuracy. Furthermore, the armored construction provides mechanical protection for installations exposed to cable routing stress or industrial environments.

Frequently Asked Questions

Q: What measurement signals can the 330104-00-06-10-01-05 provide?
A: The probe provides displacement-related voltage signals that represent both static shaft position and dynamic vibration values when connected with a compatible 3300 XL Proximitor Sensor.

Q: Can the probe cable and extension components be replaced with other 3300 XL components?
A: Yes. The 3300 XL 8 mm system supports interchangeability between compatible probes, extension cables, and Proximitor sensors without individual bench calibration.

Q: What connector configuration does this model use?
A: This model uses a Miniature Coaxial ClickLoc Connector with connector protector and standard cable configuration.

Field Installation Guidelines

• Install the M10 x 1 threaded probe into a suitable mounting location while maintaining correct mechanical alignment with the monitored shaft surface.
• Maintain proper probe tip clearance according to the 3300 XL system calibration requirements.
• Route the armored cable away from high-voltage power conductors and strong electromagnetic interference sources.
• Connect the cable shield and grounding path according to the monitoring system installation requirements.
• Verify the gap voltage after installation to confirm the probe operates within the specified measurement range.
• Avoid sharp cable bends near the ClickLoc connector area to prevent mechanical stress on the coaxial connection.
• Confirm compatibility between the probe, extension cable, and Proximitor Sensor before system commissioning.

Specifications

• Brand: Bently Nevada

Advantages

• High reliability in industrial environments
• Supports continuous operation
• Compatible with major PLC/DCS systems
