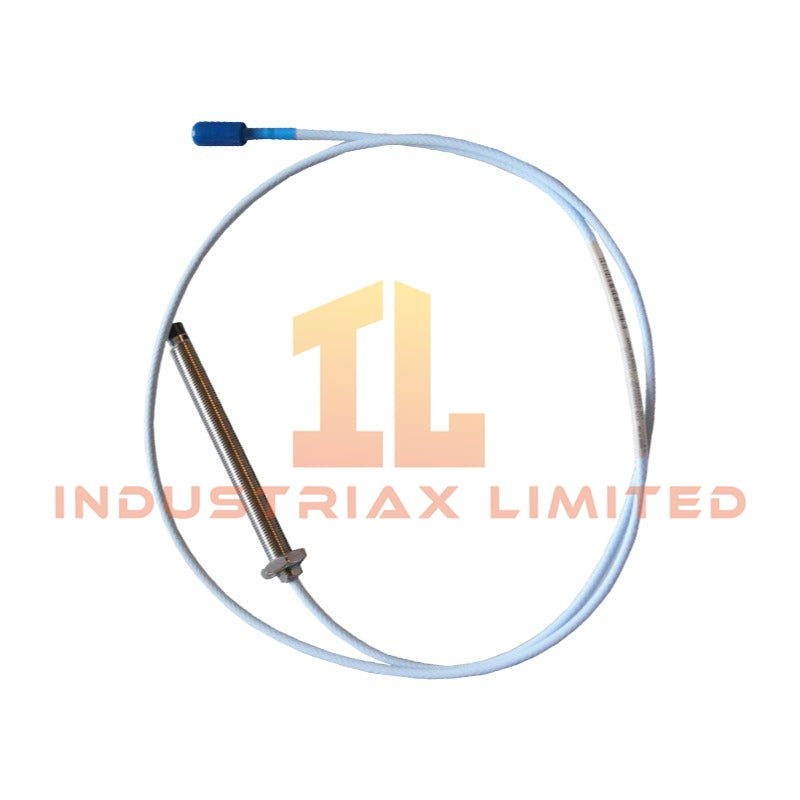

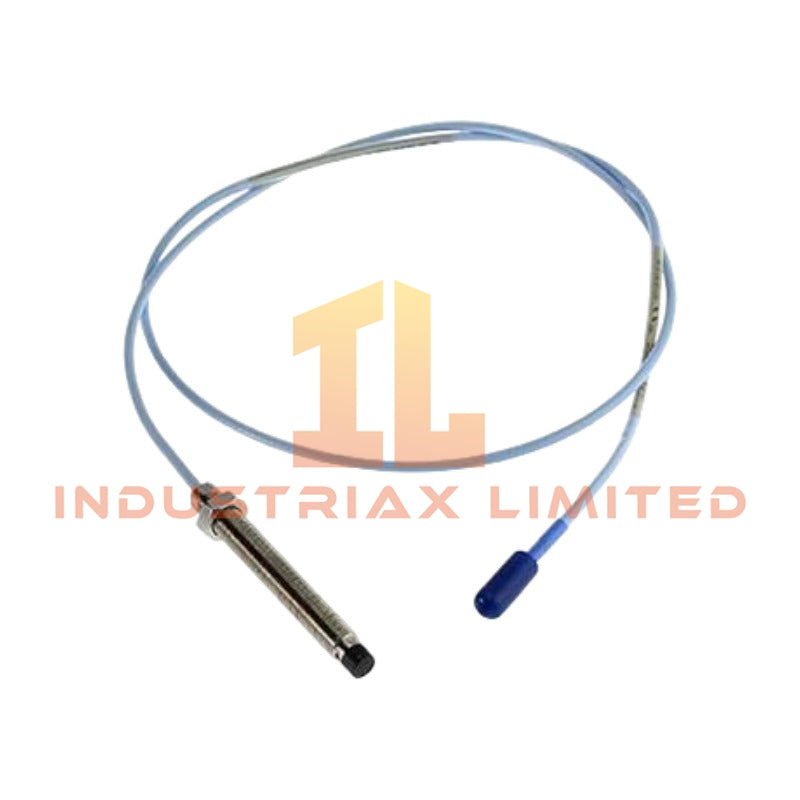

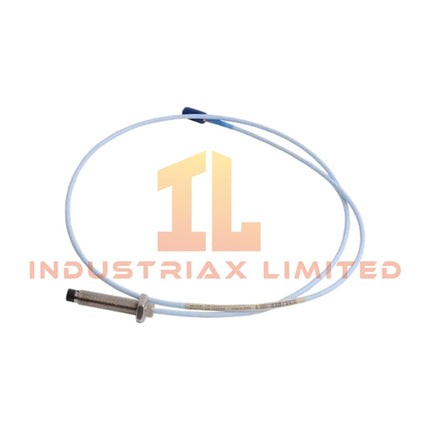

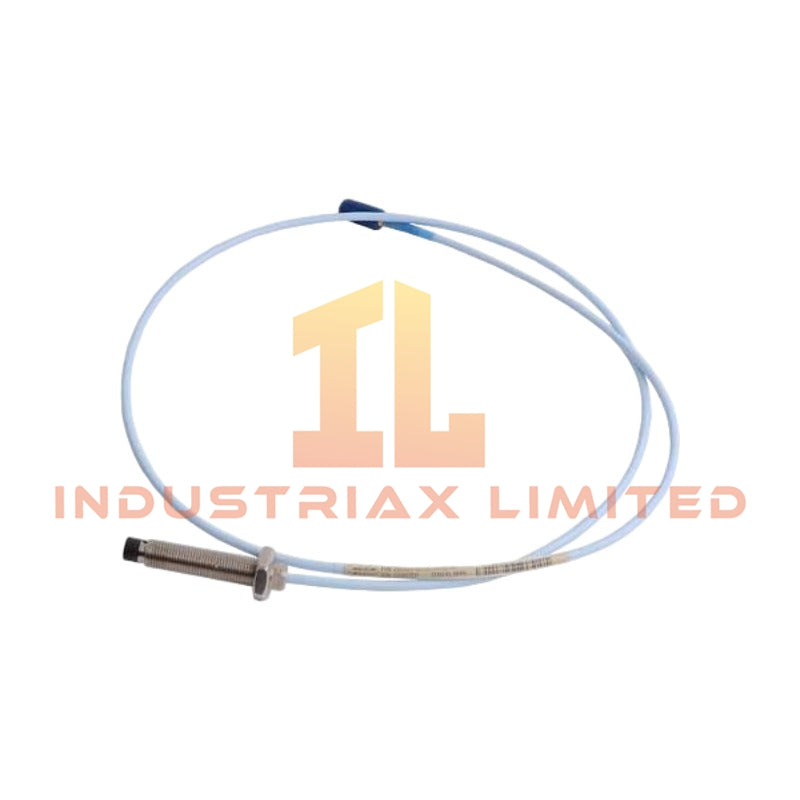

Bently Nevada 330103-00-12-10-02-00 3300 XL 8 mm Proximity Probes

The Bently Nevada 330103-00-12-10-02-00, also cataloged as the 330103 3300 XL 8 mm Proximity Probe, operates as a dedicated hardware component for non-contact shaft displacement measurement within the 3300 XL Proximity Transducer System.

Hardware Specifications

Parameter	Specification
Model	330103-00-12-10-02-00
Brand	Bently Nevada
Product Type	3300 XL 8 mm Proximity Probe
Origin	USA
Weight	0.05 kg
Dimensions	1.8 x 1.6 x 113 cm estimated shipping size
Operating Temp	Compatible with 3300 XL system operating requirements; specific temperature range not provided
Power Consumption	Supplied through compatible Proximitor sensor; specific probe consumption not provided
Thread Type	M10 x 1 thread
Armor Type	Without armor
Unthreaded Length	0 mm
Overall Case Length	120 mm
Total Length	1.0 meter (3.3 feet)
Connector Type	Miniature coaxial ClickLoc connector standard cable
Extension Cable Compatibility	3300 XL 8 mm system interchangeable cabling
Tariff Code	8537101190
Shipment Location	Xiamen, China

Eddy Current Probe Scaling and Rotor Dynamics Characteristics

The 330103-00-12-10-02-00 uses an eddy-current measurement principle to detect shaft displacement without physical contact. The probe generates an electromagnetic field at the sensing tip, and the system converts the changing gap distance into a proportional electrical signal.

Furthermore, the 3300 XL 8 mm system supports rotor dynamics monitoring by providing stable displacement measurements for vibration analysis, shaft position monitoring, and mechanical movement evaluation. The system design supports interchangeability between probes, extension cables, and Proximitor sensors without individual component bench calibration.

The probe system maintains measurement performance through controlled probe geometry, cable characteristics, and sensor matching. Additionally, installation practices must maintain proper signal integrity to prevent external interference and measurement deviation.

Frequently Asked Questions

Q: What measurement principle does the 330103-00-12-10-02-00 use?
A: The probe uses eddy-current technology to measure the distance between the probe tip and the conductive shaft target without mechanical contact.

Q: Is the 330103-00-12-10-02-00 compatible with armored installations?
A: No. This specific configuration is supplied without armor and uses a miniature coaxial ClickLoc connector standard cable.

Q: Does the probe require individual calibration with extension cables?
A: No. The 3300 XL 8 mm system supports interchangeability of compatible probes, extension cables, and Proximitor sensors without individual matching procedures.

Field Installation Guidelines

• Install the probe with the specified M10 x 1 thread engagement and ensure mechanical fixation prevents movement during machine operation.
• Maintain correct probe tip orientation toward the measurement target surface.
• Route probe cables separately from high-voltage power cables and strong electromagnetic interference sources.
• Connect cable shielding according to the applicable monitoring system grounding requirements.
• Verify the electrical gap voltage after installation when commissioning the complete proximity measurement channel.
• Inspect connector locking conditions to ensure the ClickLoc connection remains mechanically secured during operation.
• Confirm the probe, extension cable, and Proximitor sensor combination matches the configured 3300 XL 8 mm system requirements.
