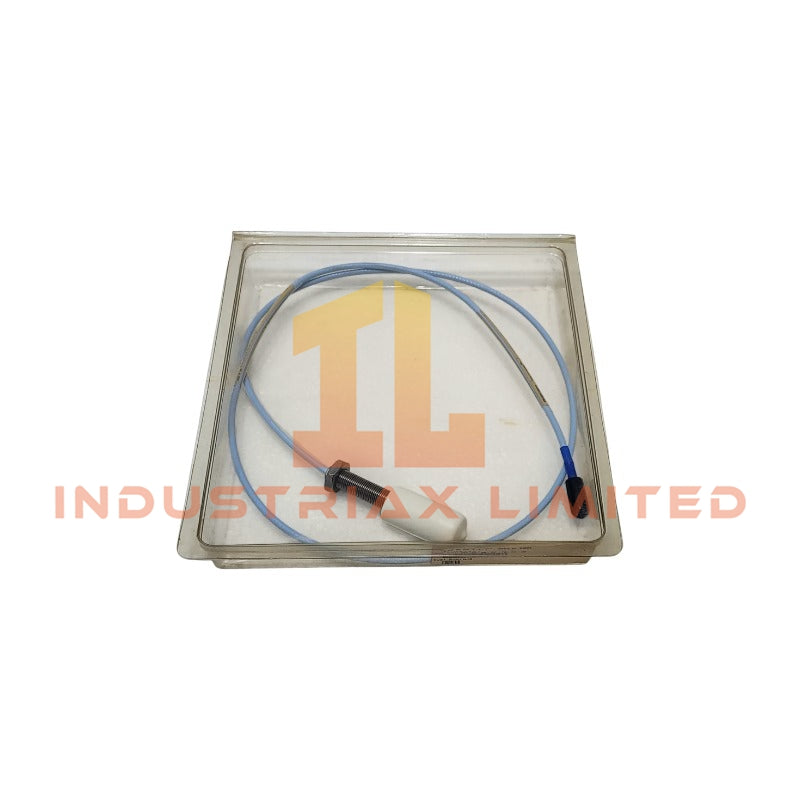

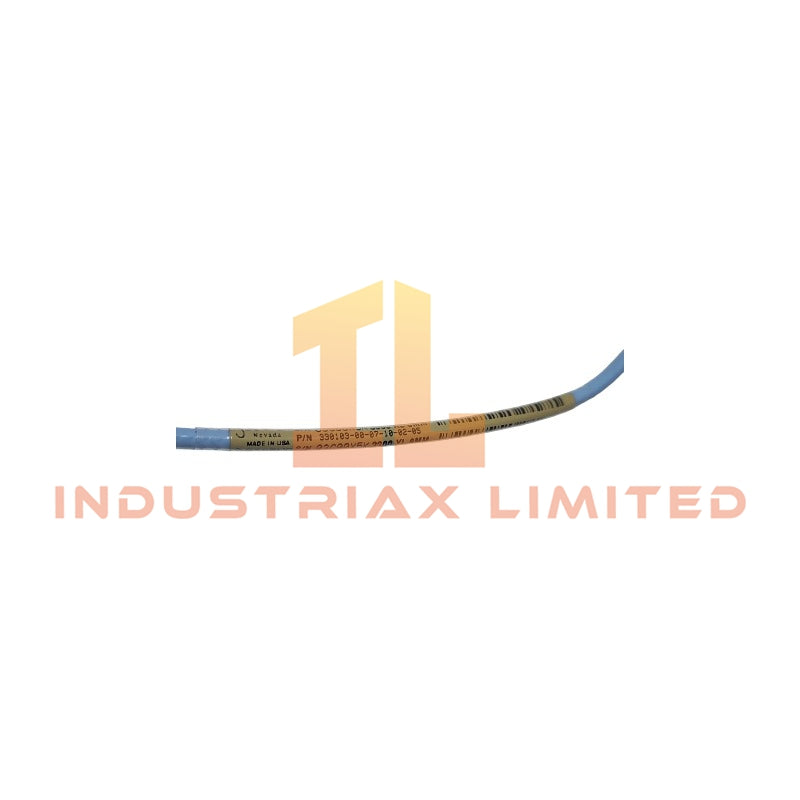

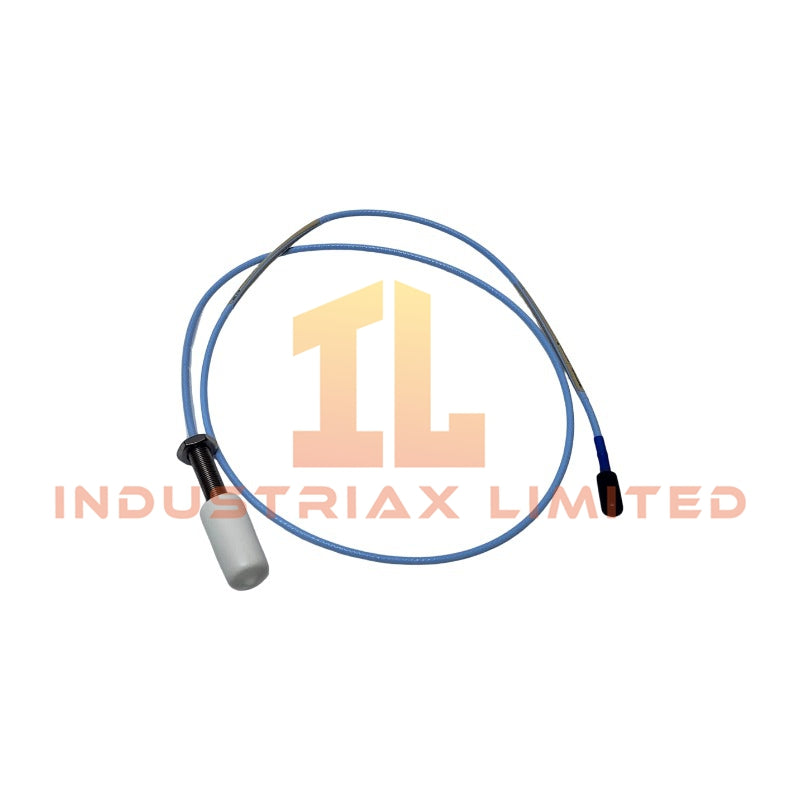

Bently Nevada 330103-00-07-10-02-05 3300 XL 8 mm Probe
The Bently Nevada 330103-00-07-10-02-05, also cataloged as the 3300 XL 8 mm Probe, operates as a dedicated eddy-current displacement sensing component for rotor position and vibration measurement within Bently Nevada TSI monitoring systems.
Hardware Specifications
Parameter
Specification
Model
330103-00-07-10-02-05
Brand
Bently Nevada
Product Type
3300 XL 8 mm Proximity Probe
Origin
USA
Weight
0.05 kg
Dimensions
Estimated shipping size: 1.8 x 1.6 x 113 cm
Probe Type
Eddy-current proximity probe
Thread Type
M10 x 1
Armored Design
Without armor
Minimum Unthreaded Length
00 mm
Overall Case Length
70 mm
Total Length
1.0 meter (3.3 feet)
Connector Type
Miniature coaxial ClickLoc connector standard cable
Agency Approvals
CSA, ATEX, IECEx
Eddy-Current Probe Scaling and Rotor Dynamics Monitoring
The Bently Nevada 3300 XL 8 mm Probe uses eddy-current sensing technology to convert shaft displacement into proportional electrical signals. Therefore, the monitoring system can evaluate rotor position, radial vibration, and mechanical movement through calibrated probe output.
The probe configuration supports gap voltage validation with standard Bently Nevada proximity system practices, including -10 VDC target gap verification. Additionally, the 8 mm sensing diameter provides compatibility with rotor dynamics measurement applications where accurate shaft displacement detection is required.
The miniature coaxial ClickLoc connector maintains signal continuity between the probe and extension cable assembly. Furthermore, the cable configuration reduces installation complexity in TSI monitoring circuits while maintaining electromagnetic signal integrity.
Frequently Asked Questions
Q: What sensing technology does the 330103-00-07-10-02-05 use? A: The probe uses eddy-current displacement sensing technology to measure shaft position and vibration movement.
Q: What is the thread specification of this proximity probe? A: The probe uses an M10 x 1 thread configuration with a 70 mm overall case length and 00 mm unthreaded length.
Q: What approvals are included with this probe configuration? A: This model configuration includes CSA, ATEX, and IECEx agency approvals.
Field Installation Guidelines
Install the probe with correct mechanical clearance to maintain accurate displacement measurement. Verify the mounting thread condition before installation and avoid mechanical damage to the sensing tip.
Connect the miniature coaxial ClickLoc connector according to the approved Bently Nevada wiring arrangement. Maintain proper cable routing and separate the probe cable from high-current power conductors to reduce electrical interference.
Verify the probe gap voltage after installation using compatible TSI monitoring equipment. Confirm that the measured gap condition matches the required operating range before placing the machinery monitoring loop into service.
