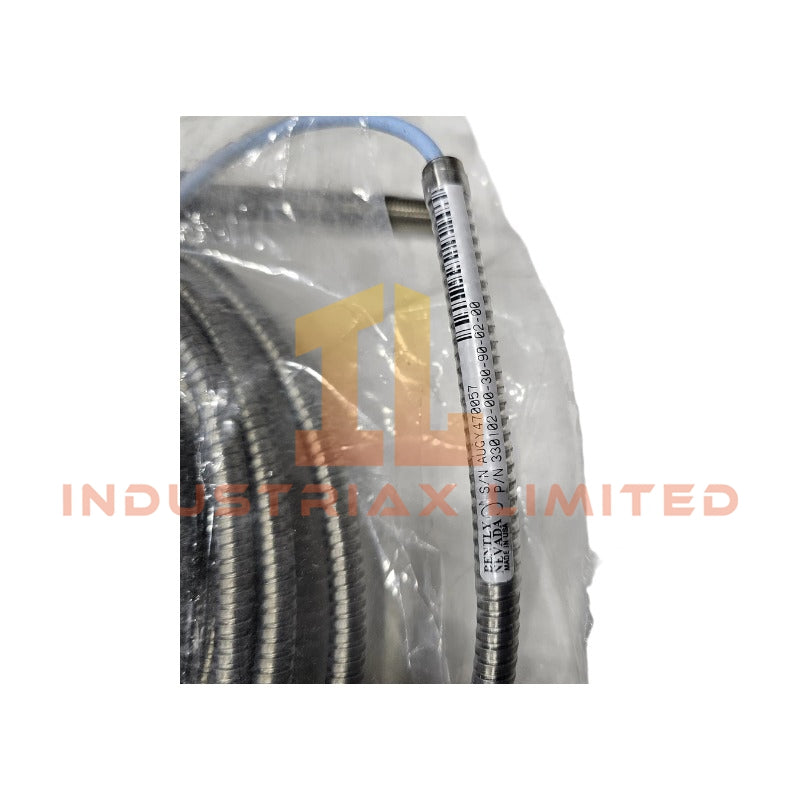

The Bently Nevada 330102-00-24-10-02-00, also cataloged as the 330102 proximity probe, operates as a dedicated hardware component for non-contact shaft displacement and vibration measurement within the 3300 XL eddy-current transducer system.
Suffix Breakdown & Model Matrix
Segment
Selection
Description
330102
Product Type
3300 XL 8mm Proximity Probe, 3/8-24 UNF thread, without armor
-00
Unthreaded Length
0.0 inches
-24
Overall Case Length
2.4 inches
-10
Total Length
1.0 meter (3.3 feet)
-02
Connector Option
Miniature coaxial ClickLoc™ connector, standard plug
-00
Agency Approval
No approvals / standard
Hardware Specifications
Parameter
Specification
Model Brand
Bently Nevada
Origin
USA
Weight
1.2kg
Dimensions
Probe tip diameter: 8.0 mm; Thread size: 3/8-24 UNF-2A
Operating Temp
-51 degC to +177 degC
Power Consumption
Passive device, powered via external Proximitor sensor
Target Material
AISI 4140 steel
Linear Range
2.0 mm (80 mils), starting ~0.25 mm (10 mils) from probe face
Scale Factor
7.87 V/mm (200 mV/mil)
System Frequency Response
0 to 10 kHz ±10% amplitude deviation max
Probe Tip Material
Polyphenylene sulfide (PPS)
Case Material
Stainless steel AISI 303 or 304
Cable Type
75 ohm coaxial
Connector Type
ClickLoc™ gold-plated coaxial
Eddy-Current Probe Scaling and Gap Voltage Validation
Probe scale factor is factory-calibrated against a standard AISI 4140 target to ensure linear output across the defined range. Gap voltage validation should target -10 VDC at the Proximitor sensor output under static installation conditions. Eddy-current field interaction requires maintaining minimum separation distances between adjacent probes to suppress cross-talk effects in rotor dynamic monitoring arrays.
Frequently Asked Questions
Q: Can this probe be used with non-Bently Nevada extension cables?
A: No. Optimal performance requires matched 3300 XL extension cables and Proximitor sensors to maintain calibrated scale factor and frequency response.
Q: Is hot-swapping supported during machinery operation?
A: Hot removal or insertion is not recommended; disconnect power to the Proximitor sensor before replacing the probe to prevent transient signal errors.
Q: What is the maximum probe tip pressure rating?
A: The probe tip seal is rated to 7 bar (100 psi); exceeding this may damage the PPS tip material.
Field Installation Guidelines
Mount the probe using the 3/8-24 UNF thread with proper anti-vibration locking measures. Ensure the connector interface is clean and dry prior to mating; apply threaded sealing compound only to case threads, avoiding electrical contact surfaces. Maintain separation from other probes to minimize electromagnetic coupling. Ground the outer shield of the coaxial cable at the Proximitor sensor end only, leaving the probe end floating to avoid ground loops. Verify gap voltage after mechanical installation to confirm correct probe-to-target spacing.
