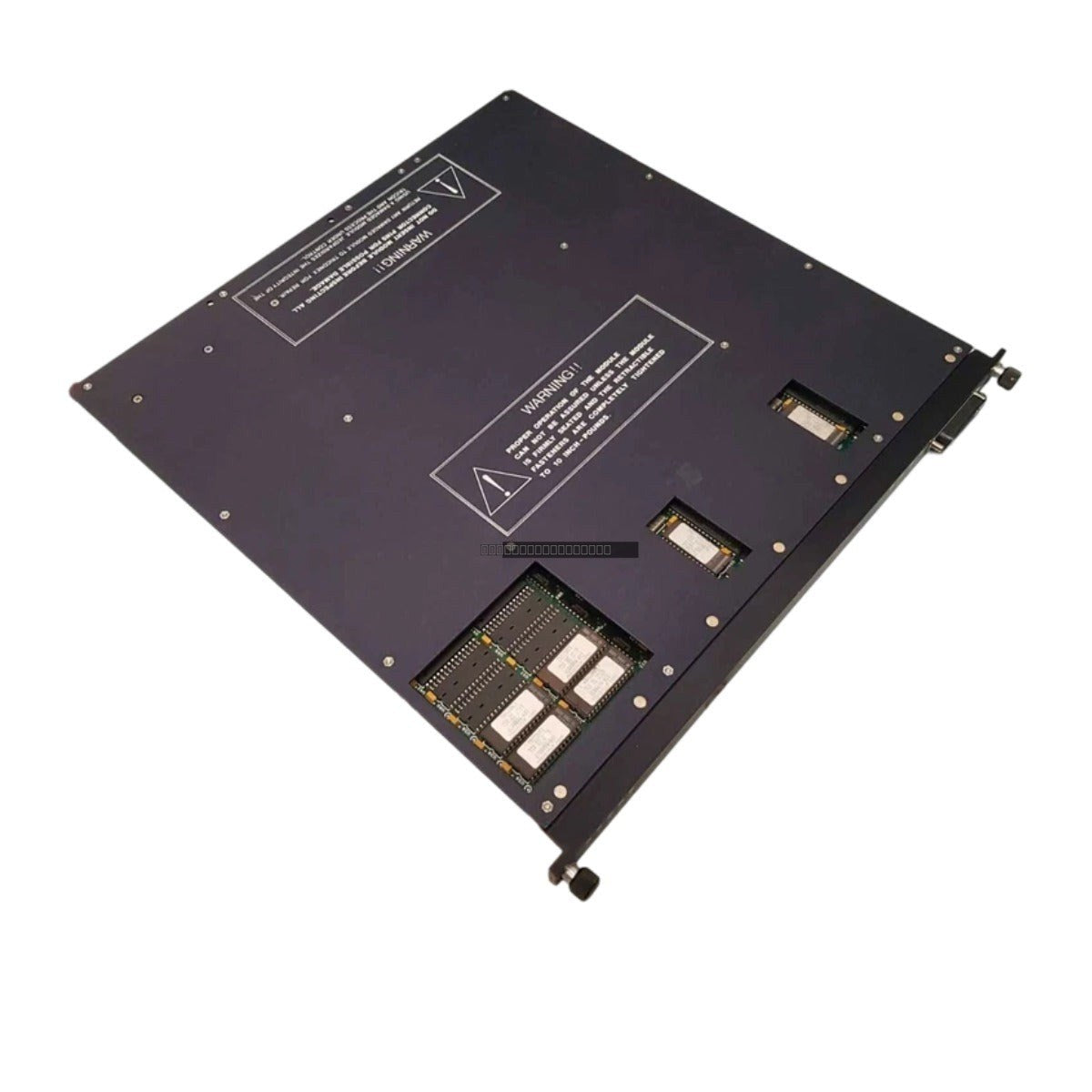

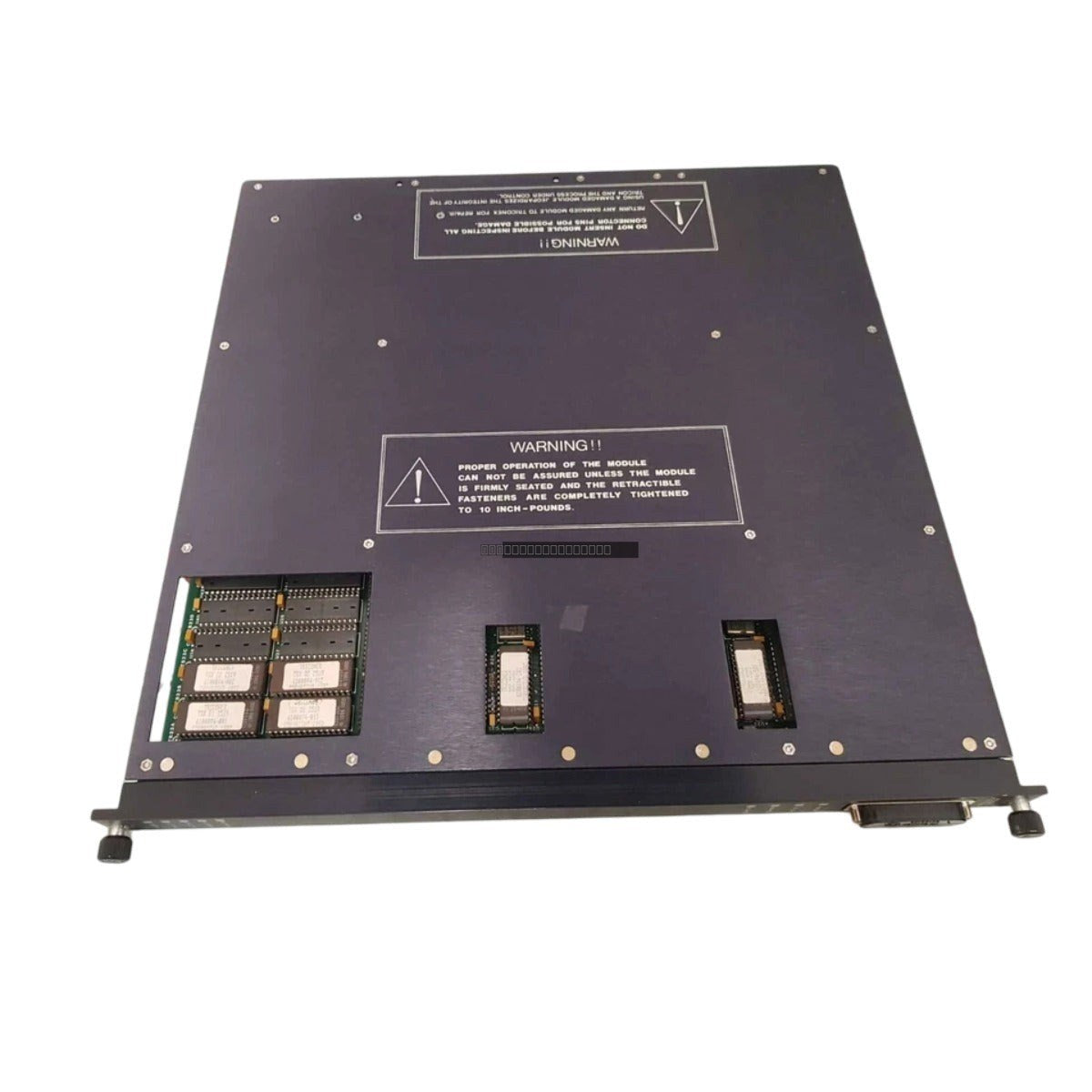

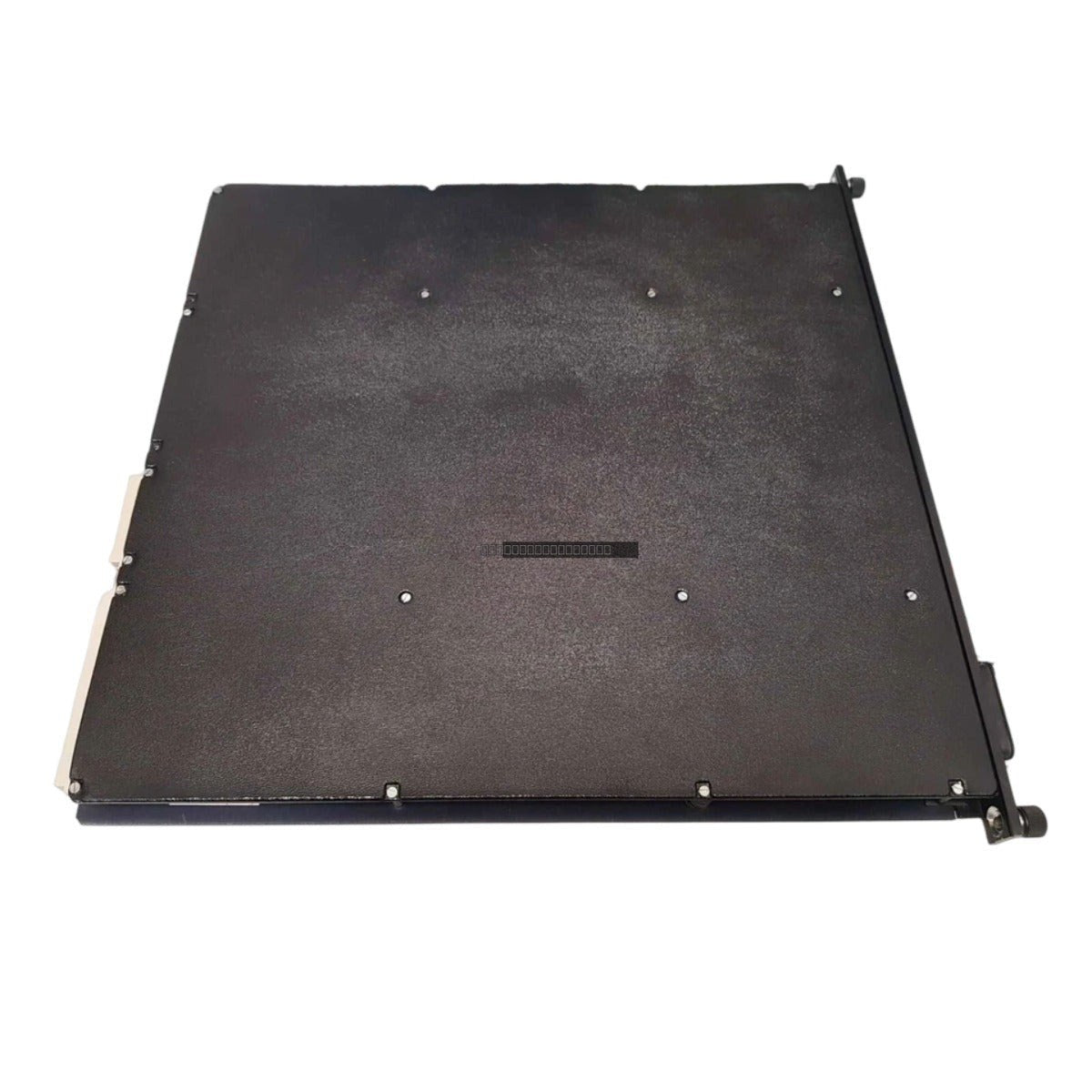

The Triconex 3002 is a specialized Pulse Input Terminal Board engineered for integration within Triconex Triple Modular Redundancy (TMR) safety systems. This terminal board acts as the critical physical interface for high-speed pulse signals, commonly utilized in turbine speed monitoring, flow metering, and rotational equipment diagnostics. It is designed for mission-critical industrial environments, including power generation, oil and gas refineries, and mining operations, where signal integrity is paramount for maintaining SIL 3 functional safety standards.
Features
- Supports 8 high-speed pulse input channels for versatile field connectivity.
- Designed for compatibility with magnetic pickups and active proximity sensors.
- Features integrated surge protection and isolation circuitry to safeguard processor modules from field-side electrical transients.
- Supports redundant cabling configurations to maintain the TMR safety architecture.
- Includes signal conditioning and termination resistors to ensure pulse waveform integrity at high frequencies.
Applications
The 3002 terminal board is primarily deployed in safety-critical applications requiring precise rotational speed measurement and flow totalization. Typical use cases include:
- Turbine overspeed protection systems.
- Rotational equipment monitoring and diagnostics.
- Industrial flow metering and pulse-based process control.
- High-availability safety loops in petrochemical and power plants.
Technical Specifications
| Model |
3002 |
| Brand |
Triconex |
| Module Type |
Pulse Input Terminal Board |
| Input Channels |
8 High-speed Pulse |
| Frequency Range |
1 Hz to 20,000 Hz |
| Operating Temperature |
0 to 60 deg C |
Installation Guidelines
- Ensure the system is powered down before installing or removing the terminal board to prevent electrical damage or system faults.
- Use shielded cabling for all field connections to minimize EMI/RFI interference, especially in high-speed pulse applications.
- Ensure proper grounding of the terminal board chassis to the system common ground to maintain signal integrity and surge protection performance.
- Follow standard ESD (Electrostatic Discharge) handling procedures when touching the board components.
- Verify that field wiring is securely terminated to prevent intermittent signal loss, which could trigger false trips in safety-critical loops.
FAQ
Is the 3002 board compatible with all Triconex systems?
The 3002 is designed for specific Triconex TMR safety systems. Please verify your system chassis and processor compatibility before installation to ensure it meets the requirements of your specific safety loop configuration.
Does this board require external power?
The 3002 serves as a terminal interface. Power requirements for field sensors (such as active proximity sensors) are typically routed through the board from the associated I/O module or external power supply. Refer to your specific system wiring diagram for power distribution details.
