Description

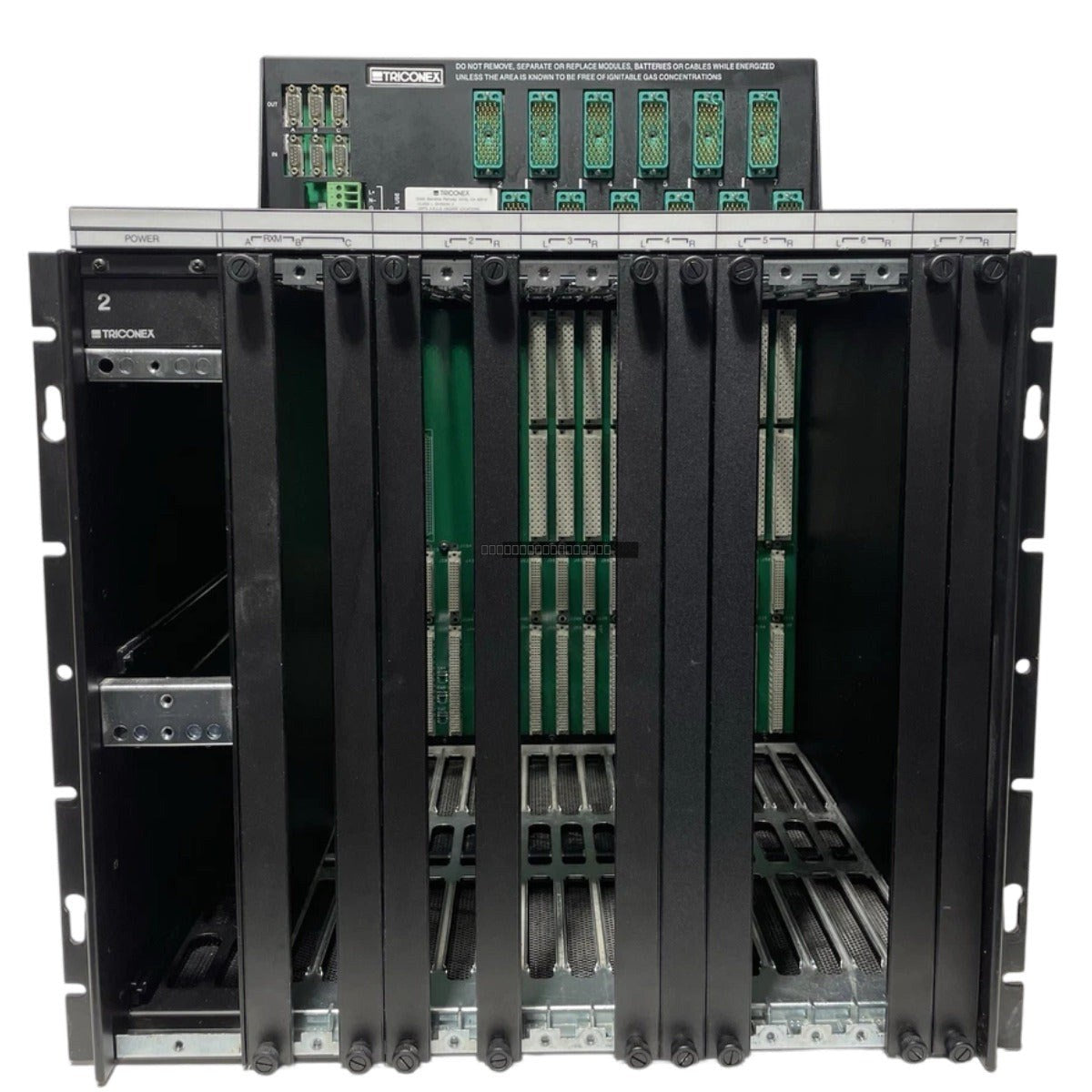

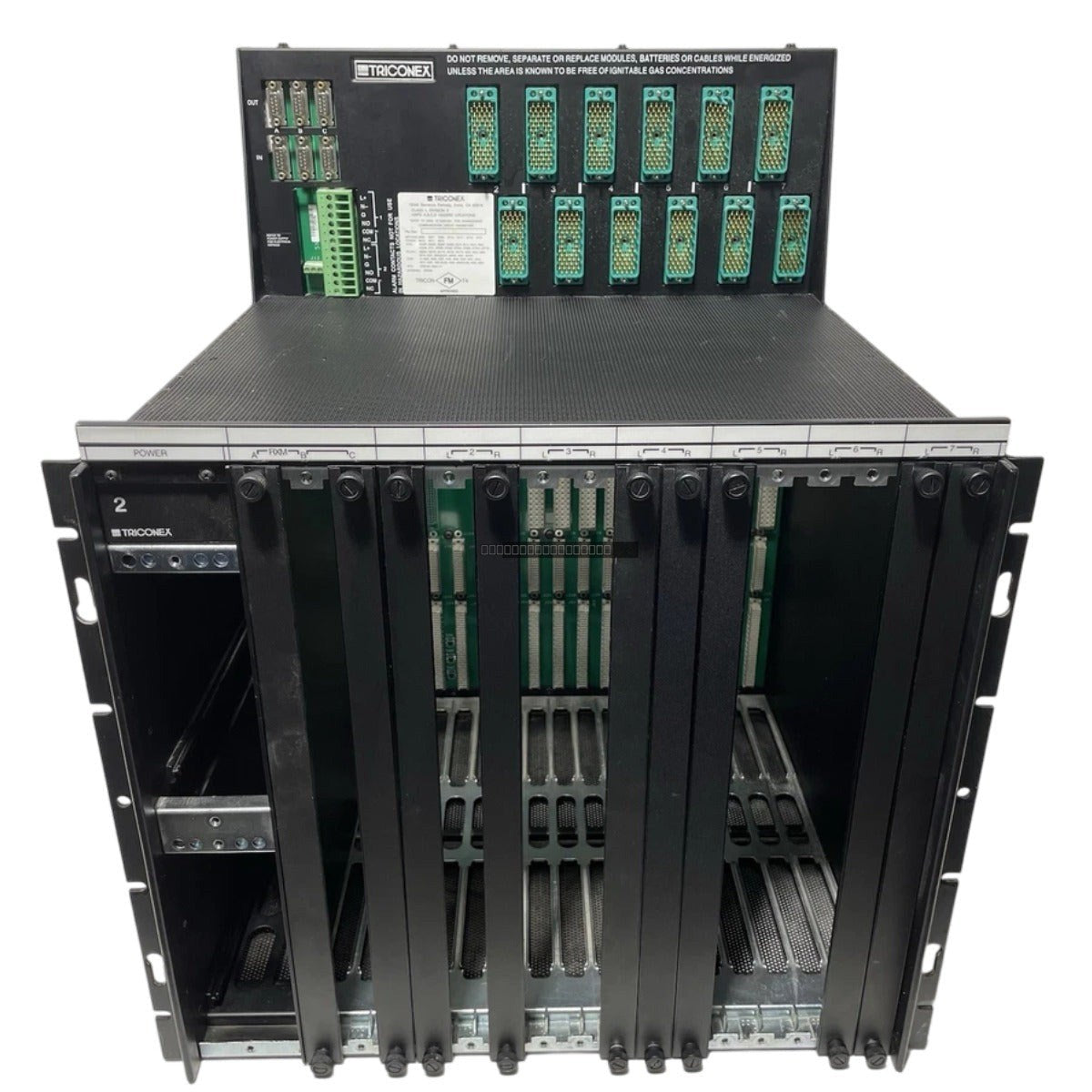

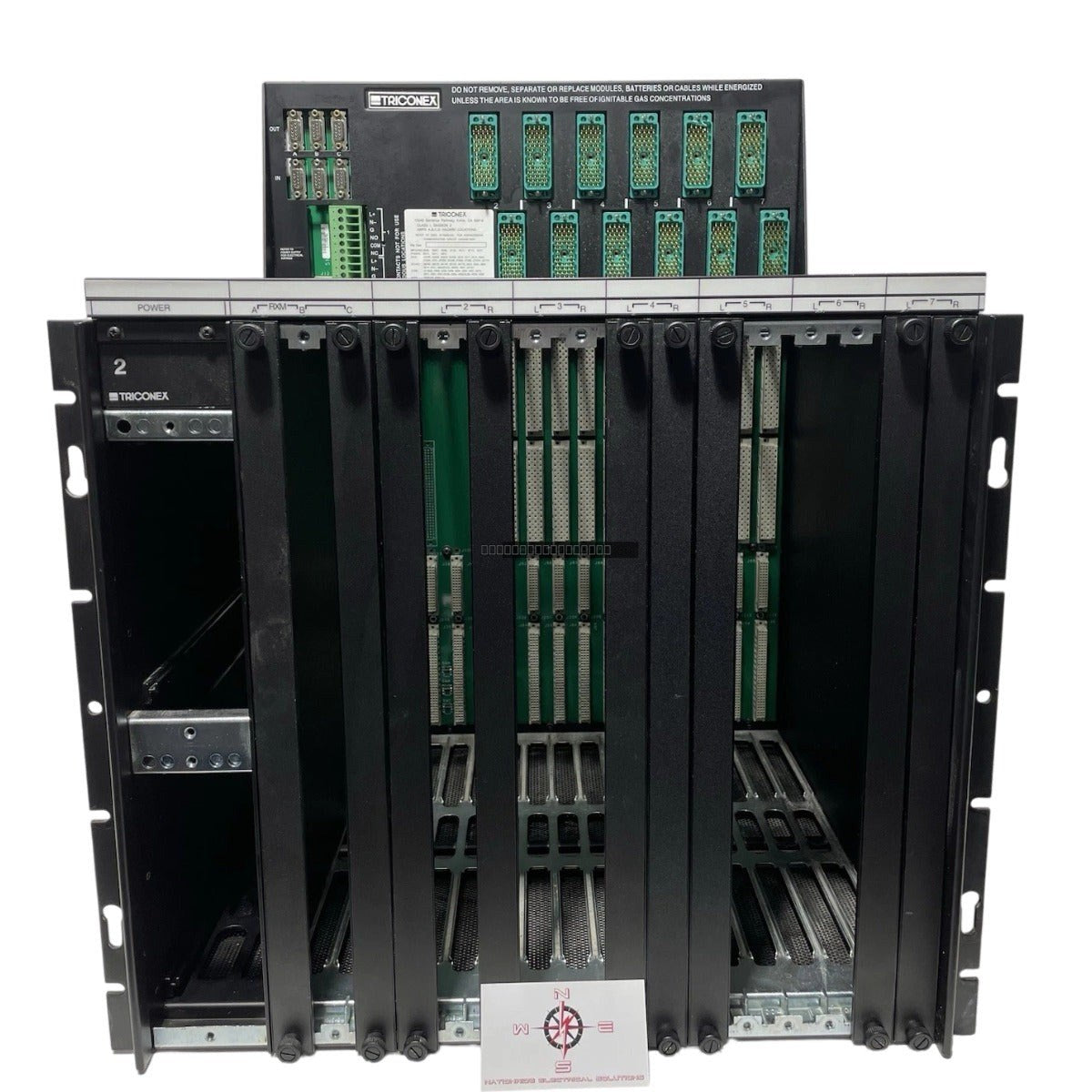

The Triconex 3000604-100 is a robust, high-density chassis designed specifically for Invensys Triconex safety systems. This unit functions as the primary or expansion infrastructure, providing the necessary mechanical support and electrical backplane connectivity for Triple Modular Redundancy (TMR) architectures. It is engineered to maintain system stability in demanding industrial environments, including petrochemical plants, offshore energy installations, and large-scale manufacturing facilities where safety instrumented functions (SIF) are critical.
Features
- Supports TMR (Triple Modular Redundancy) architecture for high-availability safety applications.
- High-speed passive backplane ensures reliable communication between Main Processors and I/O modules.
- Dual-power rail design facilitates redundant power supply configurations.
- Integrated shielding per slot to mitigate electromagnetic interference (EMI) between logic and field signals.
- Constructed from industrial-grade reinforced steel and aluminum alloy for long-term structural integrity.
- Designed for SIL 3 compliance environments.
Applications
This chassis is intended for use in mission-critical safety systems requiring high fault tolerance and continuous operation. It is commonly deployed in emergency shutdown systems (ESD), burner management systems (BMS), and process control applications where unplanned downtime must be strictly avoided.
Technical Specifications
| Model |
3000604-100 |
| Manufacturer |
Invensys Triconex |
| Material |
Reinforced Steel/Aluminum Alloy |
| Operating Temperature |
0 to 60 deg C |
| Weight |
24.9 kg |
Installation Guidelines
- Ensure the chassis is mounted in a clean, vibration-free environment with adequate airflow for thermal dissipation.
- Verify that all power modules are seated correctly to utilize the dual-power rail design.
- Always power down the system before inserting or removing any modules to prevent electrical arcing or damage to the backplane pins.
- Ensure proper chassis grounding to the cabinet earth bus to maintain signal integrity and EMI protection.
- Handle modules using ESD-safe procedures to protect sensitive electronic components during installation or maintenance.
FAQ
Is the 3000604-100 compatible with all Triconex modules?
This chassis is designed to support standard Tricon modular configurations. Please verify specific module compatibility against your system's hardware revision requirements.
Does this chassis include power supplies?
No, the 3000604-100 is the mechanical and backplane chassis only. Power supply modules must be ordered and installed separately.
