Description

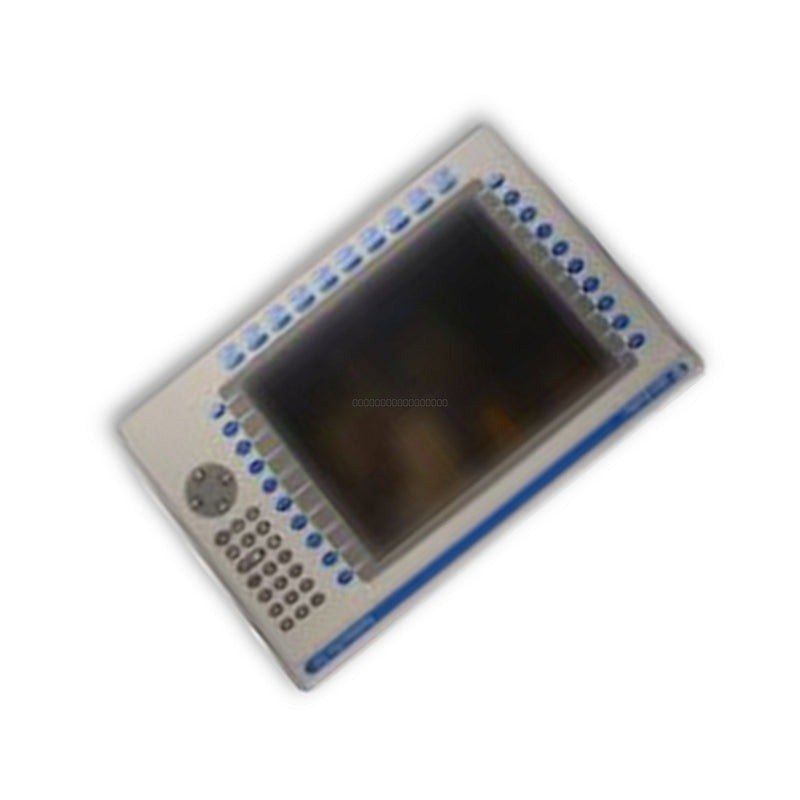

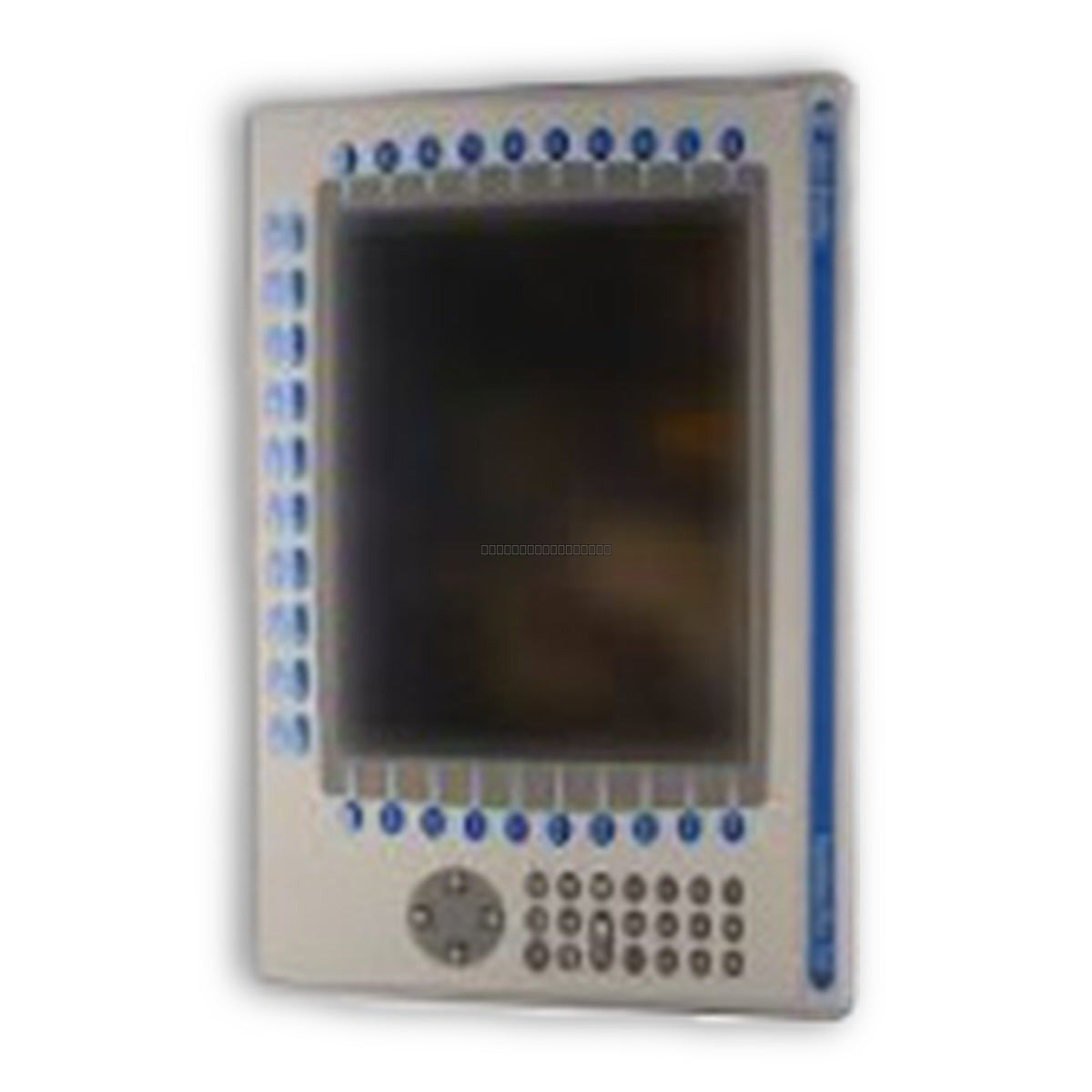

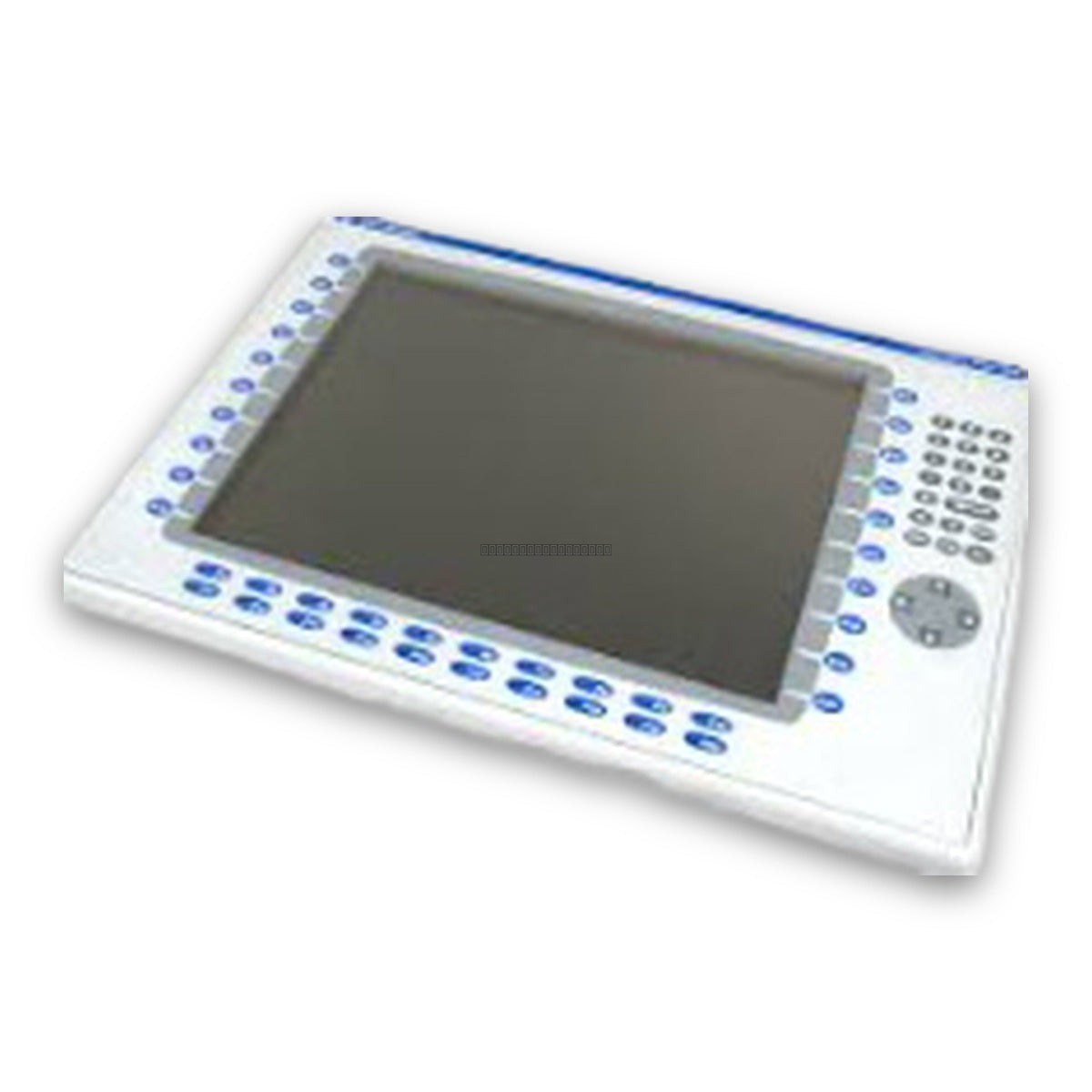

The Allen-Bradley 2711P-K10C6D6 is a high-performance PanelView Plus 1000 operator terminal engineered for reliable human-machine interface (HMI) control in demanding industrial sectors such as power generation, mining, and petrochemical processing. This unit features a 10.4-inch color display and a dedicated keypad input interface, allowing operators to interact directly with controller data and monitor real-time process variables efficiently.
Features
- 10.4-inch color display for clear visualization of process data and diagnostic information.
- Dedicated keypad interface for robust input control in industrial environments.
- Integrated support for legacy DH+ and DH-485 communication protocols.
- 128 MB of internal memory for runtime operations, alarm logging, and screen development.
- PC memory card slot for efficient firmware updates and data management.
- Field-replaceable backlight (2711P-RL10C) to extend operational lifespan.
Applications
This HMI terminal is designed for integration into legacy Allen-Bradley control architectures. It is suitable for applications requiring point-to-point or multi-node networking, providing immediate diagnostic feedback and reliable input handling to reduce system downtime in critical automation environments.
Technical Specifications
| Brand |
Allen-Bradley |
| Model |
2711P-K10C6D6 |
| Product Line |
PanelView Plus 1000 |
| Display Size |
10.4 in. |
| Input Type |
Keypad |
| Power Input |
18-32 VDC |
| Memory |
128 MB |
| Communication |
DH+, DH-485 |
| Operating Temperature |
0-55 degC |
| Status |
Discontinued / Obsolete |
Installation Guidelines
- Ensure the unit is mounted in a panel cutout that allows for adequate ventilation and access to the rear communication ports.
- Verify that the power supply is within the 18-32 VDC range and properly fused before connection.
- Use shielded cables (e.g., 1770-CD or 1761-CBL-ASO3) for DH+ and DH-485 communication to minimize EMI interference.
- Power down the system before inserting or removing memory cards or performing maintenance on the backlight assembly.
- Maintain proper grounding practices to protect the terminal from electrical surges and noise.
FAQ
Is the backlight on this unit replaceable?
Yes, the 2711P-K10C6D6 utilizes a field-replaceable backlight, part number 2711P-RL10C, which supports maintenance across various hardware revisions.
What communication protocols does this HMI support?
This model is specifically designed for legacy network support, featuring integrated DH+ and DH-485 communication ports for direct controller connectivity.
Is this unit still in production?
No, the 2711P-K10C6D6 is classified as a discontinued or obsolete product by the manufacturer. We provide these units as reliable replacements for existing legacy systems.
