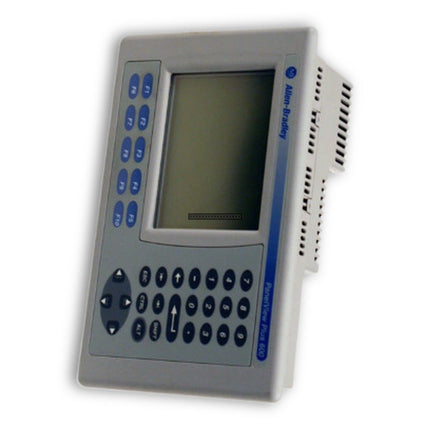

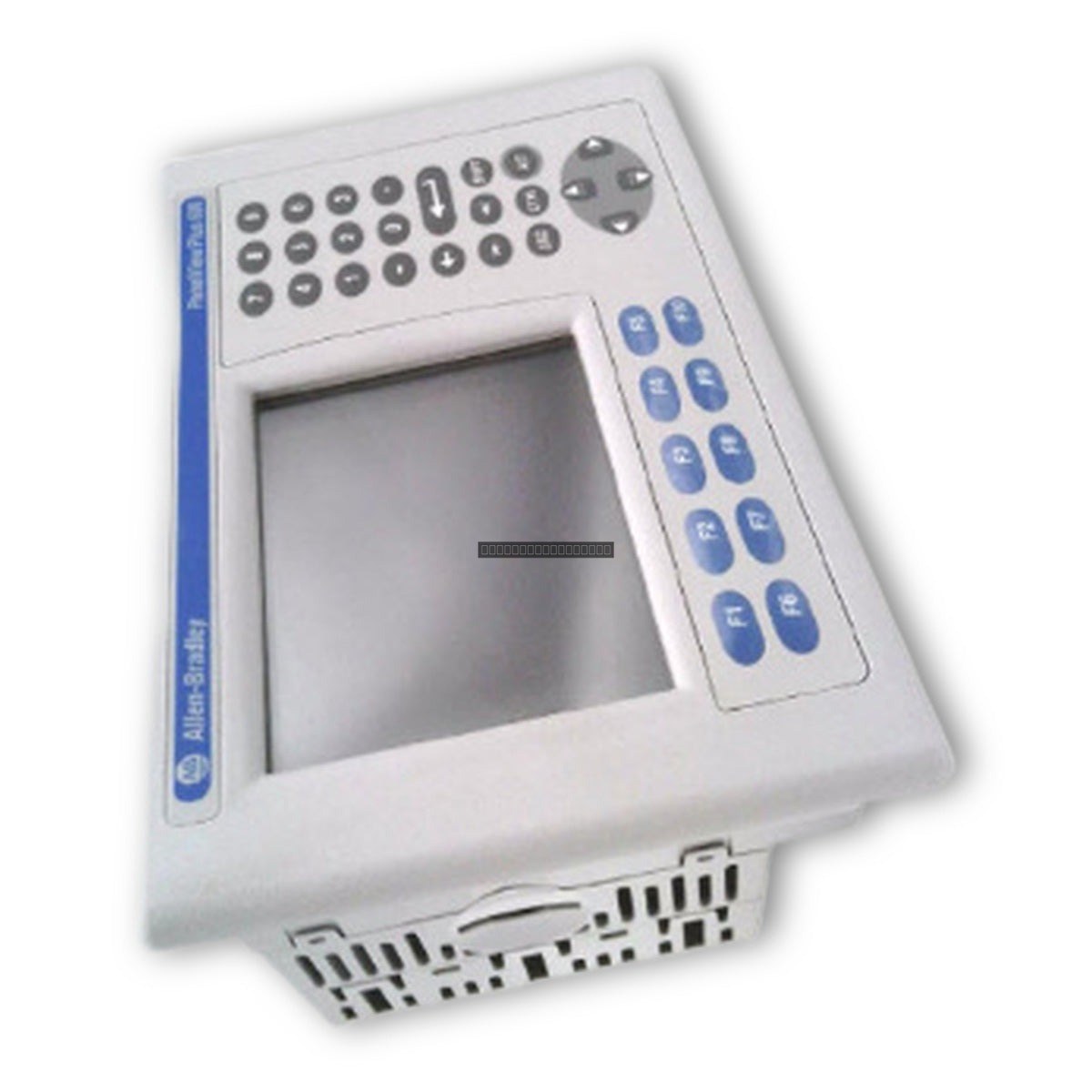

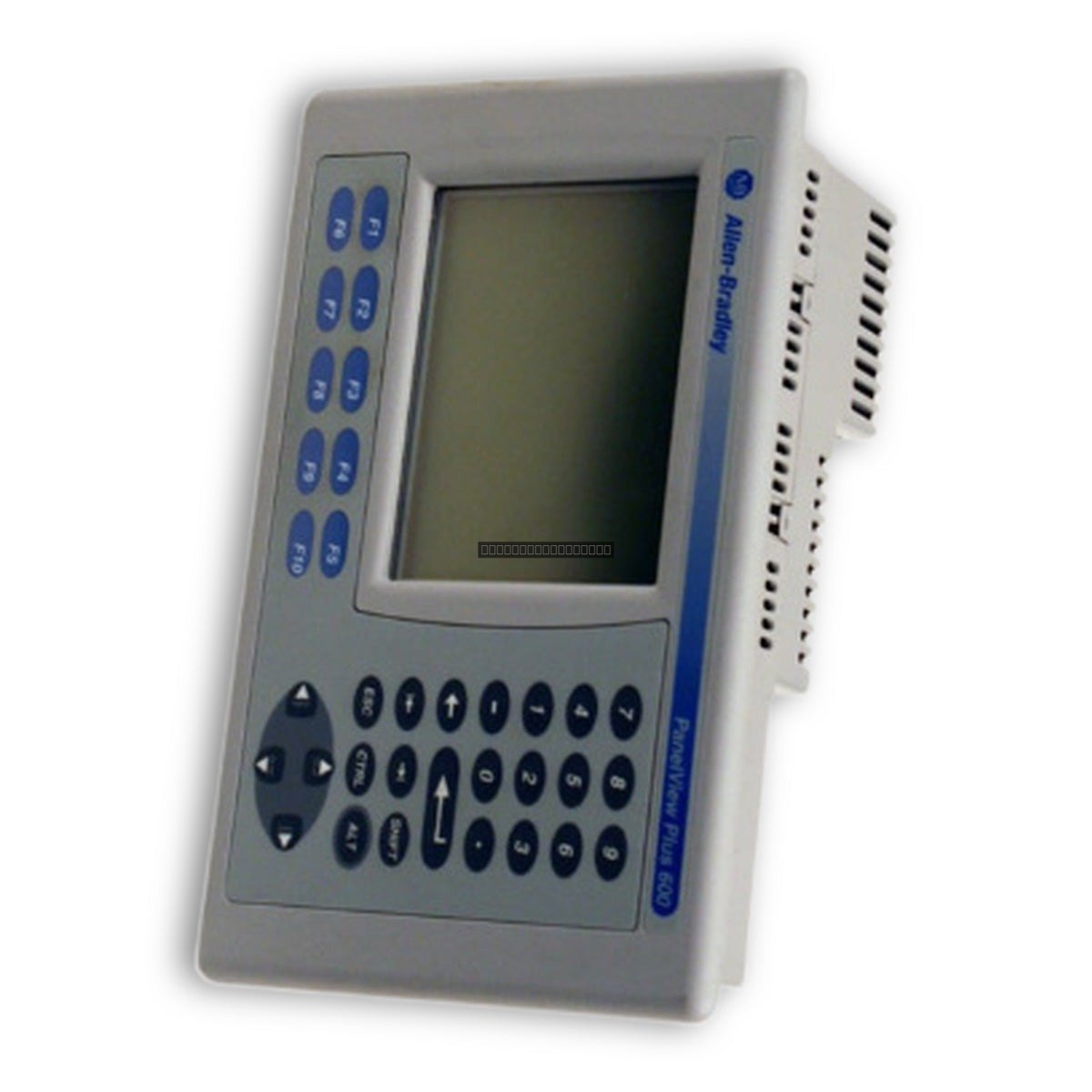

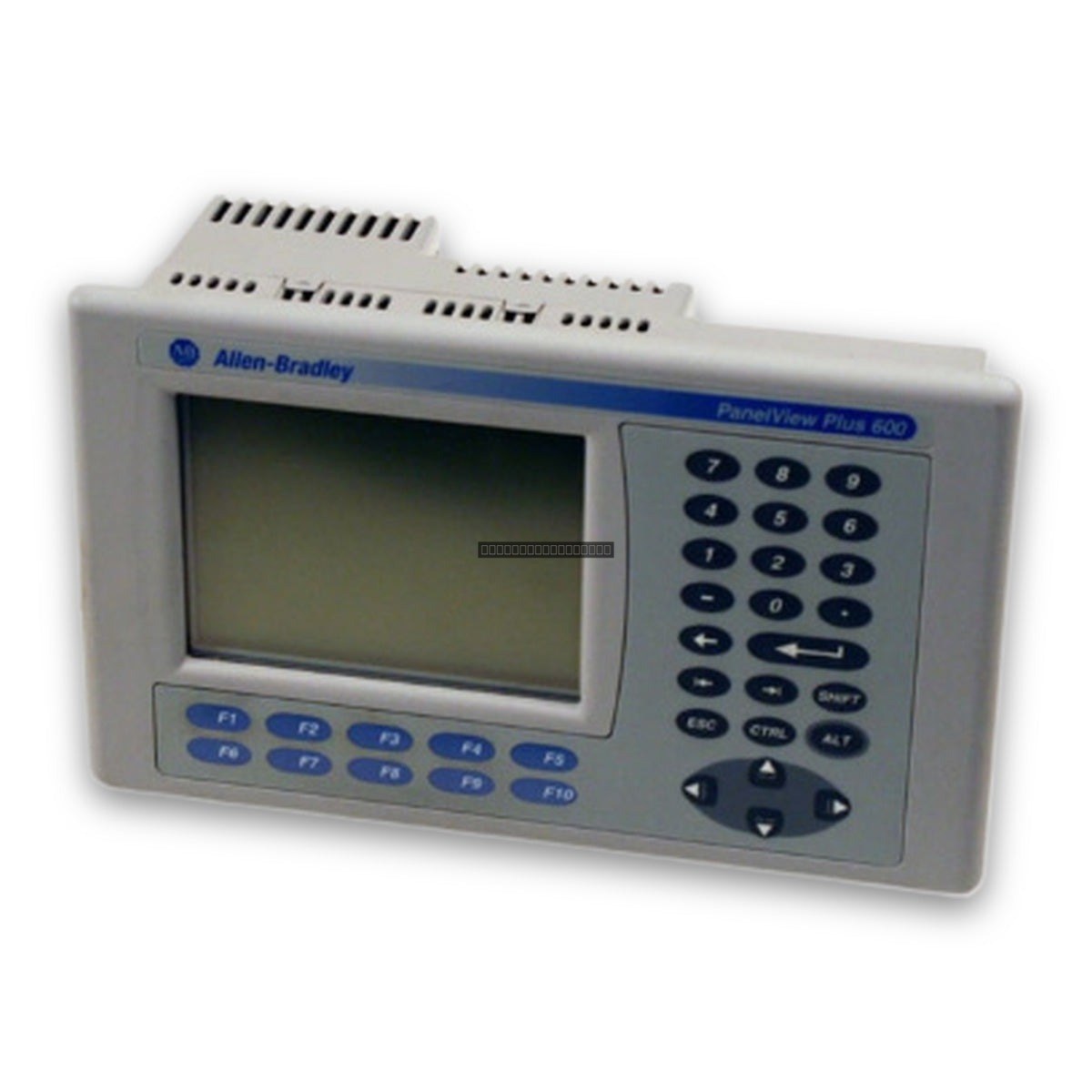

The Allen-Bradley 2711P-B6M5A is a PanelView Plus 600 operator interface terminal engineered for industrial automation environments. This HMI unit provides a reliable visualization solution for monitoring and controlling machinery, offering a balance of tactile and visual feedback. Designed for legacy system integration, it supports standard AC power inputs and provides essential communication interfaces for factory floor connectivity.
Features
- 5.7-inch monochrome display with 320 x 240 pixel resolution for clear process data visualization.
- Dual-input interface featuring both a physical keypad and an analog resistive touchscreen.
- Integrated RS-232 serial communication and USB port for peripheral device connectivity and configuration tasks.
- Robust enclosure design suitable for standard industrial panel mounting.
Applications
This operator interface is suitable for a wide range of industrial applications, including packaging machinery, material handling systems, and general factory automation control panels where monochrome visualization and reliable keypad input are required.
Technical Specifications
| Model |
2711P-B6M5A |
| Brand |
Allen-Bradley |
| Display Type |
Monochrome |
| Input Voltage |
100-240 VAC |
| Power Frequency |
50/60 Hz |
| Power Consumption |
35 W |
| Operating Temperature |
0 deg C to 55 deg C |
| Enclosure Rating |
IP54 |
| Weight |
0.94 kg |
Installation Guidelines
- Ensure the panel cutout is prepared according to the manufacturer's specifications to maintain the IP54 enclosure rating.
- Verify that the power supply is within the 100-240 VAC range before connecting to the unit.
- Use shielded communication cables for RS-232 connections to minimize electromagnetic interference (EMI) in high-noise industrial environments.
- Maintain adequate clearance around the unit to ensure proper ventilation and prevent overheating during operation.
- Always power down the system before performing any wiring, maintenance, or module replacement to prevent electrical hazards.
FAQ
Is the 2711P-B6M5A still in production?
No, this model is considered a discontinued product. We provide these units as spare parts for legacy system maintenance.
Does this unit support color graphics?
No, the 2711P-B6M5A features a monochrome display specifically designed for high-contrast text and simple graphical visualization.
