Description
Description

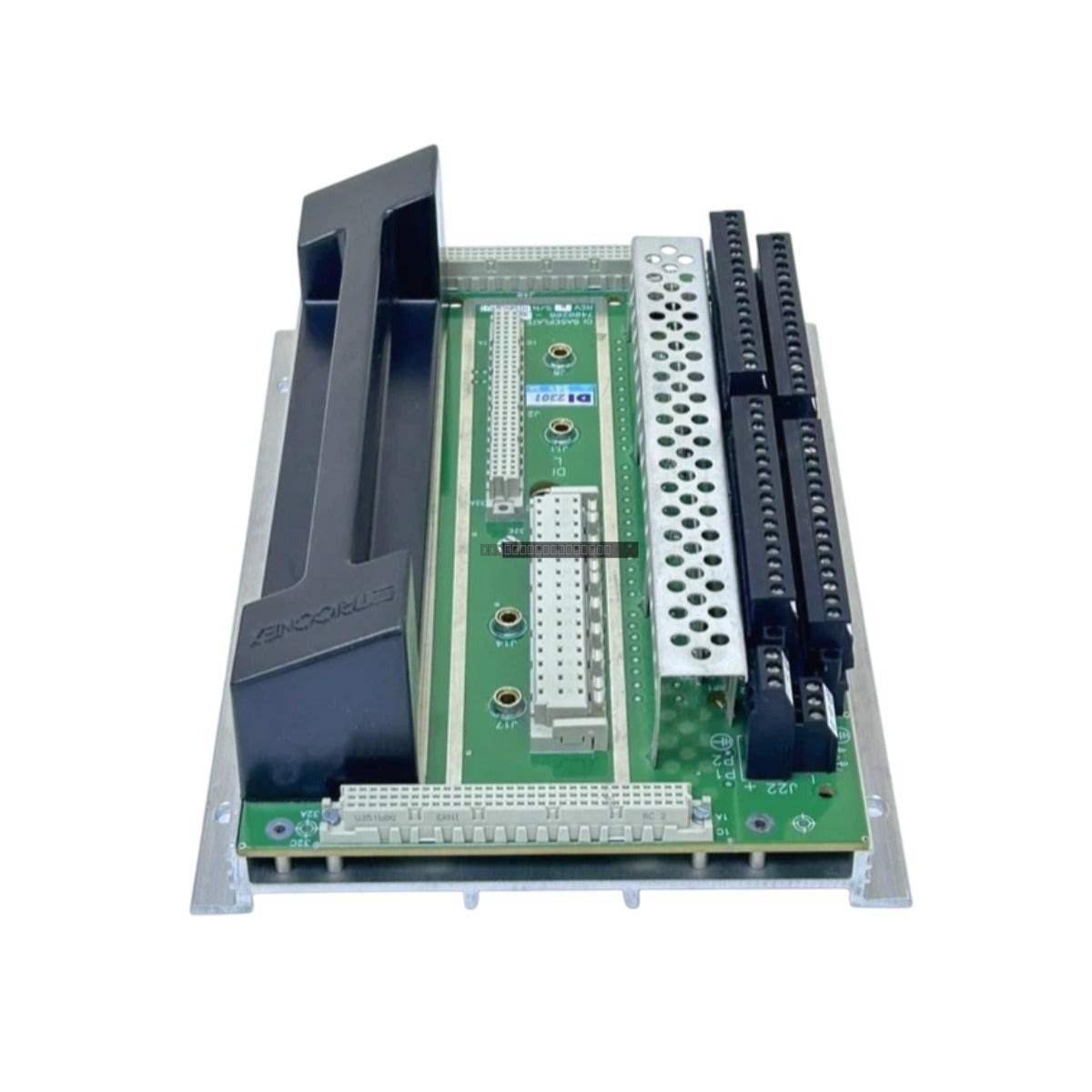

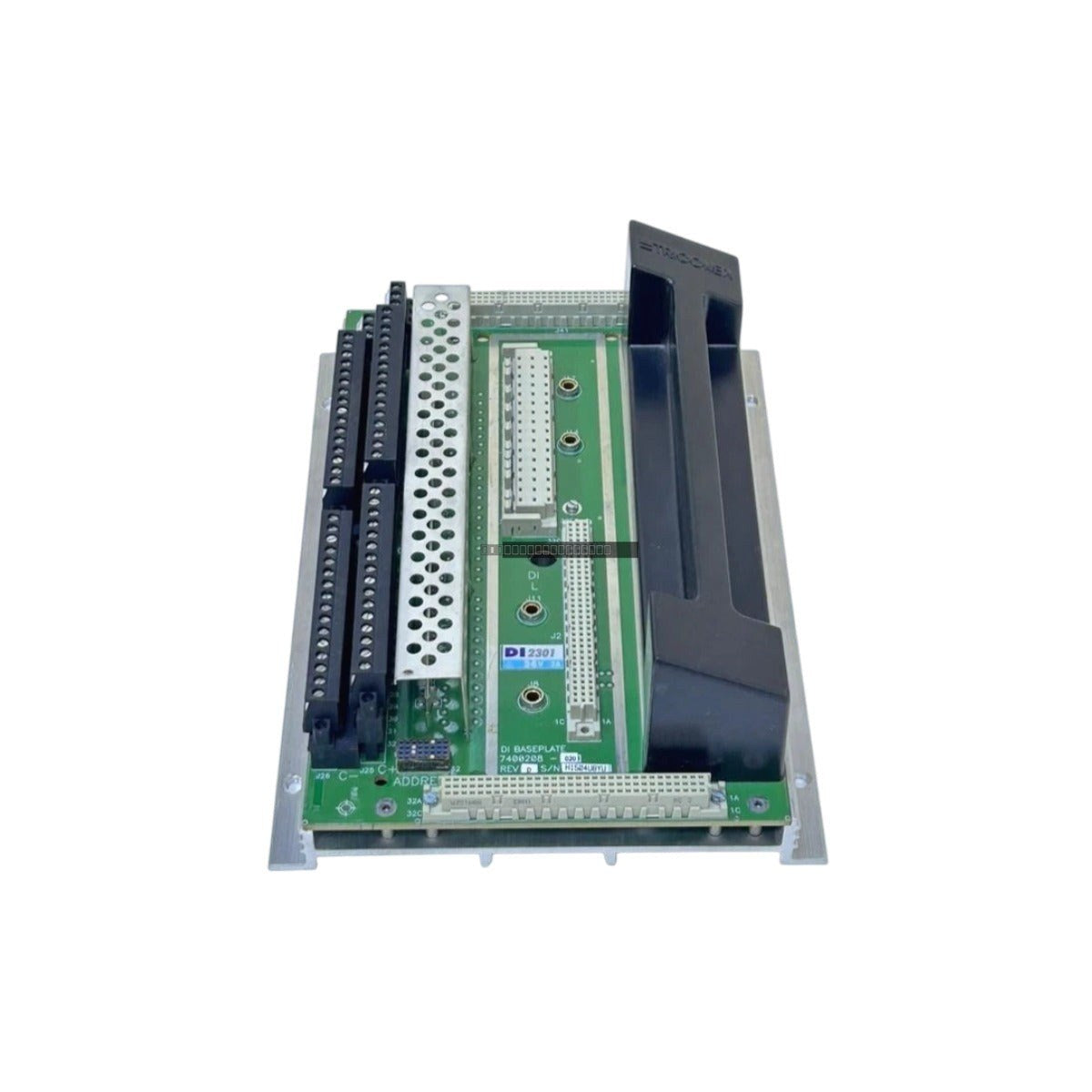

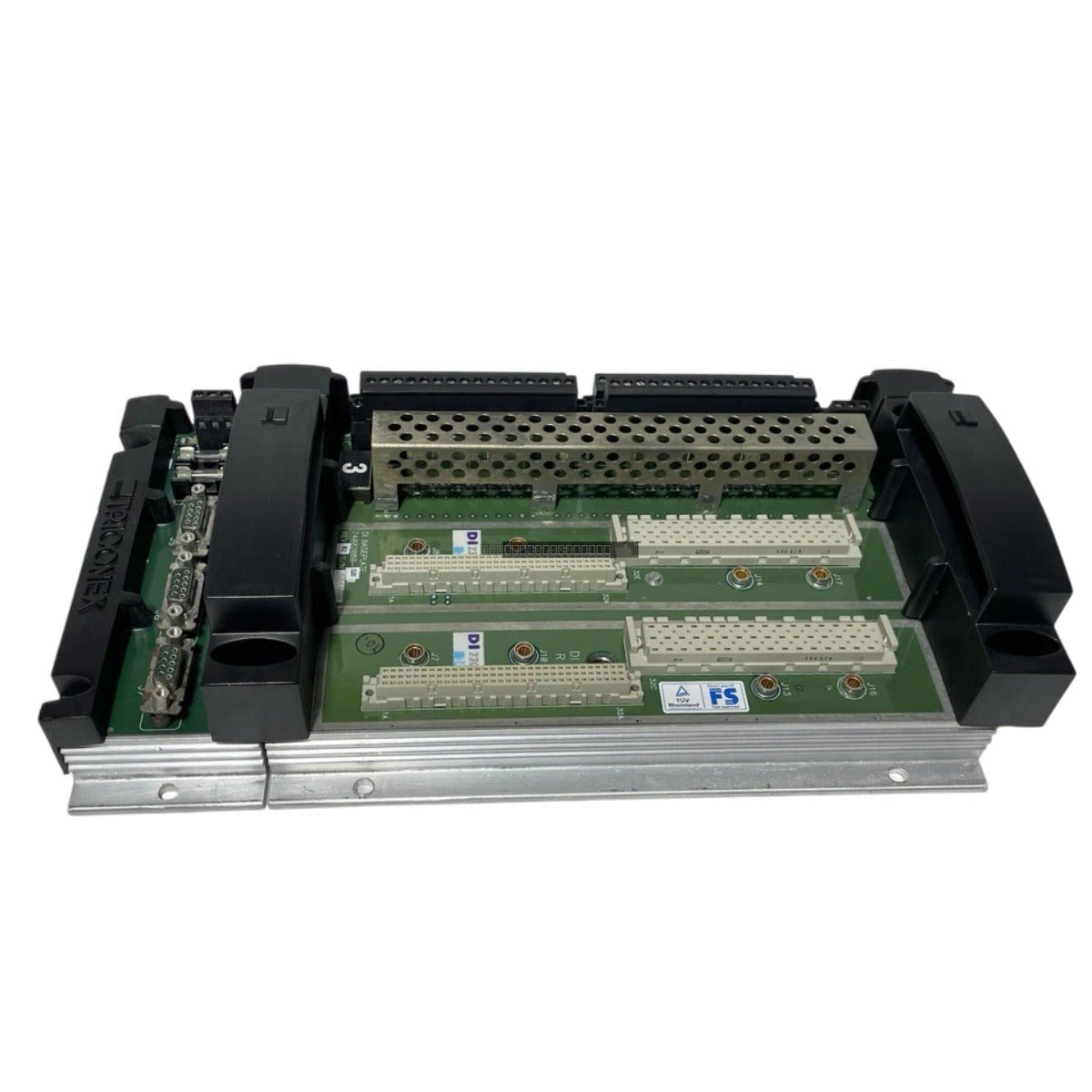

The Triconex 2301 is a high-reliability Analog Output Baseplate designed to provide the physical mounting and secure electrical interface for analog control loops within Tricon systems. This passive backplane hardware structure manages critical interface pathways, routing diagnostic and signal lines from analog modules directly to field termination assemblies. It operates reliably in demanding industrial sectors such as petroleum refining, chemical processing, power plants, and mining operations. By offering dual-redundant routing paths and supporting hot-swappable module insertion, this component prevents system dropouts, protects final control elements, and lowers unscheduled plant downtime.
Bus Architecture and Routing Infrastructure
The structural PCB design incorporates independent trace routing for power distribution and signal loops to isolate critical system vectors. Dual 24 VDC power lines route separately across the chassis backplane to deliver continuous power to each assigned slot, ensuring zero control interruption if one power rail defaults. Built-in signal isolating mechanisms protect the inner Tricon logical bus from external field transients and inductive feedback from control loops. The heavy-duty structural design minimizes thermal accumulation and withstands steady vibrations typical of heavy industrial equipment enclosures.
Technical Specifications
| Brand |
Invensys Triconex |
| Model |
2301 |
| Series |
Tricon System |
| Module Type |
Analog Output Baseplate |
| Operating Temperature |
-20 to 60 deg C |
| Net Weight |
3.15 kg |
Installation Guidelines
- Ensure the Tricon system is powered down before installing or removing any modules from the baseplate.
- Mount the baseplate securely within the designated Tricon chassis to ensure proper alignment of the backplane connectors.
- Verify that all field wiring is properly terminated and secured to the field termination assemblies before applying power.
- Maintain proper ventilation within the cabinet to ensure the operating temperature remains within the specified -20 to 60 deg C range.
- Follow standard ESD (Electrostatic Discharge) mitigation procedures when handling the baseplate or associated modules.
- Ensure all grounding connections are intact to protect against EMI and transient surges.
FAQ
What is the primary function of the Triconex 2301?
The 2301 serves as a passive backplane that provides the physical mounting and electrical routing for analog output modules, facilitating communication between the Tricon controller and field devices.
Does this baseplate support redundant power?
Yes, the 2301 features dual 24 VDC power line routing to ensure continuous operation and high availability for critical control loops.
Is this component hot-swappable?
Yes, the baseplate is designed to support the hot-swapping of Triconex analog output modules, allowing for maintenance without interrupting the overall system process.
