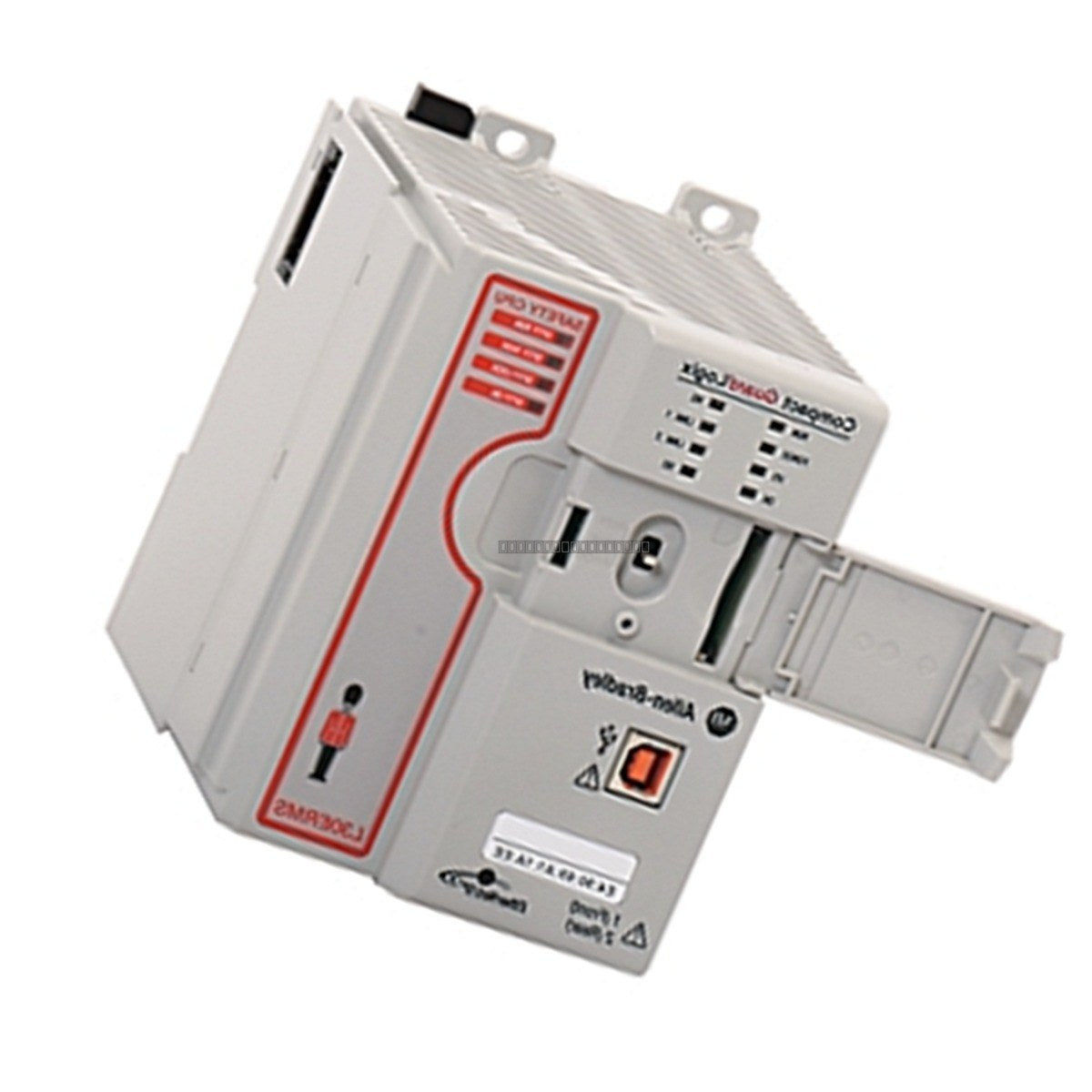

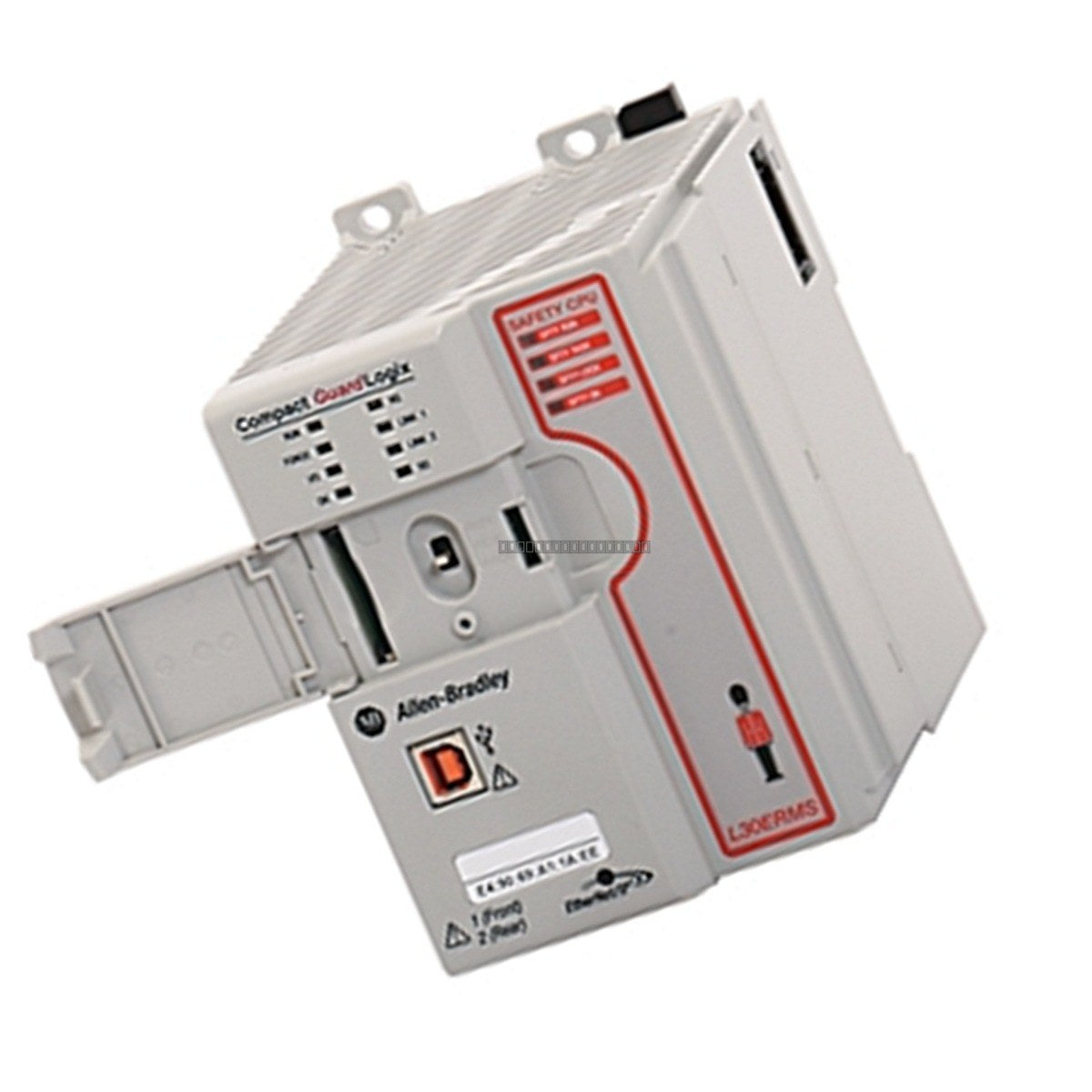

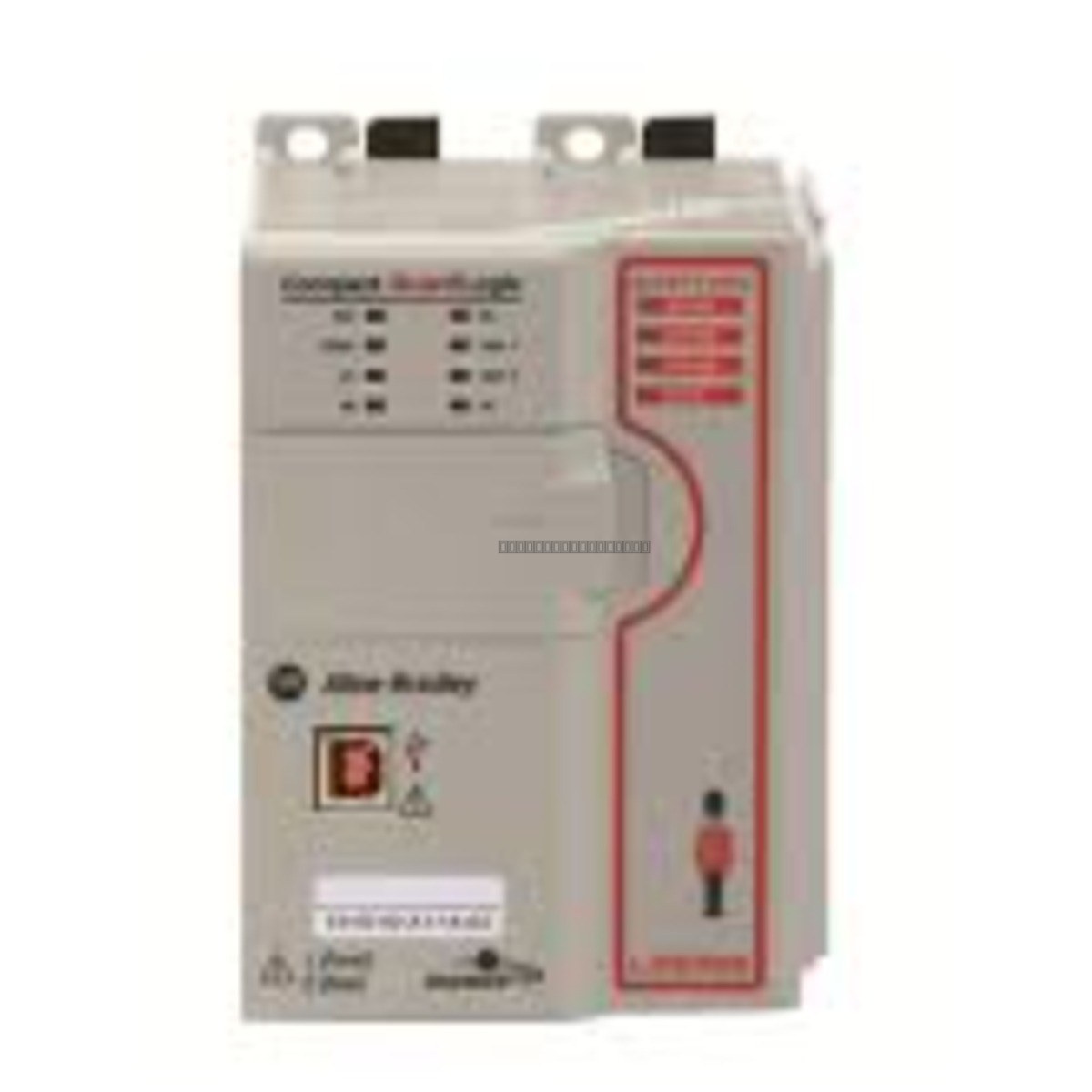

The Allen-Bradley 1769-L36ERMS is a Compact GuardLogix controller designed for applications requiring integrated safety and standard control. As part of the CompactLogix 5370 series, this processor provides high-performance control in a compact form factor, making it suitable for distributed I/O and motion control applications. This controller supports integrated motion over EtherNet/IP and includes safety functionality to meet demanding industrial automation requirements.
Features
- Integrated safety and standard control in a single controller
- Dual Ethernet ports supporting EtherNet/IP for device-level ring (DLR) or linear topologies
- Integrated motion control for up to 4 axes
- USB port for local programming and configuration
- Supports up to 8 local 1769 I/O modules
- Compact design for space-constrained control cabinets
Applications
This controller is widely utilized in machine automation, packaging systems, material handling, and assembly lines where both standard logic and safety-rated control are required within a single, integrated platform.
Technical Specifications
| Product Model |
1769-L36ERMS |
| Product Type |
Compact GuardLogix Controller |
| Memory |
3 MB Standard / 1.5 MB Safety |
| Communication Ports |
2 x EtherNet/IP, 1 x USB |
| Integrated Motion |
4 Axes |
| Max Local I/O Modules |
8 |
| Operating Temperature |
0 to 60 degC (32 to 140 degF) |
| Vibration (Operating) |
10 to 500 Hz, 5G, 0.030 in. peak-to-peak |
Installation Guidelines
- Ensure the controller is mounted in a clean, dry, and well-ventilated enclosure to maintain operating temperature limits.
- Use shielded twisted-pair cabling for EtherNet/IP connections to minimize EMI interference.
- Power down the system before inserting or removing the controller or any I/O modules from the rack.
- Ensure proper grounding of the DIN rail and the controller chassis to a common earth ground to prevent electrical noise issues.
- Handle with ESD precautions; use a grounded wrist strap when handling internal components or connectors.
FAQ
What is the primary difference between the 1769-L36ERMS and standard CompactLogix?
The 1769-L36ERMS is a GuardLogix controller, meaning it is specifically designed to handle both standard and safety-related control tasks, whereas standard CompactLogix controllers are limited to standard logic.
Can I use this controller with existing 1769 I/O modules?
Yes, the 1769-L36ERMS supports up to 8 local 1769 I/O modules. Please ensure your specific I/O modules are compatible with the GuardLogix safety architecture if you are implementing safety functions.
