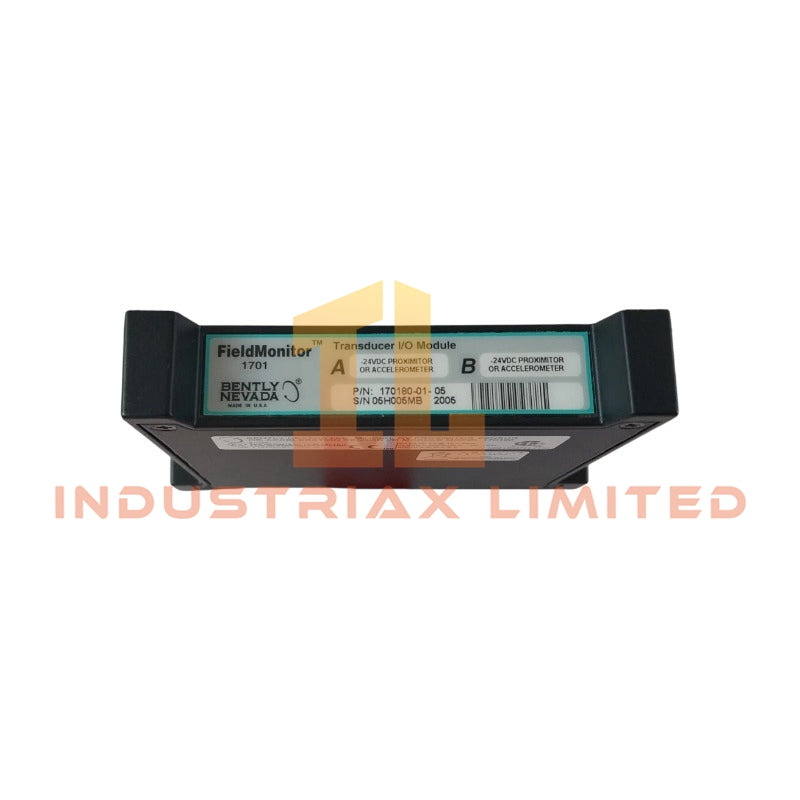

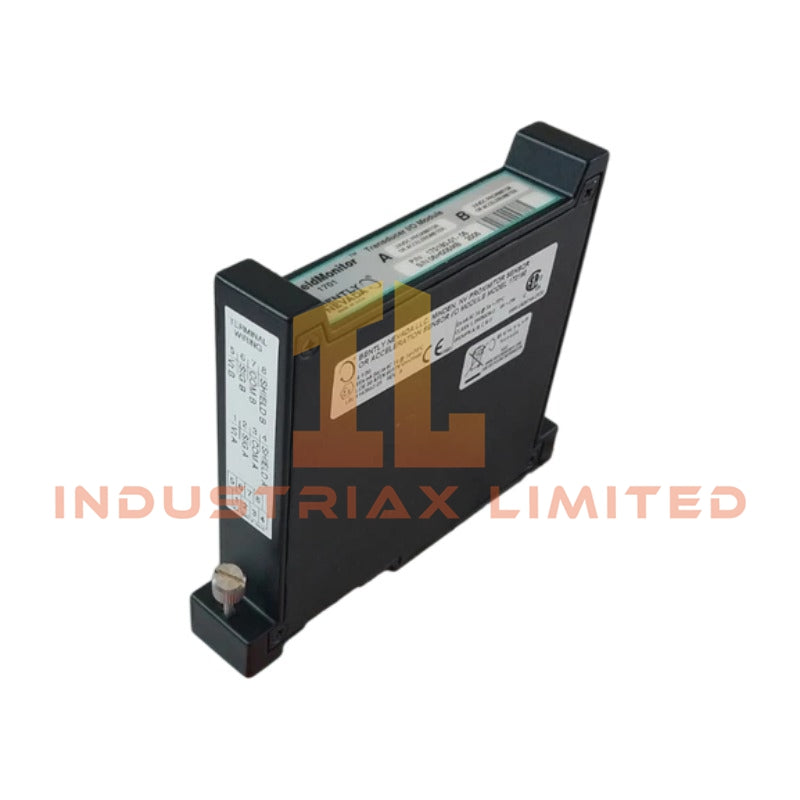

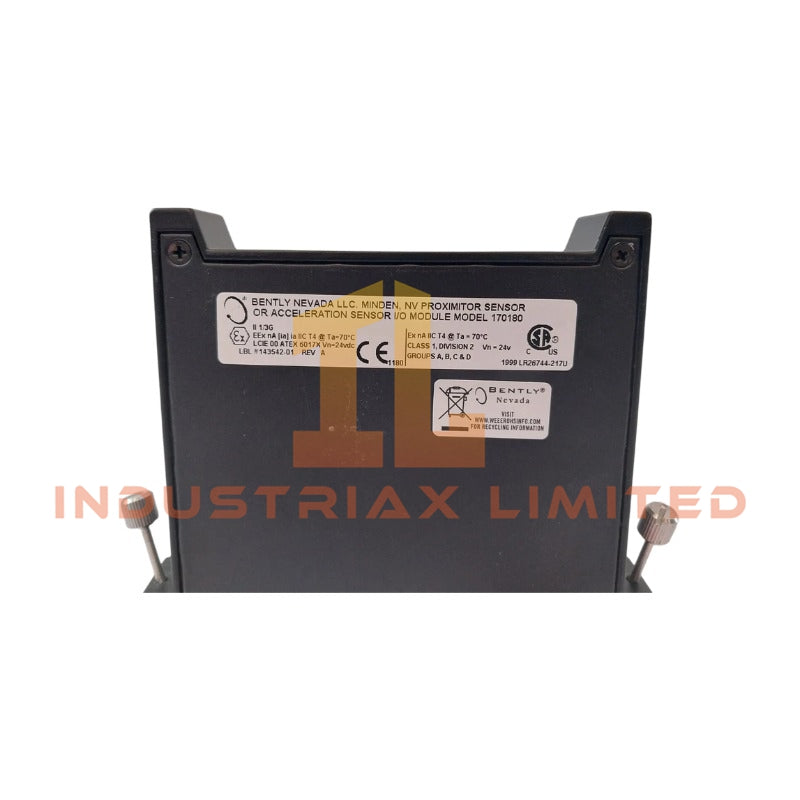

Bently Nevada 170180-01-05 FieldMonitor External Transducer I/O Module Configured for dual-channel transducer signal acquisition in the FieldMonitor system, the Bently...
Read more
Configured for dual-channel transducer signal acquisition in the FieldMonitor system, the Bently Nevada 170180-01-05 (170180 FieldMonitor External Transducer I/O Module) provides direct physical and electrical interface execution for -24 VDC Proximitor or accelerometer inputs. This module is also cataloged as Solar Part Number 1034549-80.
Hardware Specifications
Parameter
Specification
Model
170180-01-05
Brand
Bently Nevada
Series
FieldMonitor External Transducer I/O Module
Product Type
External Transducer I/O Module
Origin
USA
Weight
Approx. 0.60 lbs (272 g)
Dimensions
Approx. 3.1 cm x 19 cm x 12.8 cm
Operating Temp
-40 deg C to +85 deg C
Power Consumption
Approx. 20 mA input current
Channel Configuration
2 independent channels
Input Capacity
Supports up to two transducer inputs
Channel A Input
-24 VDC Proximitor or accelerometer
Channel B Input
-24 VDC Proximitor or accelerometer
Terminal Base Occupancy
One FieldMonitor Terminal Base slot
Output Signal Range
0 to 10 VDC
Measurement Type
Dynamic vibration and static position measurement
Frequency Response
10 Hz to 10 kHz
Accuracy
+/- 1% of full scale
Humidity Range
5% to 95% relative humidity, non-condensing
EMC Compliance
EN 50081-2, EN 50082-2
Eddy-Current Probe Scaling and Gap Signal Processing
The Bently Nevada 170180-01-05 processes proximity and accelerometer signals through two independent input channels. Therefore, each channel maintains separate signal conditioning paths for connected transducers.
The module supports -24 VDC Proximitor operation and allows FieldMonitor systems to acquire vibration and displacement-related signals. In addition, eddy-current probe scaling functions maintain the relationship between probe output voltage and mechanical shaft position measurements.
For proximity measurement applications, gap voltage validation uses the typical Bently Nevada -10 VDC target reference for probe operating condition verification. The module architecture supports accurate rotor dynamics monitoring by preserving vibration waveform characteristics and reducing signal interference between measurement channels.
Frequently Asked Questions
Q: How many transducer inputs can the Bently Nevada 170180-01-05 accept? A: The module provides two independent input channels and accepts up to two transducer inputs through Channel A and Channel B.
Q: Can the 170180-01-05 support both Proximitor and accelerometer inputs? A: Yes. Each channel supports -24 VDC Proximitor or accelerometer signal inputs according to the configured measurement application.
Q: Does the module require a dedicated FieldMonitor Terminal Base position? A: Yes. The 170180-01-05 occupies one slot within a FieldMonitor Terminal Base for mechanical installation and electrical connection.
Field Installation Guidelines
Install the module only in a compatible FieldMonitor Terminal Base slot.
Verify channel configuration before connecting field transducers.
Use shielded instrumentation wiring for vibration and displacement signal connections.
Connect cable shields according to site grounding practices to reduce electrical noise.
Separate transducer signal wiring from high-current power cables and switching circuits.
Confirm Proximitor supply polarity before energizing the module.
Check sensor wiring continuity and insulation resistance before system startup.
Verify gap voltage readings after installation to confirm correct probe positioning.
