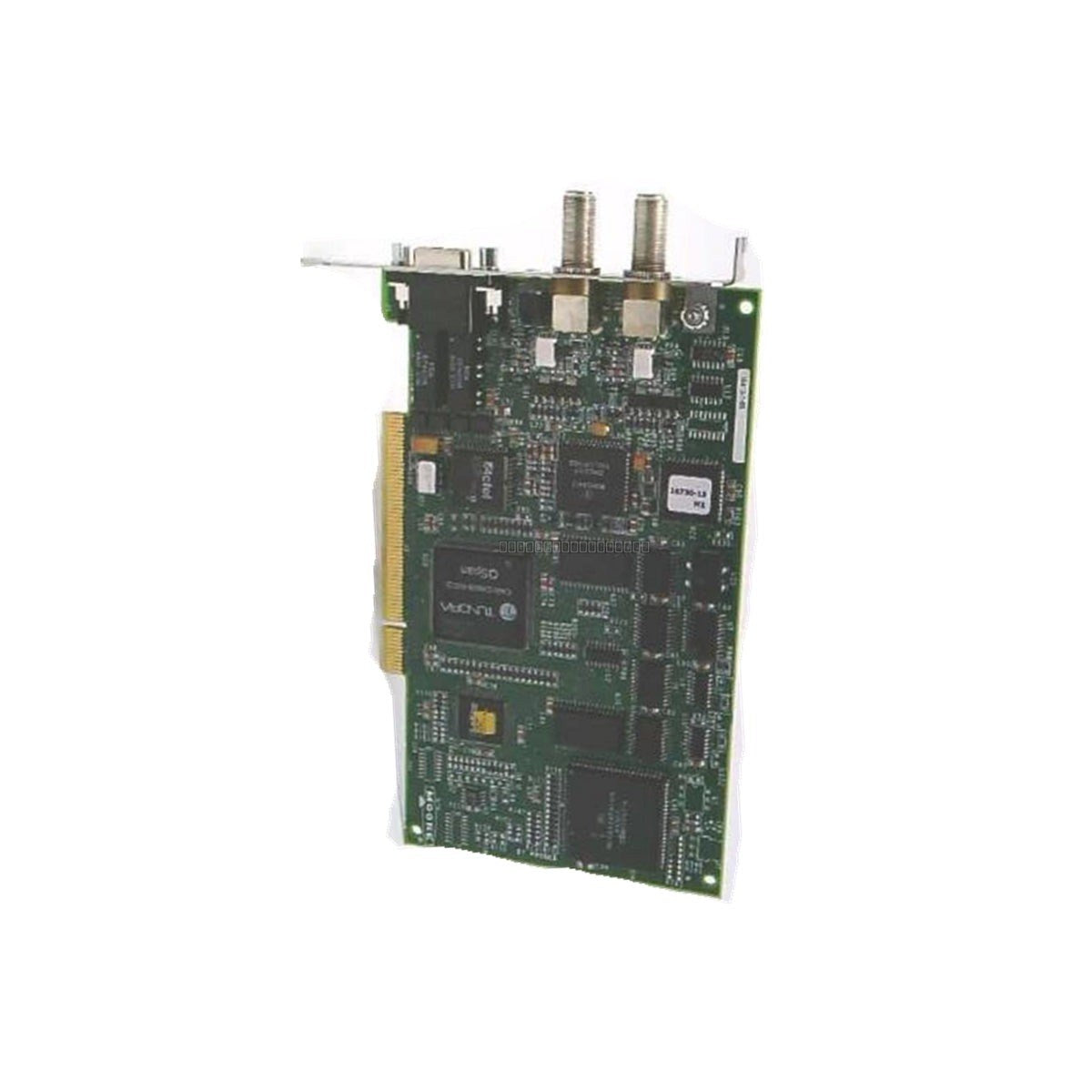

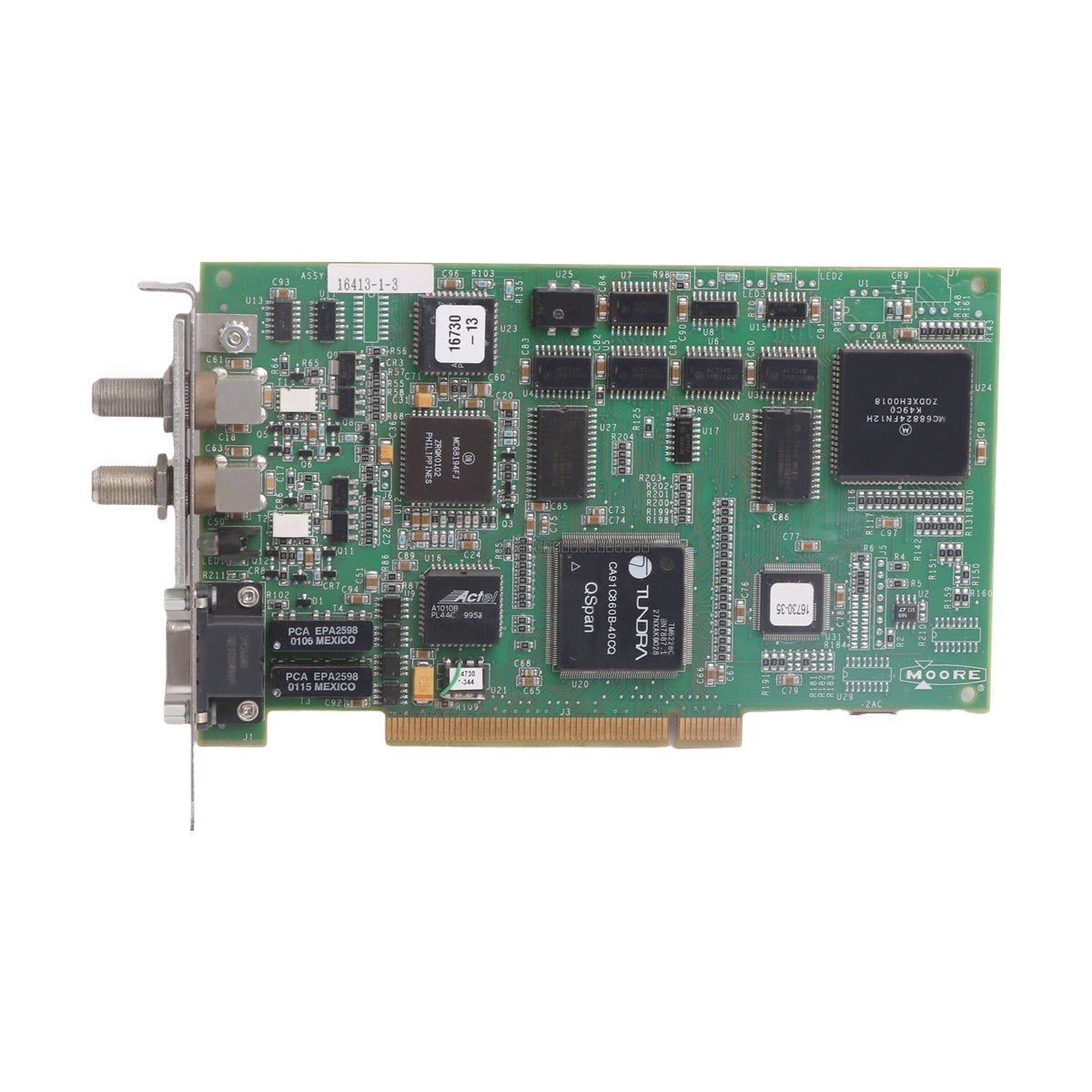

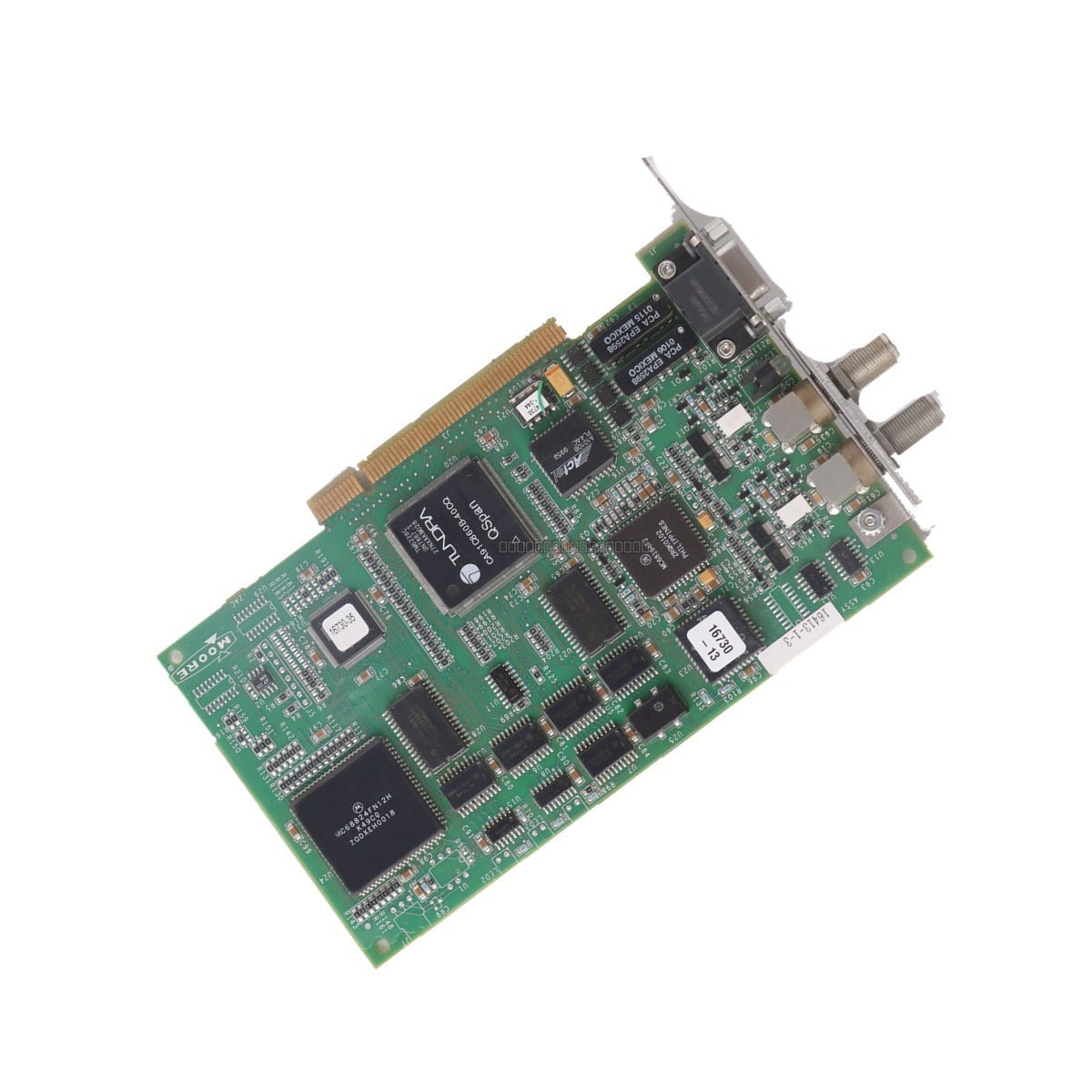

The 16413-1-3 is a high-performance MNI/MBI combo interface card engineered for the Siemens Moore APACS+ distributed control system (DCS). This module facilitates critical communication bridging between the MNET (MODULNET) industrial backbone and the local bus architecture, enabling seamless data exchange between controllers and distributed I/O. In high-stakes environments such as chemical refineries, power generation facilities, and mining processing plants, the 16413-1-3 serves as a vital networking node. By maintaining high-speed deterministic communication, this interface module prevents data bottlenecks and ensures real-time control response, which is essential for maintaining process safety in legacy DCS infrastructures.
Communication Architecture
The hardware architecture of the MNI/MBI card is designed to handle the rigorous data throughput requirements of the APACS+ MODULNET protocol. It provides the physical and logical transition layer necessary for multi-node networking, supporting redundant communication paths to ensure high system availability. The combo card design integrates both Module Network Interface (MNI) and Module Bus Interface (MBI) functionalities, allowing for efficient rack-level integration. This dual-role capability reduces the physical footprint within the DCS cabinet while providing diagnostic feedback to the system engineering station. The circuitry is hardened against electromagnetic interference (EMI), ensuring signal integrity across network segments.
Features
- Integrated MNI and MBI functionality for APACS+ systems.
- Supports high-speed deterministic MNET (MODULNET) communication.
- Redundant communication path support for increased system availability.
- EMI-hardened design for reliable signal integrity.
- Compact form factor for efficient rack-level integration.
Applications
- Chemical and petrochemical processing plants.
- Power generation and distribution control systems.
- Mining and mineral processing automation.
- Legacy DCS infrastructure maintenance and expansion.
Technical Specifications
| Model |
16413-1-3 |
| Brand |
Siemens Moore Products |
| Series |
APACS+ |
| Module Type |
MNI/MBI Interface Card |
| Network Compatibility |
MNET (MODULNET) |
| Operating Temperature |
0 to 55 deg C |
| Storage Temperature |
-40 to 70 deg C |
| Power Consumption |
4.5 W (Typical) |
Installation Guidelines
- Ensure the DCS rack power is disconnected before installing or removing the module.
- Handle the module using ESD-safe practices to prevent damage to sensitive internal circuitry.
- Ensure the module is fully seated in the designated backplane slot to maintain proper MBI/MNI bus contact.
- Route communication cables away from high-voltage power lines and high-EMI sources to maintain signal integrity.
- Verify that the module configuration matches the system engineering station settings upon startup.
FAQ
What is the primary function of the 16413-1-3 module?
The 16413-1-3 acts as a bridge between the MNET (MODULNET) network and the local module bus, allowing controllers to communicate with distributed I/O modules within an APACS+ system.
Is this module compatible with other APACS+ components?
Yes, this module is specifically designed for the Siemens Moore APACS+ series and is intended for use in standard APACS+ rack architectures.
